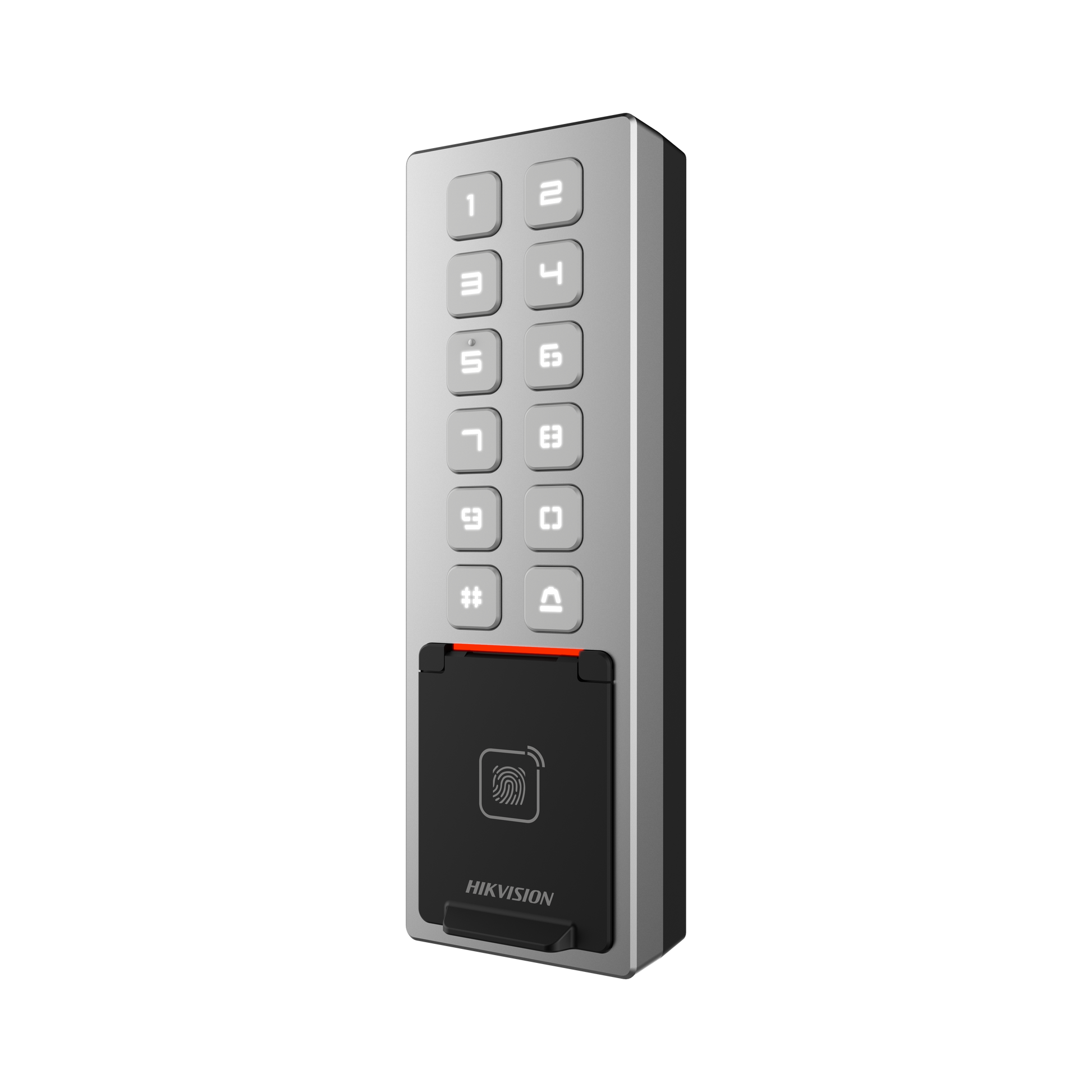

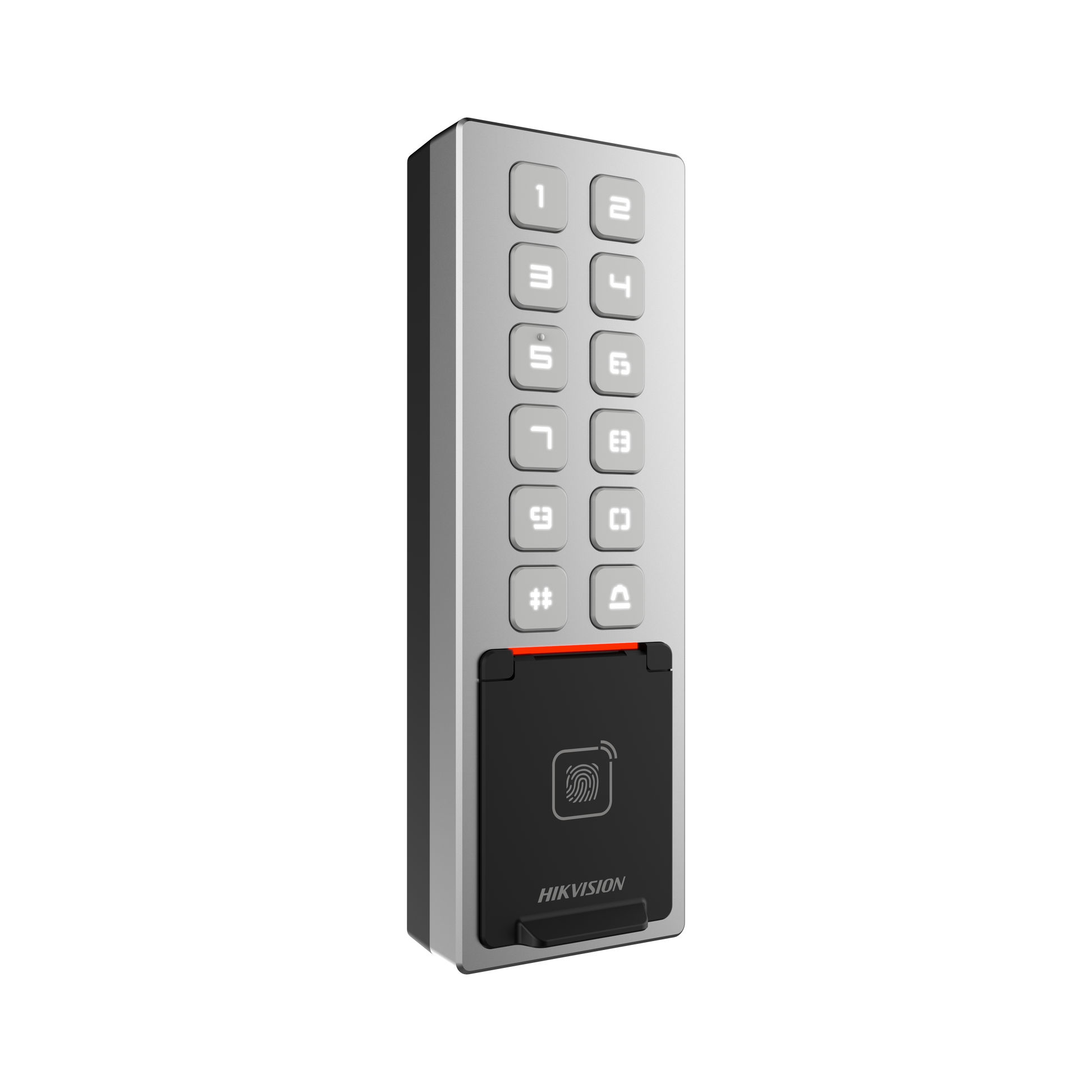

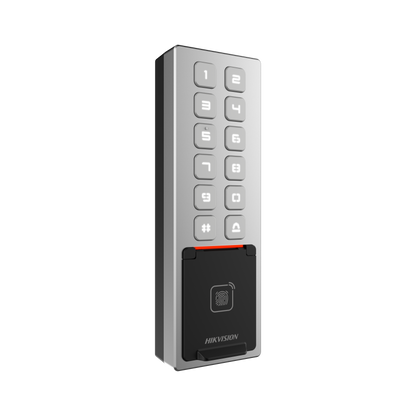

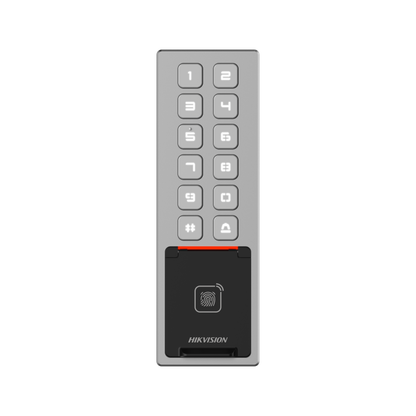

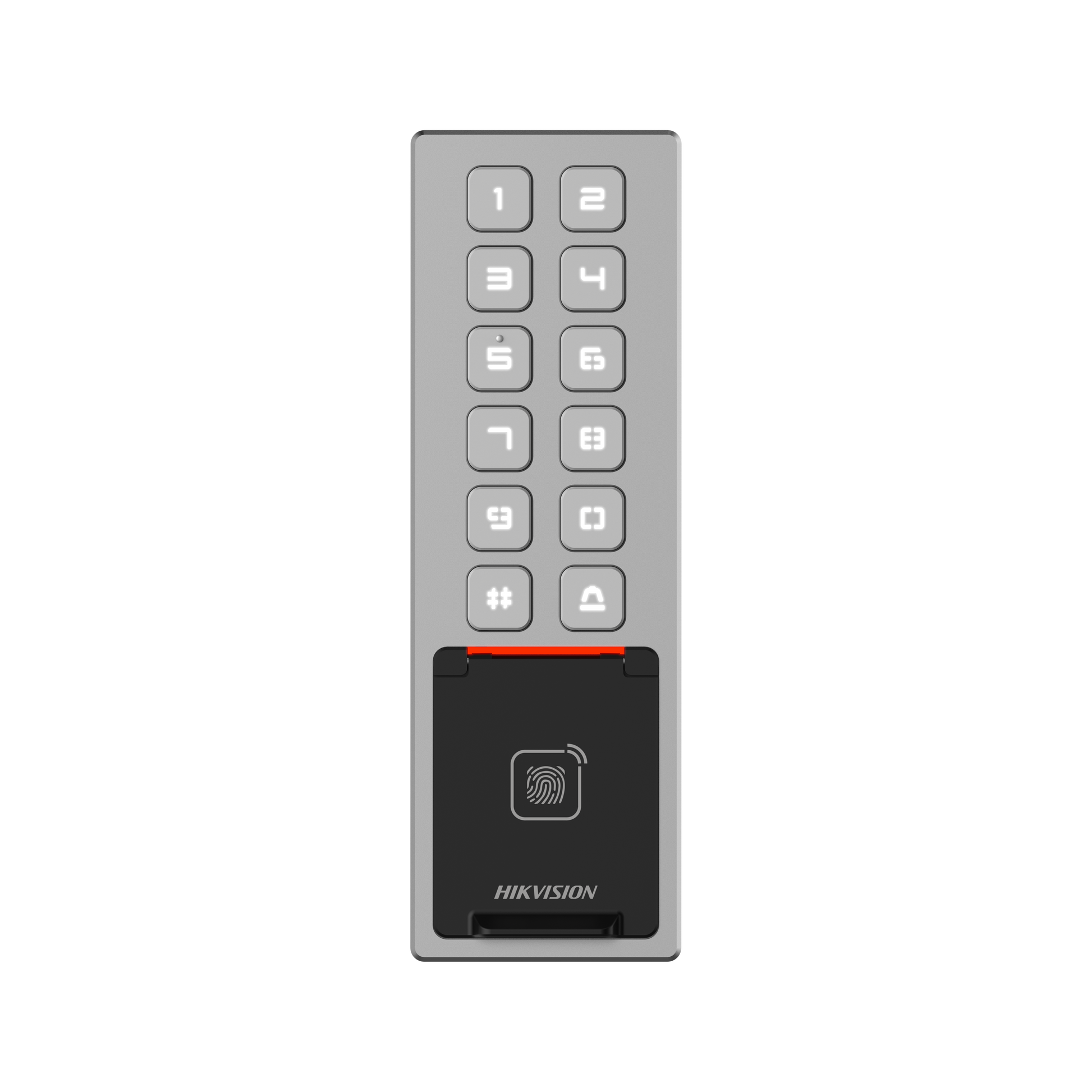

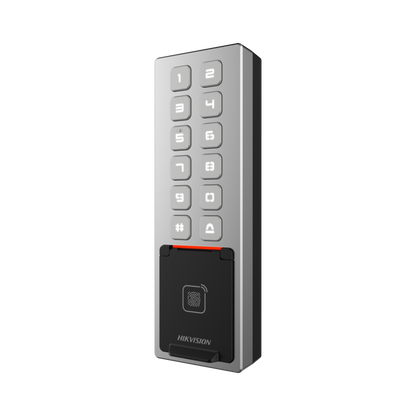

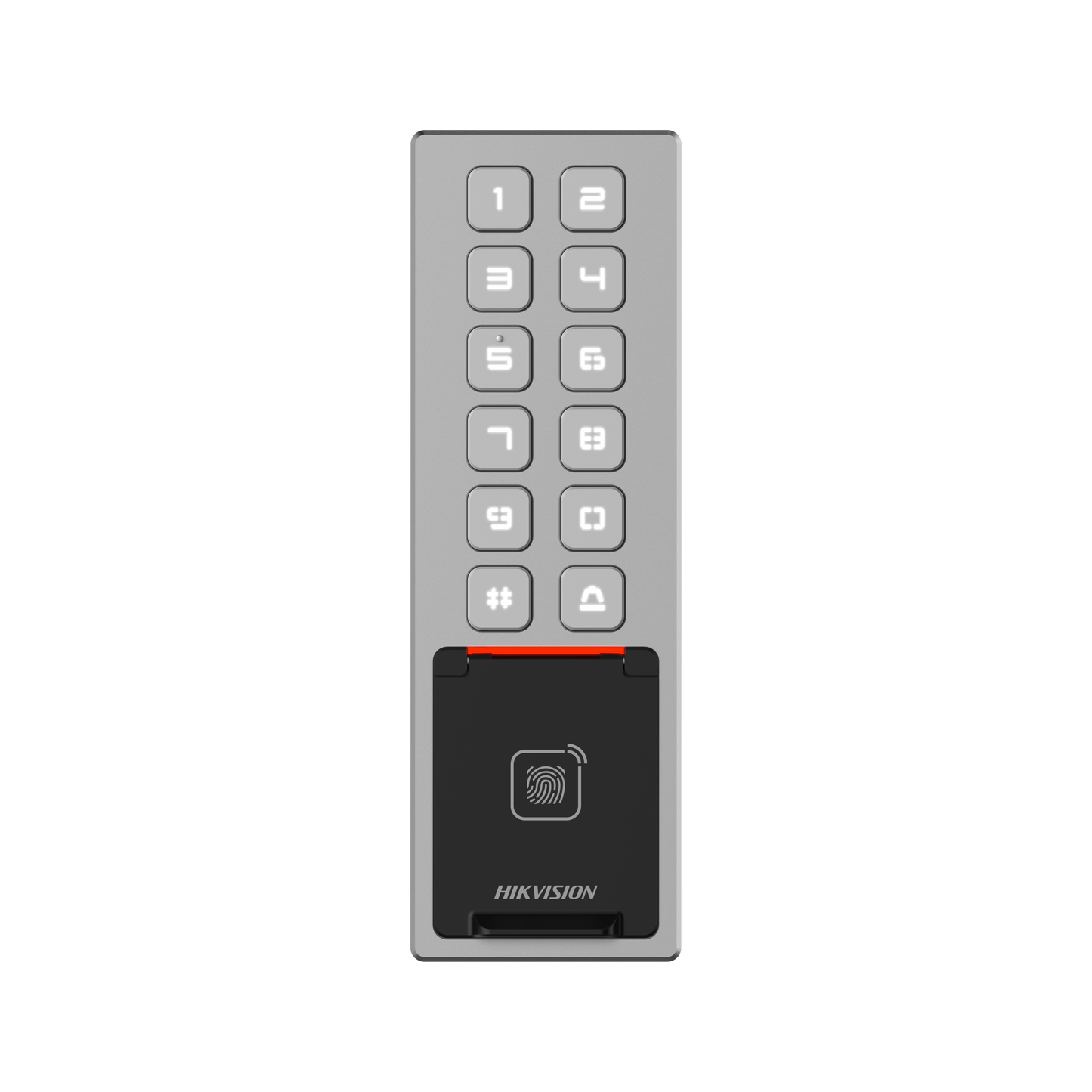

Hikvision DS-K1T805MBFWX | Access Control Terminal
Hikvision DS-K1T805MBFWX | Access Control Terminal
- Access Control
- FingerPrint Terminals
- Value Series
Access Control Terminal, Built-in M1 card reading module and Bluetooth module;
IP65, IK08，increased stability with aluminum alloy materials
Storage with 10,000 cards , 3,000 fingerprints and 100,000 events;
AP mode
support web PC and Moblie configuration
support mobile APP hikconnect
Uplink Communication: TCP/IP, WIFI; Downlink Communication: RS-485, wiegand;
Dimensions：57.7 mm × 177 mm × 34.6 mm 2.3 × 7.0 × 1.4
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K1T805MBFWX | Access Control Terminal
Specifications
- ROM: 4 GB
- RAM: 128 MB
- Operating system: Linux
- Processor: 960 MHz
- Audio output: 1 built-in buzzer
- Network protocol: IPv4: SADP, ISAPI protocol (80/443), ISAPI unvanished transmission, ISUP5.0
- Bluetooth: Support
- Wired network: 10/100 Mbps self-adaptive
- Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i
- RS-485: 1, supports OSDP
- Network interface: 1
- Wiegand: Wiegand 26/34
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- Card capacity: 10,000
- Fingerprint capacity: 3000
- Event capacity: 100,000
- Card type: M1 card
- Card reading distance: 0 to 4 cm
- Card reading duration: ＜ 1 s
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1 and 1:N
- Fingerprint recognition duration: ＜ 1 s
- Fingerprint FAR: ≤ 0.001 %
- Fingerprint FRR: ≤ 0.01 %
- Power supply: 12 VDC/1 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0% to 90% (no condensing)
- Dimensions: 57.7 mm × 177 mm × 34.6 mm (2.3" × 7.0" × 1.4")
- Power consumption: ≤ 12 W
- Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
- Hik-Connect: Support
- Configuration via Web Browser: Support PC web configuration and mobile web operation
