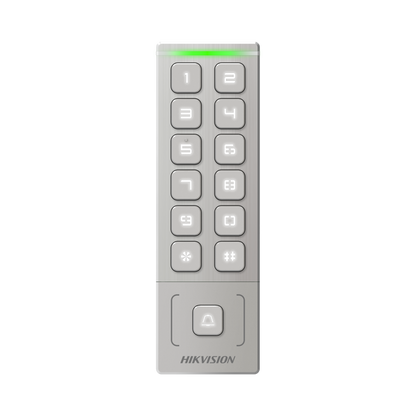

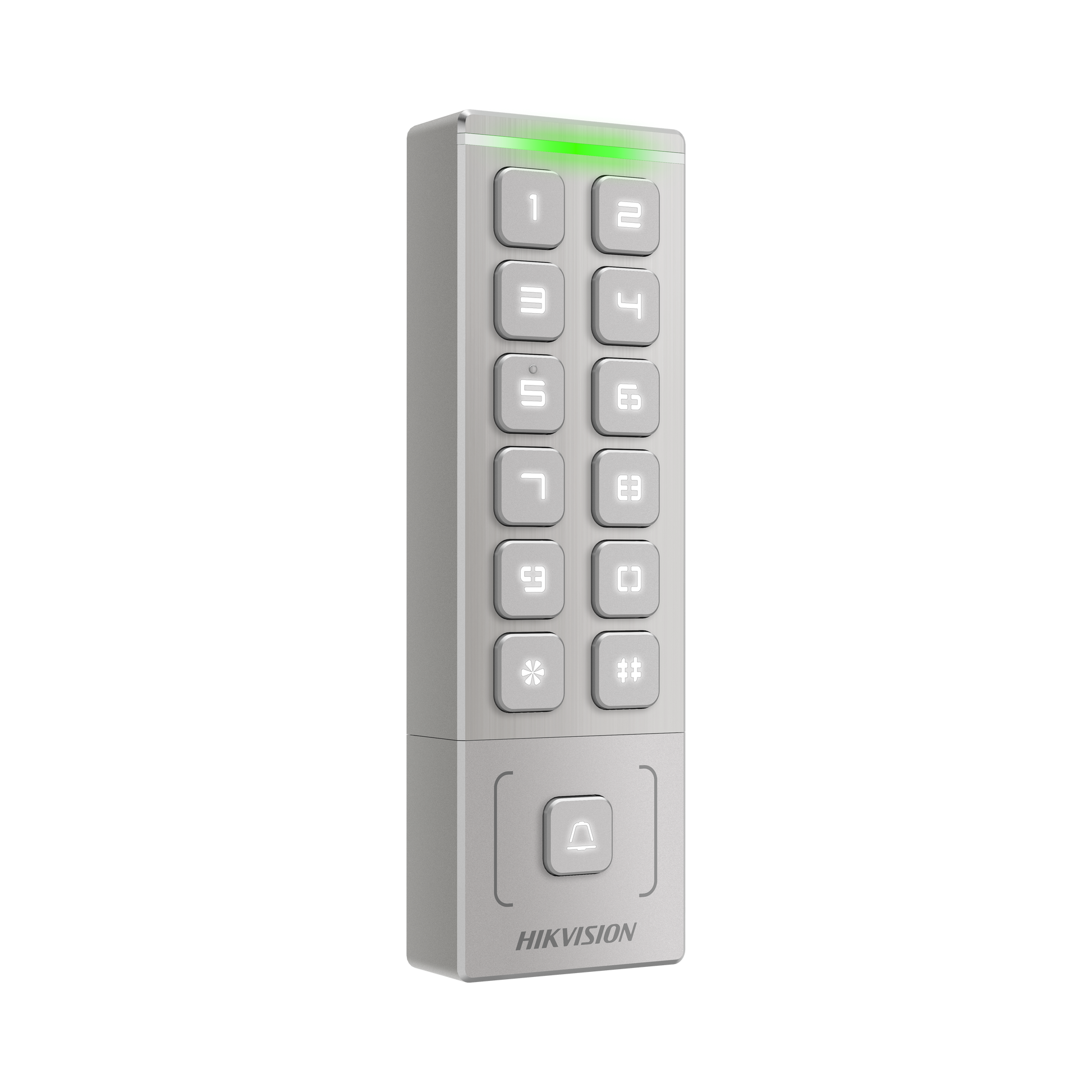

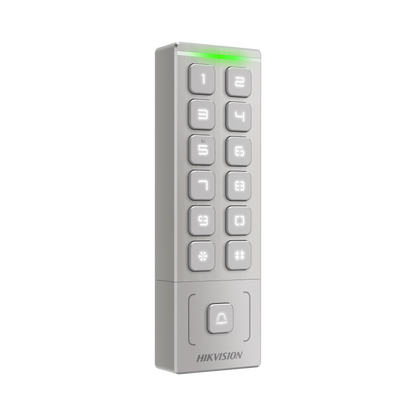

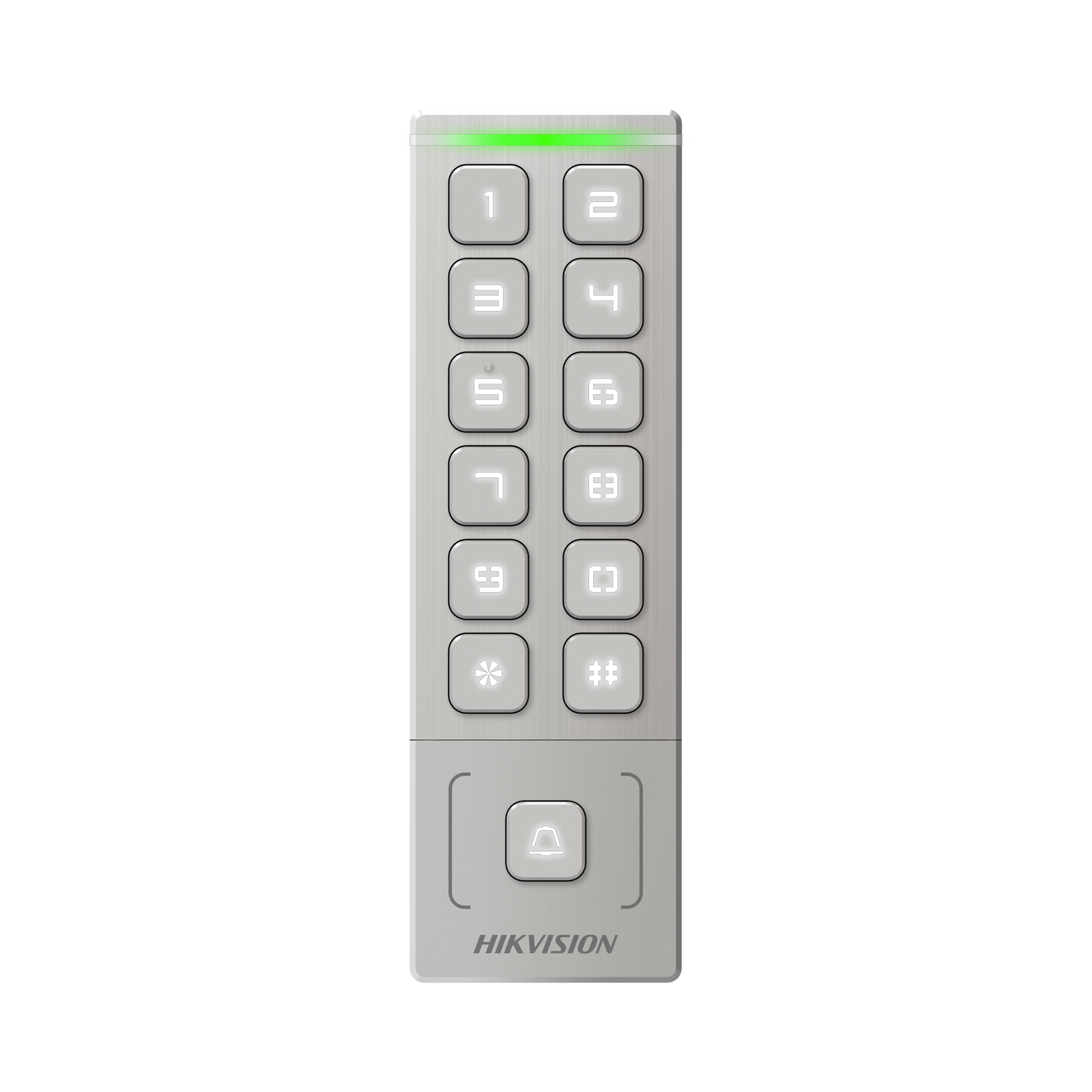

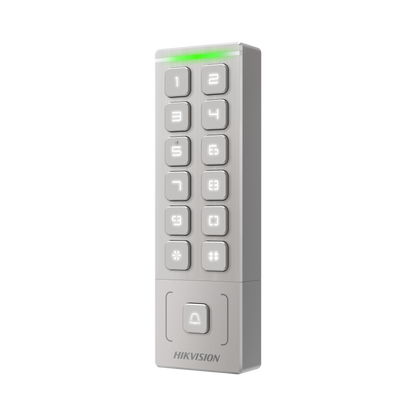

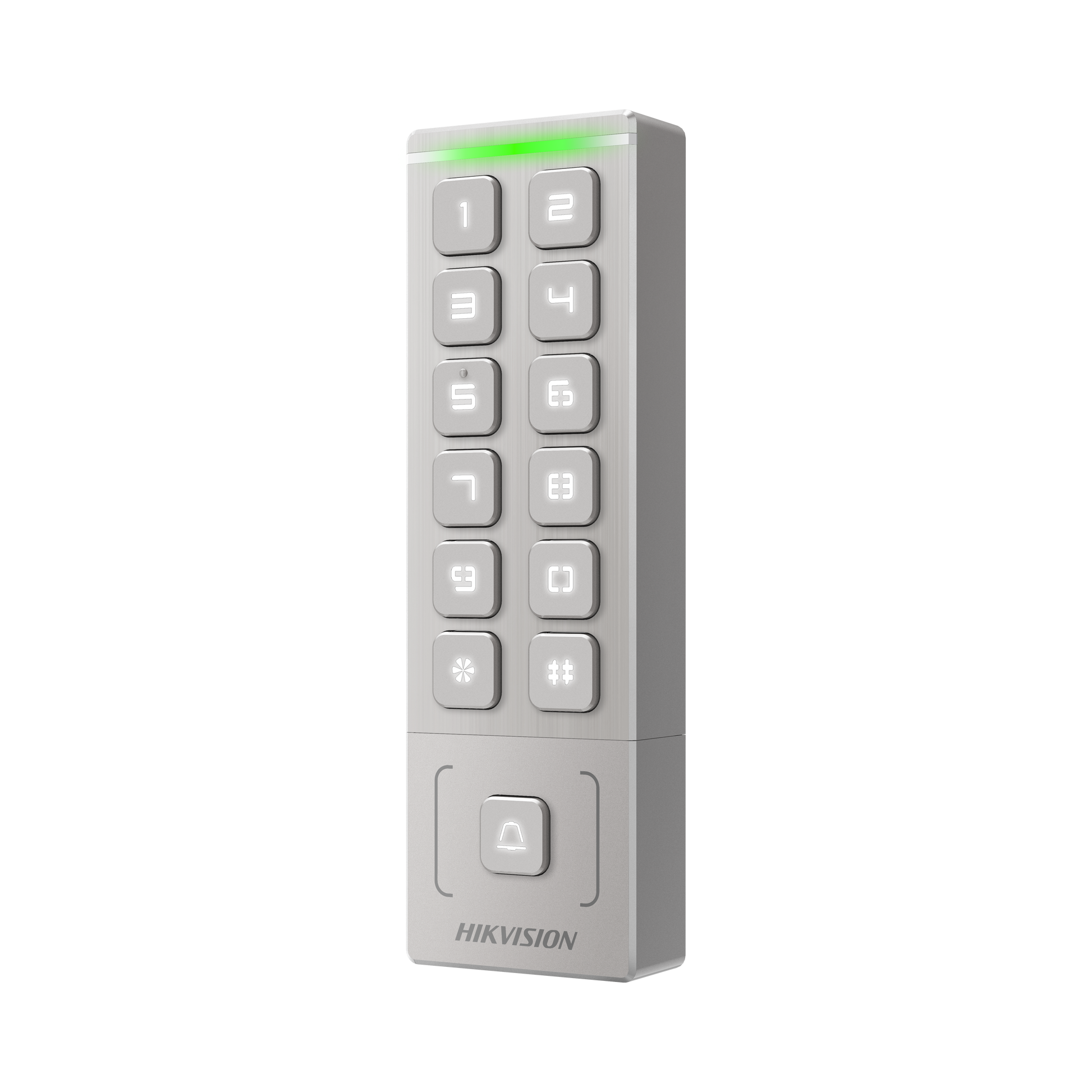

Hikvision DS-K1T809MWX | Access Control Terminal
Hikvision DS-K1T809MWX | Access Control Terminal
- Access Control
- Card Terminals
- Value Series
Slim and flexible design with metal
Max. 5000 cards and 1000 users.
Built-in card reader for M1 card carding.
Outdoor application, supports IP65.
Supports multiple authentication types: card, PIN.
Supports AP mode and operation via mobile Web
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K1T809MWX | Access Control Terminal
Specifications
- ROM: 16 MB
- RAM: 448 K
- Processor: GD32W515PIQ6
- Power output: 6 W
- Wi-Fi: Support
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Wiegand: Wiegand out, supports Wiegand 26/34
- User capacity: 1000
- Card capacity: 5000
- Card type: M1 card
- Card reading distance: 3 cm
- Card reading duration: 1 s
- Button: Physical buttons
- Indicator: Support
- Power supply: 12 VDC, 1 A
- Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
- Working humidity: 0 % to 90 % (no condensing)
- Protective level: IP 65
- Dimensions: 151 mm × 48 mm × 21.5 mm (5.9" × 1.9" × 0.8")
- Weight: Net weight: 220.3 g (0.5 lb) Rough weight: 352 g (0.8 lb)
