• DS-K2210

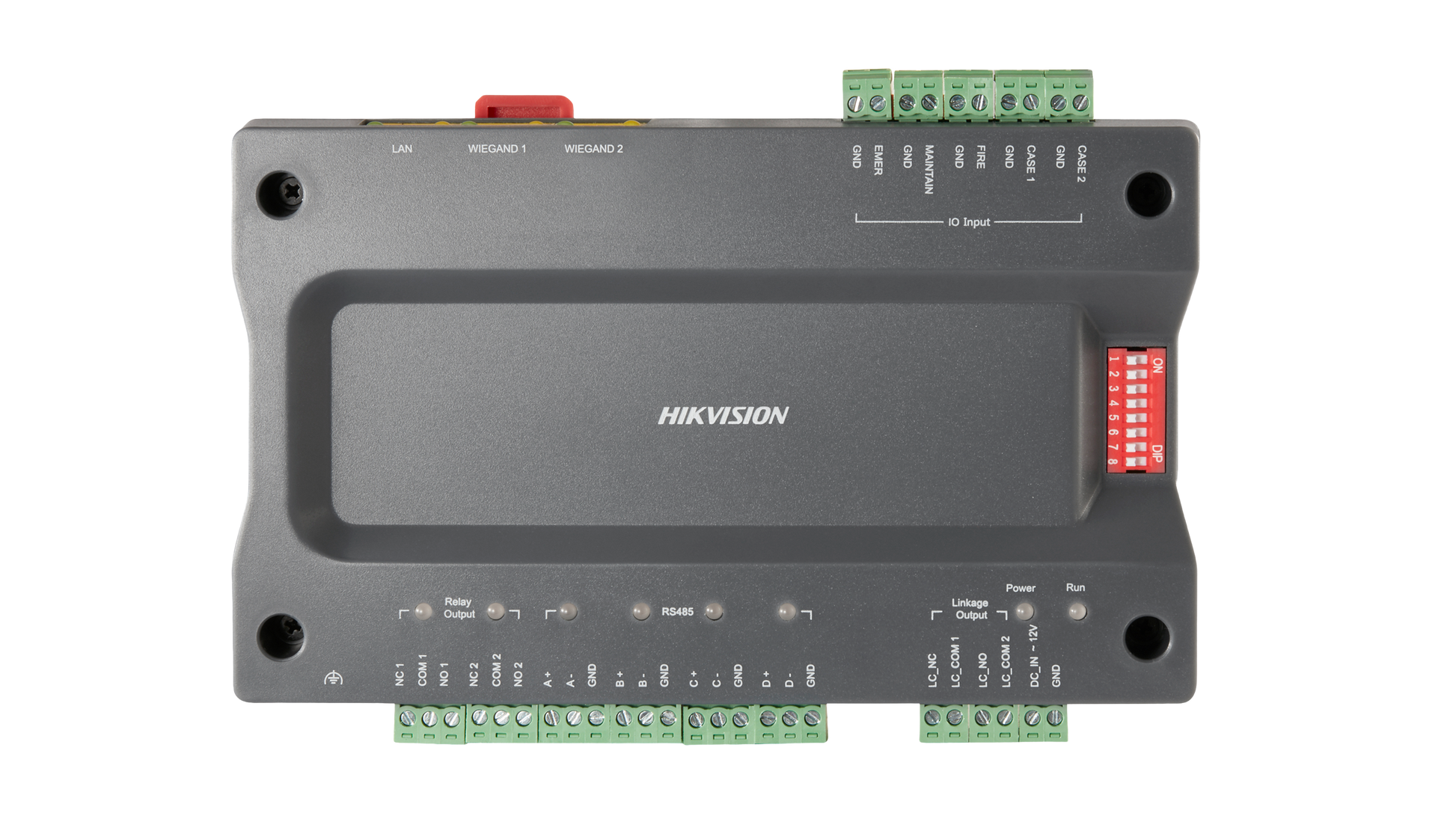

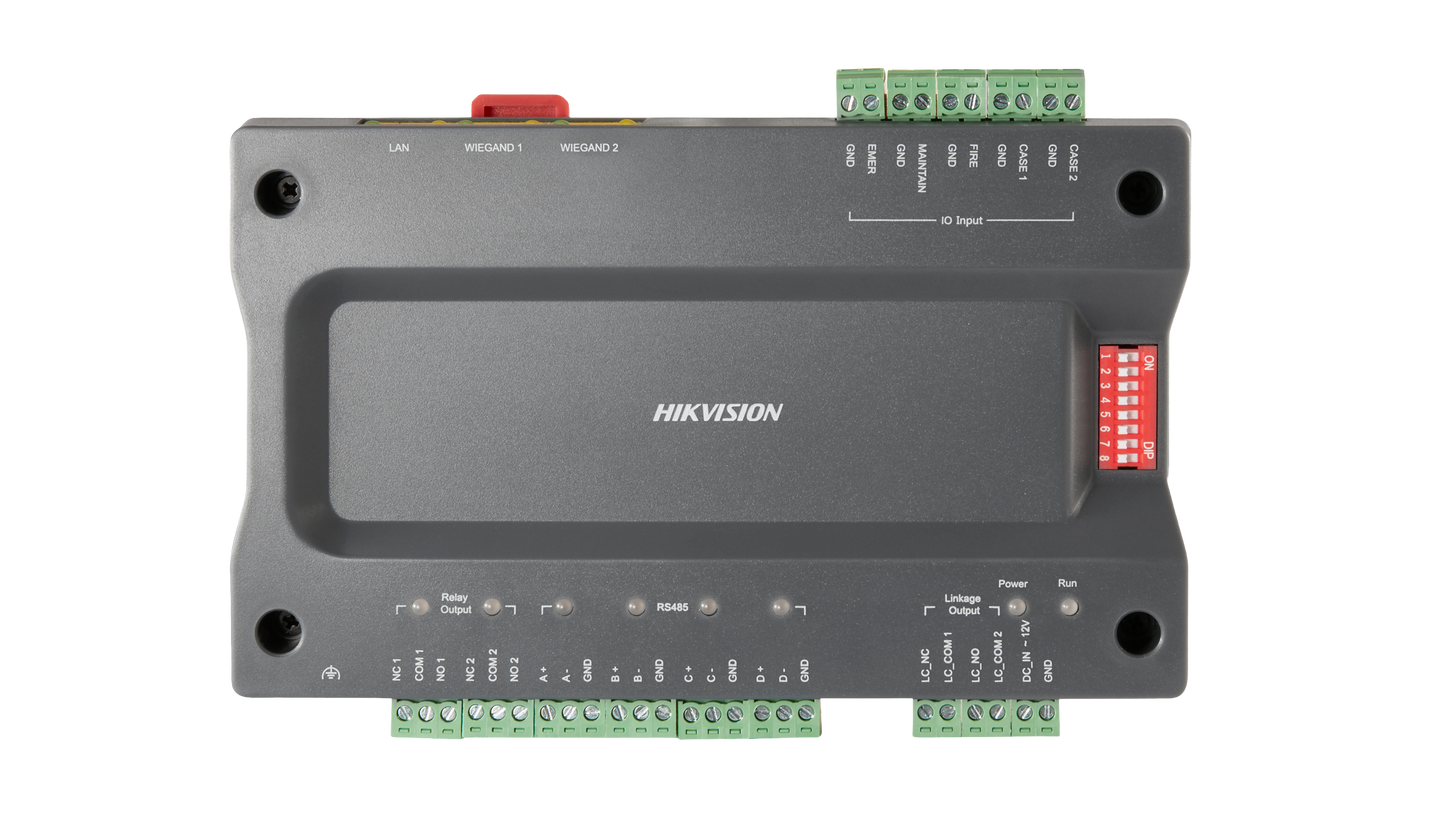

Hikvision DS-K2210 | Access Controller

Hikvision DS-K2210 | Access Controller

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Controllers
  • Pro Series

Master Elevator Controller, Storage with 20,000 Cards and 50,000 Events, up to 128 floors’ permissions.
Uplink Communication: TCP/IP and RS-485;
Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers;
Input interface: Emergency Button×1,1 Fire Alarm Button×1, 1 Maintenance Button×1, Case Input×2;
Output interface: Door Switch Relay×4, Alarm Relay×4.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K2210 | Access Controller
Login to View Price

Specifications

  • Control Door Number: 16
  • Communication To Reader: RS485;Wiegand 26/34;Wiegand 26/34
  • Battery Extension: No
  • Communication: TCP/IP;RS-485, and Wiegand
  • Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
  • Output Interface: 5 Relay Outputs
  • Internal Clock: Support
  • RTC: Support
  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Power Supply: 12 VDC±15%
  • Installation: Guide Rail Installation
  • Dimensions: 167(L)mm*105(W)mm*30(H)mm
  • Processor: 32 bit
  • Indicator: Power On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
  • Card reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers

Selection Parameter
  • Control Door Number: 16
  • Communication To Reader: RS485;Wiegand 26/34;Wiegand 26/34
  • Battery Extension: No

Device Interface
  • Communication: TCP/IP;RS-485, and Wiegand
  • Input Interface: 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
  • Output Interface: 5 Relay Outputs
  • Internal Clock: Support
  • RTC: Support

General
  • Working Temperature: -40°F to 158°F
  • Working Humidity: 0% to 90% (No Condensation)
  • Power Supply: 12 VDC±15%
  • Installation: Guide Rail Installation
  • Dimensions: 167(L)mm*105(W)mm*30(H)mm

System Parameter
  • Processor: 32 bit
  • Indicator: Power On: Solid Green,Running Properly: Flashing Green,Running Exception: Solid Red,Serial Port Not Communicating: Off,Serial Port Communicating: Solid Green,Relay NC: Off,Relay NO: Solid Green,Network Disconnected: Off,Network Cable Connected: Solid Yellow, Flashing Green,Network Armed: Solid Yellow, Flashing Green,
  • Card reader: Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
