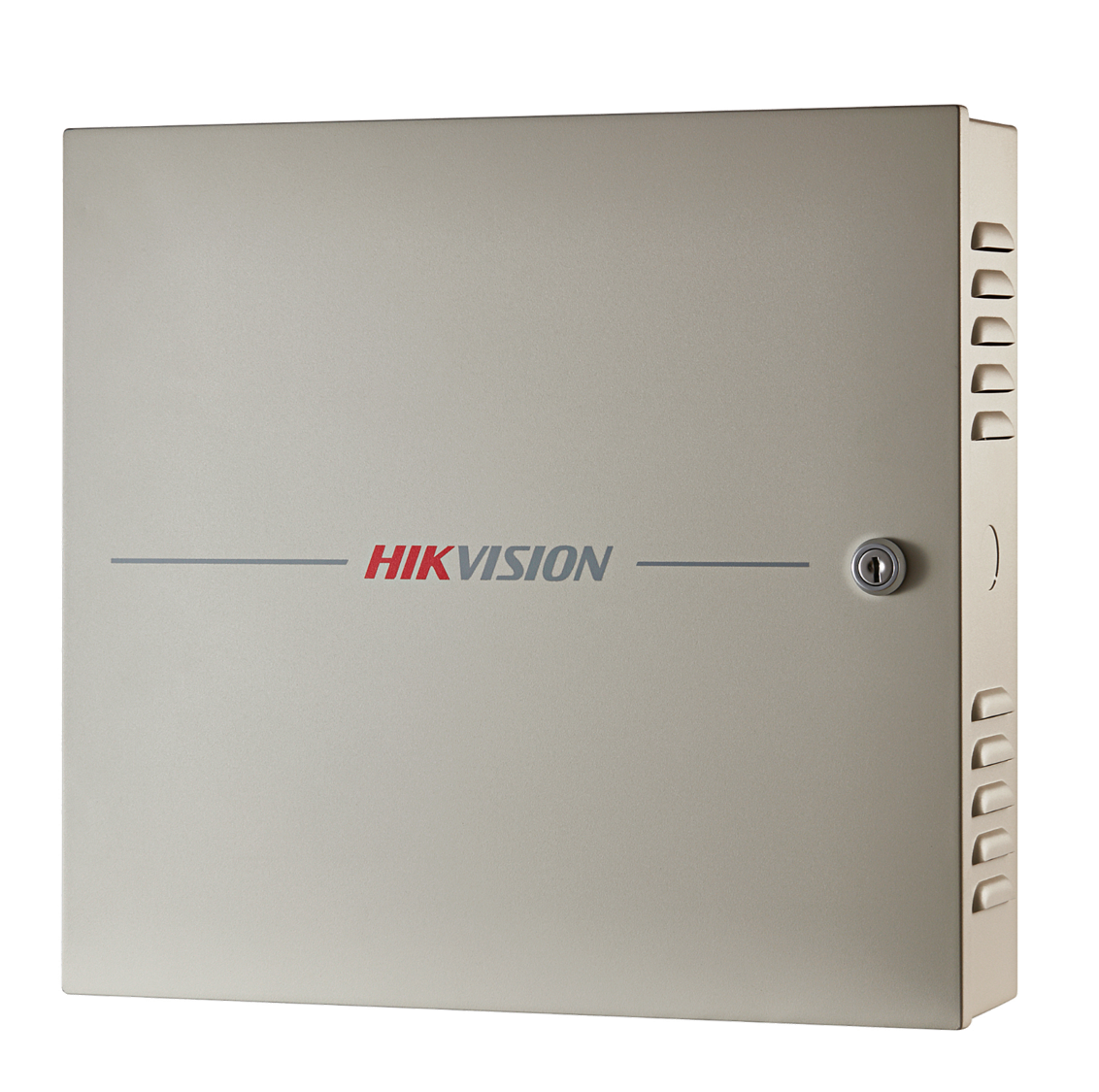

Hikvision DS-K2601T | Access Controller
Hikvision DS-K2601T | Access Controller
- Access Control
- Controllers
- Pro Series
Access controller;
100,000 cards and 300,000 events storage;
Communication via TCP/TP, ehome5.0 and RS-485;
ISAPI, OSDP supported;
1/2/4 doors access control;
Alarm input/output and alarm event upload;
RS485 interface and Wiegand interface for accessing card reader;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K2601T | Access Controller
Specifications
- Processor: High speed processor, 32-bit
- Network interface: TCP/IP
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 4
- Alarm output: 2
- TAMPER: 1
- RS-485: 2
- Wiegand: 2
- Card capacity: 100,000
- Event capacity: 300,000
- Indicator: Power supply status, communication status, working status
- Power supply: 100 ~ 240 VAC
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Power consumption: With load: ≤ 50 w Without load: ≤ 4 w
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
- Approval: CE, FCC, CB
