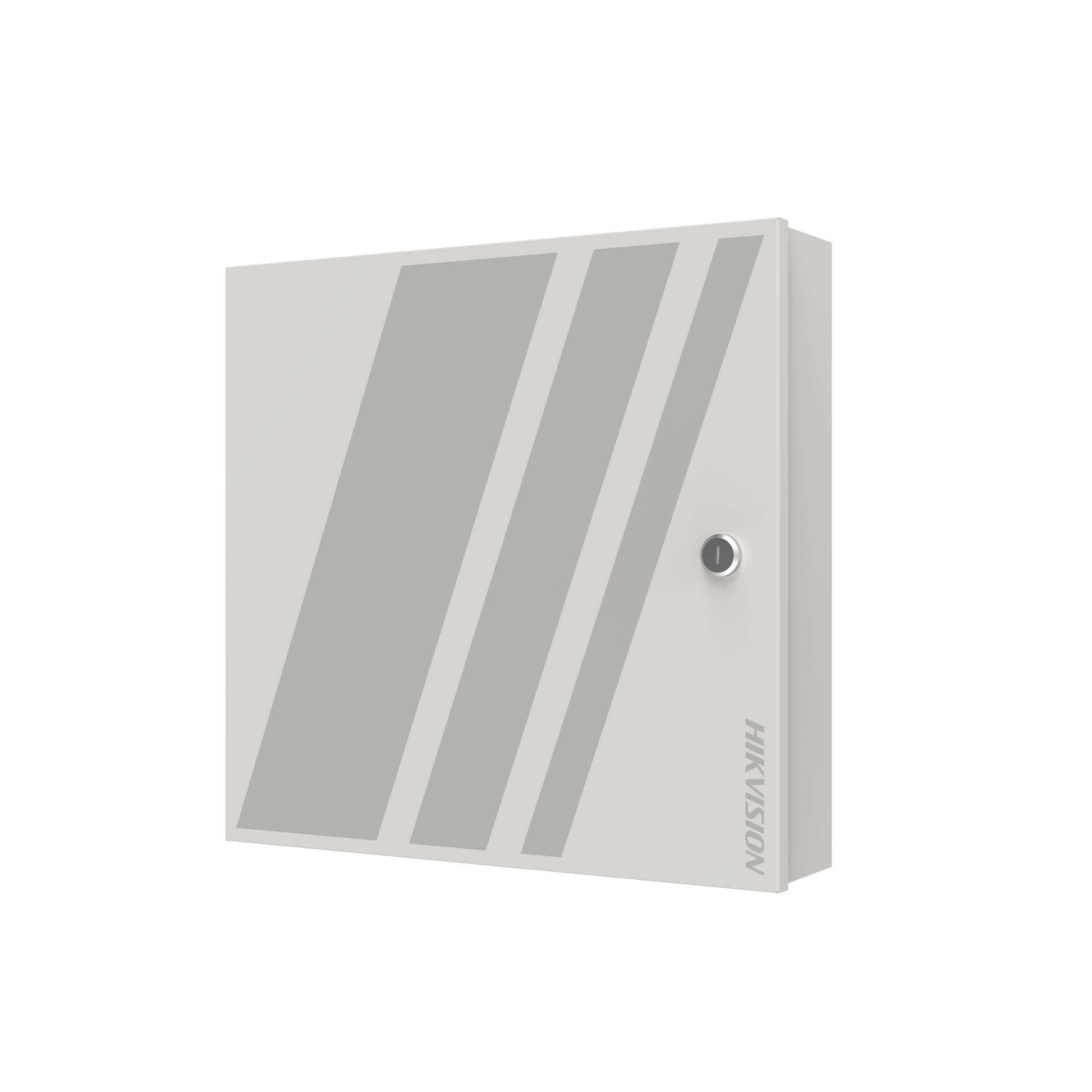

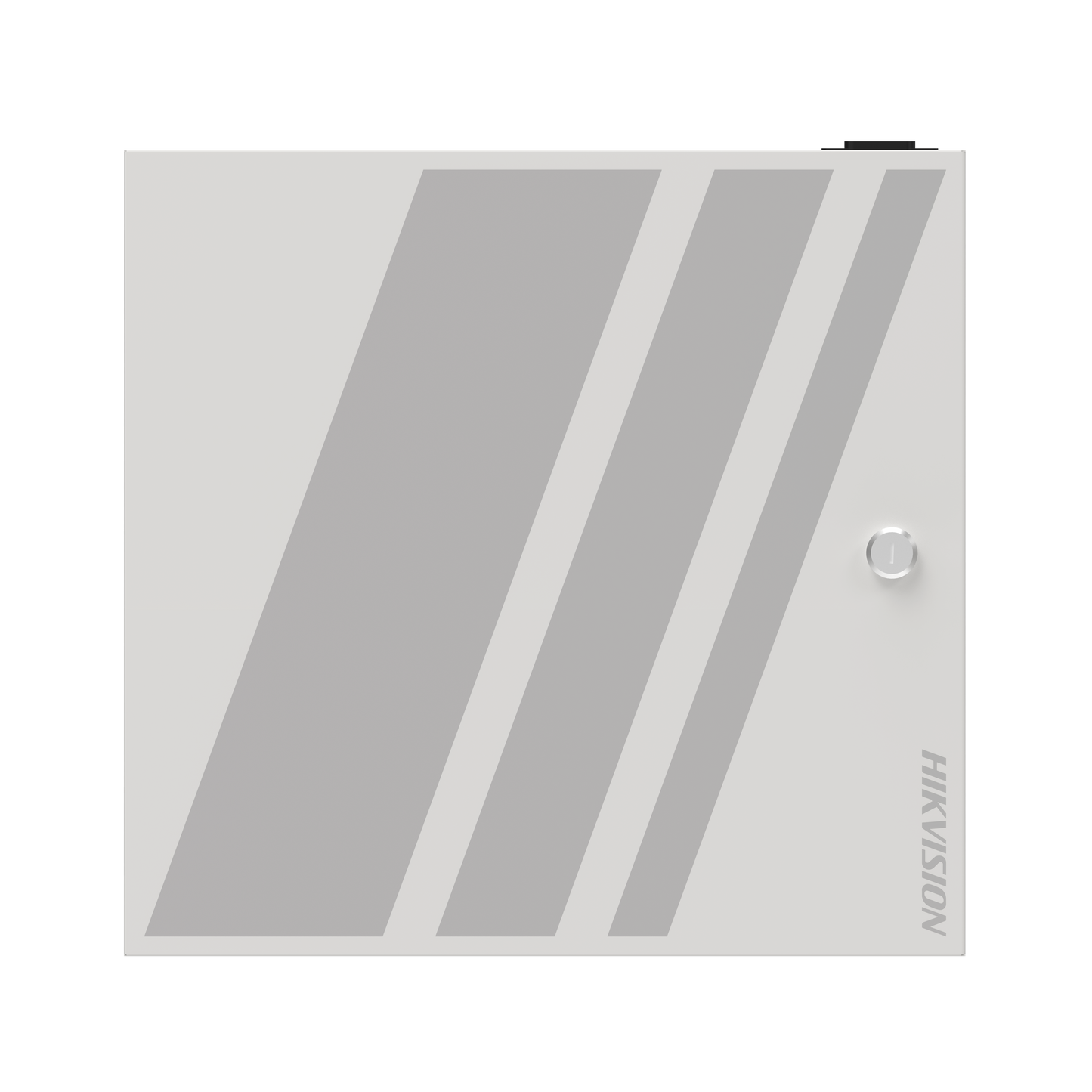

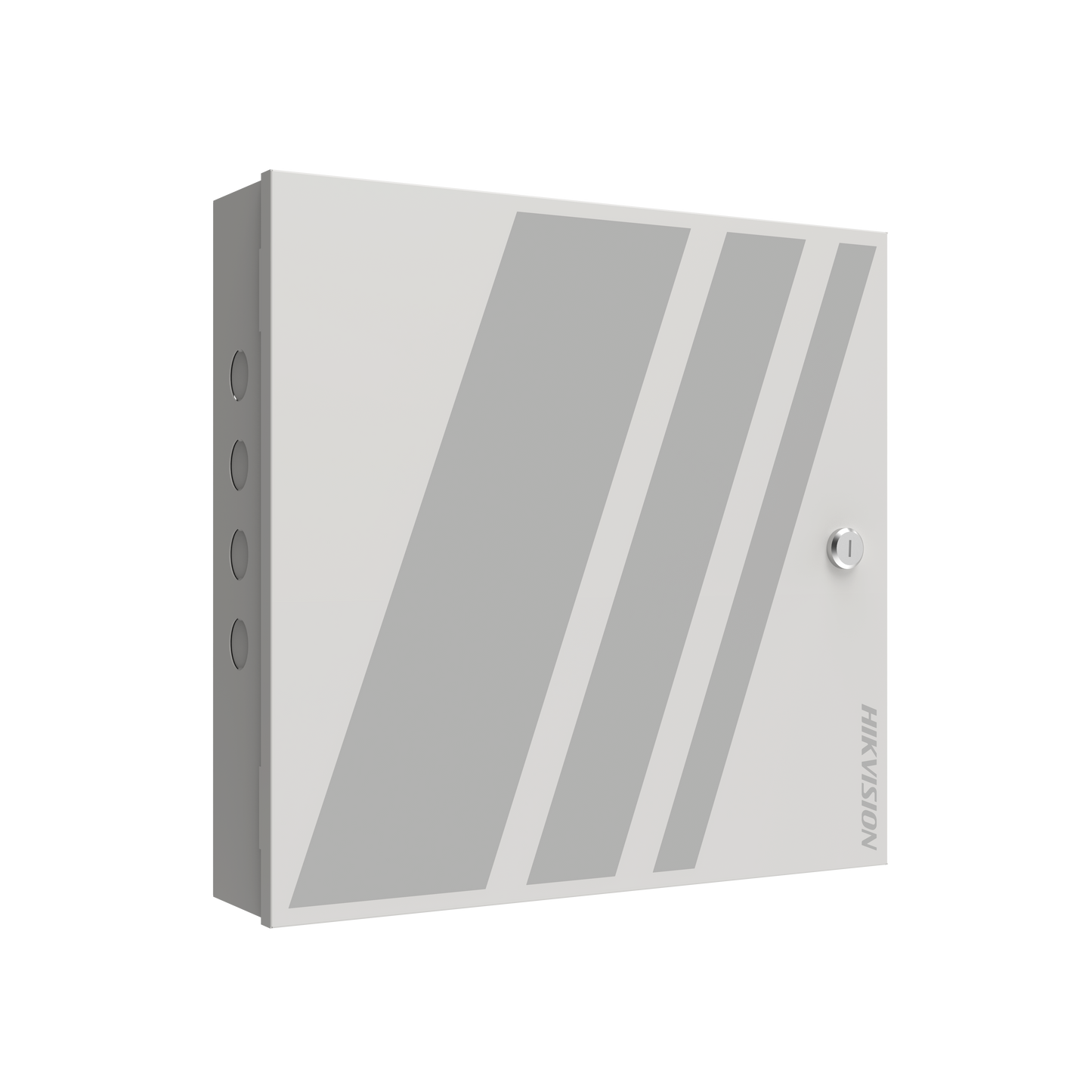

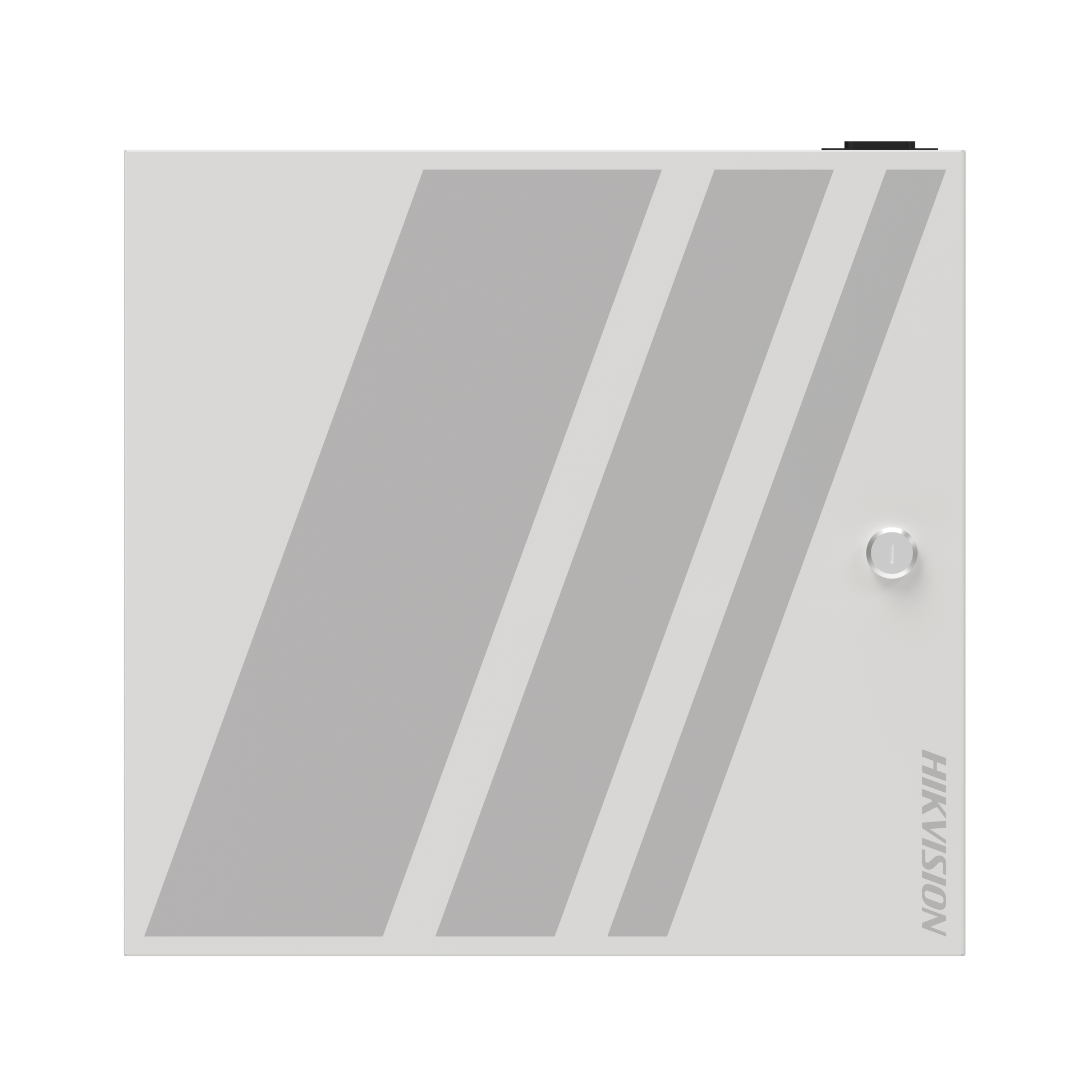

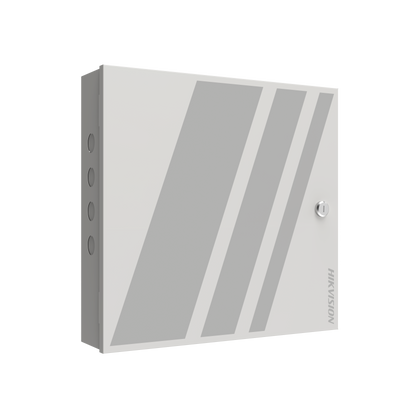

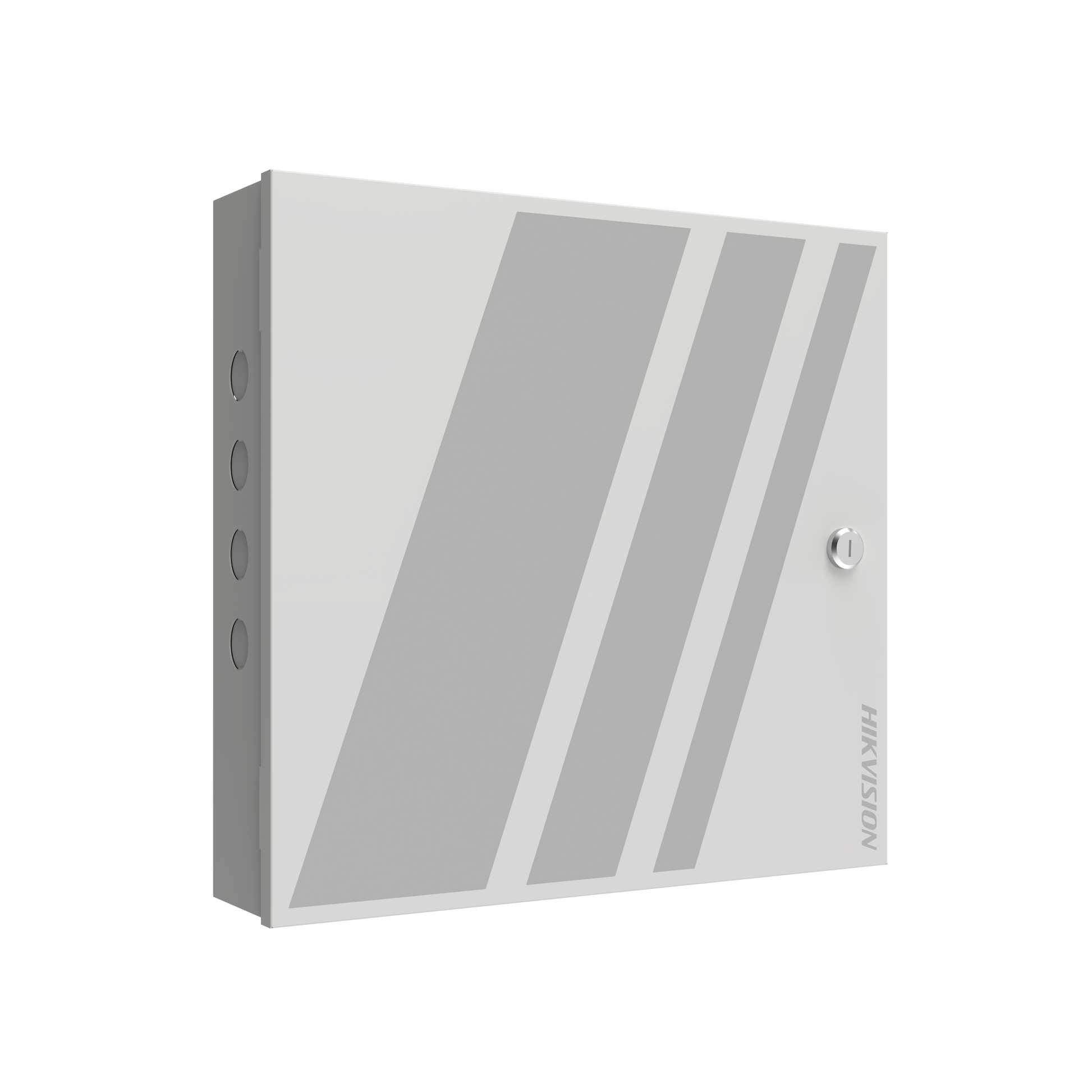

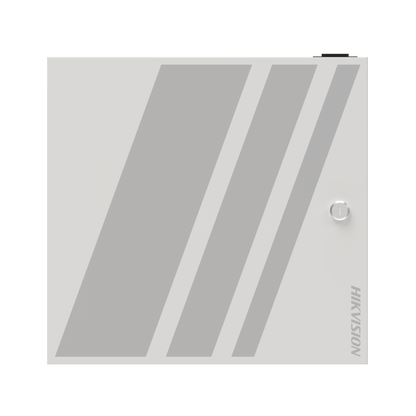

Hikvision DS-K2702WX-E1 | Access Controller
Hikvision DS-K2702WX-E1 | Access Controller
- Access Control
- Controllers
- Ultra Series
Supports 100000 users,10000 fingerprint,200000 cards,600000 events
Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
Web configuration management. All configurations can be realized via web without software application
It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
Powers supply by PoE, and Wi-Fi is available
Interface: Network*1,Lock control*2,Exit button*2,Door contact input*2,Alarm input*4,Alarm output*4,TAMPER*1,RS-485*7 2 for card reader, 5 for access modules ：4 for communication, each interface can connect up to 16 access modules; 1 for redundancy ,Wiegand*2 standard 26/34 input, supports custom Wiegand settings ,USB*1,Fire alarm*1
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Linux
- ROM: 4 GB
- RAM: 256 MB
- Processor: A9, dual-core
- Network protocol: ISAPI (80\443 port)， ISAPI, ISUP5.0
- Wired network: 1, 10/100/1000 Mbps self-adaptive
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Door contact input: 2
- Alarm input: 4
- Alarm output: 4
- TAMPER: 1
- RS-485: 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand: 4, standard 26/34 input, supports custom Wiegand settings
- USB: 1, USB 2.0
- PoE: 1. Supports 802.3at
- Fire interface: 1
- User capacity: 100,000
- Fingerprint capacity: 10,000
- Card capacity: 200,000
- Event capacity: 600,000
- Linked door capacity: Self: 2 doors Extended: up to 126 doors (connected with 62 access modules)
- Linked card reader capaciry: 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
- Fingerprint recognition duration: ＜ 1 s
- Indicator: 11 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 1 for Wi-Fi status, 5 for RS-485 status, and 2 for door status
- Battery: Charge and discharge
- Power supply: 100 VAC to 240 VAC, standard PoE
- Power consumption: ≤ 72 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity: 0% to 90% (No condensing)
- Installation: Wall mounting
- Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
- Lock Power Out: 12 V, 2A
- Configuration via Web browser: Support
- Hik-Connect: Support
- HikCentral Professional: Support
- HikCentral Connect: Support
- Hik-Partner Pro: Support
- Multi-factor authentication: Support
- First person in: Support
- Anti-passback: Support 32 routes (64 card readers each)
- Multi-door interlocking: Support 32 groups (32 doors each)
