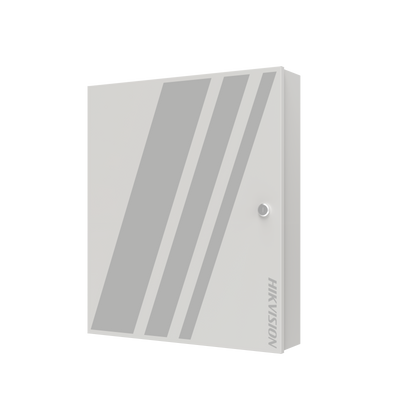

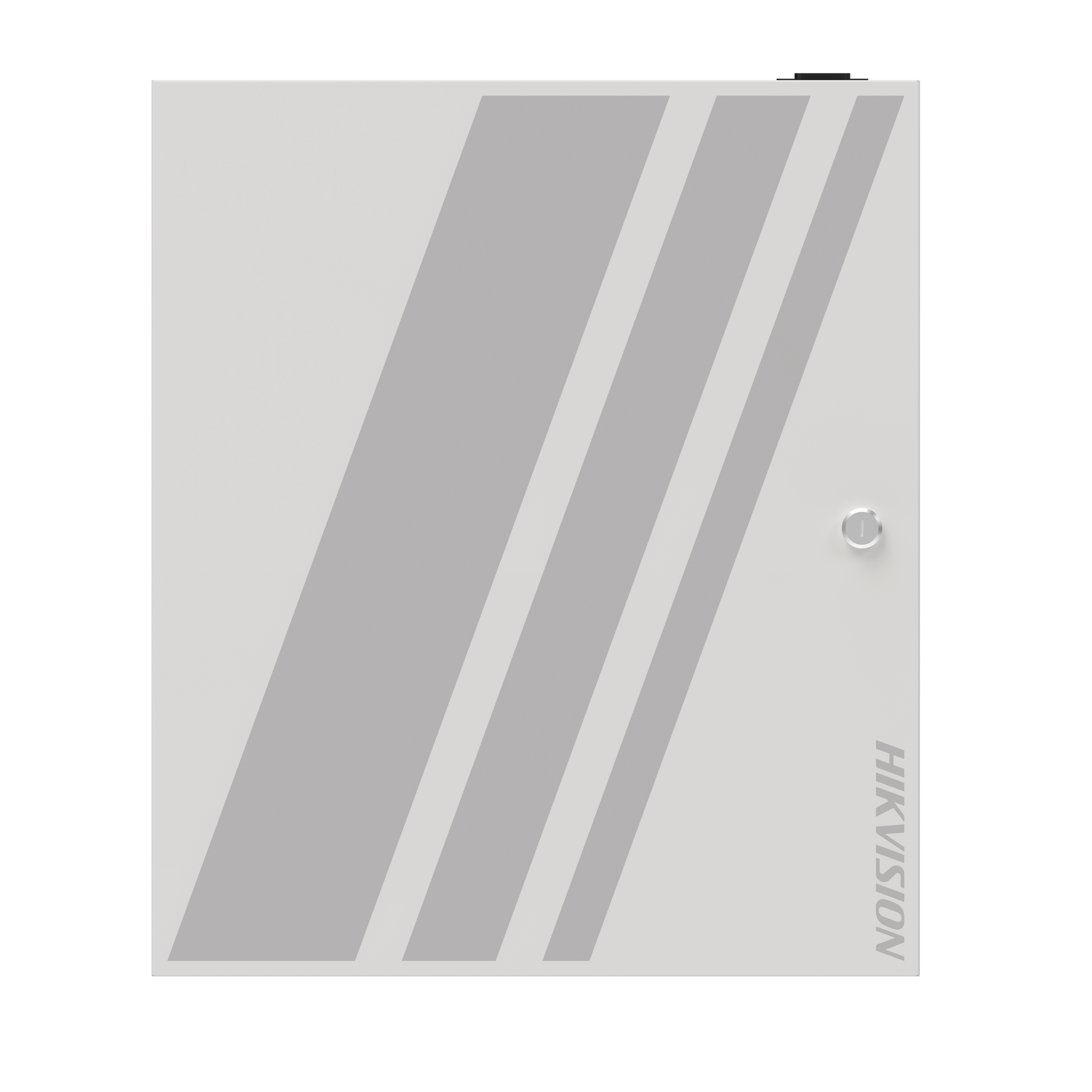

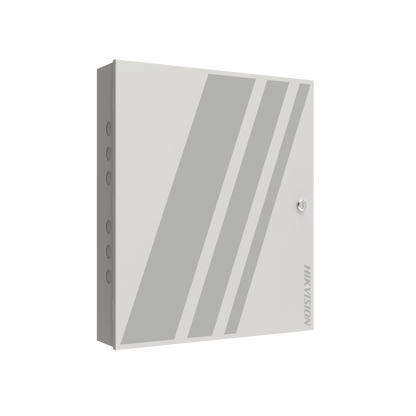

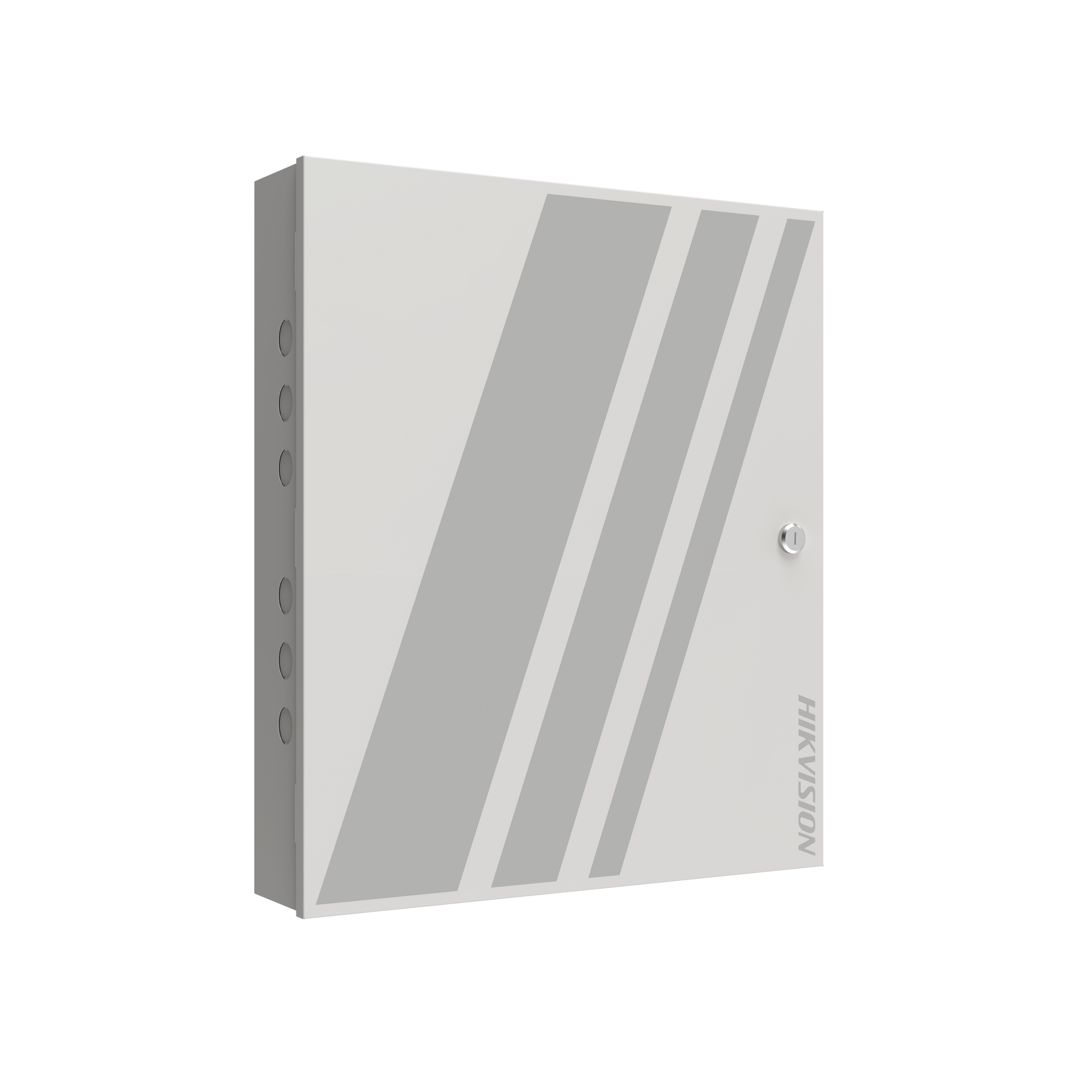

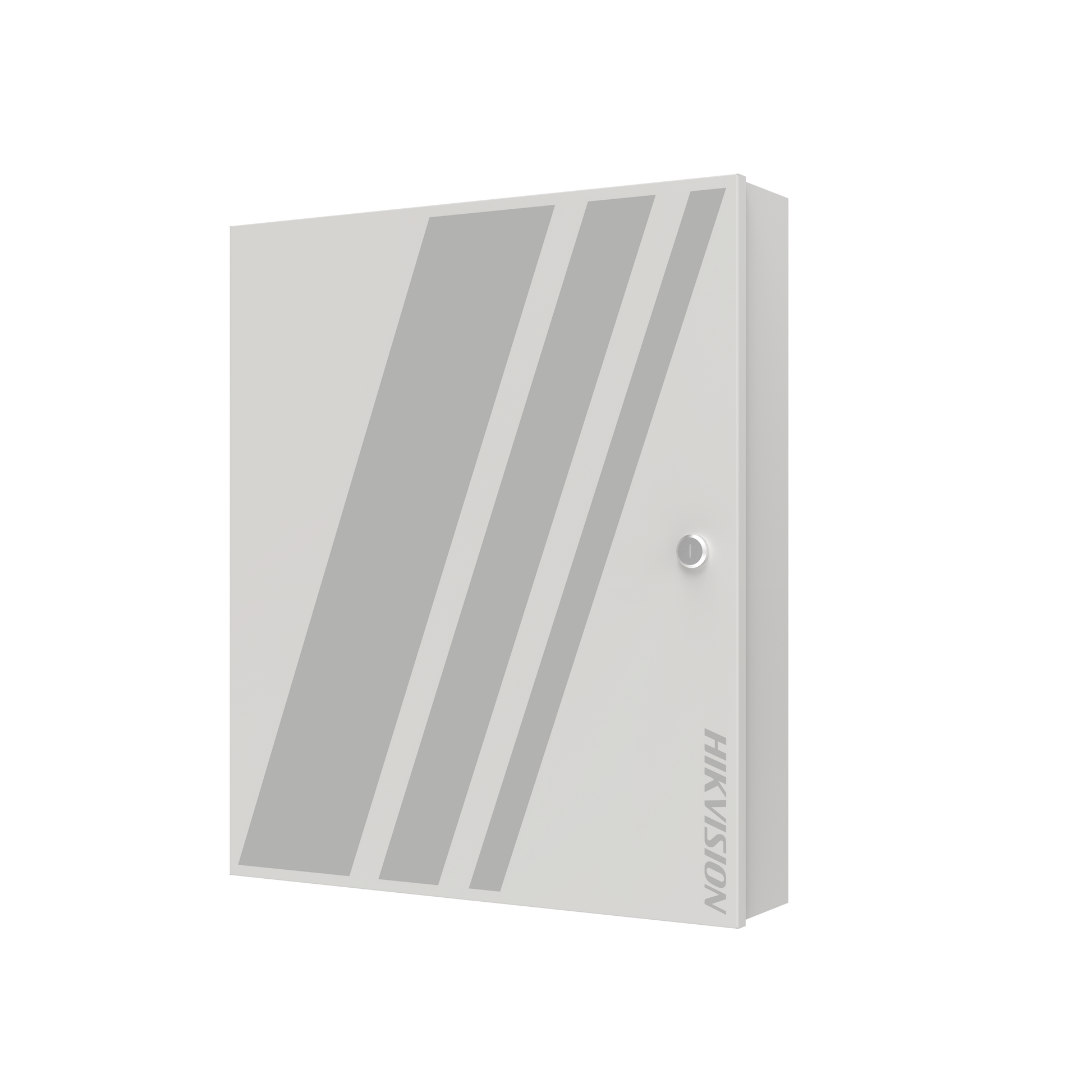

Hikvision DS-K2708X | Access Controller
Hikvision DS-K2708X | Access Controller
- Access Control
- Controllers
- Ultra Series
Supports 100000 users,10000 fingerprint,200000 cards,600000 events
Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
Web configuration management. All configurations can be realized via web without software application
It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
Interface: Network*1,Lock control*8,Exit button*8,Door contact input*8,Alarm input*16,Alarm output*8,TAMPER*1,RS-485*15 including 7 on access controller and 8 on access modules ,Wiegand*8 including 4 on access controller and 4 on access module ,USB*1,Fire alarm*1
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Linux
- ROM: 4 GB
- RAM: 256 MB
- Processor: A9, dual-core
- Network protocol: ISAPI (80\443 port)， ISAPI, ISUP5.0
- Wired network: 1, 10/100/1000 Mbps self-adaptive
- Network interface: 1
- Lock control: 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Exit button: 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Door contact input: 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Alarm input: 16, including 8 on access controller and 8 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- Alarm output: 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- TAMPER: 1
- RS-485: 15, including 7 on access controller and 8 on access modules 7 on access controller: 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) 8 on access modules: 4 for card reader, 4 for access controller
- Wiegand: 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
- USB: 1, USB 2.0
- Fire interface: 1
- User capacity: 100,000
- Fingerprint capacity: 10,000
- Card capacity: 200,000
- Event capacity: 600,000
- Linked door capacity: 8, including 4 on access controller and 4 on access modules
- Linked card reader capaciry: 16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers; 8 RS-485 card readers on the access controller and 8 on access modules (4 for each); 4 Wiegand card readers on the access controller and 2 on access modules
- Fingerprint recognition duration: ＜ 1 s
- Indicator: DS-K2704X(P): 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status DS-K2M002X: 6 indicators, 1 for indicating power status, 1 for running status, 2 for RS-485 status, and 2 for door status
- Battery: Charge and discharge
- Power supply: 100 VAC to 240 VAC
- Power consumption: ≤ 200 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity: 0% to 90% (No condensing)
- Installation: Wall mounting
- Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
- Configuration via Web browser: Support
- Hik-Connect: Support
- HikCentral Professional: Support
- HikCentral Connect: Support
- Hik-Partner Pro: Support
- Multi-factor authentication: Support
- First person in: Support
- Anti-passback: Support 32 routes (64 card readers each)
- Multi-door interlocking: Support 32 groups (32 doors each)
