Hikvision DS-K2M002X | Access Controller

Hikvision DS-K2M002X | Access Controller

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Access Control Accessories
  • Modules

main board-access module
Supports 2 door control. It can connect with access controller via RS-485
Connects with card reader via RS-485 OSDP or Wiegand
Installs with guide rail
Supports battery charging and discharging
Supports indicators for indicating power status, communciation status, running status, and door staus

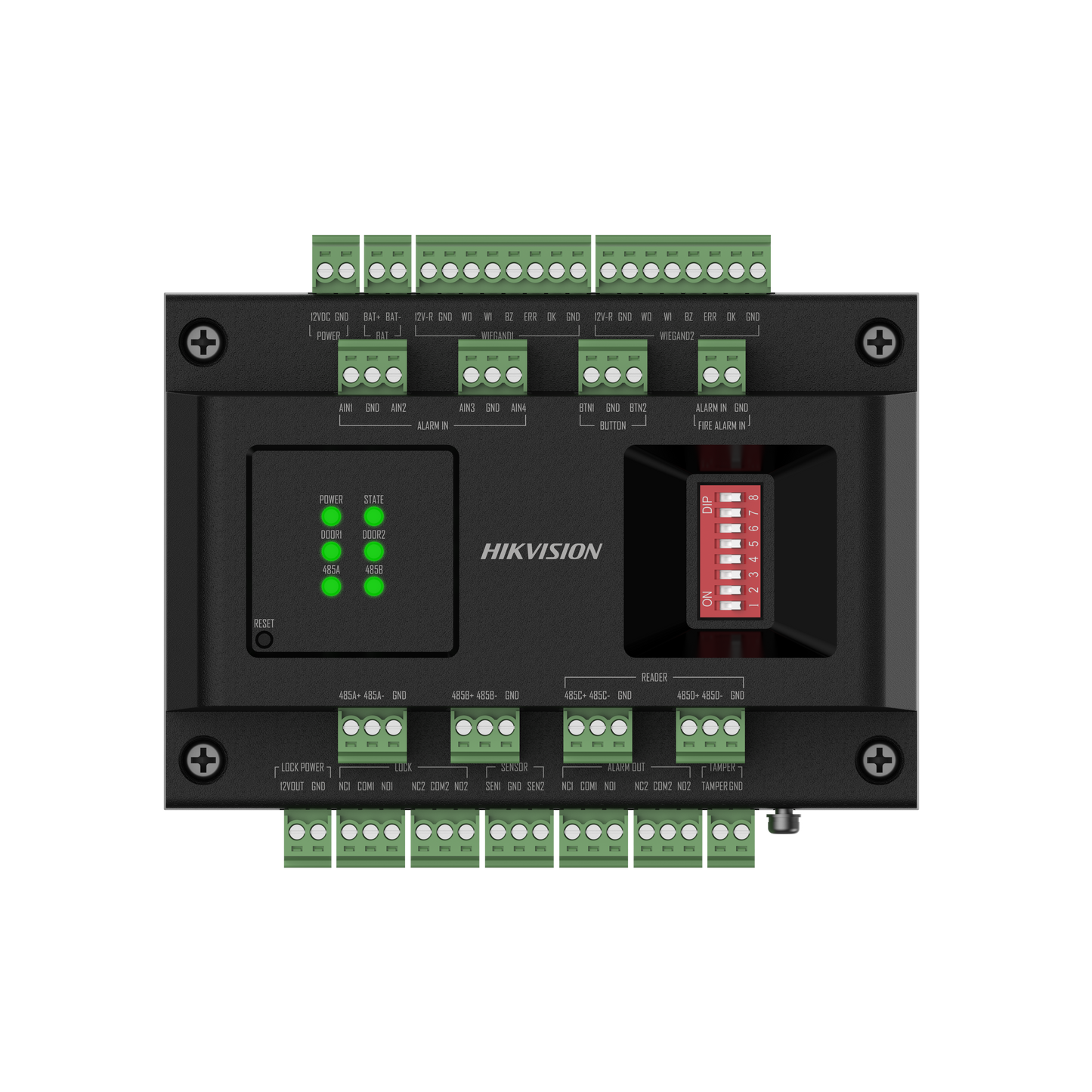

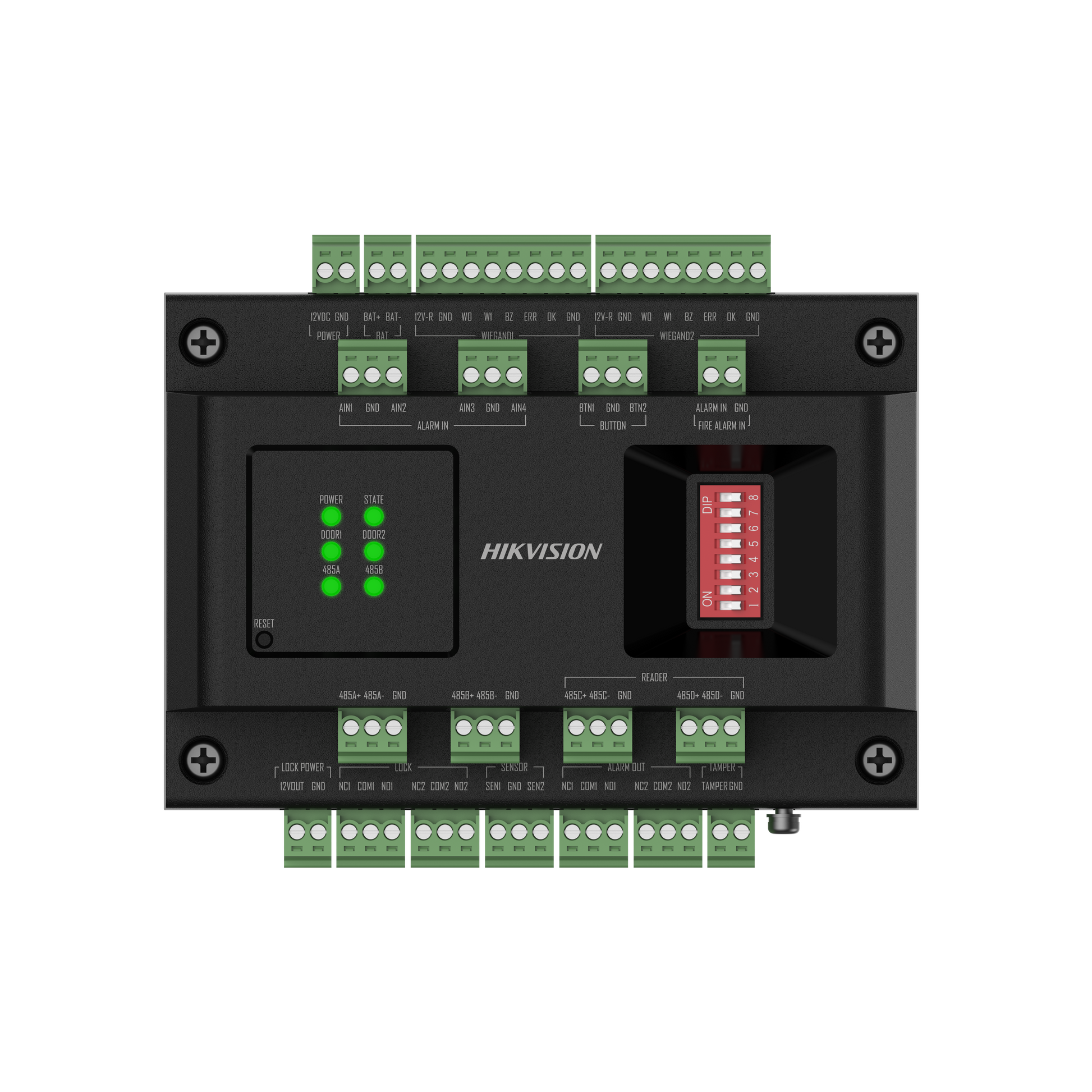

Interface: Lock control*2,Exit button*2,Door contact input*2,Alarm input*4,Alarm output*2,TAMPER*1,RS-485*4 2 for card reader, 2 for access modules,Wiegand*2 standard 26/34 input, supports custom Wiegand settings

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K2M002X | Access Controller
Login to View Price

Specifications

  • Operating system: MCU
  • ROM: 64 GB
  • RAM: 512 MB
  • Processor: M4
  • Lock control: 2
  • Exit button: 2
  • Door contact input: 2
  • Alarm input: 4
  • Alarm output: 2
  • TAMPER: 1
  • RS-485: 4, 2 for card reader, 2 for access controller
  • Wiegand: 2, standard 26/34 input, supports custom Wiegand settings
  • Linked door capacity: 2 doors
  • Linked card reader capaciry: 4 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers
  • Indicator: 6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status
  • Battery: Charge and discharge
  • Power supply: 12 ± 15% VDC
  • Power consumption: ≤ 50 W
  • Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
  • Working humidity: 0% to 90% (No condensing)
  • Installation: Installation with guide rail
  • Configuration via Web browser: Support via access controller
  • Hik-Connect: Support
  • HikCentral Professional: Support via access controller
  • HikCentral Connect: Support via access controller
  • Hik-Partner Pro: Support via access controller
  • Multi-factor authentication: Support via access controller
  • Anti-passback: Support via access controller: supports 32 routes (64 card readers each)
  • First person in: Support via access controller
  • Multi-door interlocking: Support via access controller: supports 32 groups (32 doors each)

System
  • Operating system: MCU
  • ROM: 64 GB
  • RAM: 512 MB
  • Processor: M4

Interface
  • Lock control: 2
  • Exit button: 2
  • Door contact input: 2
  • Alarm input: 4
  • Alarm output: 2
  • TAMPER: 1
  • RS-485: 4, 2 for card reader, 2 for access controller
  • Wiegand: 2, standard 26/34 input, supports custom Wiegand settings

Capacity
  • Linked door capacity: 2 doors
  • Linked card reader capaciry: 4 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers

General
  • Indicator: 6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status
  • Battery: Charge and discharge
  • Power supply: 12 ± 15% VDC
  • Power consumption: ≤ 50 W
  • Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
  • Working humidity: 0% to 90% (No condensing)
  • Installation: Installation with guide rail

Function
  • Configuration via Web browser: Support via access controller
  • Hik-Connect: Support
  • HikCentral Professional: Support via access controller
  • HikCentral Connect: Support via access controller
  • Hik-Partner Pro: Support via access controller
  • Multi-factor authentication: Support via access controller
  • Anti-passback: Support via access controller: supports 32 routes (64 card readers each)
  • First person in: Support via access controller
  • Multi-door interlocking: Support via access controller: supports 32 groups (32 doors each)
