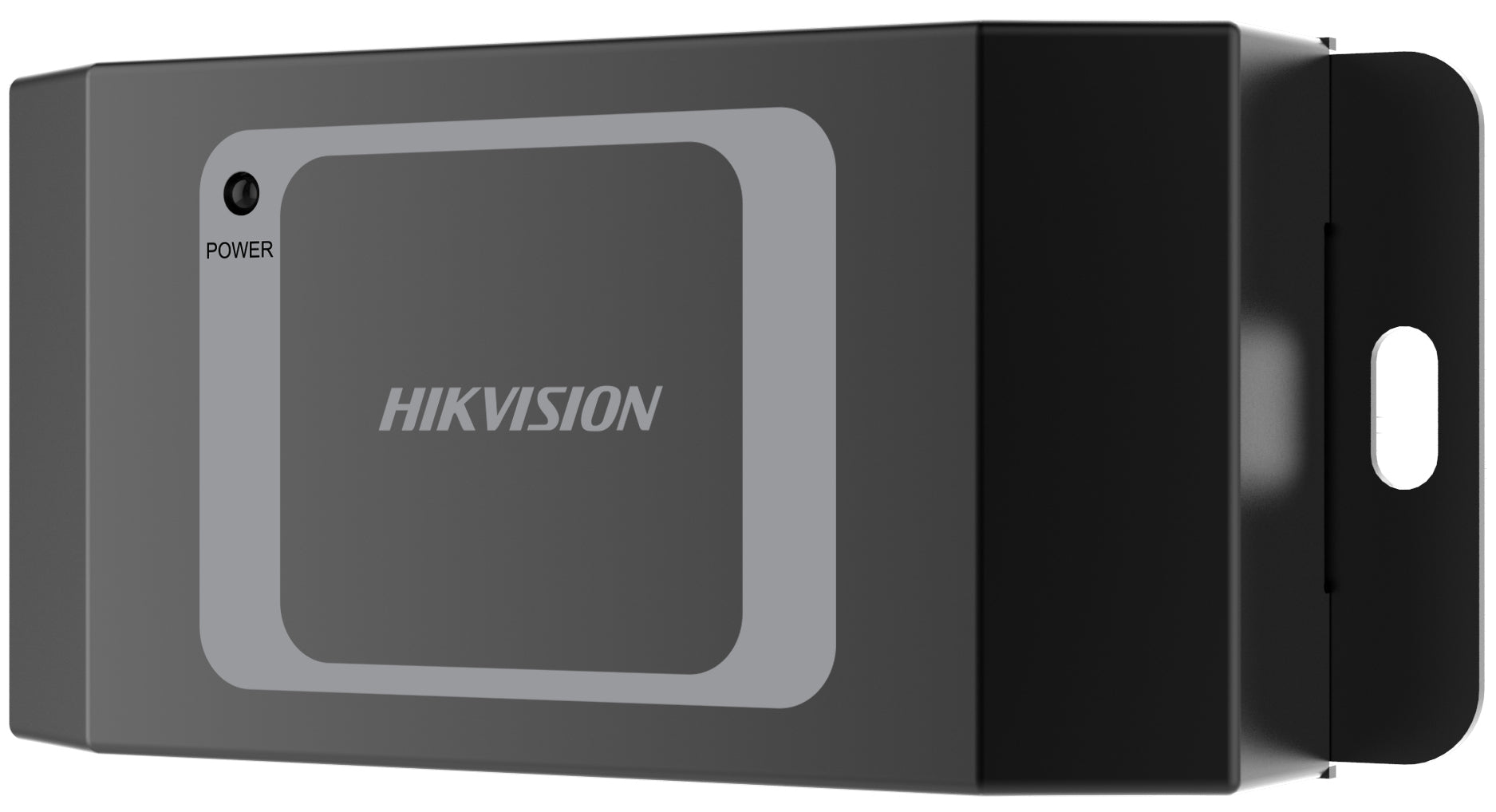

Hikvision DS-K2M061 | Accessories
Hikvision DS-K2M061 | Accessories
- Access Control
- Access Control Accessories
- Modules
Secure module. Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Input interface: Door Magnetic×1, Tamper-proof×1, Alarm input x2;
Output interface: Door Switch Relay×1, Alarm Relay×1.
DC 12V.
Dimensions：48 mm × 115 mm × 26 mm 1.9 × 4.5 × 1.0
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K2M061 | Accessories
Specifications
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- RS-485: 1
- Wiegand: 1
- Indicator: 1 for power supply
- Power supply: 12 VDC 0.5A
- Working temperature: -40 °C to 70 °C
- Working humidity: 0% to 90%
- Dimensions: 48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
- Installation: Wall Mounting
