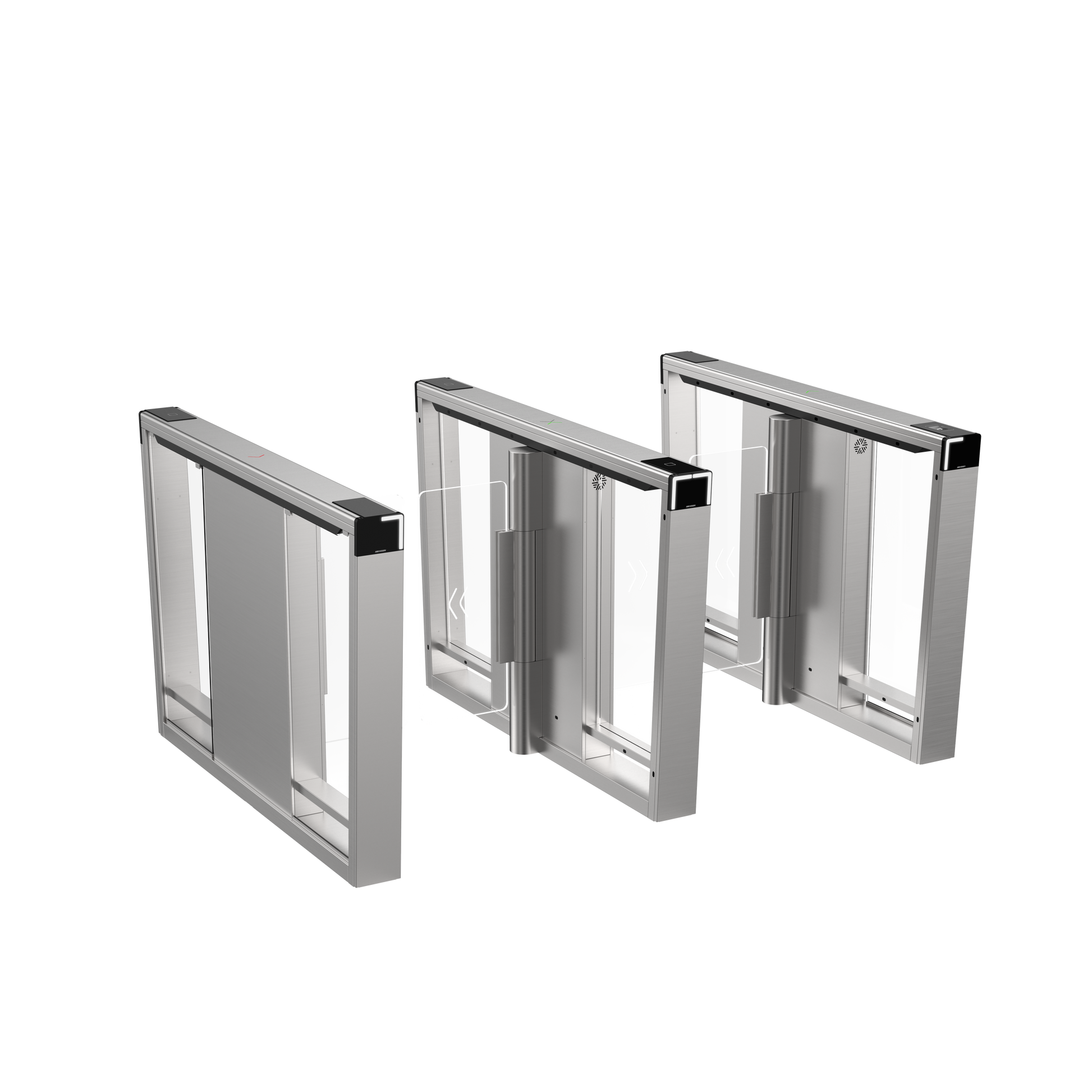

Hikvision DS-K3B530X-R/M | Turnstile
Hikvision DS-K3B530X-R/M | Turnstile
- Access Control
- Speed Gates
- Swing Barriers
14 pairs of infrared sensors,
servo motor, MCBF ≥ 12 million times,
30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method ,
650 mm to 1100 mm lane width,
dimension: 1503 mm 49.59 × 130 mm 4.29 × 1003 mm 33.10 ,
brushed SUS304 stainless steel, thickness: 1.5mm mostly,
Door wing material: Acrylic glass default ,
Built-in access controller,
support wireless keyfob K7R01 series,
When the power is off, the door will automatically open,
Support ISAPI,
IPX4;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K3B530X-R/M | Turnstile
Specifications
- Motor: Servo motor
- MCBF: ≥ 12 million times
- Communication protocol: ISAPI
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi: For AP mode only
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Alarm output: 2
- RS-485: 4
- RS-232: 4
- Wiegand: NA
- Fire alarm input: 1
- Case input: 2
- Access controller: Supplied
- Supercapacitor: Supplied
- Network switch: Not supplied
- Power supply for face recognition module: Supported
- Keyfob: Optional
- Card receiver: Optional
- Card capacity: 700,000
- Event capacity: 700,000
- Card type: EM card or M1 card or Desfire card (actual corresponding card type refer to product model names).
- Configuration via Web browser: Supported
- Configuration via mobile Web browser: Supported
- Audio prompt: Supported
- AP mode: Supported
- Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- IR light detectors: 14 pairs
- Lane width: For arcylic or stainless pipe: 550 mm to 1100 mm (21.65" to 43.31") For full-height door wings: Max 900mm (35.43") (Height 1.2 m,1.4 m,1.6 m,1.8 m)
- Barrier material: Acrylic, Stainless steel pipe, Tempered glass
- Pedestal material: SUS304 stainless steel 1.5mm(0.06'')
- Indicator: Yes
- Power: 100 to 240 VAC; 50 to 60 Hz
- Power consumption: 55W per lane
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No Condensing)
- Protective level: IP34
- Dimensions: With packaging: 1610 mm (63.39'') × 410 mm (16.14'') × 1255 mm (49.41''); Without packaging: 1500 mm (59.06'') × 130 mm (5.12'') × 1000 mm (39.37'');
- Weight: (Net) Left: 62.78 kg (138.4 lbs); Middle: 83.580 kg (184.26 lbs); Right: 67.010 kg (142.73 lbs); (Rough) Left: 101.18 kg (223.06 lbs); Middle: 120.690 kg (266.08 lbs); Right: 104.120 kg (229.55 lbs);
- Approval: CE/CE-LVD/CB/RoHS/REACH/WEEE
- Lane width: 650;750;900;1100
- Pedestal length: 1500 mm
- Module selection: YES
- Pedestal width: 130 mm
- Wall distance: 20 mm
- Base: YES
- Barrier material: Acrylic glass
- Application environment: Indoor and outdoor
- Authentication mode: Face;QR code;Card
- Card type: EM;M1
- Recommended width: 650 mm
- Base model: DS-KSM01/B530
- Product type: Swing barrier
- Remote controller type: 433Mhz;868Mhz
- Movement Protrusion Width: 72 mm
- Convert Face: NO
- Door Height: Default(0.85m);1.6m
- Door wing gap: Default:50mm
