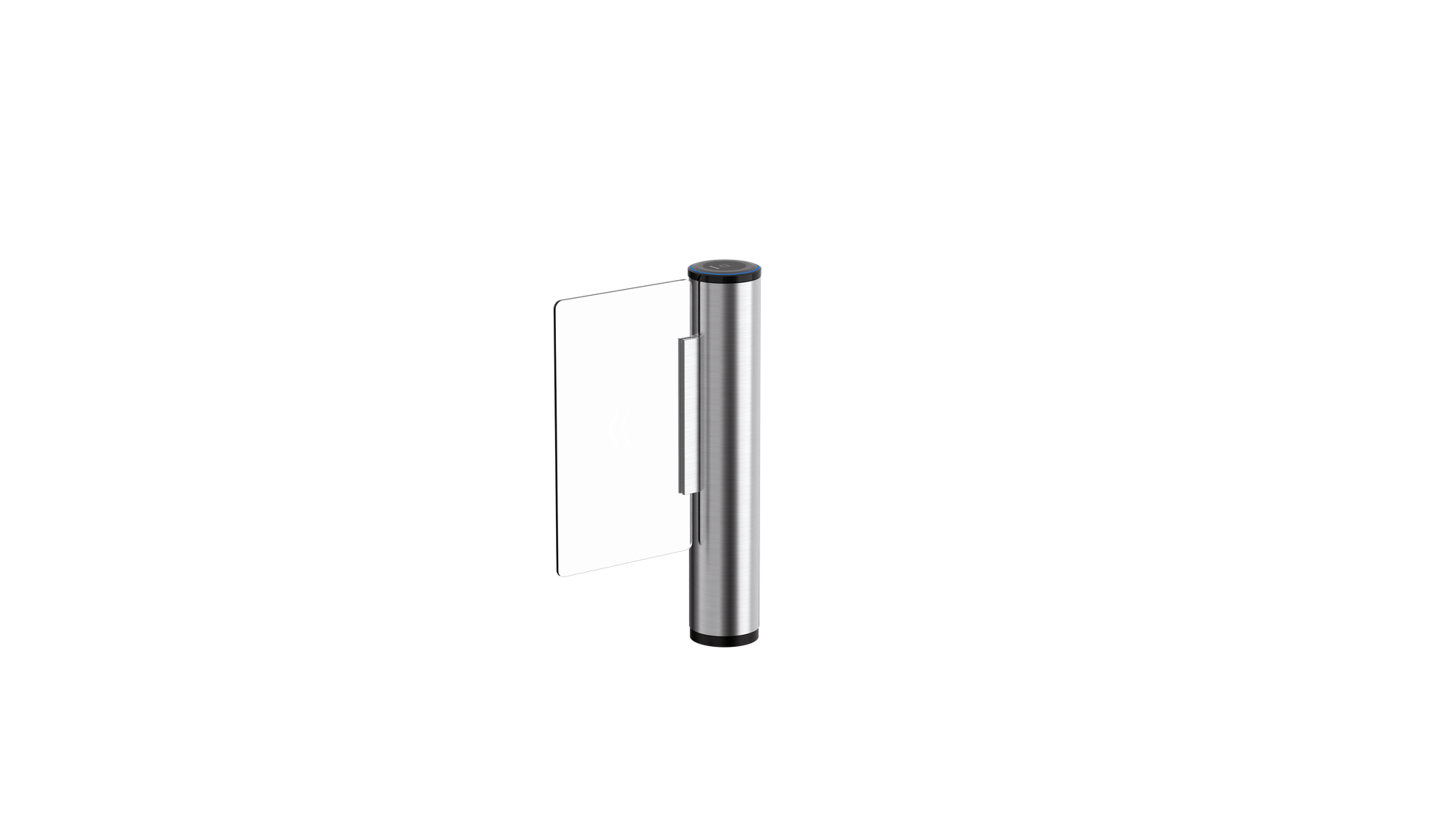

Hikvision DS-K3BC430LX | Turnstile
Hikvision DS-K3BC430LX | Turnstile
- Access Control
- Speed Gates
- Swing Gate
20 – 60 passage frequency,
Single type: 650 mm – 900mm lane width,
Pairs type: 650 mm – 1400mm lane width,
SUS304 stainless steel,
Brushless motor, MCBF 6 Millions,
Dimension: φ180*975mm
Fail safe for emergency situation,
Need order Power box & Door wings & ACS separately，
door wings will be free status when power off,
Use for indoor;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K3BC430LX | Turnstile
Specifications
- Motor: Brushless motor
- MCBF: ≥ 6 Millions
- IR light detectors: Not Support
- Brake: Support
- Exit button: 1
- USB: 1
- Fire alarm input: 1
- Buzzer: Support
- Access controller: Optional
- Supercapacitor: Support
- Network switch: Not supplied
- Card receiver: Optional
- AP mode: Not Support
- Keyfob: Supplied, 433 MHz/868 MHz, within 30 m
- Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
- Lane width: For pairs mode： 550~1400mm（Gap 50mm，Door wing height 950mm）For full-height door wing 550~900mm (Gap 50mm，Door wing height 1800mm) For single mode： 650~900mm（Gap 25mm，Door wing height 950mm)
- Distance between barrier and ground: 950mm - 1800mm
- Barrier material: Acrylic glass or Tempered glass
- Pedestal material: SUS304 stainless steel with the thickness of 2 mm (0.08")
- Indicator: Support
- Power: 24 VDC
- Power consumption: 36W (stand by)
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 95% (No Condensing)
- Dimensions: 180mm x 180mm x 975mm (7.09' x 7.09' x 38.39')
- Weight: (Net) Left: 30kg (66.14 lbs) (Rough) Left: 35 kg (77.16 lbs)
- Approval: CE/CB/CE-LVD/RoHS/REACH/WEEE
- Power supply for face recognition module: Supplied
- Lane width: double:650,750,900,1100,1200;single:650,700,750,800,850,900;
- Pedestal length: 180 mm
- Module selection: YES
- Pedestal width: 180 mm
- Wall distance: 20 mm
- Base: NO
- Barrier material: Acrylic glass
- Application environment: Indoor
- Authentication mode: Card;Face;QR code
- Card type: Desfire;M1;EM
- Recommended width: 650 mm
- Base model: NO
- Authentication exclusionary: Card;Face;QR code
- Product type: Swing barrier
- Remote controller type: 433Mhz;868Mhz
- Movement Protrusion Width: 0 mm
- Door Height: Default(0.95m);1.8m;
- Convert Face: NO
- Door wing gap: Default:50mm
