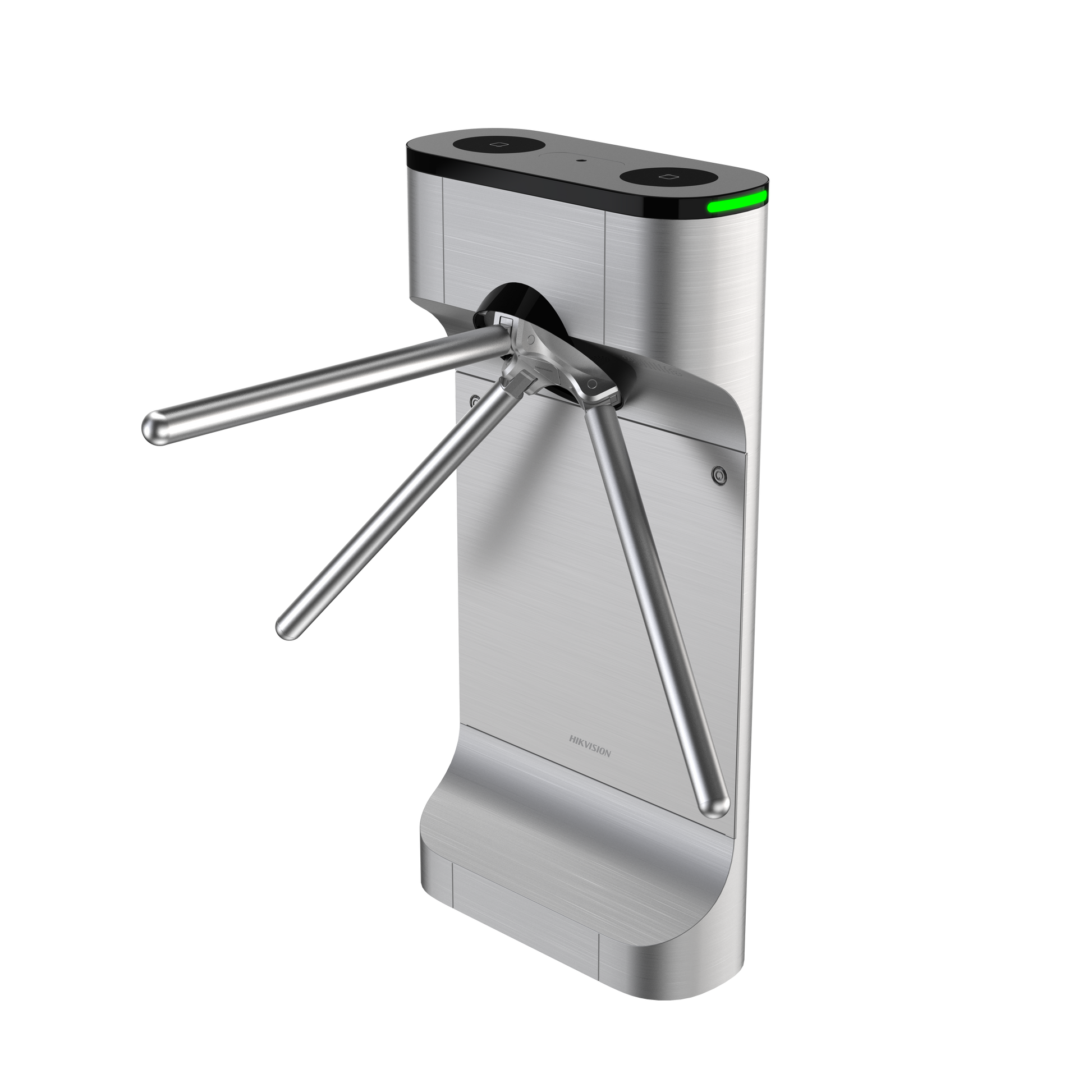

Hikvision DS-K3G411BLX-R/Pg-Dm55 | Turnstile

Hikvision DS-K3G411BLX-R/Pg-Dm55 | Turnstile

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Turnstiles
  • Tripod Turnstile

More than 35 passage frequency, 550mm lane width,
SUS304 stainless steel,thickness:1.2mm,
MCBF：3M,
Arms dropped automatically for emergency evacuation,
LED indicates the passing direction forbidden or available ,
two kind of power supply: adapter and switching power supply;
Easily integrated with 3rd party ACS system,
signal output on actual personnel passing status,
L series without built-in ACS & card reader,
L series do not support speaker & remote Keyfob function,
Not include 5 - Ports network switch;
use for indoor,
Face recognition：DS-K5671-ZU or face recognition terminal with bracket：DS-KAB6-ZU1

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K3G411BLX-R/Pg-Dm55 | Turnstile
Login to View Price

Specifications

  • Motor: /
  • MCBF: ≥ 3 million times
  • Exit button: 2
  • Fire alarm input: 1
  • Access controller: Not supplied
  • Audio prompt: Not support
  • Keypad configuration: Support
  • Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width: 550 mm (21.65")
  • Barrier material: 1.2 mm stainless pipe
  • Pedestal material: SUS304 stainless steel 1.2 mm
  • Power consumption: Standby: 15 W Working: 30 W Peak: 40 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 0% to 95% (No condensing)
  • Protective level: /
  • Dimensions: Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 700 mm × 430 mm × 1140 mm (27.56" × 16.93" × 44.88")
  • Weight: Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,
  • Application environment: Indoor

System
  • Motor: /
  • MCBF: ≥ 3 million times

Interface
  • Exit button: 2
  • Fire alarm input: 1

Hardware
  • Access controller: Not supplied

Function
  • Audio prompt: Not support
  • Keypad configuration: Support

General
  • Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width: 550 mm (21.65")
  • Barrier material: 1.2 mm stainless pipe
  • Pedestal material: SUS304 stainless steel 1.2 mm
  • Power consumption: Standby: 15 W Working: 30 W Peak: 40 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 0% to 95% (No condensing)
  • Protective level: /
  • Dimensions: Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 700 mm × 430 mm × 1140 mm (27.56" × 16.93" × 44.88")
  • Weight: Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,

Configuration
  • Application environment: Indoor
