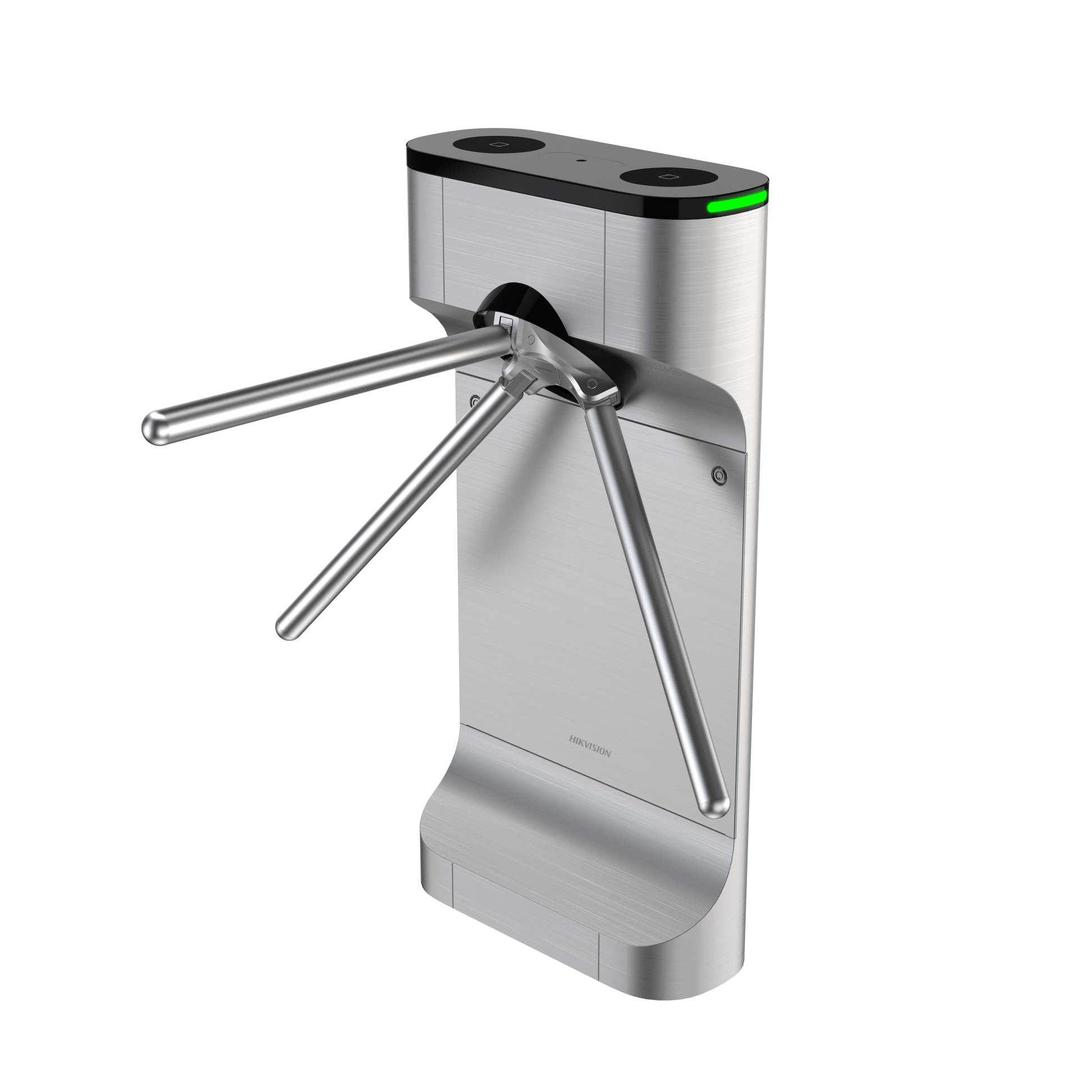

Hikvision DS-K3G411BX-R/M-Dm55 | Turnstile
Hikvision DS-K3G411BX-R/M-Dm55 | Turnstile
- Access Control
- Turnstiles
- Tripod Turnstile
More than 35 passage frequency, 550mm lane width,
SUS304 stainless steel,thickness:1.2mm,
MCBF：3M,
Arms dropped automatically for emergency evacuation,
LED indicates the passing direction forbidden or available ,
two kind of power supply: adapter and switching power supply;
Easily integrated with 3rd party ACS system,
signal output on actual personnel passing status,
L series without built-in ACS & card reader,
L series do not support speaker & remote Keyfob function,
Not include 5 - Ports network switch;
use for indoor,
Face recognition：DS-K5671-ZU or face recognition terminal with bracket：DS-KAB6-ZU1
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Motor: /
- MCBF: ≥ 3 million times
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Alarm output: 2
- RS-485: 4
- RS-232: 2
- Wiegand: 2
- Fire alarm input: 1
- Case input: 2
- Access controller: Supplied
- Card capacity: 500,000
- Event capacity: 500,000
- Card: EM card, M1 card, and DESfire card
- Configuration via PC Web: Support
- Configuration via mobile Web: Support
- Audio prompt: Support
- Keypad configuration: Support
- Communication protocol: ISAPI
- Keyfob: Support, 433 MHz/868 MHz, within 50 m
- Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550 mm (21.65")
- Barrier material: 1.2 mm stainless pipe
- Pedestal material: SUS304 stainless steel 1.2 mm
- Power consumption: Standby: 20 W Working: 35 W Peak: 45 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No condensing)
- Protective level: /
- Dimensions: Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0") With package: 700 mm × 430 mm × 1140 mm (27.56" × 16.93" × 44.88")
- Weight: Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
- Approval: CE/CB/RoHS/REACH/WEEE
- Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,
- Language: Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
- Lane width: 550
- Pedestal length: 502 mm
- Module selection: YES
- Pedestal width: 202 mm
- Wall distance: 20 mm
- Base: YES
- Barrier material: Stainless steel pipe
- Application environment: Indoor
- Authentication mode: Card;Face;QR code
- Card type: EM;M1
- Recommended width: 550 mm
- Base model: DS-KSM01/G411
- Side pedestal: YES
- Side pedestal type: fence(130mm)
- Product type: Tripod Turnstile
- Remote controller type: 433Mhz;868Mhz
- Movement Protrusion Width: 29 mm
- Door wing gap: Default:50mm
