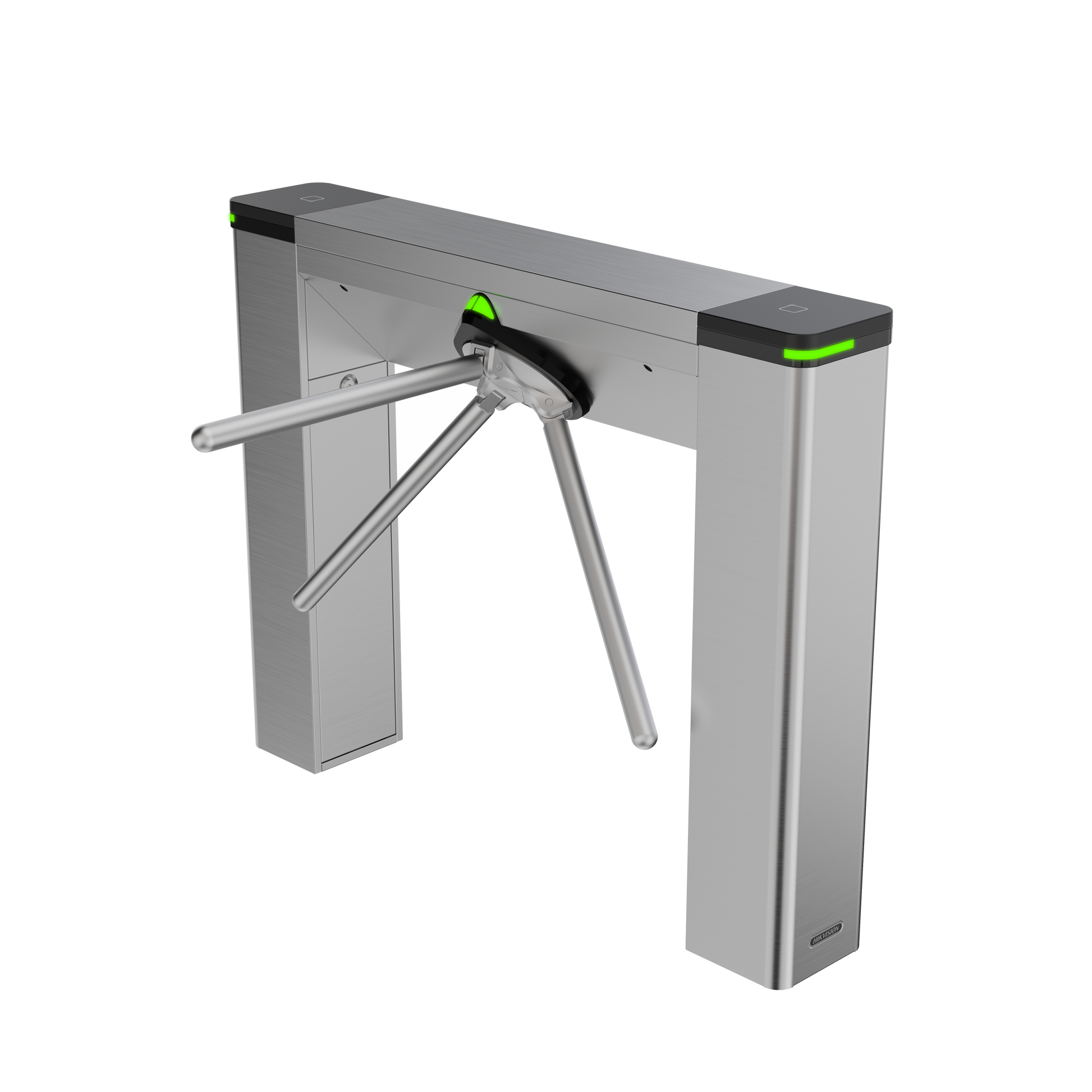

Hikvision DS-K3G501BLX-R/Pg-Dm55 | Turnstile

Hikvision DS-K3G501BLX-R/Pg-Dm55 | Turnstile

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Turnstiles
  • Tripod Turnstile

More than 35 passage frequency, 550mm lane width,
SUS304 stainless steel,thickness:1.5mm,
Better performance in anti-tailgating by tripod design,
Arms dropped automatically for emergency evacuation,
LED indicators design especially in the middle of the turnstile,
Use for indoor and outdoor water proof ,
L series without built-in ACS & card reader,
Not include 5 - Ports network switch;
Speaker & remote Keyfob suit optional for L series,
two kind of power supply: adapter and switching power supply;
Easily integrated with 3rd party ACS system;
signal output on actual personnel passing status,
Carton packaging;

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K3G501BLX-R/Pg-Dm55 | Turnstile
Login to View Price

Specifications

  • Motor: /
  • MCBF: ≥ 3 million times
  • Wired network: /
  • Exit button: x 2
  • Fire alarm input: 1
  • Access controller: Not supplied
  • Audio prompt: Not support
  • Keypad configuration: Support
  • Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width: 550 mm (21.65")
  • Barrier material: 1.2 mm stainless pipe
  • Pedestal material: SUS304 stainless steel 1.5 mm
  • Power consumption: Standby: 15 W Working: 30 W Peak: 40 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 0% to 95% (No condensing)
  • Protective level: IPX4
  • Dimensions: Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8" × 47.6") With package: 410 mm × 1180 mm × 1350 mm (16.1" × 46.5" × 53.1")
  • Weight: Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz
  • Module selection: NO
  • Application environment: Outdoor (waterproof)

System
  • Motor: /
  • MCBF: ≥ 3 million times

Network
  • Wired network: /

Interface
  • Exit button: x 2
  • Fire alarm input: 1

Hardware
  • Access controller: Not supplied

Function
  • Audio prompt: Not support
  • Keypad configuration: Support

General
  • Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width: 550 mm (21.65")
  • Barrier material: 1.2 mm stainless pipe
  • Pedestal material: SUS304 stainless steel 1.5 mm
  • Power consumption: Standby: 15 W Working: 30 W Peak: 40 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 0% to 95% (No condensing)
  • Protective level: IPX4
  • Dimensions: Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8" × 47.6") With package: 410 mm × 1180 mm × 1350 mm (16.1" × 46.5" × 53.1")
  • Weight: Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz

Configuration
  • Module selection: NO
  • Application environment: Outdoor (waterproof)
