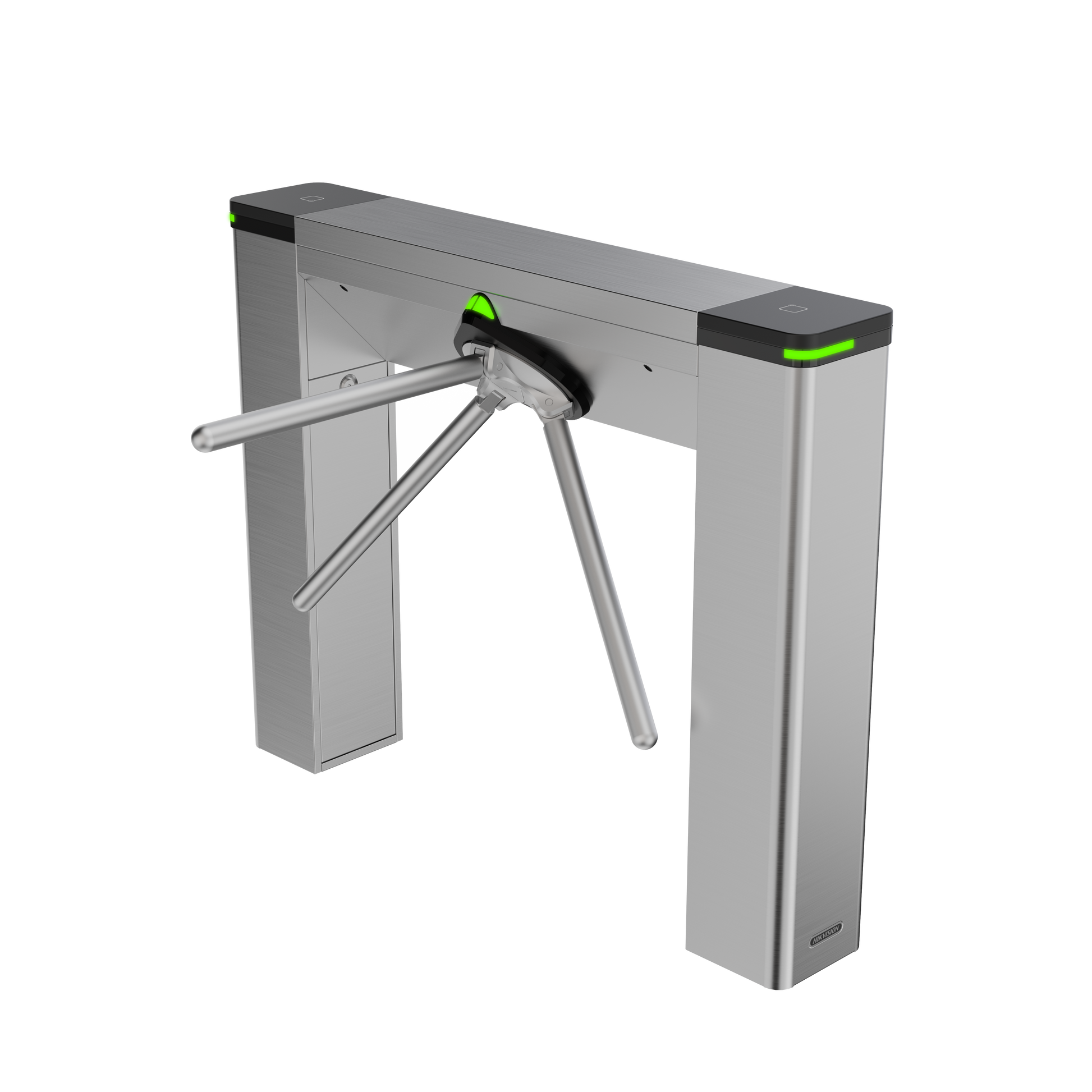

Hikvision DS-K3G501BX-R/M-Dm55 | Turnstile
Hikvision DS-K3G501BX-R/M-Dm55 | Turnstile
- Access Control
- Turnstiles
- Tripod Turnstile
More than 35 passage frequency, 550mm lane width,
SUS304 stainless steel,thickness:1.5mm,
Better performance in anti-tailgating by tripod design,
Arms dropped automatically for emergency evacuation,
LED indicators design especially in the middle of the turnstile,
Use for indoor and outdoor water proof ,
L series without built-in ACS & card reader,
Not include 5 - Ports network switch;
Speaker & remote Keyfob suit optional for L series,
two kind of power supply: adapter and switching power supply;
Easily integrated with 3rd party ACS system;
signal output on actual personnel passing status,
Carton packaging;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Motor: /
- MCBF: ≥ 3 million times
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Network interface: 1
- Lock control: 2
- Exit button: 2
- Alarm output: 2
- RS-485: 4
- RS-232: 2
- Wiegand: 2
- Fire alarm input: 1
- Case input: 2
- Access controller: Supplied
- Card capacity: 500,000
- Event capacity: 500,000
- Card: EM card, M1 card, and DESfire card
- Configuration via PC Web: Support
- Configuration via mobile Web: Support
- Audio prompt: Support
- Keypad configuration: Support
- Communication protocol: ISAPI
- Keyfob: Support, 433 MHz/868 MHz, within 50 m
- Throughput: 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
- Lane width: 550 mm (21.65")
- Barrier material: 1.2 mm stainless pipe
- Pedestal material: SUS304 stainless steel 1.5 mm
- Power consumption: Standby: 20 W Working: 35 W Peak: 45 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 0% to 95% (No condensing)
- Protective level: IPX4
- Dimensions: Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8" × 47.6") With package: 410 mm × 1180 mm × 1350 mm (16.1" × 46.5" × 53.1")
- Weight: Without package: 41.78 kg (92.11 lb)With package：51.45 kg(113.43lb)
- Approval: CE/CB/RoHS/REACH/WEEE
- Power supply method: Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz,
- Language: Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
- Lane width: 550
- Pedestal length: 1210 mm
- Module selection: NO
- Pedestal width: 200 mm
- Wall distance: 10 mm
- Base: YES
- Barrier material: Stainless steel pipe
- Application environment: Indoor and outdoor
- Authentication mode: Card;Face;QR code
- Card type: EM;Desfire
- Recommended width: 550 mm
- Base model: DS-KSM01/G501
- Side pedestal: YES
- Side pedestal type: Empty (230 mm)/fence (130 mm)
- Product type: Tripod Turnstile
- Remote controller type: 433Mhz;868Mhz
- Movement Protrusion Width: 29 mm
- Convert Face: NO
- Door wing gap: Default:50mm
