Hikvision DS-K3M210/BC430X Access Board Kit | Turnstile

Hikvision DS-K3M210/BC430X Access Board Kit | Turnstile

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Peripheral Products
  • Optional Components

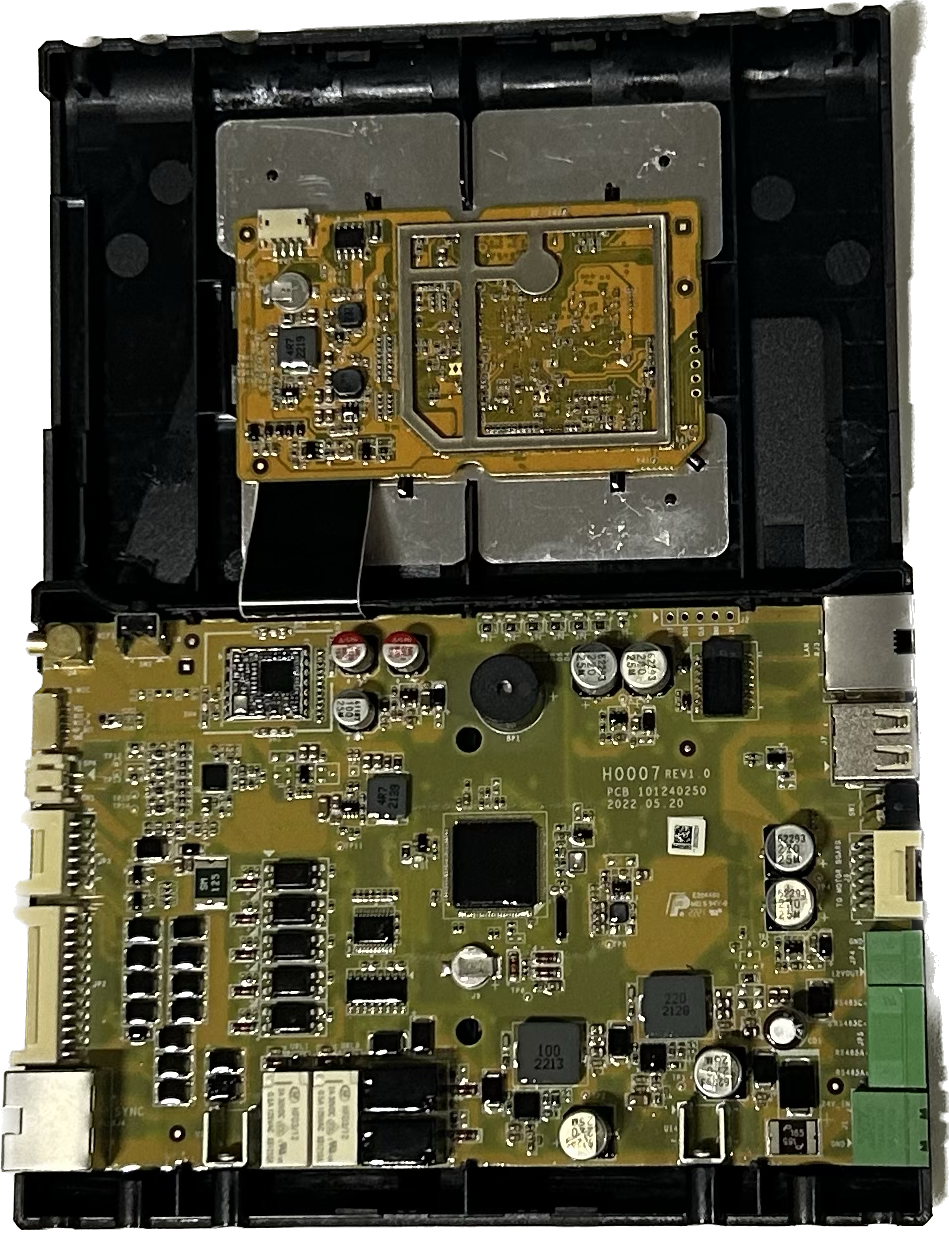

Access Board for Turnstile and Speed Gate.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K3M210/BC430X Access Board Kit | Turnstile
Login to View Price

Specifications

  • Operating system: Linux system
  • Communication protocol: ISAPI,ISUP5.0
  • Wired network: 100Mbps self-adaptive Ethernet
  • Wi-Fi: optional
  • Network interface: 1
  • Lock control: 2
  • Exit button: 2
  • Alarm output: 2
  • RS-485: 4
  • RS-232: 3
  • Wiegand: N/A
  • USB: 1
  • Fire alarm input: 1
  • Case input: 2
  • Configuration via Web browser: Support
  • Configuration via mobile Web browser: Support
  • Anti-passback: Support
  • First person in: Support
  • Time synchronization: Support
  • Power: 24VDC 1A
  • Power consumption: 20W
  • Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Working humidity: 10% to 95% (No Condensing)
  • Dimensions: Without casing： 150mm x 92mm x 16.6mm (5.9'' x 3.62'' x 0.65'')
  • Weight: 0.2Kg (0.41lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Language: English,Japanese, Thai, Bahasa Indonesia, Russian, Spanish (Europe), Spanish (Latina)
  • Module selection: No

System
  • Operating system: Linux system

Network
  • Communication protocol: ISAPI,ISUP5.0
  • Wired network: 100Mbps self-adaptive Ethernet
  • Wi-Fi: optional

Interface
  • Network interface: 1
  • Lock control: 2
  • Exit button: 2
  • Alarm output: 2
  • RS-485: 4
  • RS-232: 3
  • Wiegand: N/A
  • USB: 1
  • Fire alarm input: 1
  • Case input: 2

Function
  • Configuration via Web browser: Support
  • Configuration via mobile Web browser: Support
  • Anti-passback: Support
  • First person in: Support
  • Time synchronization: Support

General
  • Power: 24VDC 1A
  • Power consumption: 20W
  • Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Working humidity: 10% to 95% (No Condensing)
  • Dimensions: Without casing： 150mm x 92mm x 16.6mm (5.9'' x 3.62'' x 0.65'')
  • Weight: 0.2Kg (0.41lb)
  • Approval: CE/CB/RoHS/REACH/WEEE
  • Language: English,Japanese, Thai, Bahasa Indonesia, Russian, Spanish (Europe), Spanish (Latina)

Configuration
  • Module selection: No

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
