Hikvision DS-K4H250D | Lock
Hikvision DS-K4H250D | Lock
- Access Control
- Electrical Locks
- Pro Series

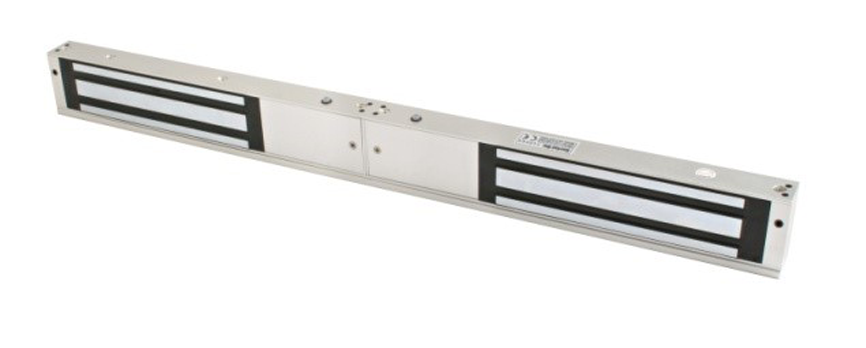

Double-door Magnetic Lock, supports static linear thrust of 2 x 280kg;
Working Current: 12V/500mA×2 24V/250mA×2.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K4H250D | Lock
Specifications
- Indicator: Red (Door is Unlocked) Green (Door is Locked)
- Power supply: 12 VDC/500 mA 24 VDC/250 mA
- Working temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Working humidity: 0 to 95% (Relative Humidity)
- Dimensions: Lock body: 480 mm × 49 mm × 25.5 mm (18.90" × 1.93" × 1.00") Armature Plate: 180 mm × 38 mm × 11 mm (7.1" × 1.5" × 0.4" )
- Weight: 4.2 kg (9.3 Lbs)
- Material: Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Zinc with Electroplating Operated Armature Plate: eco-friendly Zinc with Electroplating Operated
- Thrust: Max. 272 kg (599.8 lbs) × 2 linear thrust
- Door type: Single leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door
- Signal output: Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
