Hikvision DS-K4H250S | Lock
Hikvision DS-K4H250S | Lock
- Access Control
- Electrical Locks
- Pro Series

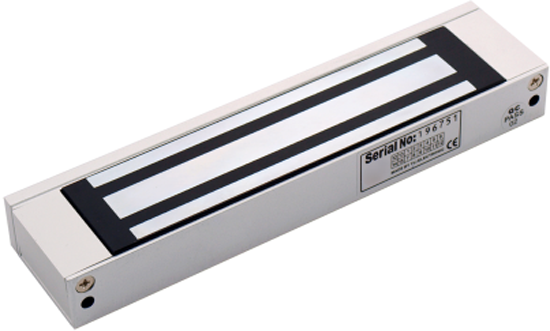

Single-door Magnetic Lock, supports static linear thrust of 280kg;
Working Current: DC12V 500 mA / 24VAC 250 mA .
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K4H250S | Lock
Specifications
- Indicator: Green: Locked Red: Unlocked
- Power supply: 12 VDC/500 mA 24 VDC/250 mA
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 0 to 95% (relative Humidity)
- Dimensions: Lock body: 240 mm × 49 mm × 25.5 mm (9.45" × 1.93" × 1.00") Armature Plate: 180 mm × 38 mm × 11 mm (7.1" × 1.5" × 0.4")
- Weight: 2.1kg (4.63 lb)
- Material: Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Zinc with Electroplating Operated Armature Plate: eco-friendly Zinc with Electroplating Operated
- Thrust: Max. 272 kg (599.8 lb) linear thrust
- Door type: Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
- Signal output: Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
