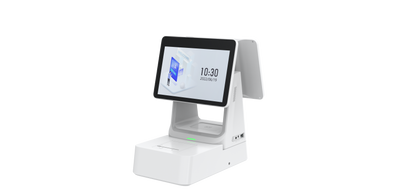

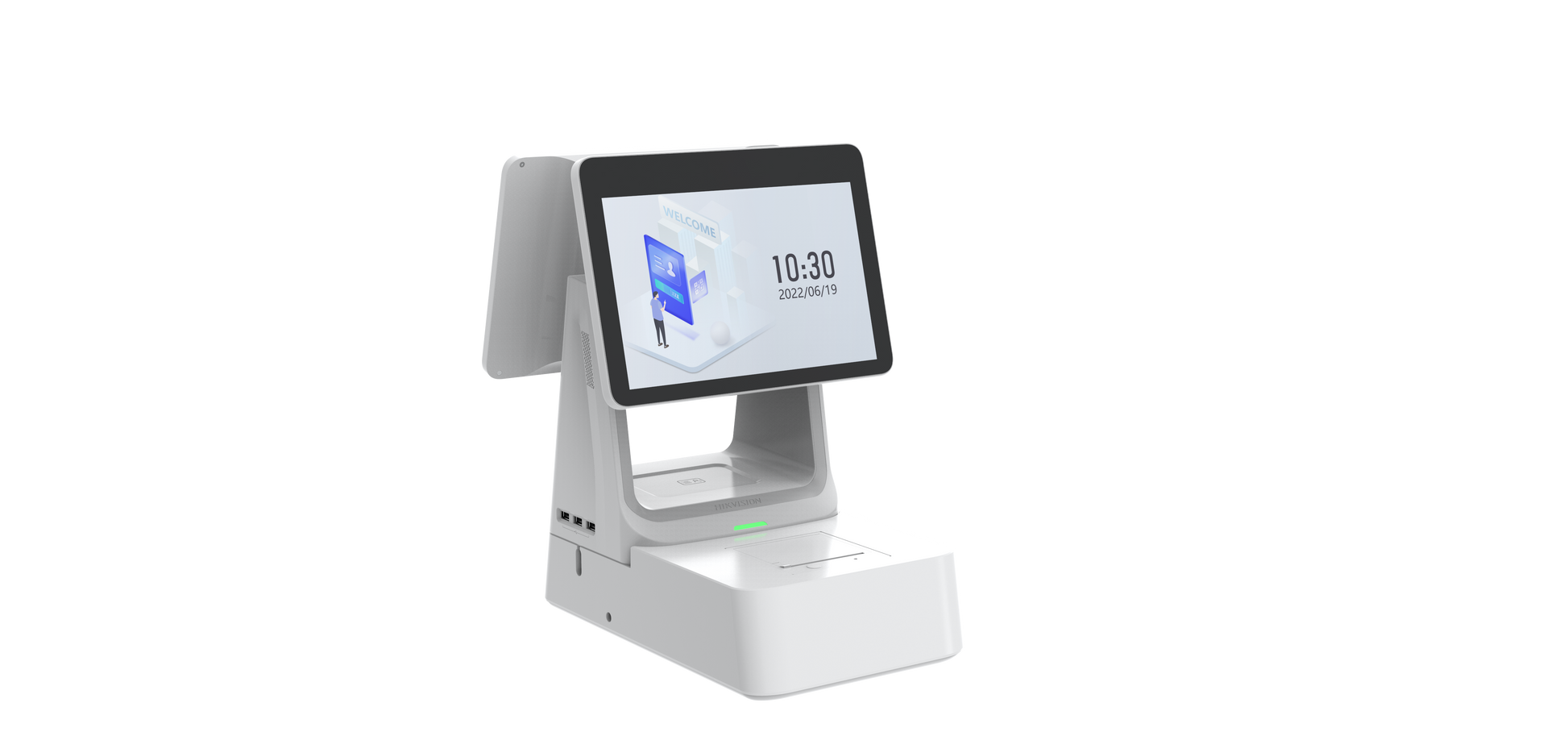

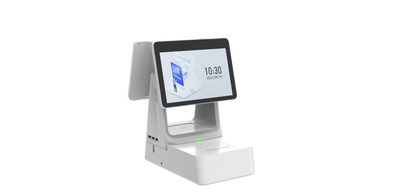

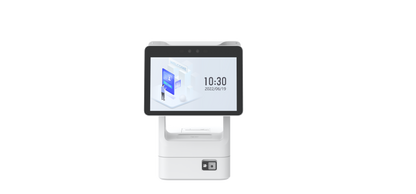

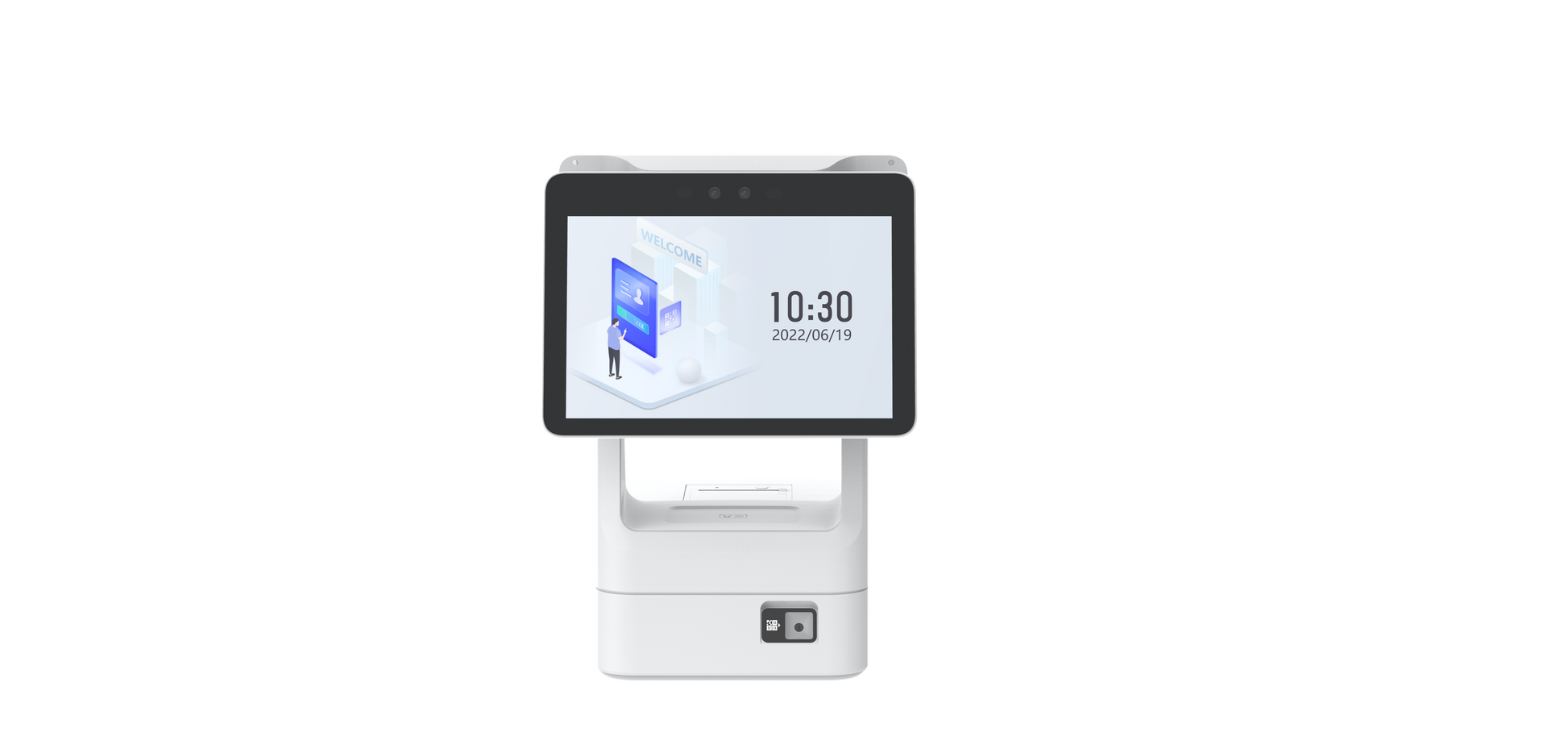

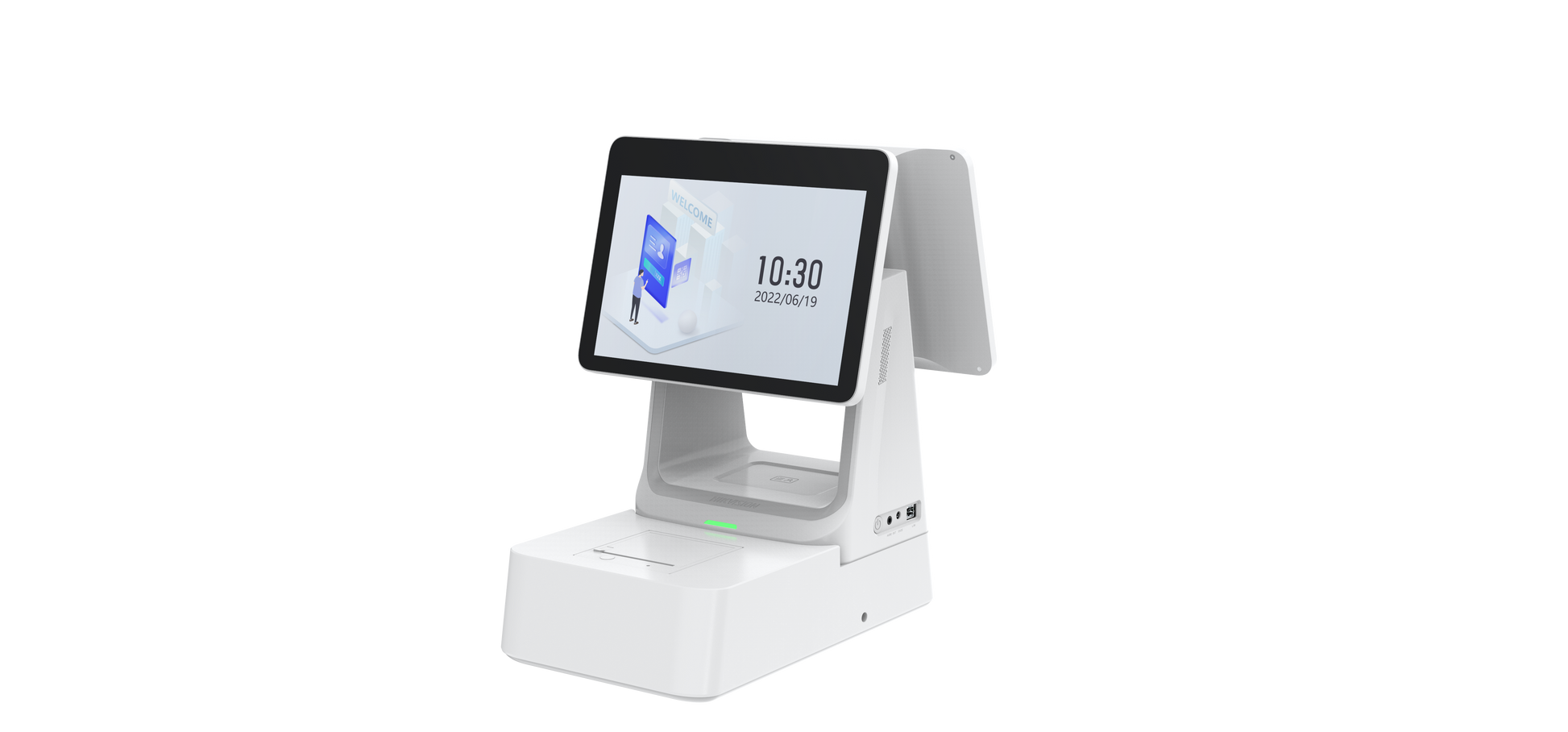

Hikvision DS-K5033MW-D | Visitor Terminal
Hikvision DS-K5033MW-D | Visitor Terminal
- Access Control
- Visitor Terminal
- Pro Series
Assisted visitor terminal, Android 11 system
Dual-screen design. 10.1-inch main screen and 10.1-inch auxiliary screen
Supports both stand-alone and networking application.
TCP/IP and Wi-Fi are available for networking application.
Supports advertisements playing
Supports QR code scanning and swiping card for visitor pass
Up to 300,000 visitor records can be stored on the device
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-K5033MW-D | Visitor Terminal
Specifications
- Memory: 4G
- Flash: 16 GB
- Operation system: Android 11
- Size: Main Screen (Operator): 10.1-inch 1280 × 800 Touch Screen Auxiliary Screen (Visitor): 10.1-inch 1280 × 800 Screen
- Resolution: 1280 × 800
- FOV: HFOV = 40°; VFOV = 85°
- Pixel: 2 MP
- Lens: 2
- Focal length: 3.6 mm
- WDR: Support
- Aperture: F2.0
- Video standard: PAL (Default)/NTSC
- Audio output: Built-in loudspeaker
- Volume adjustment: By device or software
- Network protocol: SDK;ISUP5.0;ISAPI
- Wired network: Support
- Wi-Fi: Support, 2.4 G
- USB: 3个
- Network interface: 1
- Power interface: Round
- Visitor record: 300,000
- Card type: M1 card
- Card reading frequency: 13.56 MHz
- Card reading distance: 0 to 4 cm
- Card reading duration: ＜ 1 s
- Indicator: Red/green indicator
- Power supply: 12 VDC, 5 A
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90% (no condensing)
