Hikvision DS-K7CR01DQ-BC430LX | Turnstile
Hikvision DS-K7CR01DQ-BC430LX | Turnstile
- Access Control
- Spare Parts
- Spare parts
For turnstile use only. Supports communication via RS-485 or USB. Supports reading card type of M1 card, EM card, Desfire card, or Felica card.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support

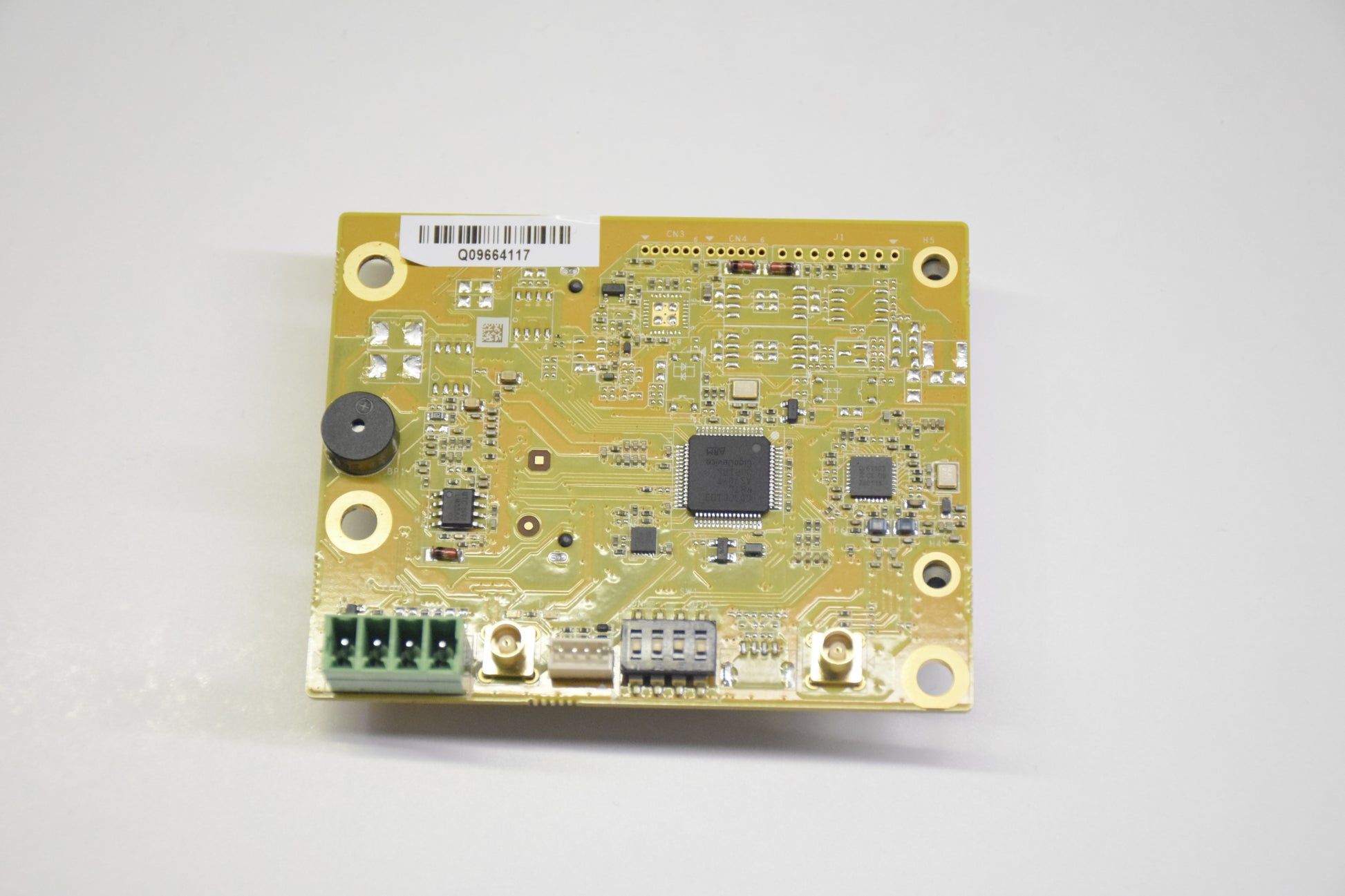

Hikvision DS-K7CR01DQ-BC430LX | Turnstile
Specifications
- Processor: 32 bits MCU
- RS-485: 1 for RS-485 type only
- USB: 1 for USB type only
- PSAM card: 1
- Card reading frequency: 13.56 MHz or 125 KHz
- Card reading distance: < 4.5 cm
- Power supply: 12 VDC (RS-485) 5 VDC (USB)
- Power consumption: < 2 W
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 95%
- Dimensions: Main board: 79 mm × 63 mm × 16 mm (3.1" × 2.5" × 0.6") Antenna (13.56 MHz): 53 mm × 63 mm × 1.2 mm (2.1" × 2.5" × 0.05") Antenna (125 KHz): 86 mm × 69 mm × 2 mm (3.4" × 2.7" × 0.1")
- Installation: Built-in installation
- Weight: 0.03 kg (0.07 lb)
- Card type: EM card or M1 card or Desfire card formats (actual corresponding card type refer to product model names).
- M1 card encryption: Support
