• DS-K7P07

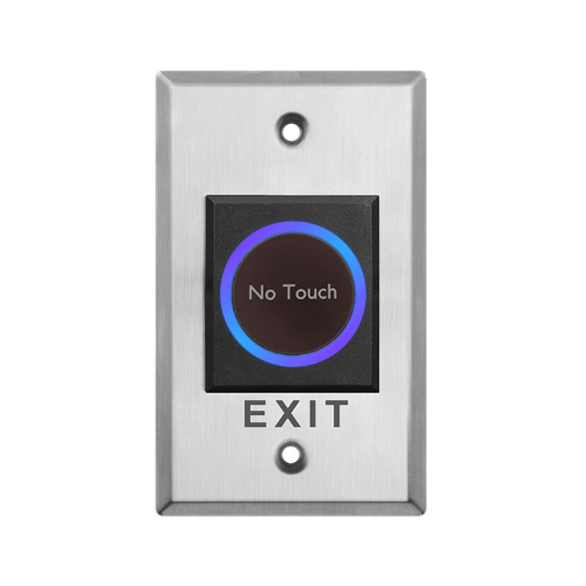

Hikvision DS-K7P07 | Button

Hikvision DS-K7P07 | Button

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Access Control Accessories
  • Push Buttons

· Touchless exit button
· Stainless steel panel
· LED indicator status: Green/blue LED indicates working/standby
· Dimension L×W×H : 115×70×16mm 4.53 ×2.76 ×0.63

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K7P07 | Button
Login to View Price

Specifications

  • Power supply: DC12-24 V
  • Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity: 0 to 95% (relative humidity)
  • Dimensions: 115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • Weight: 0.13 kg (0.27 lb)
  • Material: Panel: stainless steel
  • Output contact: NO/NC/COM contact
  • Suitable door: Hollow door frame (concealed installation)

General
  • Power supply: DC12-24 V
  • Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity: 0 to 95% (relative humidity)
  • Dimensions: 115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • Weight: 0.13 kg (0.27 lb)
  • Material: Panel: stainless steel

Exit Button/General
  • Output contact: NO/NC/COM contact
  • Suitable door: Hollow door frame (concealed installation)
