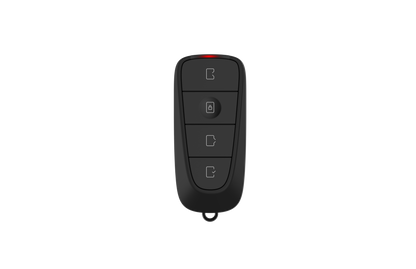

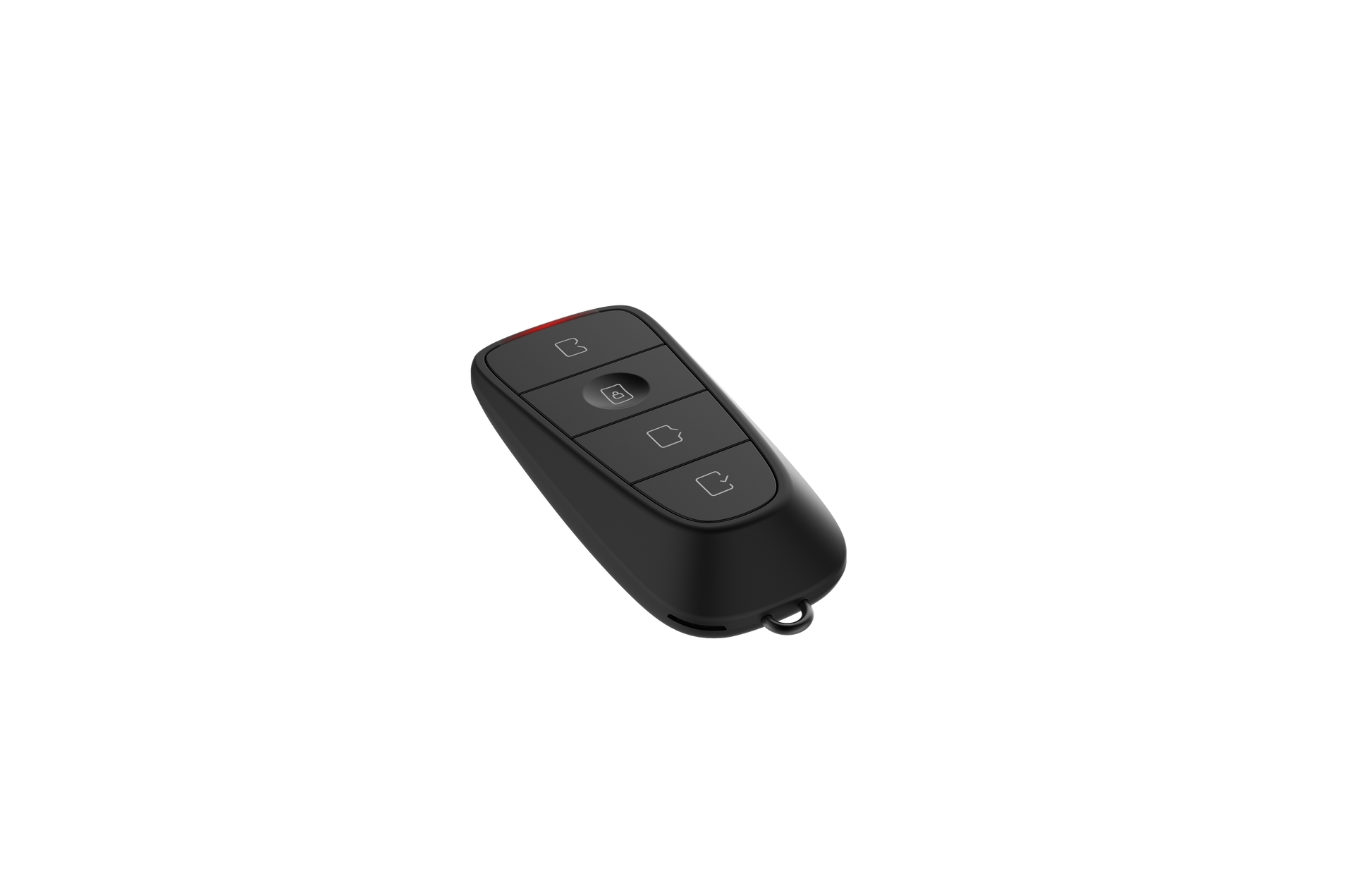

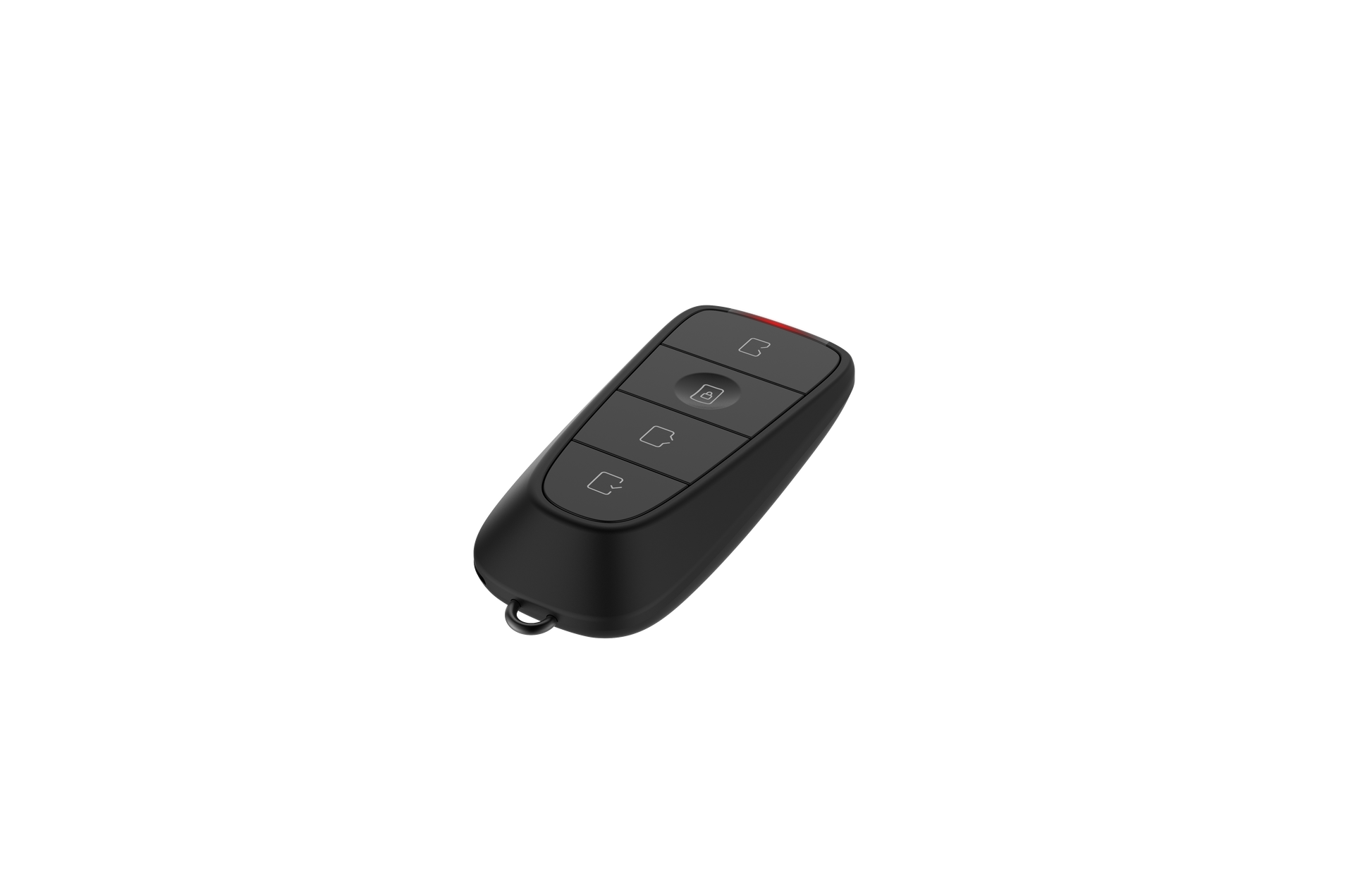

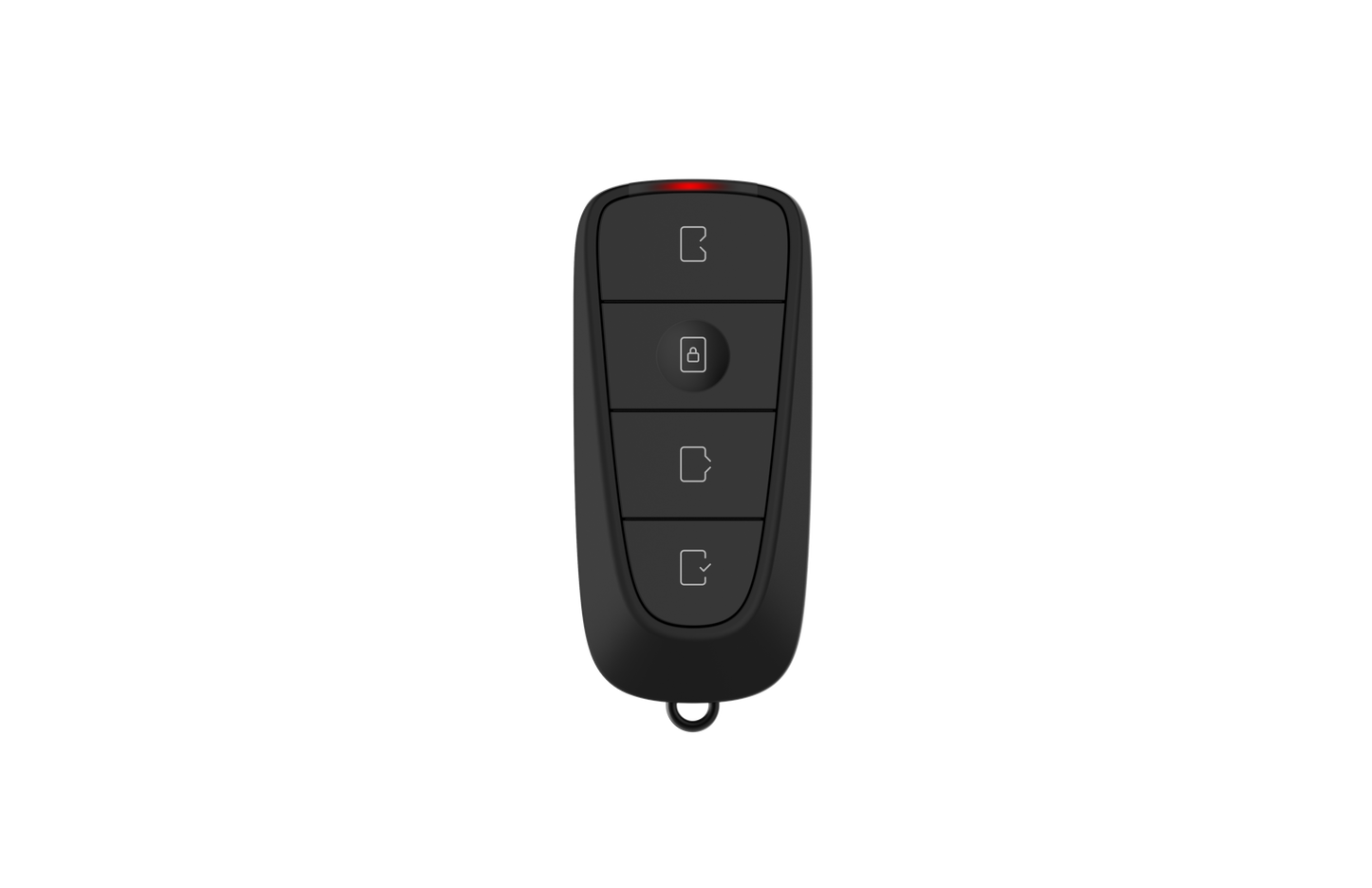

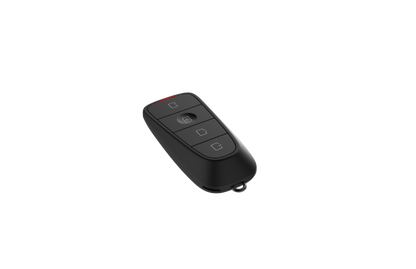

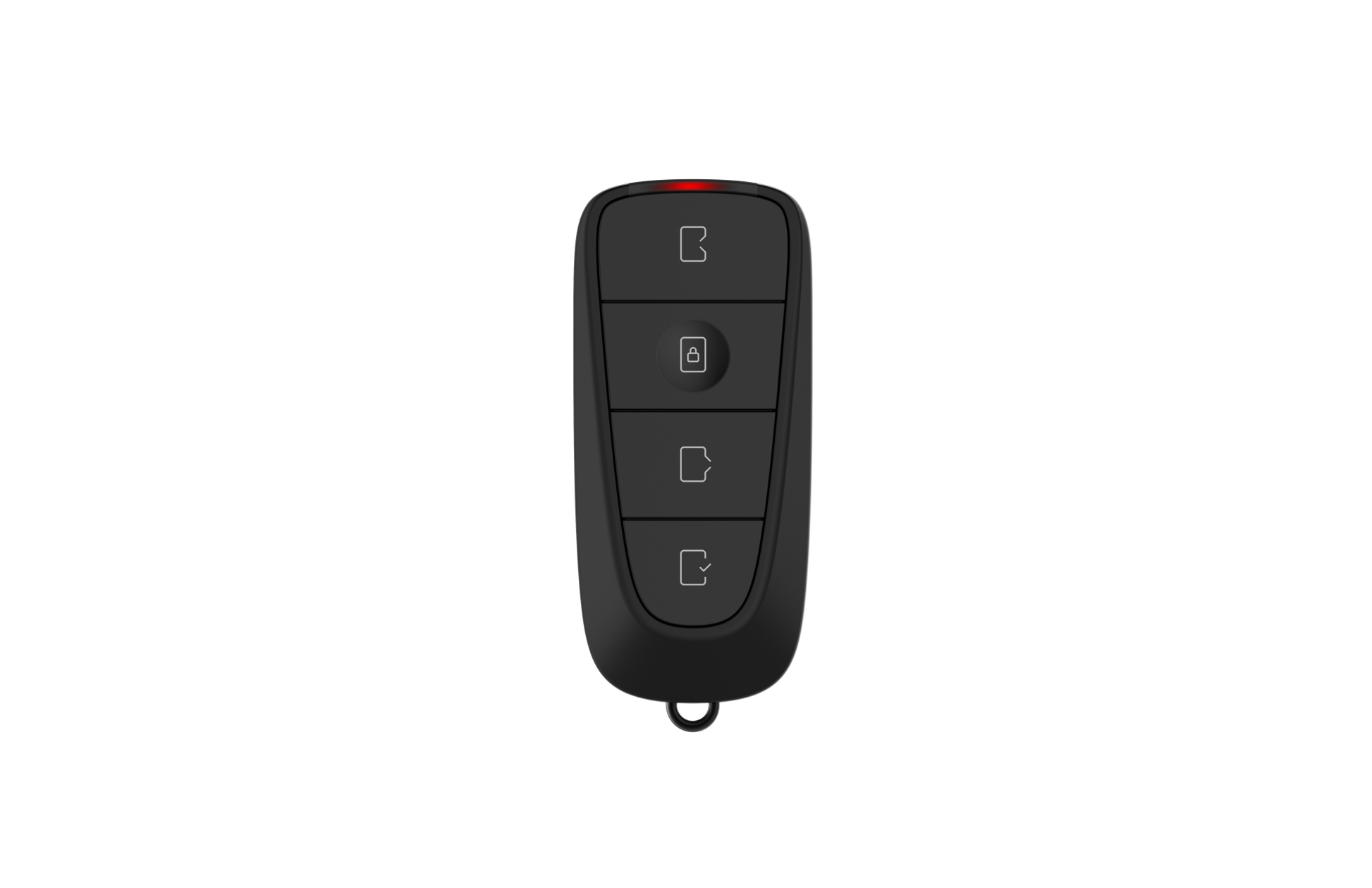

Hikvision DS-K7R01-433 | Turnstile

Hikvision DS-K7R01-433 | Turnstile

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • Peripheral Products
  • Remote Controller

Turnstile Remote Controller, Communication frequency：433MHz

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-K7R01-433 | Turnstile
Login to View Price

Specifications

  • MCBF: More than 0.5 million times for key press
  • Battery life: ≥ 4 month (100 times per day, 25 °C)
  • Communication distance: 15 m
  • Communication frequency: 433 MHz
  • Power supply method: Battery
  • Power supply: 12 V, 40 mA
  • Working temperature: -10 ℃ to 55 ℃ (14 °F to 131 °F)
  • Working humidity: 10% to 90% (No condensing)
  • Dimensions: 80 mm × 36 mm × 20 mm (3.1" × 1.4" × 0.8")
  • Protective level: IP40

System
  • MCBF: More than 0.5 million times for key press
  • Battery life: ≥ 4 month (100 times per day, 25 °C)
  • Communication distance: 15 m

Authentication
  • Communication frequency: 433 MHz

General
  • Power supply method: Battery
  • Power supply: 12 V, 40 mA
  • Working temperature: -10 ℃ to 55 ℃ (14 °F to 131 °F)
  • Working humidity: 10% to 90% (No condensing)
  • Dimensions: 80 mm × 36 mm × 20 mm (3.1" × 1.4" × 0.8")
  • Protective level: IP40
