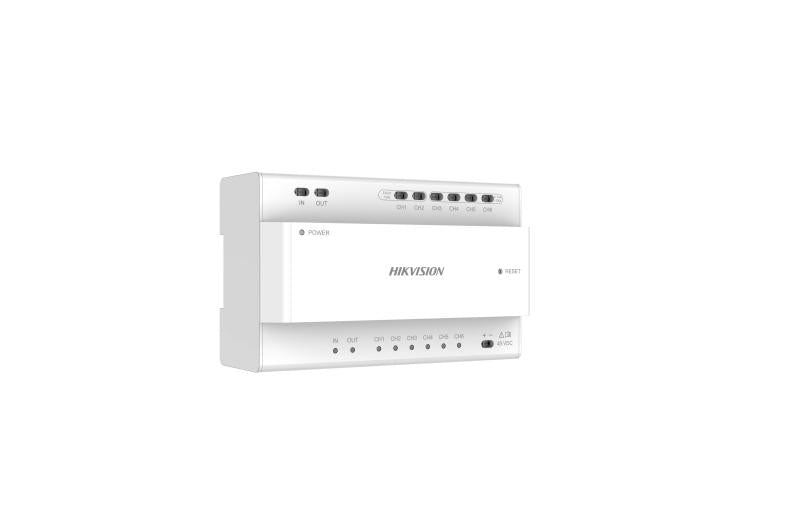

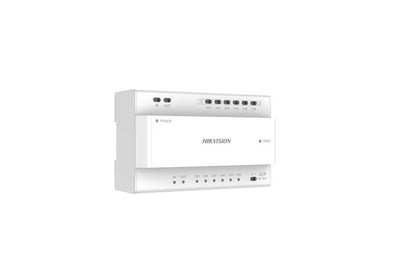

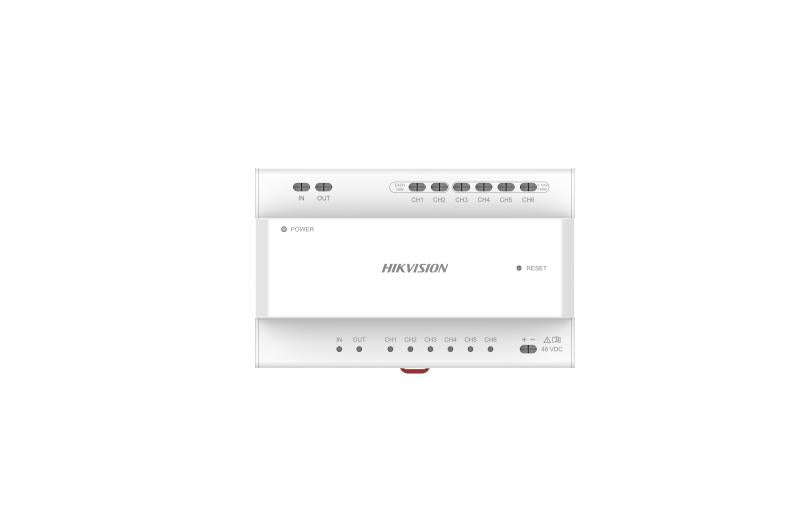

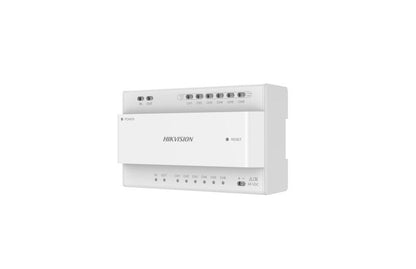

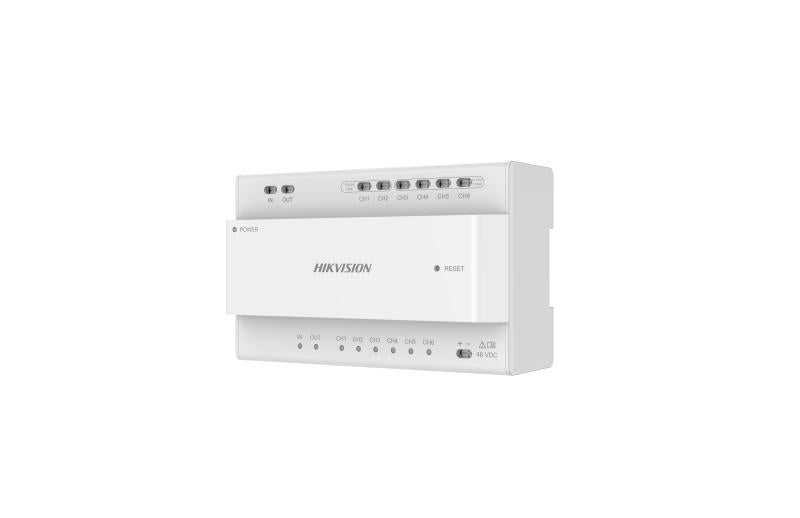

Hikvision DS-KAD7060EY | Two Wire | Power Supply/ Distributor
Hikvision DS-KAD7060EY | Two Wire | Power Supply/ Distributor
- Intercom
- 2-wire Series
- 2 Wire HD
Two-wire HD version: Main Distributor, 6 Two-Wire Interface to connect DS-KD7003EY-IME2 or DS-KH7300EY, 1 in interface to connect DS-KAD7060EY & DS-KAD7060EY-S, 1 out interface to connect DS-KAD7060EY & DS-KAD7060EY-S,, Reset button
Din rail mounting, 48VDC
Without power adapter
The model with is not compatible with Y version，they can not be used together.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KAD7060EY | Two Wire | Power Supply/ Distributor
Specifications
- Two-wire interface: 8("IN""OUT" for casacading, CH1-CH6 for Door station and Indoor station)
- Power indicator: 1
- Signal indicator: 8
- Reset: 1
- Power supply input: 48VDC
- Power supply: 48 VDC
- Installation: DIN rail installation
- Power consumption: CH1 to CH2＜15 W；CH3+CH4+CH5+CH6＜110 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Dimension (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
