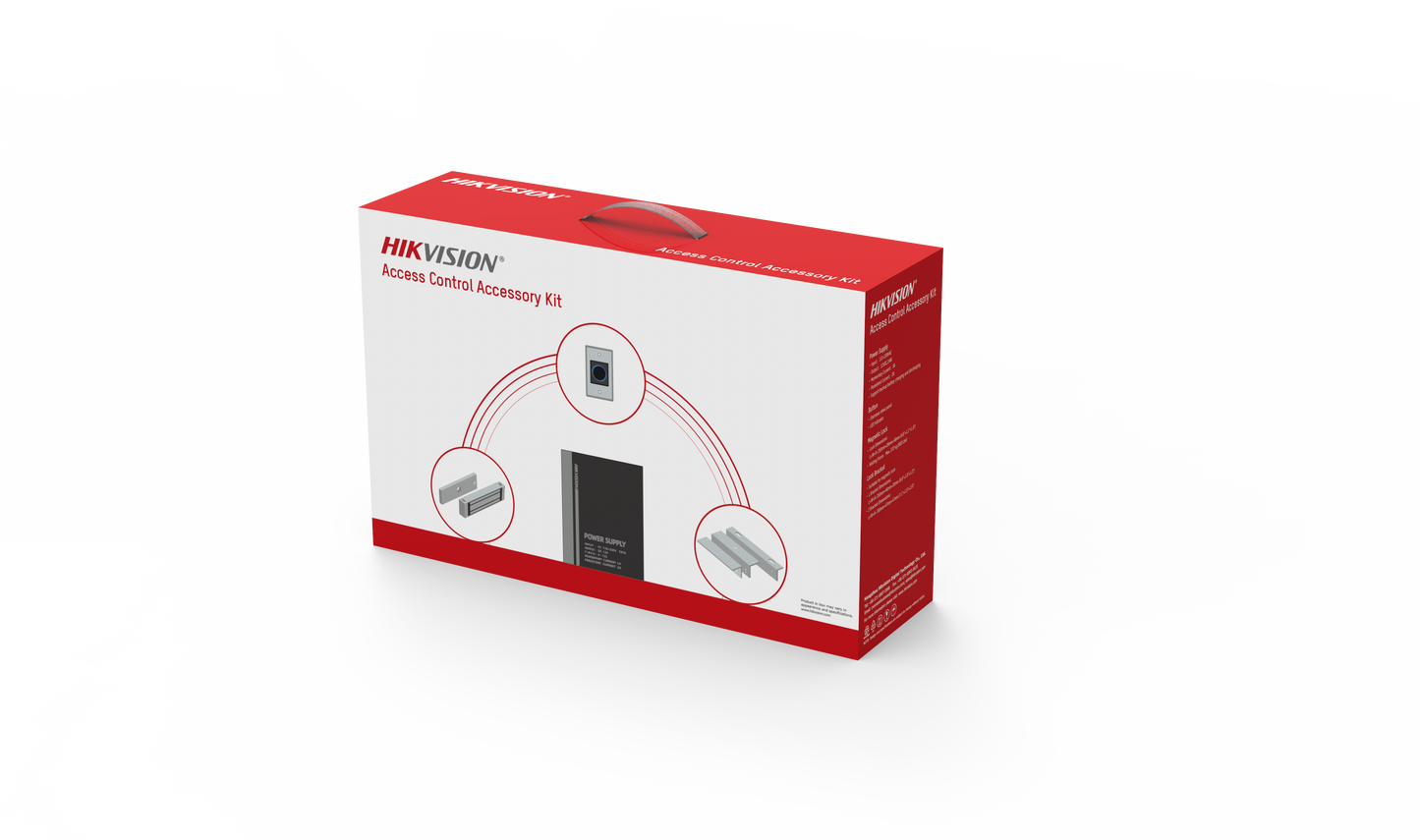

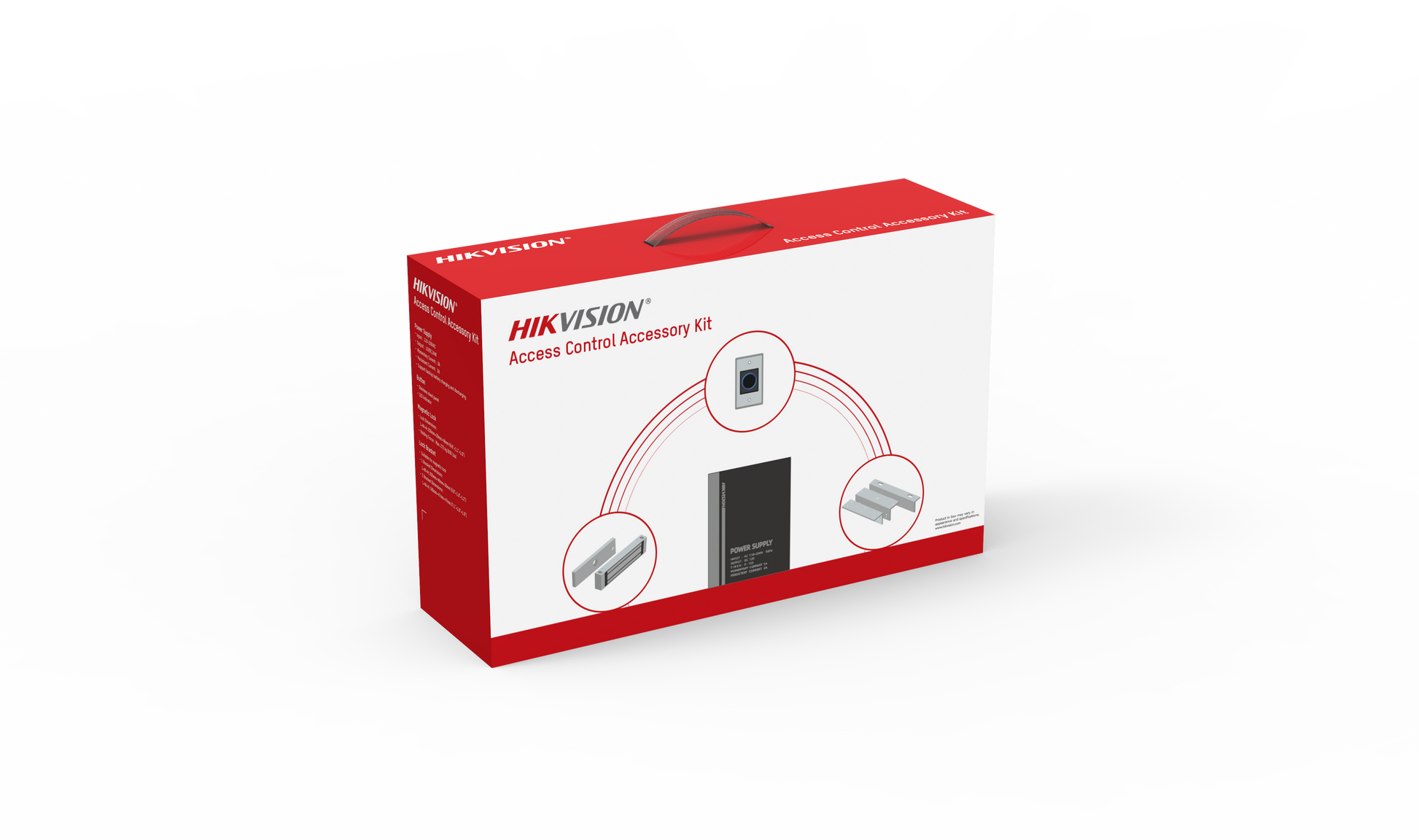

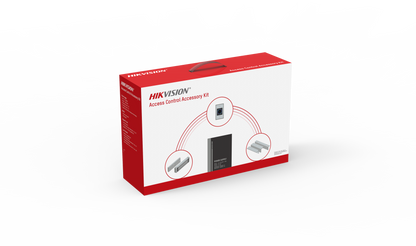

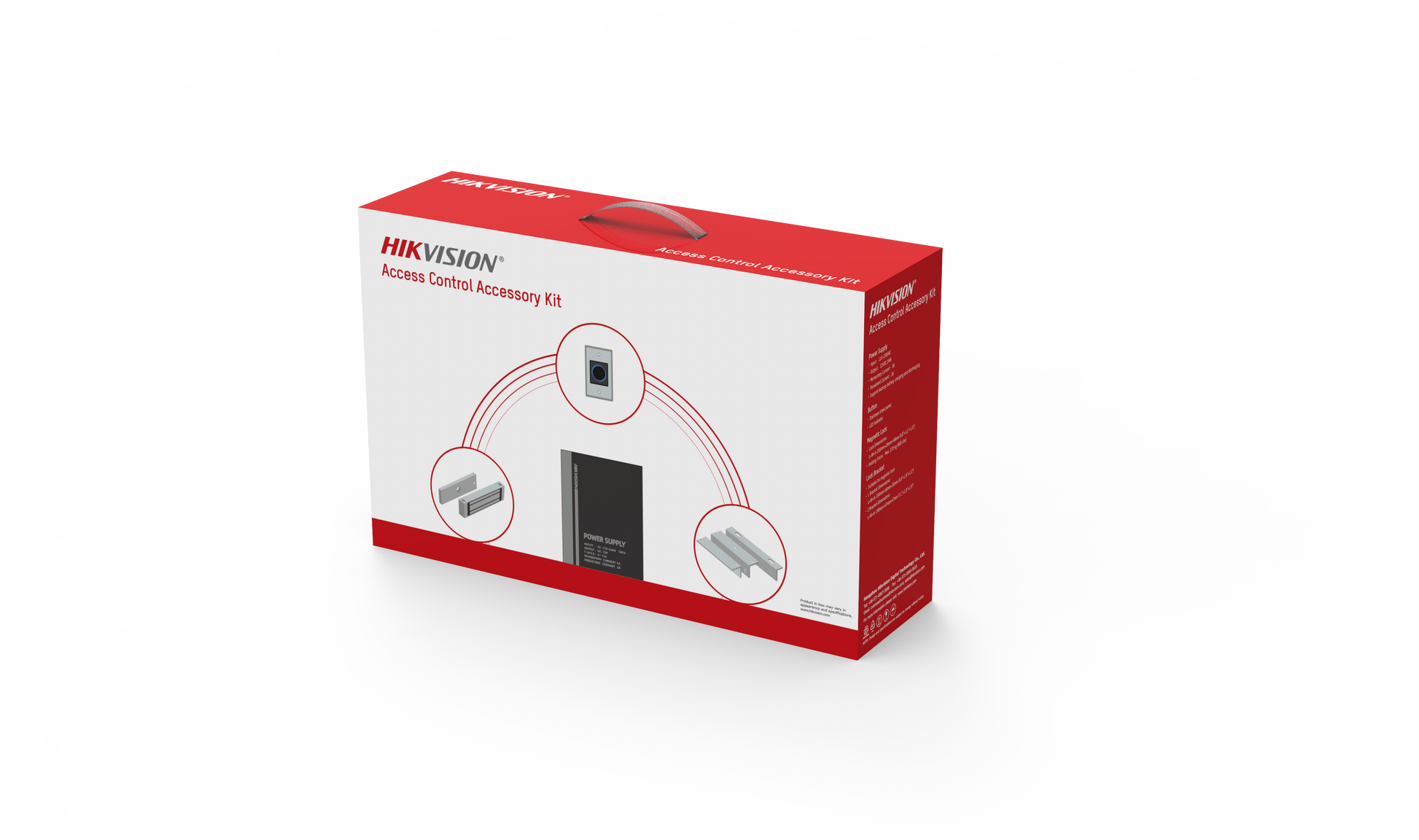

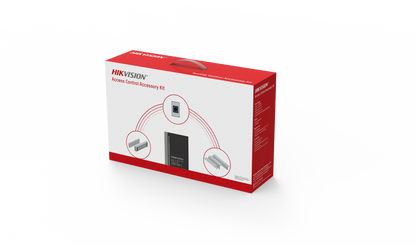

Hikvision DS-KAS-7M01 | Kit

Hikvision DS-KAS-7M01 | Kit

Category: Access Control
|
Brand: Hikvision
  • Access Control
  • KITS
  • Accessory Kits

The Kit includes：
Power supply:DS-K7M-AW24 x1
Single-door Magnetic Lock: DS-K4H255S x1
Single-door Magnetic Lock bracket: DS-K4H255-LZ x1
Push button: DS-K7P07 x1
without battery.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KAS-7M01 | Kit
Login to View Price

Specifications

  • Model: DS-K7M-AW24
  • Power supply: Power input: 110 to 230 VAC Power output: 12 VDC, 24 W
  • Power consumption: Power output: 24 W Momentary current: 5 A Persistent current: 2 A
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: ＜ 95%
  • Dimensions: 168 mm × 216 mm × 73.3 mm
  • Model: DS-K4H255S
  • Maximum holding force: Max. 272 kg (600 Lbs)
  • Power supply: 12 VDC, 470 mA - 24 VDC, 235 mA
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 0 to 90% (Relative humidity)
  • Dimensions: Lock Body: L×W×H: 250 mm × 28 mm × 48 mm (9.8" × 1.1" × 1.9") Armature Plate: L×W×H: 180 mm × 38 mm × 12 mm (7.1" × 1.5" × 0.5")
  • Door type: Wooden door, glass door, and metal Door
  • Shell performance: Hard Anodizing electroplating operated
  • Lock body: Eco-friendly Zinc electroplating operated
  • Armature plate: Eco-friendly Zinc electroplating operated
  • Model: DS-K4H255-LZ
  • Dimensions: L-bracket Dimension (L×W×H): 250×46×30mm (9.8×1.8×1.2"); Z-bracket Dimension (L×W×H): 180×47×47mm (7.1×1.9×1.9")
  • Suitable Door: Wooden door, glass door, and metal door
  • Shell performance: High strength aluminum alloy surface sandblasting oxidation
  • Model: DS-K7P07
  • Power supply: 12 to 24 VDC
  • Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity: 0 to 95% (Relative humidity)
  • Dimensions: 115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • Material: Panel: stainless steel

Power Supply/General
  • Model: DS-K7M-AW24
  • Power supply: Power input: 110 to 230 VAC Power output: 12 VDC, 24 W
  • Power consumption: Power output: 24 W Momentary current: 5 A Persistent current: 2 A
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: ＜ 95%
  • Dimensions: 168 mm × 216 mm × 73.3 mm

Magnetic Lock/General
  • Model: DS-K4H255S
  • Maximum holding force: Max. 272 kg (600 Lbs)
  • Power supply: 12 VDC, 470 mA - 24 VDC, 235 mA
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 0 to 90% (Relative humidity)
  • Dimensions: Lock Body: L×W×H: 250 mm × 28 mm × 48 mm (9.8" × 1.1" × 1.9") Armature Plate: L×W×H: 180 mm × 38 mm × 12 mm (7.1" × 1.5" × 0.5")
  • Door type: Wooden door, glass door, and metal Door
  • Shell performance: Hard Anodizing electroplating operated
  • Lock body: Eco-friendly Zinc electroplating operated
  • Armature plate: Eco-friendly Zinc electroplating operated

Bracket of Magnetic Lock/General
  • Model: DS-K4H255-LZ
  • Dimensions: L-bracket Dimension (L×W×H): 250×46×30mm (9.8×1.8×1.2"); Z-bracket Dimension (L×W×H): 180×47×47mm (7.1×1.9×1.9")
  • Suitable Door: Wooden door, glass door, and metal door
  • Shell performance: High strength aluminum alloy surface sandblasting oxidation

Exit Button/General
  • Model: DS-K7P07
  • Power supply: 12 to 24 VDC
  • Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)
  • Working humidity: 0 to 95% (Relative humidity)
  • Dimensions: 115 mm × 70 mm × 16 mm (4.53" × 2.76" × 0.63")
  • Material: Panel: stainless steel
