• DS-KAW50-1

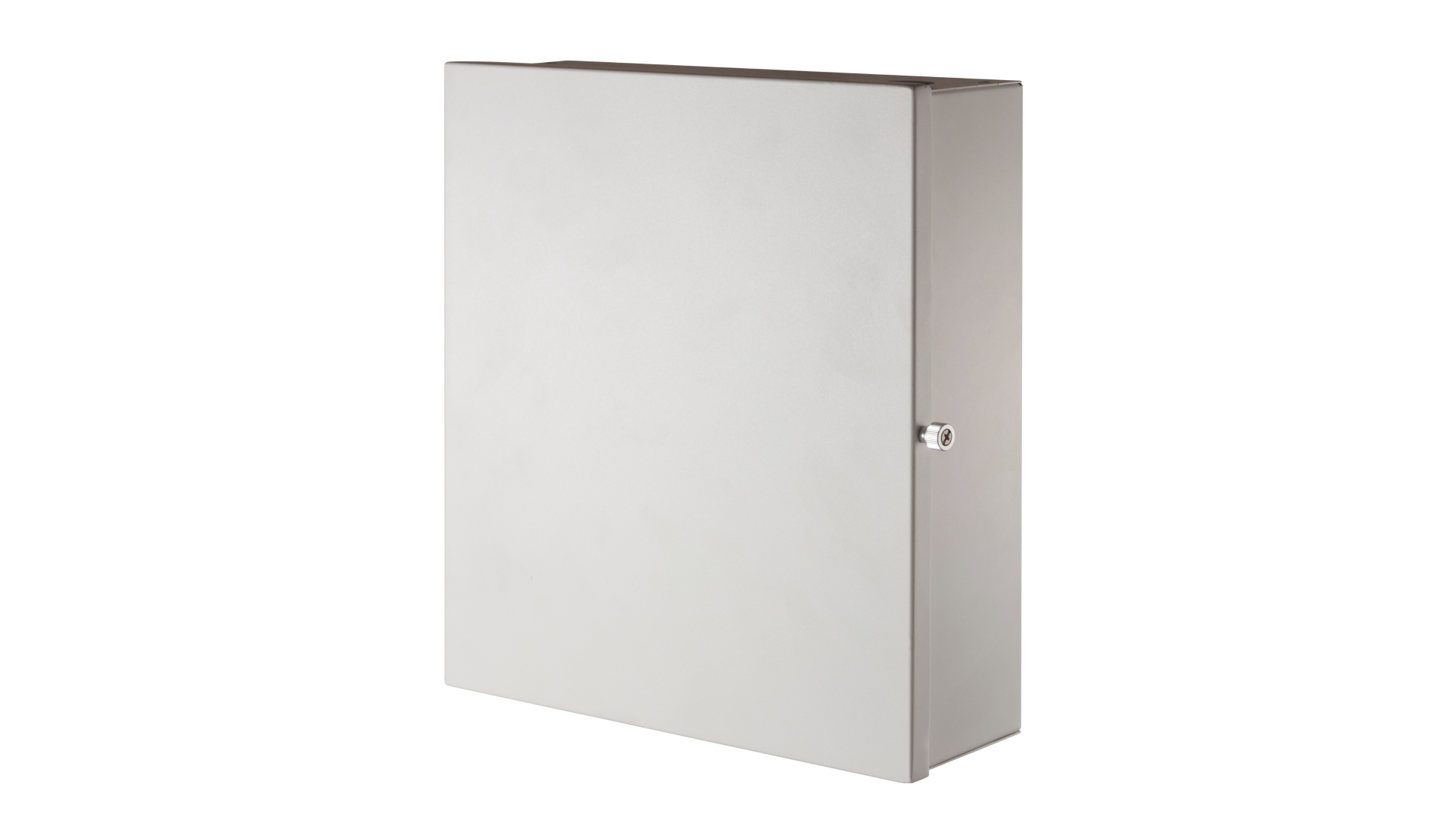

Hikvision DS-KAW50-1 | Two Wire | Power Supply/ Distributor

Hikvision DS-KAW50-1 | Two Wire | Power Supply/ Distributor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • Video Intercom Accessories
  • Power Supplies

KAW50-1: Power supply for Door station and Villa Door Station, Output: 12 VDC, with Box
KAW50-1N: Power supply for Door station and Villa Door Station, Output: 12 VDC, 50W， without Box

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KAW50-1 | Two Wire | Power Supply/ Distributor
Login to View Price

Specifications

  • Working temperature: Operating: -10 °C to +70 °C (14 °F to 158 °F)Storage: -25 °C to +85 °C (-13 °F to 185 °F)
  • Working humidity: < 95% (No Condensation)
  • Input voltage: 100 VAC to 240 VAC
  • Output voltage: 12 VDC
  • Output current: 4.17 A
  • Output power: 50 W
  • Noise and ripple: < 150 mVpp @ 25 °C
  • Voltage adjustment range: 11 VDC to 14 VDC
  • Cooling system: Convection
  • Dimension (L x W x D): 246 mm × 266.4 mm × 79.6 mm (9.69" × 10.49" × 3.13")
  • Weight: 1.68 kg (3.70 lb)

General
  • Working temperature: Operating: -10 °C to +70 °C (14 °F to 158 °F)Storage: -25 °C to +85 °C (-13 °F to 185 °F)
  • Working humidity: < 95% (No Condensation)
  • Input voltage: 100 VAC to 240 VAC
  • Output voltage: 12 VDC
  • Output current: 4.17 A
  • Output power: 50 W
  • Noise and ripple: < 150 mVpp @ 25 °C
  • Voltage adjustment range: 11 VDC to 14 VDC
  • Cooling system: Convection
  • Dimension (L x W x D): 246 mm × 266.4 mm × 79.6 mm (9.69" × 10.49" × 3.13")
  • Weight: 1.68 kg (3.70 lb)
