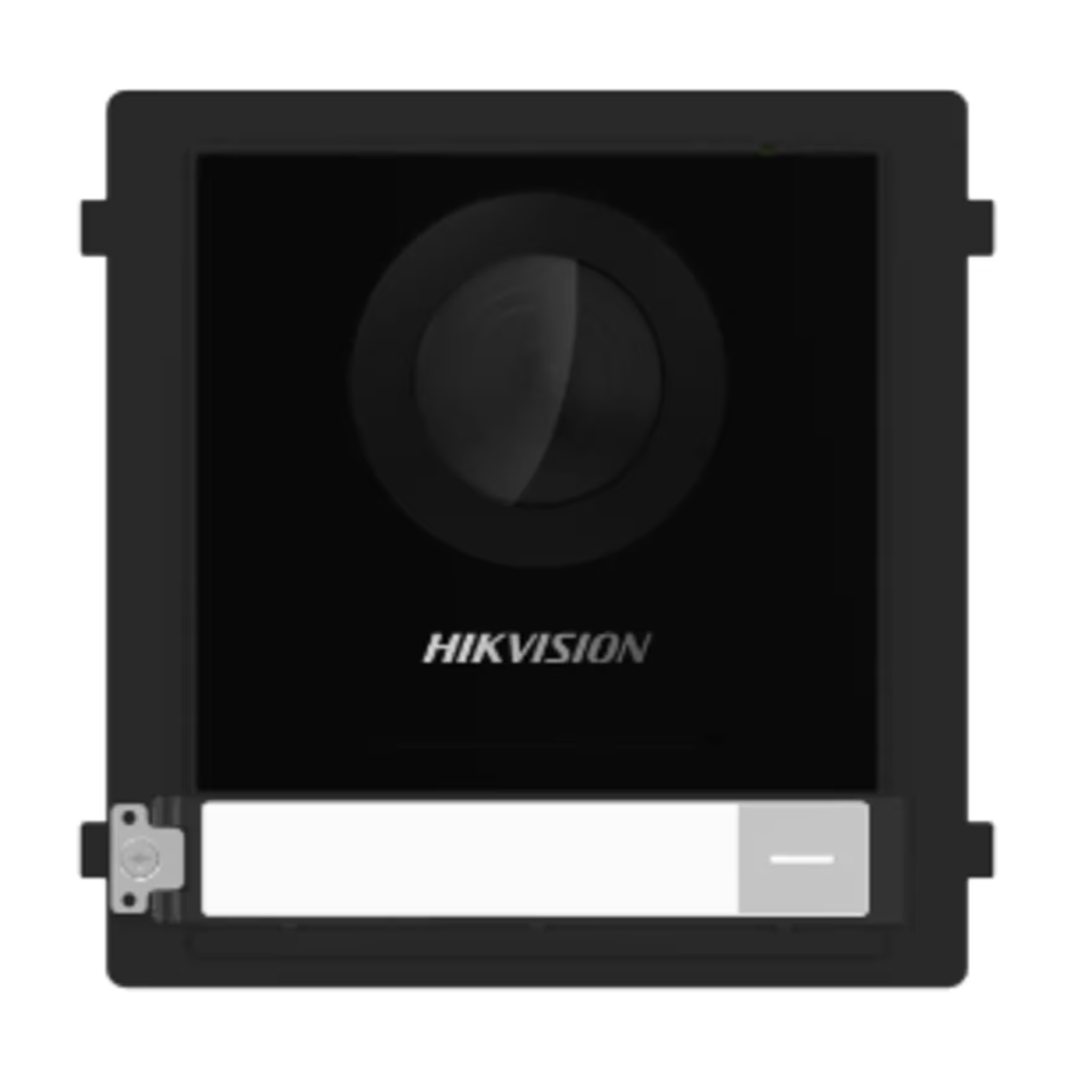

Hikvision DS-KB8113-IME1(B) | IP Intercom | Outdoor Bell

Hikvision DS-KB8113-IME1(B) | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

Vandal Proof Standard PoE Doorbell 2 MP IP Vandal-resistant Door Station, 80° Horizontal and 44° Vertical , field of view adjustment -50° to 50°, 10/100 Mbps Self-Adaptive Ethernet, PoE Power over Ethernet , IR Supplement, IR Distance: 5 Meters, IK 9 and IP 66,
Call directly to Hik-Connect APP without indoor station.
Configuration remotely via Web

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KB8113-IME1(B) | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 32 M
  • RAM: 256 M
  • CPU: Embedded MCU Processor
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /
  • Lens: 1
  • Resolution: Main stream : 1920 × 1080 Sub stream : 640 × 480
  • FOV: Horizontal:95° Vertical:54°
  • WDR: Support
  • Supplement light: IR supplement
  • Video compression standard: H.264
  • Audio compression standard: G.711 U，G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker (More than 80 dB within 30 cm)
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Face capacity: /
  • Card capacity: /
  • Linked indoor station capacity: 1
  • Sub door station capacity: 16
  • Network protocol: TCP/IP, RSTP, SIP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi standard: /
  • Bluetooth version: /
  • 3G/4G standard: /
  • Alarm input: 1
  • Network interface: 1
  • Debugging port: 1
  • Lock control: 1 (1 relay, max to 30 VDC, 2 A)
  • Power interface: 1
  • Button: 1
  • Power supply: IEEE802.3af, standard PoE or 12 VDC
  • Power consumption: ＜ 10 W
  • Installation: Surface mounting
  • Working temperature: -30° C to +50° C(-22° F to 122° F)
  • Working humidity: 10% to 90%
  • Weight: Gross Weight: 0.992 kg Net Weight: 0.795 kg
  • Protective level: IP65, IK09
  • Dimensions (L x W x H): 161.85 mm × 74.13 mm × 53.2 mm(6.37" × 2.92" × 2.09")
  • Battery: /
  • Language: English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese
  • Application environment: Outdoor and Indoor

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 32 M
  • RAM: 256 M
  • CPU: Embedded MCU Processor

Display parameters
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /

Video parameters
  • Lens: 1
  • Resolution: Main stream : 1920 × 1080 Sub stream : 640 × 480
  • FOV: Horizontal:95° Vertical:54°
  • WDR: Support
  • Supplement light: IR supplement
  • Video compression standard: H.264

Audio parameters
  • Audio compression standard: G.711 U，G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker (More than 80 dB within 30 cm)
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Face capacity: /
  • Card capacity: /
  • Linked indoor station capacity: 1
  • Sub door station capacity: 16

Network parameters
  • Network protocol: TCP/IP, RSTP, SIP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi standard: /
  • Bluetooth version: /
  • 3G/4G standard: /

Device interfaces
  • Alarm input: 1
  • Network interface: 1
  • Debugging port: 1
  • Lock control: 1 (1 relay, max to 30 VDC, 2 A)
  • Power interface: 1

General
  • Button: 1
  • Power supply: IEEE802.3af, standard PoE or 12 VDC
  • Power consumption: ＜ 10 W
  • Installation: Surface mounting
  • Working temperature: -30° C to +50° C(-22° F to 122° F)
  • Working humidity: 10% to 90%
  • Weight: Gross Weight: 0.992 kg Net Weight: 0.795 kg
  • Protective level: IP65, IK09
  • Dimensions (L x W x H): 161.85 mm × 74.13 mm × 53.2 mm(6.37" × 2.92" × 2.09")
  • Battery: /
  • Language: English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese
  • Application environment: Outdoor and Indoor
