• DS-KD-DIS

Hikvision DS-KD-DIS | Intercom Modules

Hikvision DS-KD-DIS | Intercom Modules

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

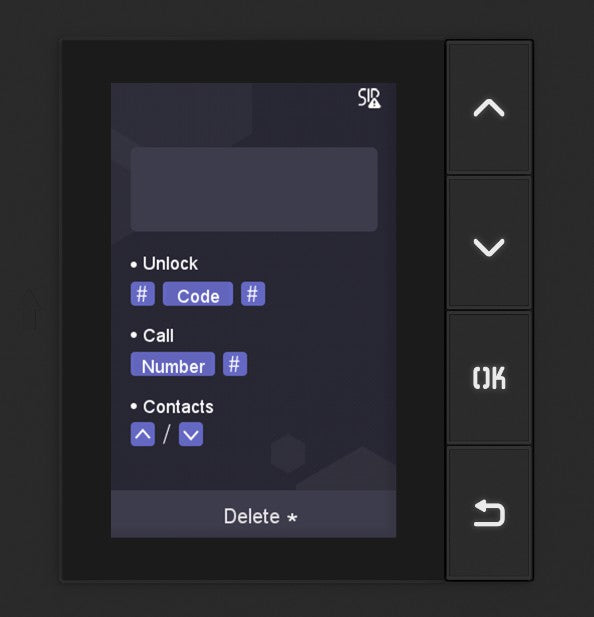

Display module, module connection with RS-485 , IP65,needs mouting bracket, Backlight,Flush mounting, Surface mounting, 98.21mmx100.21 mm x33.7mm, 3.5 inch LCD, 320*480, 4 buttons, dial number display, pin code unlock, contact list display, powered by other module Power input: 12VDC, Power output: 12VDC

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD-DIS | Intercom Modules
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 8 MB
  • RAM: 64 MB
  • CPU: Embedded MCU Processor
  • Screen size: 3.5-inch
  • Operation method: Physical buttons
  • Type: TFT LCD screen
  • Resolution: 320 × 480p
  • Brightness: 250 cd/m2
  • Lens: /
  • Resolution: /
  • FOV: /
  • WDR: /
  • Supplement light: /
  • Video compression standard: /
  • Audio compression standard: /
  • Audio input: /
  • Audio output: /
  • Audio compression bitrate: /
  • Audio quality: /
  • Volume adjustment: /
  • User capacity: /
  • Face capacity: /
  • Card capacity: /
  • Linked network camera capacity: /
  • Communication protocol: /
  • Wired network: /
  • Wi-Fi standard: /
  • Bluetooth version: /
  • 3G/4G standard: /
  • Alarm input: /
  • Network interface: /
  • TAMPER: /
  • Exit button: /
  • RS-485: 1
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: /
  • Door contact input: /
  • Power interface: 1
  • Multi-factor authentication: /
  • Button: 4( Up, Down, OK, Back)
  • Installation: Flush mounting, surface mounting
  • Indicator: /
  • Weight: /
  • Protective level: IP65
  • Working temperature: 20° C to +60° C(-4° F to 140° F)
  • Working humidity: 10% to 95%
  • Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
  • Battery: /
  • Application environment: Outdoor
  • Power consumption: 2.5 W

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 8 MB
  • RAM: 64 MB
  • CPU: Embedded MCU Processor

Display parameters
  • Screen size: 3.5-inch
  • Operation method: Physical buttons
  • Type: TFT LCD screen
  • Resolution: 320 × 480p
  • Brightness: 250 cd/m2

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: /
  • WDR: /
  • Supplement light: /
  • Video compression standard: /

Audio parameters
  • Audio compression standard: /
  • Audio input: /
  • Audio output: /
  • Audio compression bitrate: /
  • Audio quality: /
  • Volume adjustment: /

Capacity
  • User capacity: /
  • Face capacity: /
  • Card capacity: /
  • Linked network camera capacity: /

Network parameters
  • Communication protocol: /
  • Wired network: /
  • Wi-Fi standard: /
  • Bluetooth version: /
  • 3G/4G standard: /

Device interfaces
  • Alarm input: /
  • Network interface: /
  • TAMPER: /
  • Exit button: /
  • RS-485: 1
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: /
  • Door contact input: /
  • Power interface: 1

Performances
  • Multi-factor authentication: /

General
  • Button: 4( Up, Down, OK, Back)
  • Installation: Flush mounting, surface mounting
  • Indicator: /
  • Weight: /
  • Protective level: IP65
  • Working temperature: 20° C to +60° C(-4° F to 140° F)
  • Working humidity: 10% to 95%
  • Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
  • Battery: /
  • Application environment: Outdoor
  • Power consumption: 2.5 W
