• DS-KD-KP/S

Hikvision DS-KD-KP/S | Intercom Modules

Hikvision DS-KD-KP/S | Intercom Modules

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

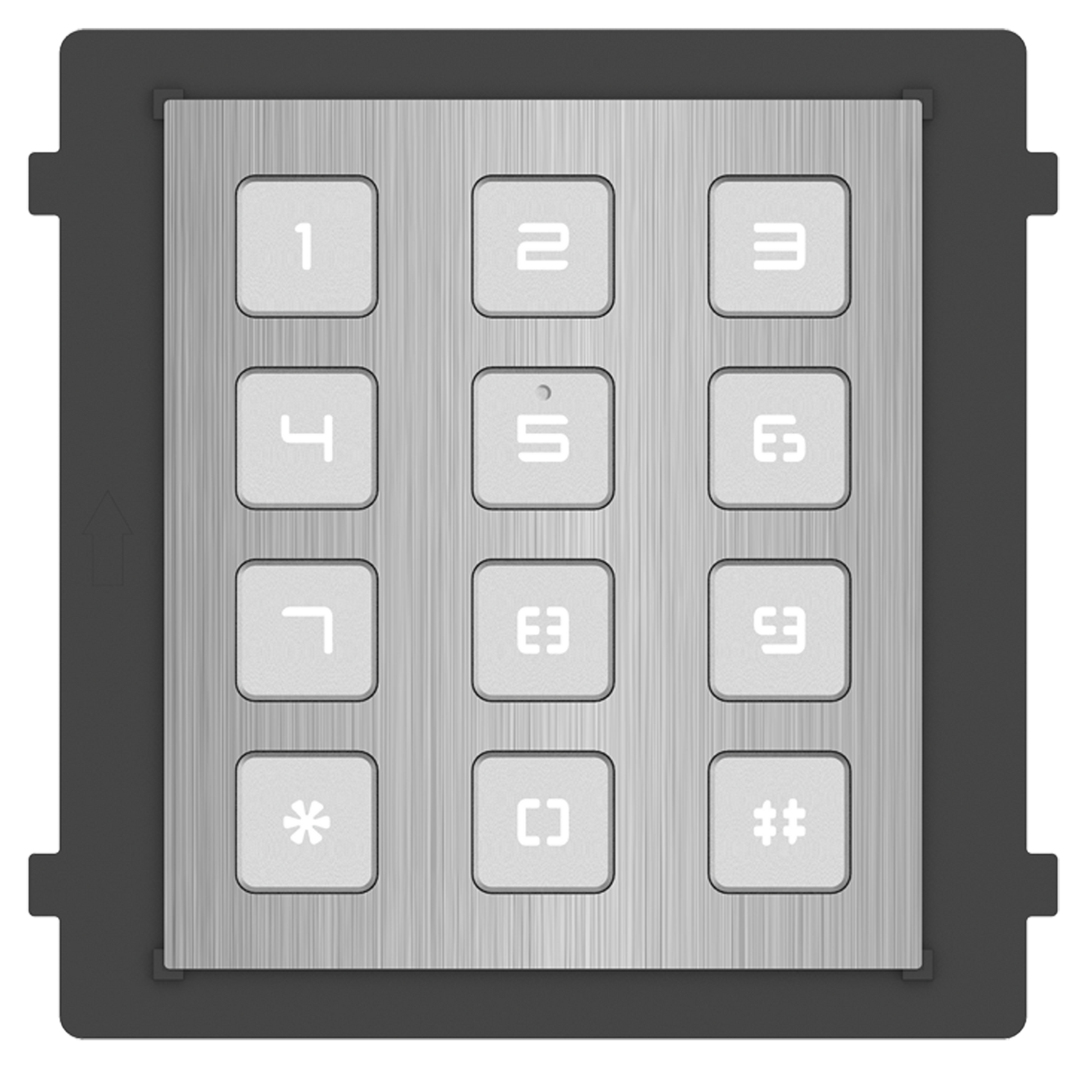

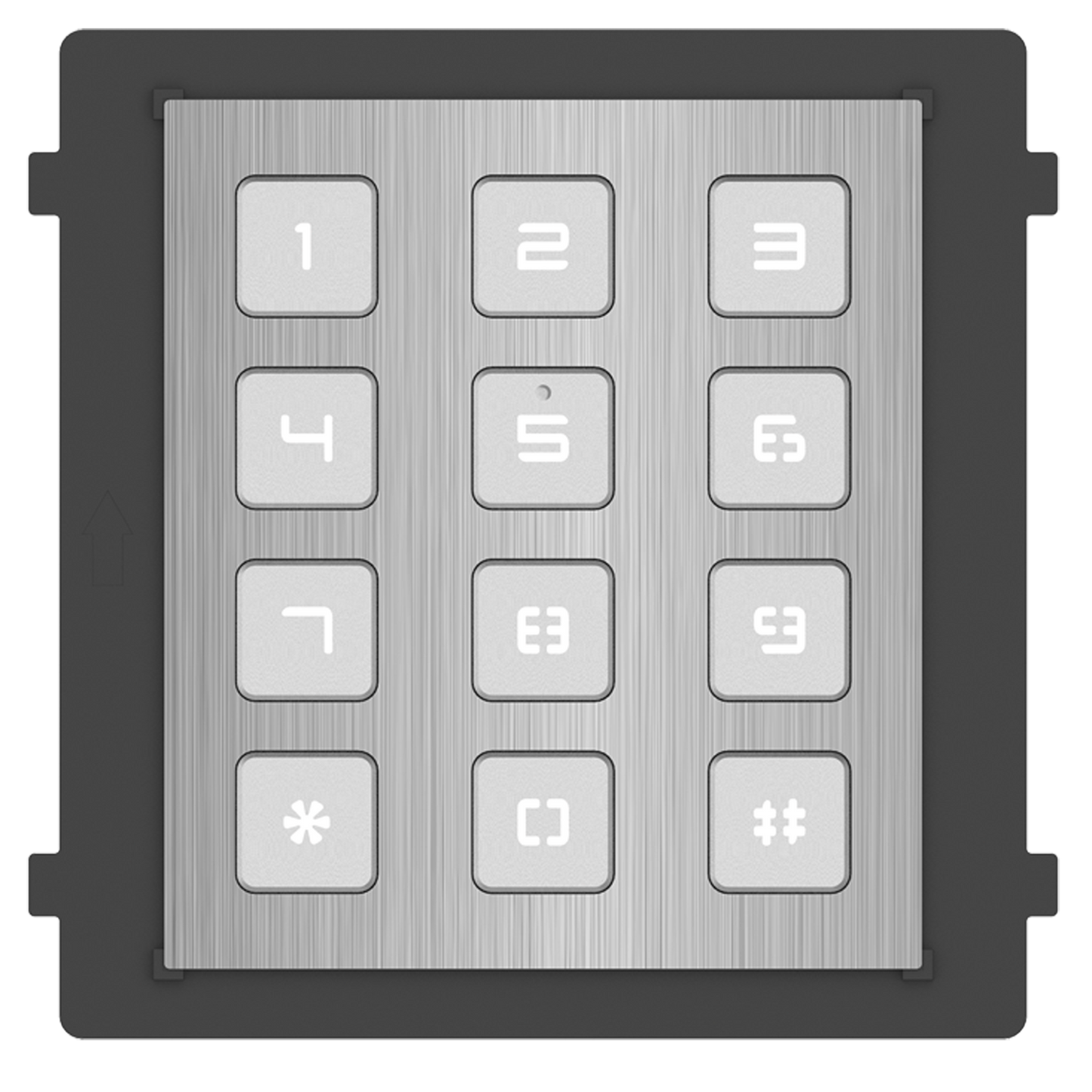

Keypad module, Stainless Steel Version, module connection with RS-485 ,IP65, needs mouting bracket, Backlight,Flush mounting, Surface mounting, 98.21mmx100.21 mm x33.7mm, input pin code to open door, call indoor station via inputing room number, powered by other module Power input: 12VDC, Power output: 12VDC

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD-KP/S | Intercom Modules
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: /
  • RAM: /
  • Processor: Embeded high performance processor
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Supplement light: /
  • Video compression standard: /
  • Audio input: /
  • Audio compression standard: /
  • Audio output: /
  • Audio compression bitrate: /
  • Audio quality: /
  • Volume adjustment: /
  • User capacity: /
  • Face capacity: /
  • Card capacity: /
  • Linked network camera capacity: /
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Alarm input: /
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: /
  • Exit button: /
  • RS-485: 2
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: /
  • Door contact input: /
  • Button: 12
  • Installation: Flush mounting, surface mounting
  • Indicator: /
  • Weight: Net weight: 190 g Gross weight: 438 g
  • Protective level: IP65, IK07
  • Working temperature: -40 °C to 55 °C(-40 °F to 131 °F)
  • Working humidity: 10% to 95%
  • Dimension (W × H × D): 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
  • Battery: /
  • Power supply: 12 VDC, powered for other module
  • Application environment: Outdoor
  • Power consumption: 1 W

System parameters
  • Operation system: Linux
  • ROM: /
  • RAM: /
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Supplement light: /
  • Video compression standard: /

Audio parameters
  • Audio input: /
  • Audio compression standard: /
  • Audio output: /
  • Audio compression bitrate: /
  • Audio quality: /
  • Volume adjustment: /

Capacity
  • User capacity: /
  • Face capacity: /
  • Card capacity: /
  • Linked network camera capacity: /

Network parameters
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /

Device interfaces
  • Alarm input: /
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: /
  • Exit button: /
  • RS-485: 2
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: /
  • Door contact input: /

General
  • Button: 12
  • Installation: Flush mounting, surface mounting
  • Indicator: /
  • Weight: Net weight: 190 g Gross weight: 438 g
  • Protective level: IP65, IK07
  • Working temperature: -40 °C to 55 °C(-40 °F to 131 °F)
  • Working humidity: 10% to 95%
  • Dimension (W × H × D): 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
  • Battery: /
  • Power supply: 12 VDC, powered for other module
  • Application environment: Outdoor
  • Power consumption: 1 W
