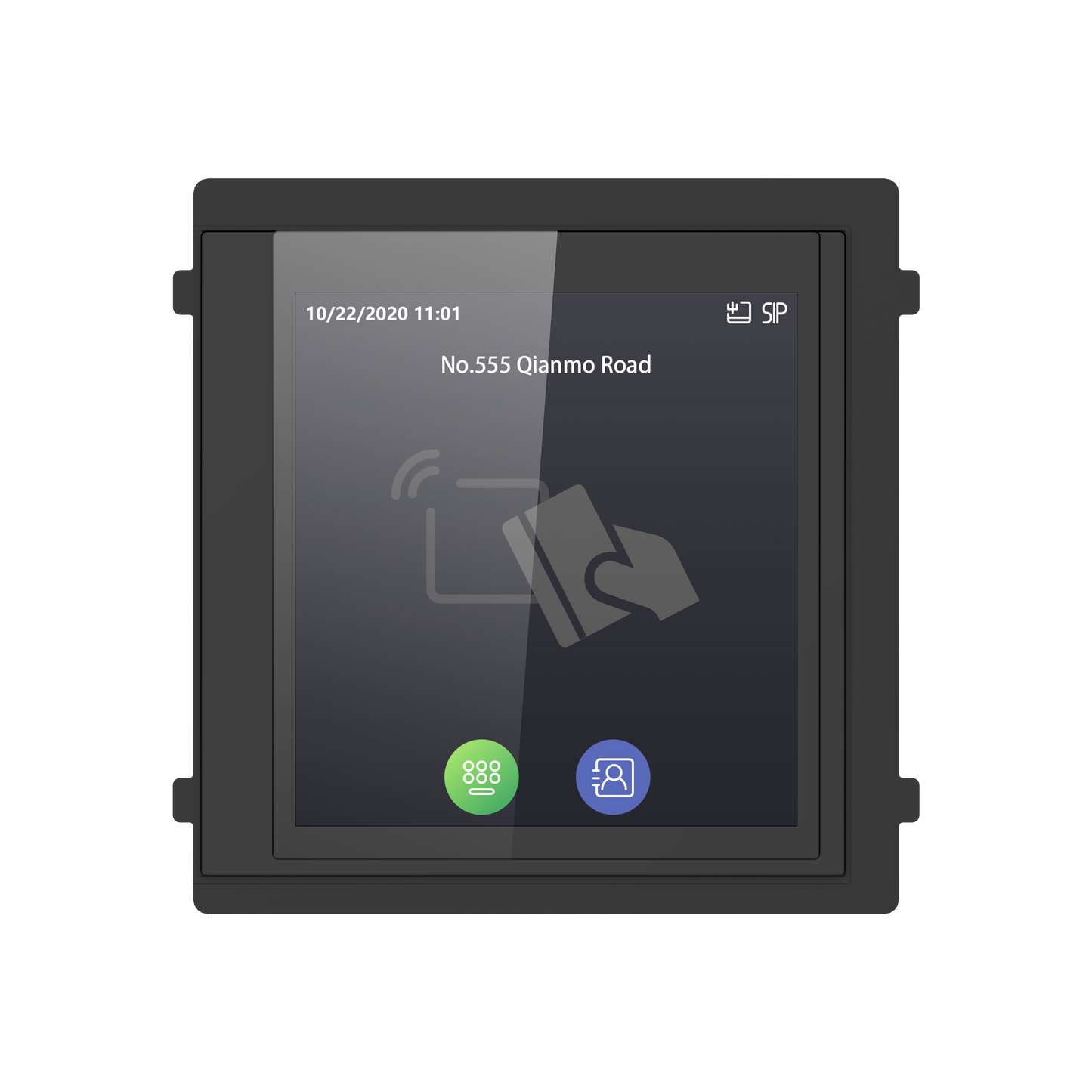

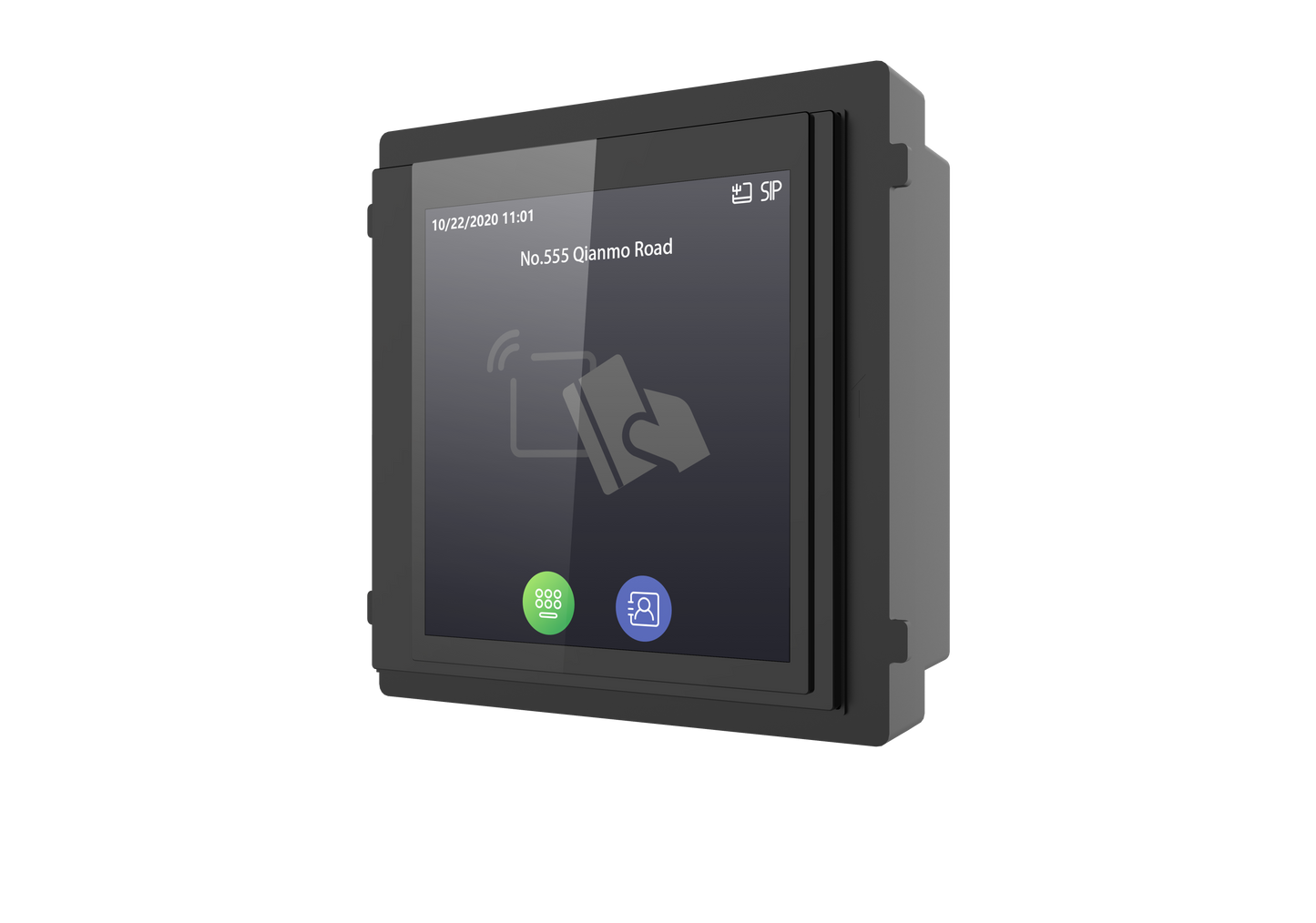

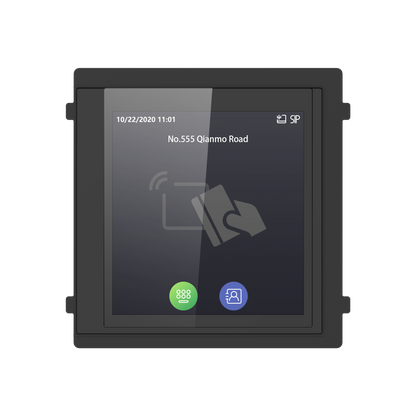

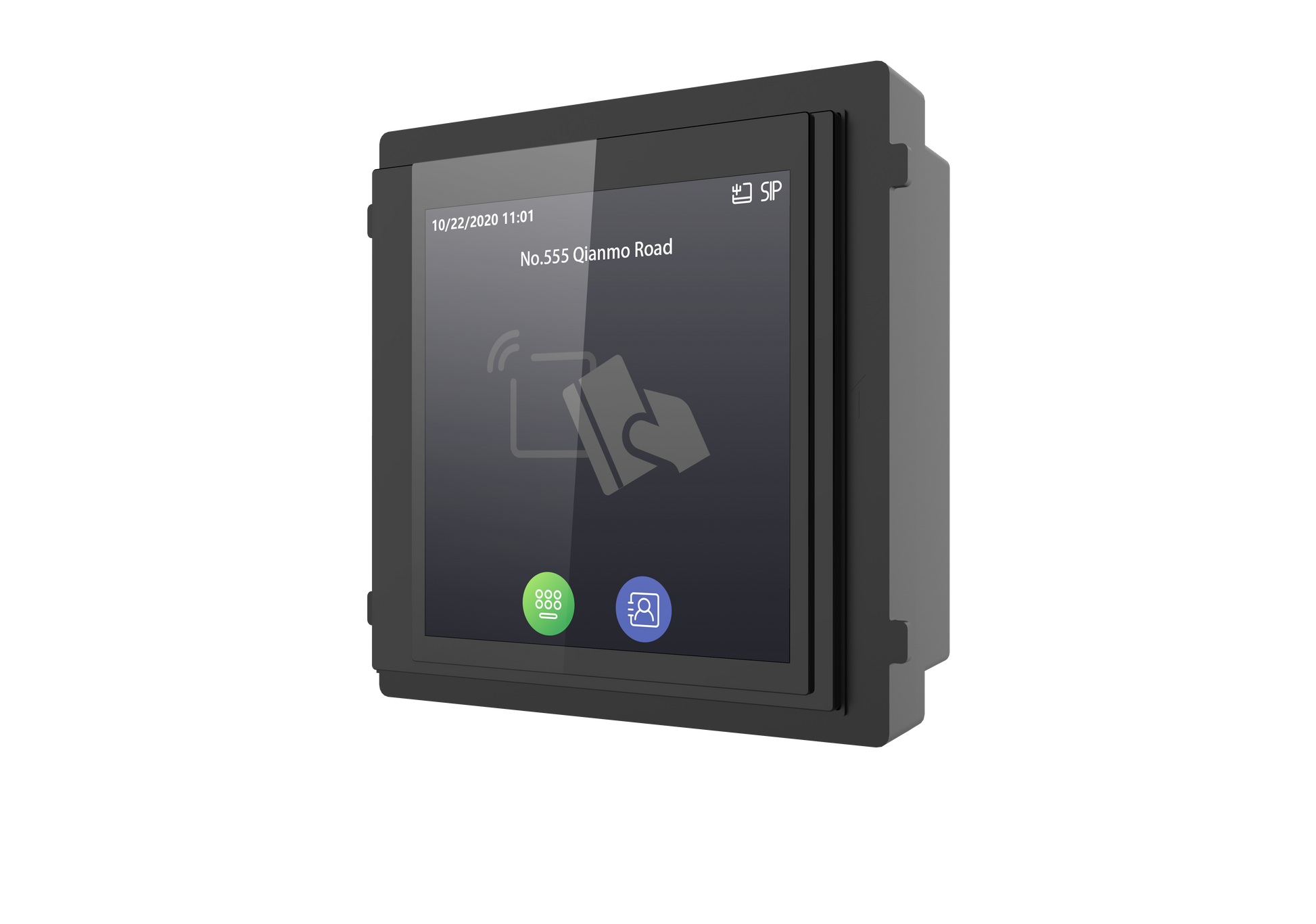

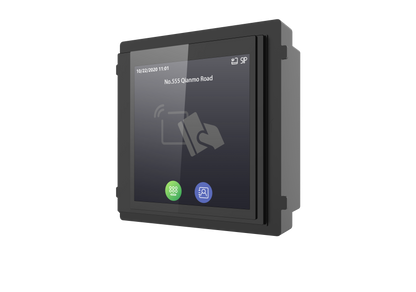

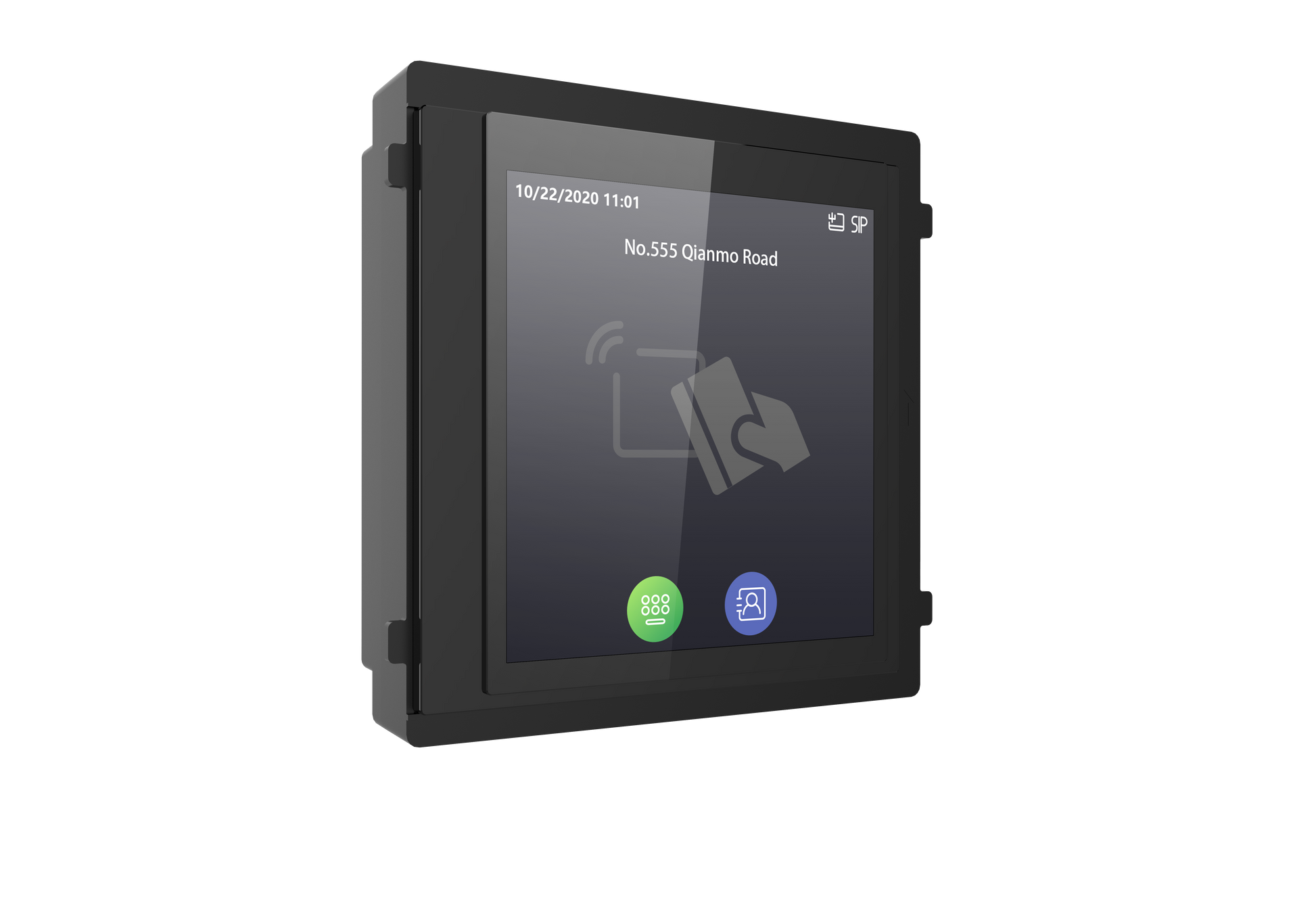

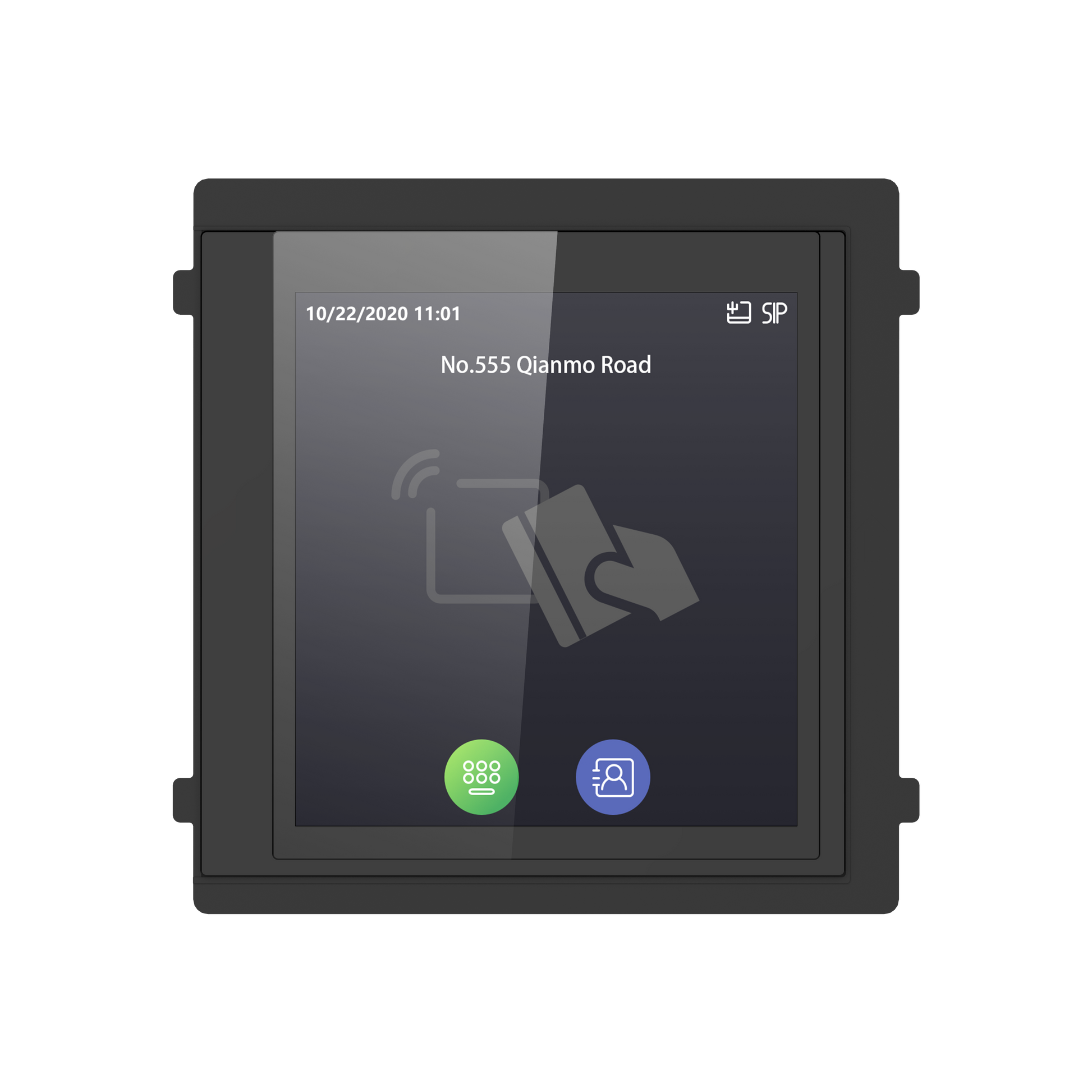

Hikvision DS-KD-TDM | Intercom Module

Hikvision DS-KD-TDM | Intercom Module

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

Touch Display Module with M1 Card Reader

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD-TDM | Intercom Module
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 128 MB
  • Screen size: 4-inch
  • Type: IPS
  • Resolution: 480 × 480
  • Brightness: Adjustable, Max.500 cd/m2
  • Audio input: /
  • Audio compression standard: /
  • Audio output: 1 buzzer
  • Audio quality: /
  • Volume adjustment: /
  • Loudspeaker consumption: /
  • Wireless network: AP mode
  • Card reading frequency: 13.56 MHz
  • Card reading distance: 2 cm
  • Card type: M1 card
  • TF card: Reserved
  • DIP switch: 8 bits
  • Two-ware cascading interface: 2
  • Installation: Flush mounting, surface mounting
  • Protective level: IP65, IK08
  • Working temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimension (W × H × D): 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
  • Power supply: 12 VDC, supplied by the main module
  • Power consumption: ≤ 4 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

System parameters
  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 128 MB

Display parameters
  • Screen size: 4-inch
  • Type: IPS
  • Resolution: 480 × 480
  • Brightness: Adjustable, Max.500 cd/m2

Audio parameters
  • Audio input: /
  • Audio compression standard: /
  • Audio output: 1 buzzer
  • Audio quality: /
  • Volume adjustment: /
  • Loudspeaker consumption: /

Network parameters
  • Wireless network: AP mode

Authentication
  • Card reading frequency: 13.56 MHz
  • Card reading distance: 2 cm
  • Card type: M1 card

Device interfaces
  • TF card: Reserved
  • DIP switch: 8 bits
  • Two-ware cascading interface: 2

General
  • Installation: Flush mounting, surface mounting
  • Protective level: IP65, IK08
  • Working temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimension (W × H × D): 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
  • Power supply: 12 VDC, supplied by the main module
  • Power consumption: ≤ 4 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
