• DS-KD3003-E6

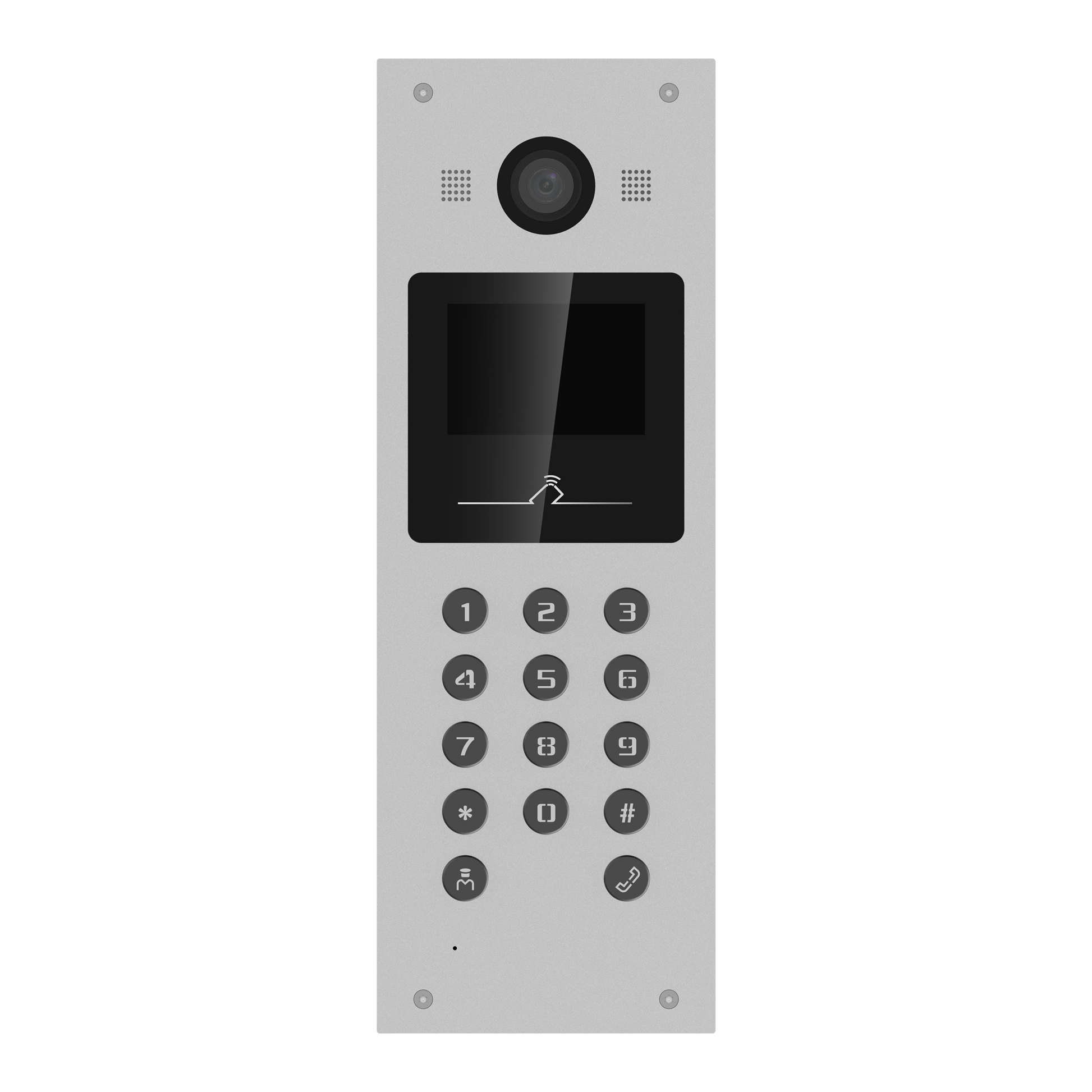

Hikvision DS-KD3003-E6 | IP Intercom | Outdoor Bell

Hikvision DS-KD3003-E6 | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Value Series

2 MP HD camera with high quality image
120 ° wide angle of view
3.5-inch colorful LCD screen with 480 × 320 resolution
Unlocks by cards and pin-codes
Supports cofiguration via Web remotely

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD3003-E6 | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 4 GB
  • RAM: 512 MB
  • Processor: Embeded high performance processor
  • Screen size: 3.5-inch
  • Operation method: /
  • Type: Colorful LCD
  • Resolution: 480 × 320
  • Lens: 2 MP HD camera
  • Resolution: Main stream: 1920 × 1080p, 720 p Sub stream: 640 × 480p
  • FOV: Horizontal: 70°, Vertical: 118°, Diagonal: 132°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: /
  • Face capacity: /
  • Card capacity: 10000
  • Linked network camera capacity: 500
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Card type: M1 card
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2
  • RS-485: 1 RS-485 (Half duplex, HIKVISION)
  • USB: /
  • Wiegand: 1
  • TF card: /
  • Alarm output: 2
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2
  • Button: 14 physical buttons
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 1.05 kg Gross weight: 2.166 kg
  • Protective level: IP 65
  • Working temperature: -40 °C to 55 °C (-40 °F to 135 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimension (W × H × D): 357.3 mm × 124.3 mm × 55.3 mm (14.07" × 4.89" × 2.18")
  • Battery: /
  • Power supply: 12 VDC, 1 A
  • Application environment: Outdoor
  • Power consumption: ≤ 10 W
  • Language: English, Portuguese (Brazil), Russian, Spanish, French, Turkish, Vietnamese, Ukrainian

System parameters
  • Operation system: Linux
  • ROM: 4 GB
  • RAM: 512 MB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: 3.5-inch
  • Operation method: /
  • Type: Colorful LCD
  • Resolution: 480 × 320

Video parameters
  • Lens: 2 MP HD camera
  • Resolution: Main stream: 1920 × 1080p, 720 p Sub stream: 640 × 480p
  • FOV: Horizontal: 70°, Vertical: 118°, Diagonal: 132°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: /
  • Face capacity: /
  • Card capacity: 10000
  • Linked network camera capacity: 500

Network parameters
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /

Authentication
  • Card type: M1 card

Device interfaces
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2
  • RS-485: 1 RS-485 (Half duplex, HIKVISION)
  • USB: /
  • Wiegand: 1
  • TF card: /
  • Alarm output: 2
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2

General
  • Button: 14 physical buttons
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 1.05 kg Gross weight: 2.166 kg
  • Protective level: IP 65
  • Working temperature: -40 °C to 55 °C (-40 °F to 135 °F)
  • Working humidity: 10% to 95% (no-condensing)
  • Dimension (W × H × D): 357.3 mm × 124.3 mm × 55.3 mm (14.07" × 4.89" × 2.18")
  • Battery: /
  • Power supply: 12 VDC, 1 A
  • Application environment: Outdoor
  • Power consumption: ≤ 10 W
  • Language: English, Portuguese (Brazil), Russian, Spanish, French, Turkish, Vietnamese, Ukrainian
