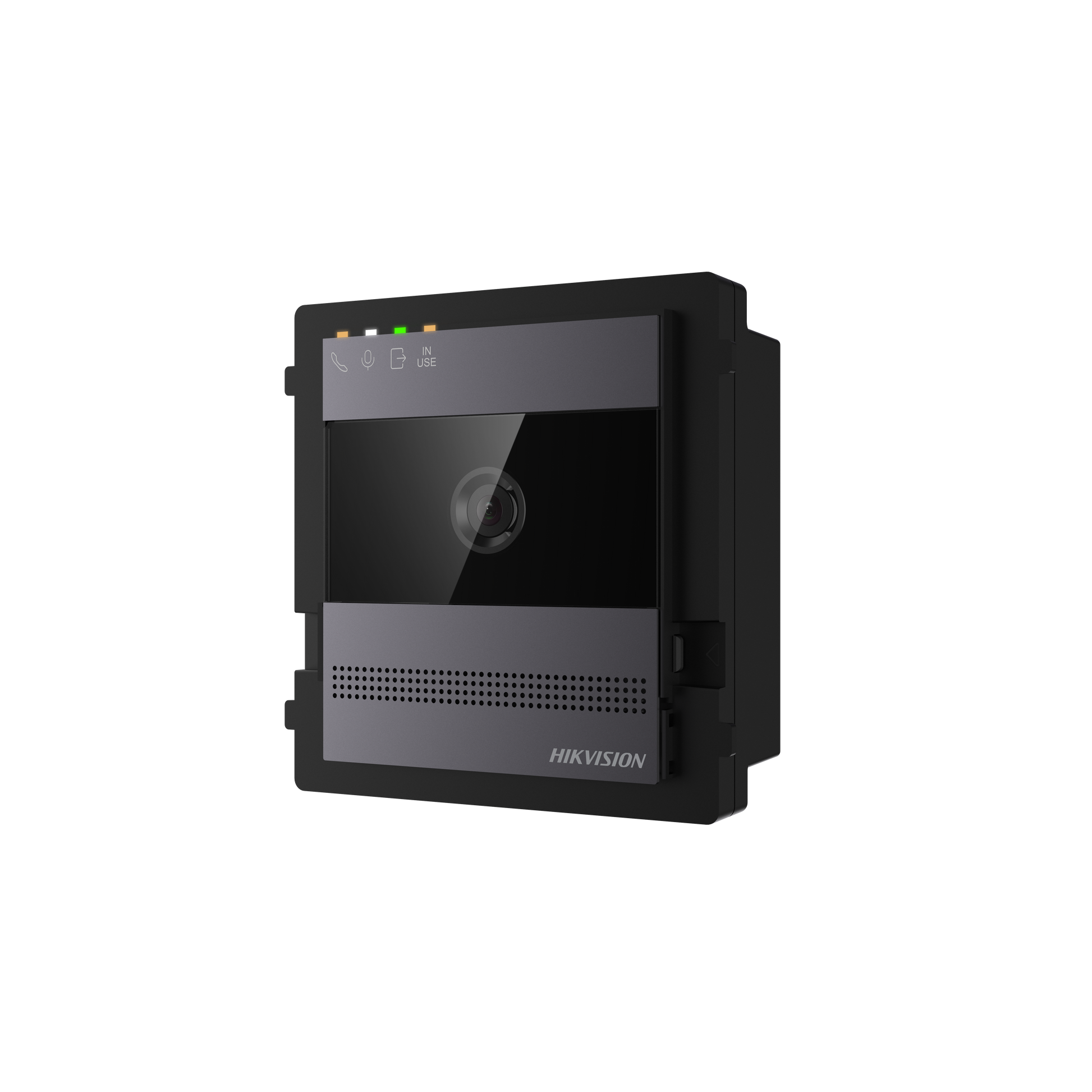

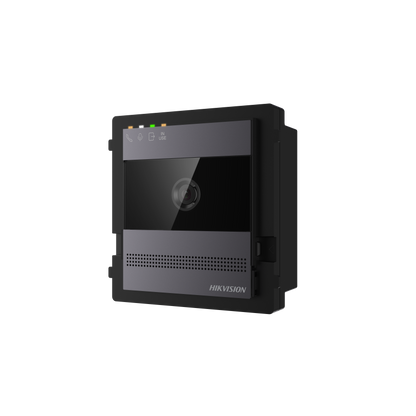

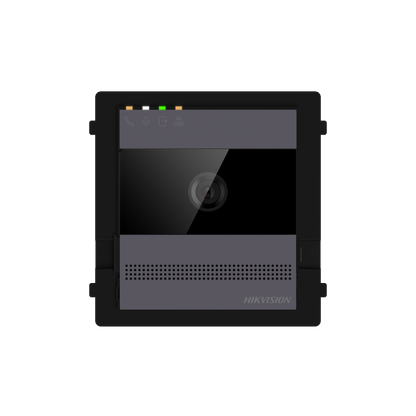

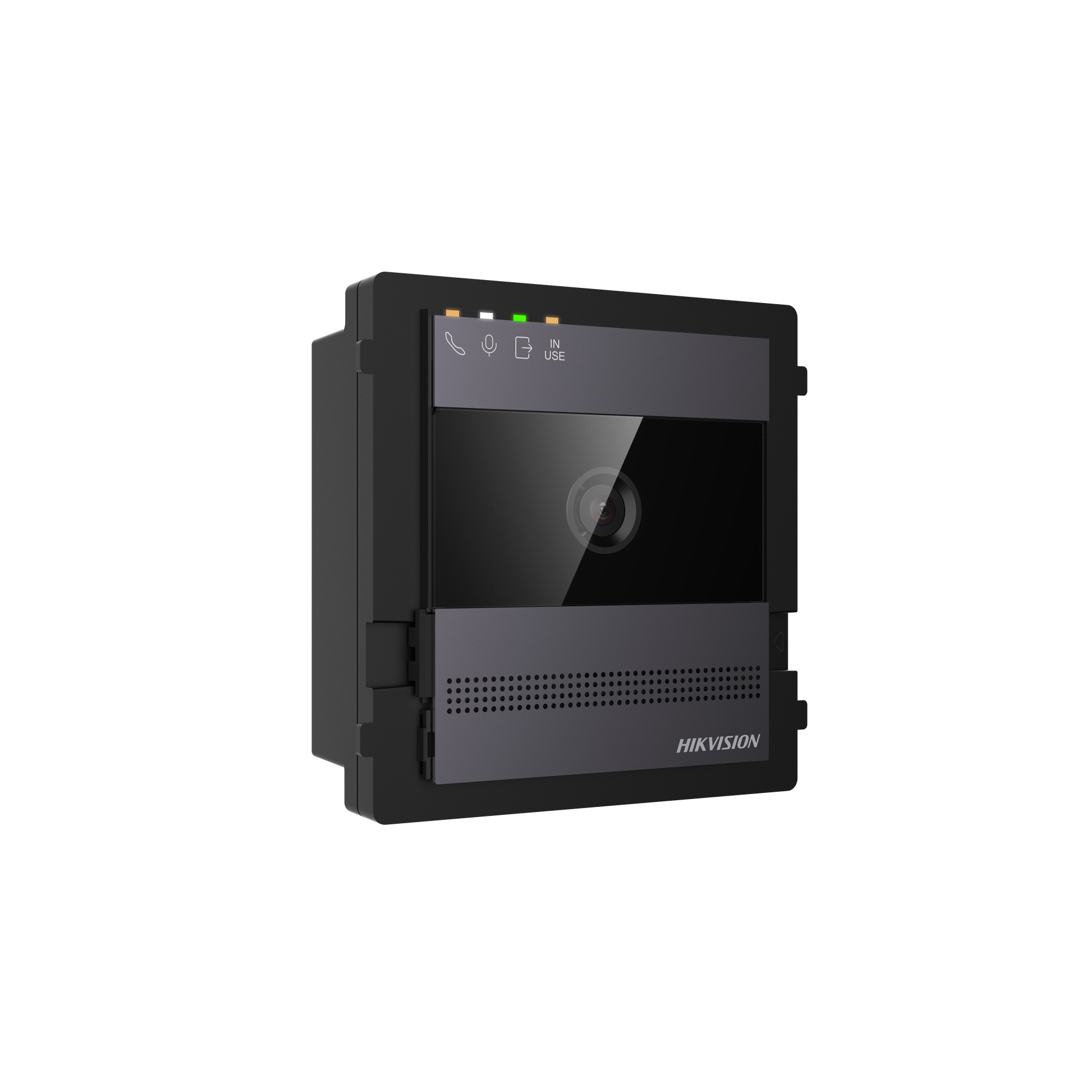

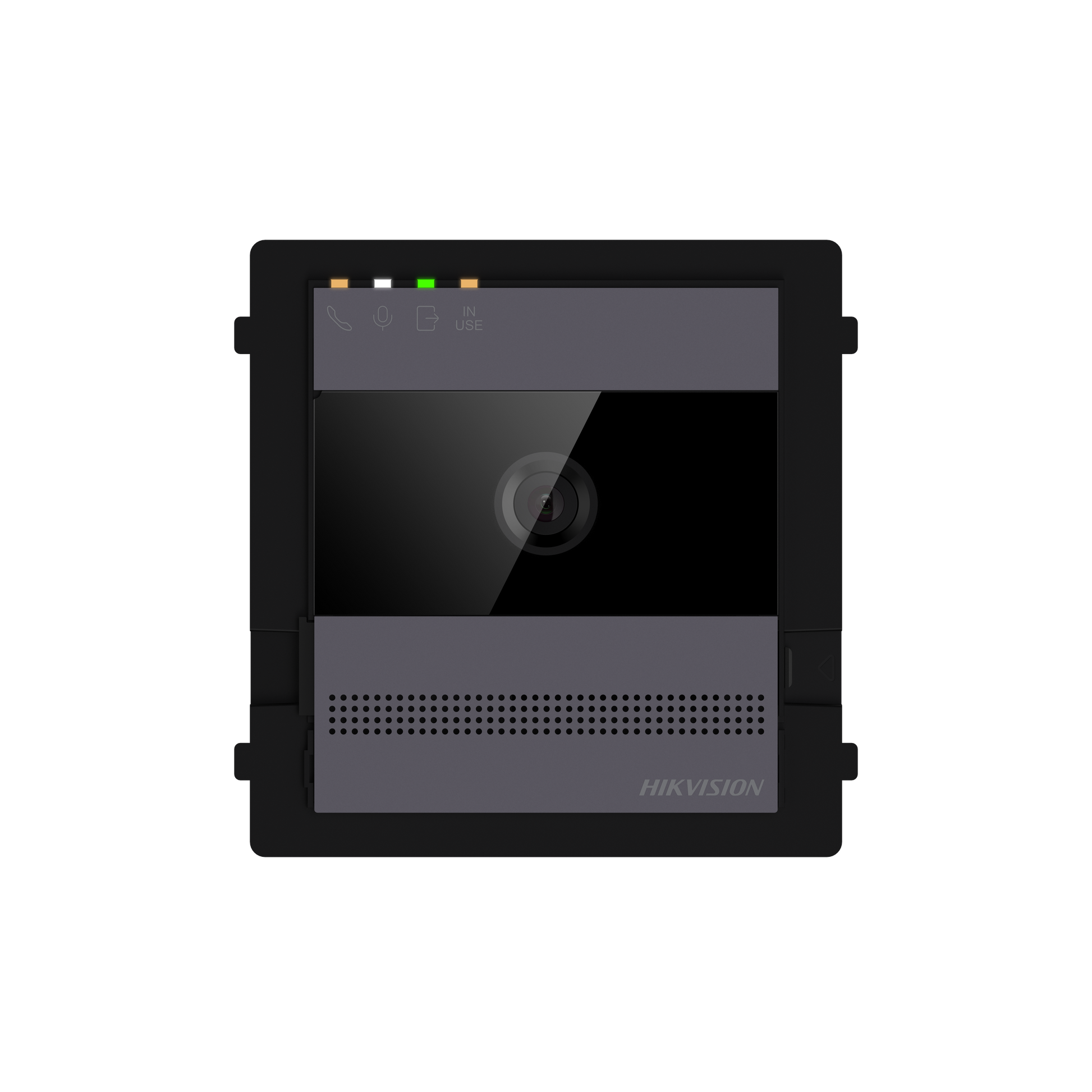

Hikvision DS-KD7003EY-IME2/Aluminum | Two Wire | Outdoor Bell

Hikvision DS-KD7003EY-IME2/Aluminum | Two Wire | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • 2-wire Series
  • 2 Wire HD

Two-wire HD version:Main unit , Aluminum, needs mouting bracket.
CMOS 2MP HD Colorful Camera, Fish eye, 0/1/2 flexible Call Button, Max.to 2-ch Indoor stations access, 2 locks control, 6 decimal DIP switch
IR Supplement , module connection with RS-485 , 2-ch alarm input
IP65, Two -wire interface,99.5 mm × 98.5 mm × 35 mm
Mouting accessories and other modules except DS-KD-DIS are same as IP version of modular door station.
The model with is not compatible with Y version，they can not be used together.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD7003EY-IME2/Aluminum | Two Wire | Outdoor Bell
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 4 GB
  • RAM: 256 MB
  • CPU: Embedded Processor
  • Screen size: NA
  • Operation method: NA
  • Type: NA
  • Resolution: NA
  • Video standard: H.264
  • Supplement light: Low illumination, IR supplement lights
  • Lens: 1
  • FOV: Horizontal: 133°, Vertical: 82°
  • WDR: Support
  • Resolution: 2 MP
  • Audio compression standard: G.711 U, G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 2000
  • Linked indoor station capacity: Max.400
  • Sub door station capacity: 16
  • Wired network: 10/100 Mbps self-adaptive through 2-wire interface
  • Wi-Fi: Only AP mode for configuration
  • Bluetooth: NA
  • 3G/4G: NA
  • Alarm input: 2（supports Exit button or Door contact input）
  • Network interface: NA
  • TAMPER: 1
  • Exit button: 1
  • Door contact input: 1
  • RS-485: 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • DIP switch: 6 decimal DIP switch
  • Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Power interface: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Two-wire IP interface: 1
  • Button: 0-2（Flexible adjustment）
  • Installation: Surface mounting & flush mounting
  • Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
  • Weight: With package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
  • Protective level: IP65 IK08
  • Working temperature: -40° C to 60° C (-22° F to 140° F)
  • Working humidity: 10% to 90%
  • Dimensions: 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Battery: /
  • Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Application environment: Outdoor
  • Power consumption: ≤ 6 W
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 4 GB
  • RAM: 256 MB
  • CPU: Embedded Processor

Display parameters
  • Screen size: NA
  • Operation method: NA
  • Type: NA
  • Resolution: NA

Video parameters
  • Video standard: H.264
  • Supplement light: Low illumination, IR supplement lights
  • Lens: 1
  • FOV: Horizontal: 133°, Vertical: 82°
  • WDR: Support
  • Resolution: 2 MP

Audio parameters
  • Audio compression standard: G.711 U, G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 2000
  • Linked indoor station capacity: Max.400
  • Sub door station capacity: 16

Network parameters
  • Wired network: 10/100 Mbps self-adaptive through 2-wire interface
  • Wi-Fi: Only AP mode for configuration
  • Bluetooth: NA
  • 3G/4G: NA

Device interfaces
  • Alarm input: 2（supports Exit button or Door contact input）
  • Network interface: NA
  • TAMPER: 1
  • Exit button: 1
  • Door contact input: 1
  • RS-485: 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • DIP switch: 6 decimal DIP switch
  • Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Power interface: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Two-wire IP interface: 1

General
  • Button: 0-2（Flexible adjustment）
  • Installation: Surface mounting & flush mounting
  • Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
  • Weight: With package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
  • Protective level: IP65 IK08
  • Working temperature: -40° C to 60° C (-22° F to 140° F)
  • Working humidity: 10% to 90%
  • Dimensions: 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Battery: /
  • Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Application environment: Outdoor
  • Power consumption: ≤ 6 W
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
