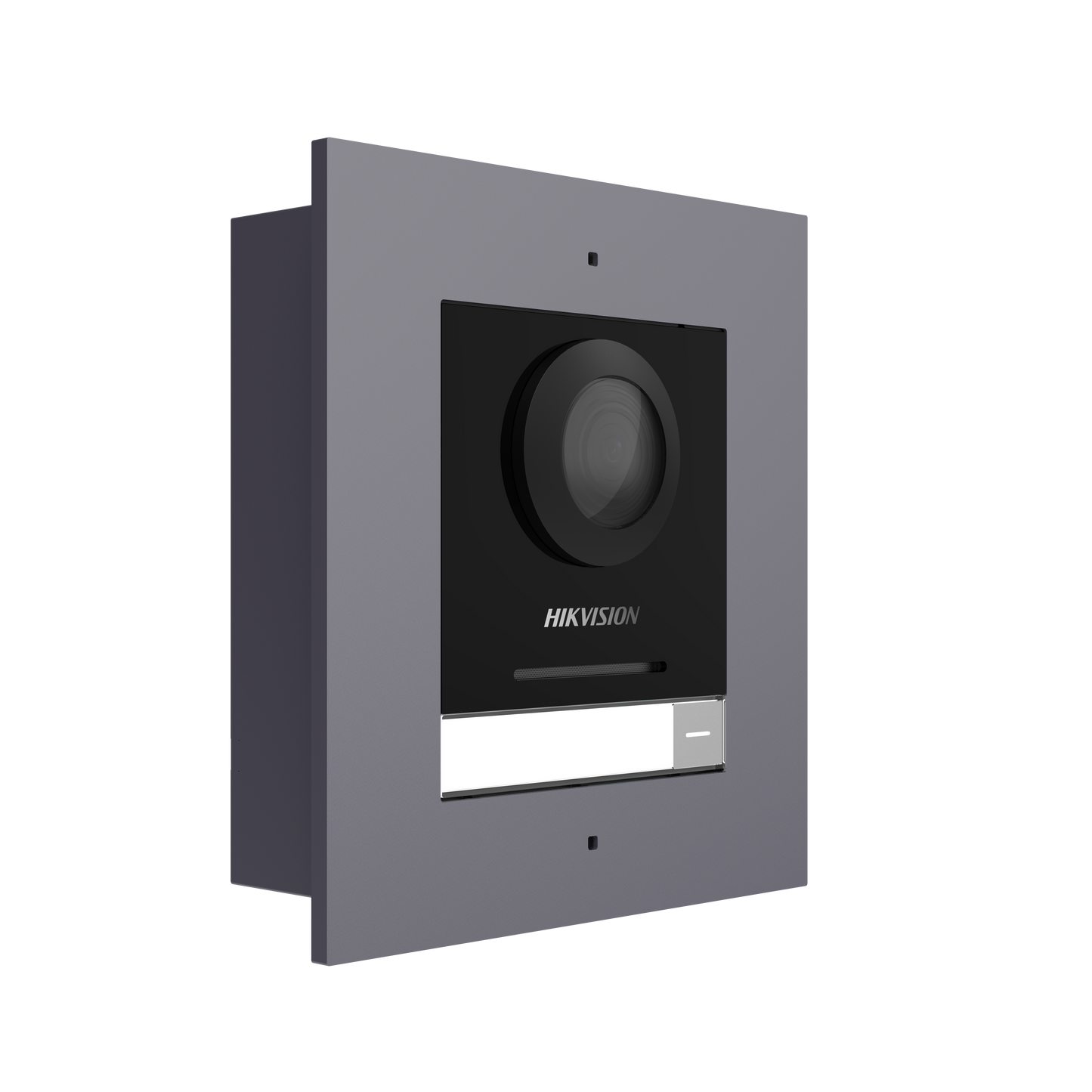

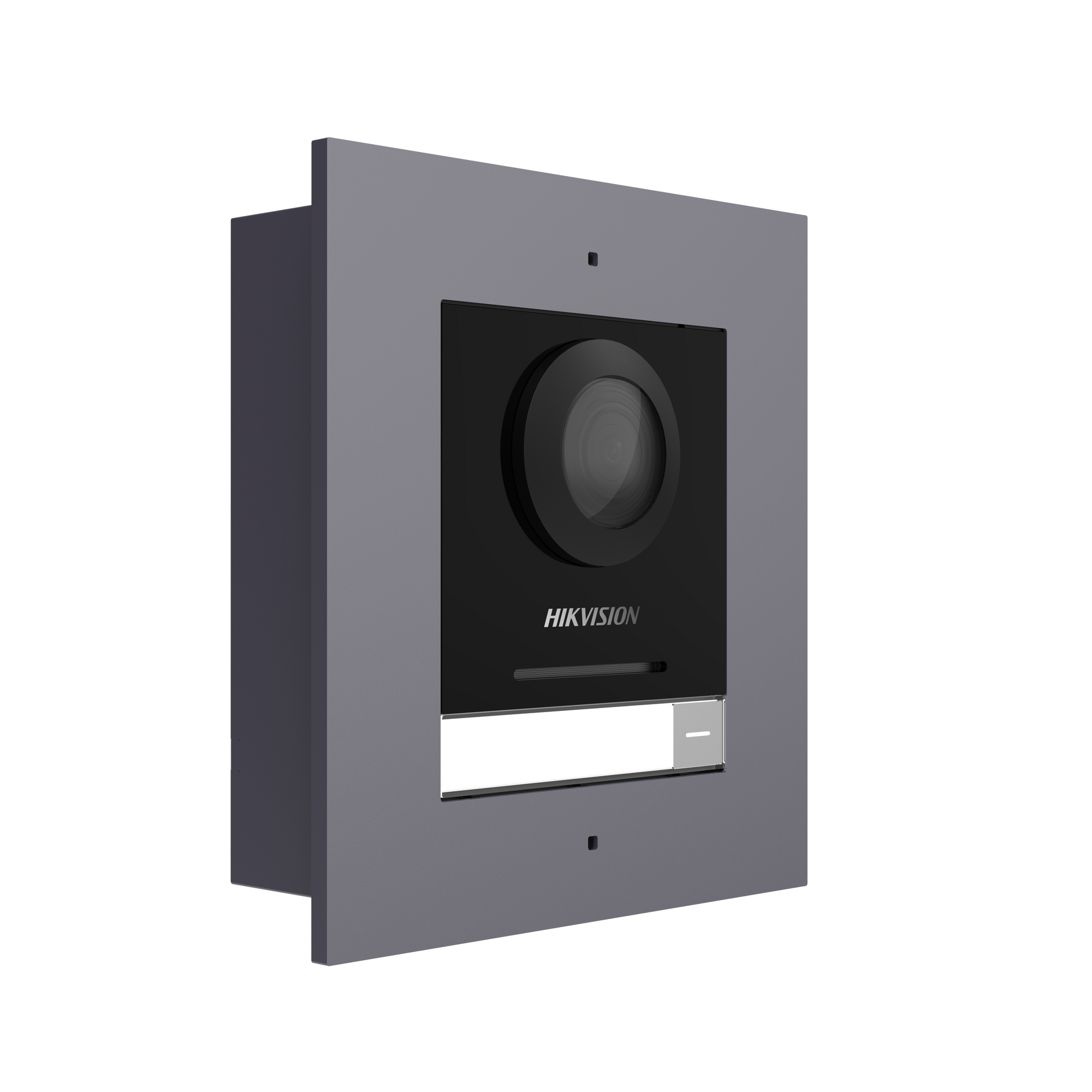

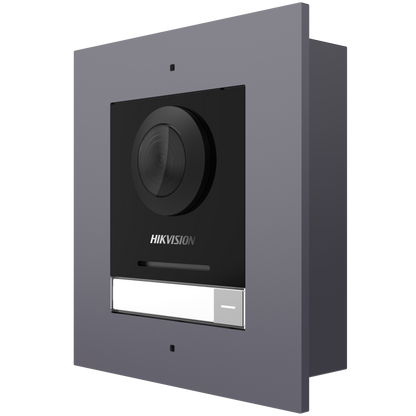

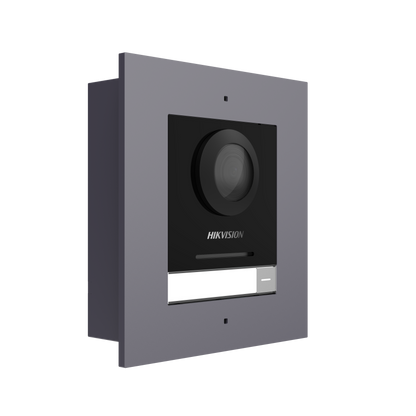

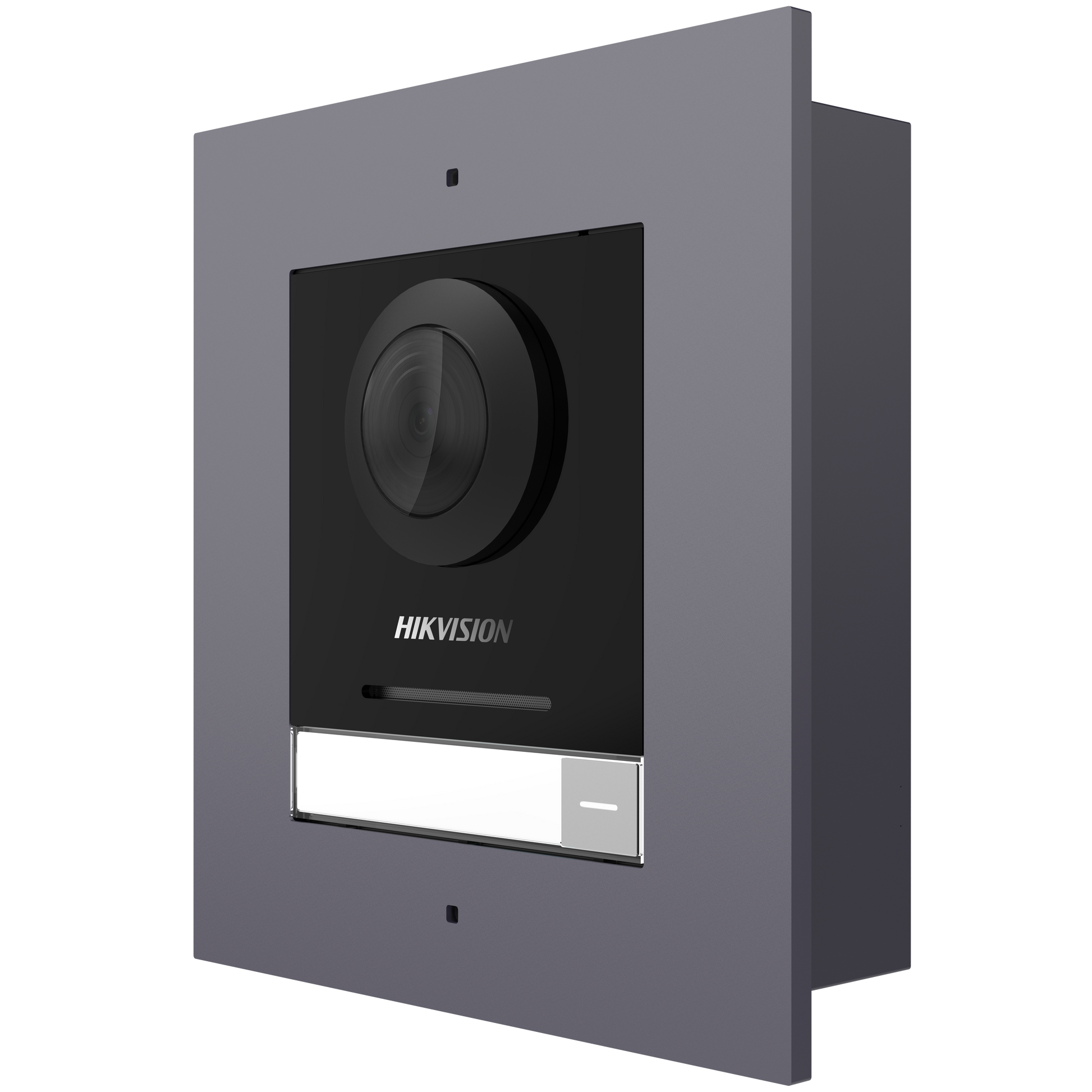

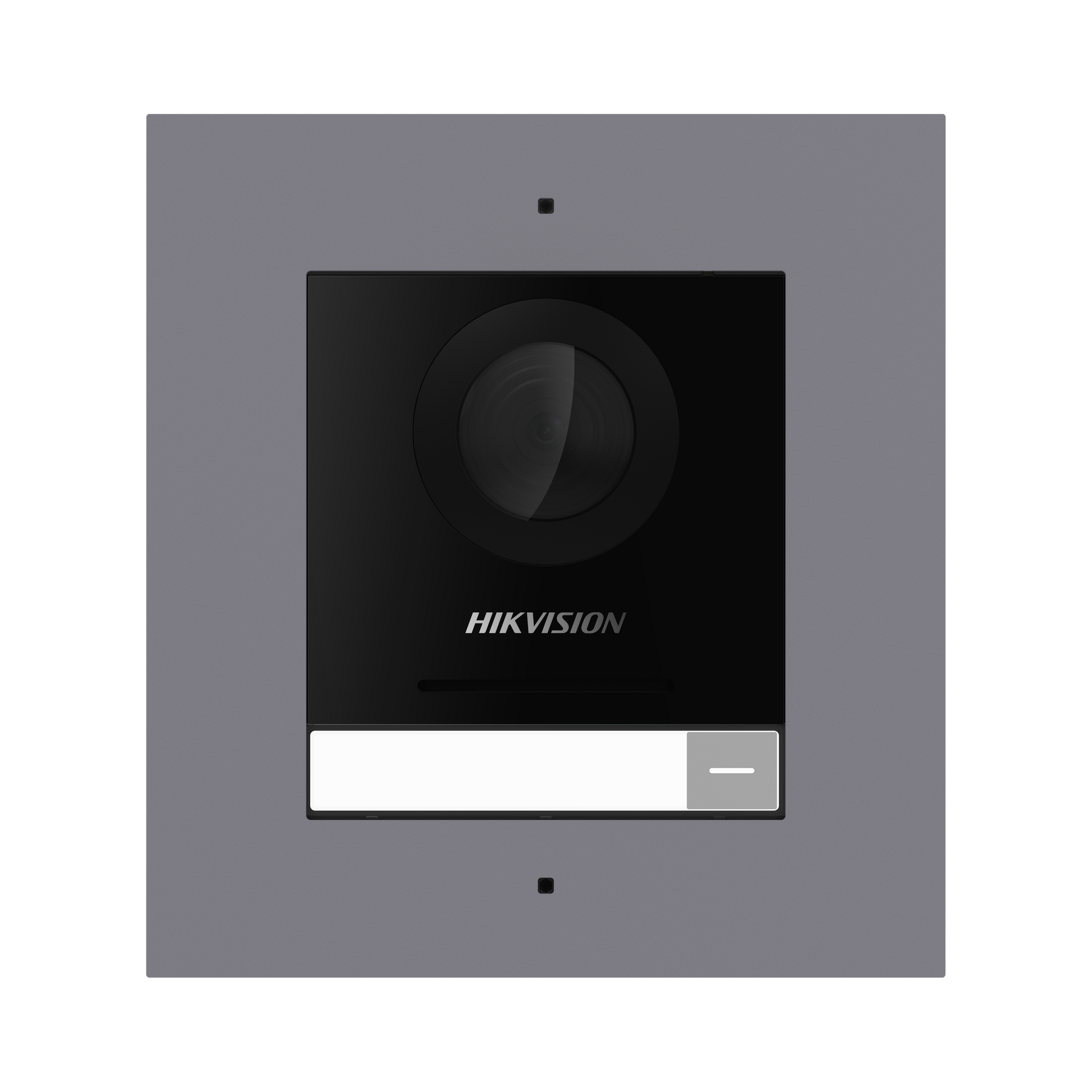

Hikvision DS-KD8003-IME1(B)/Flush | IP Intercom | Outdoor Bell

Hikvision DS-KD8003-IME1(B)/Flush | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

IP version: DS-KD8003-IME1 B with its flush mouting accessories. IP65 DS-KD8003-IME1 B +DS-KD-ACF1/Plastic

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD8003-IME1(B)/Flush | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embeded high performance processor
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /
  • Lens: 2 MP HD camera
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: Low illumination, IR supplement lights
  • Video compression standard: H.264; H.265; MJPEG
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 2000
  • Face capacity: /
  • Fingerprint capacity: /
  • Card capacity: 6000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Ethernet: 10/100 Mbps Self-Adaptive Ethernet
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: 2
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: /
  • Button: 1
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 0.375 kg Gross weight: 0.853 kg
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Battery: /
  • Power supply: 12 VDC, 500 mA, IEEE 802.3af, PoE
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

System parameters
  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /

Video parameters
  • Lens: 2 MP HD camera
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: Low illumination, IR supplement lights
  • Video compression standard: H.264; H.265; MJPEG

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 2000
  • Face capacity: /
  • Fingerprint capacity: /
  • Card capacity: 6000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16

Network parameters
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Ethernet: 10/100 Mbps Self-Adaptive Ethernet
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /

Device interfaces
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: 2
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: /

General
  • Button: 1
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 0.375 kg Gross weight: 0.853 kg
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Battery: /
  • Power supply: 12 VDC, 500 mA, IEEE 802.3af, PoE
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
