Hikvision DS-KD8003-IME1(B)/NS | IP Intercom | Outdoor Bell

Hikvision DS-KD8003-IME1(B)/NS | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

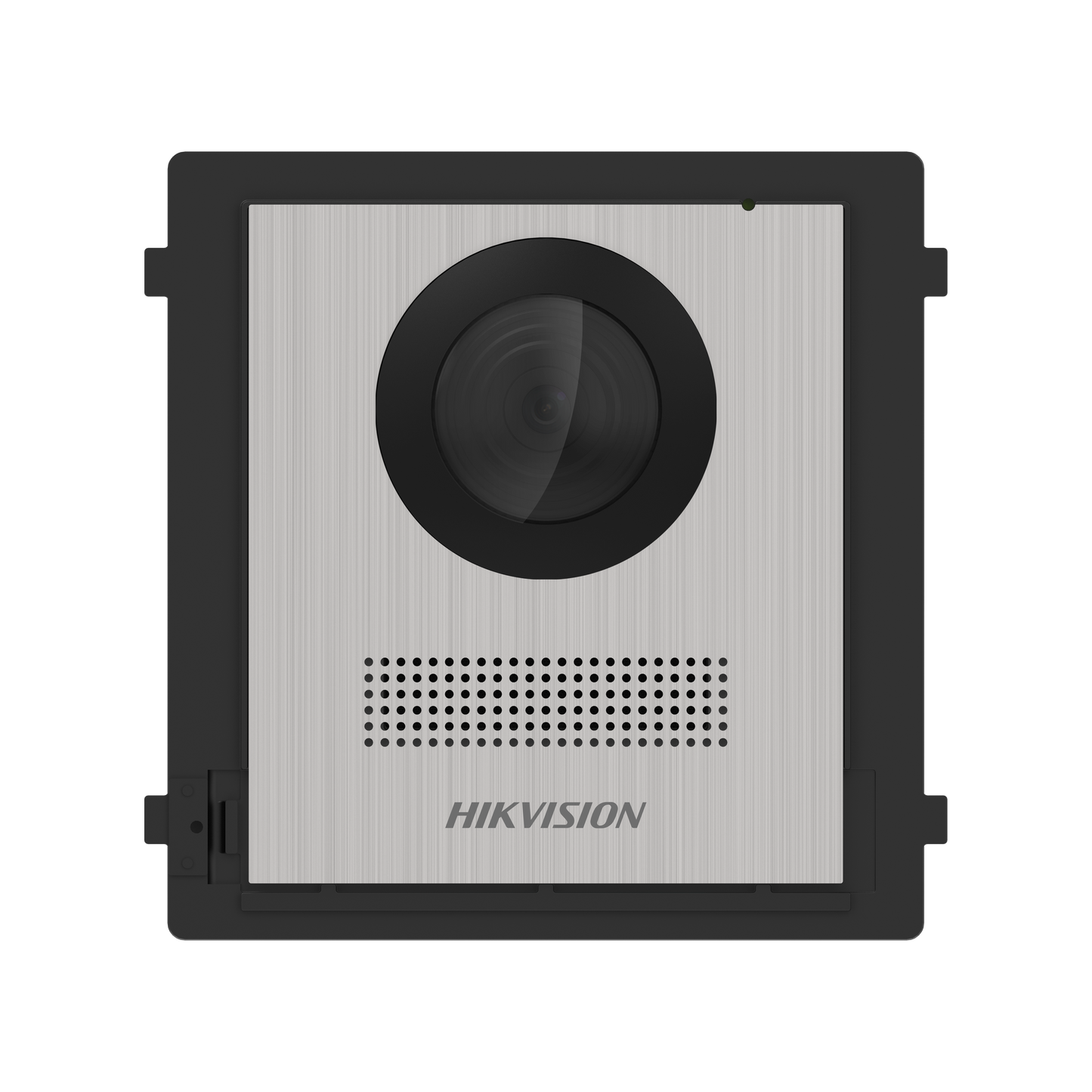

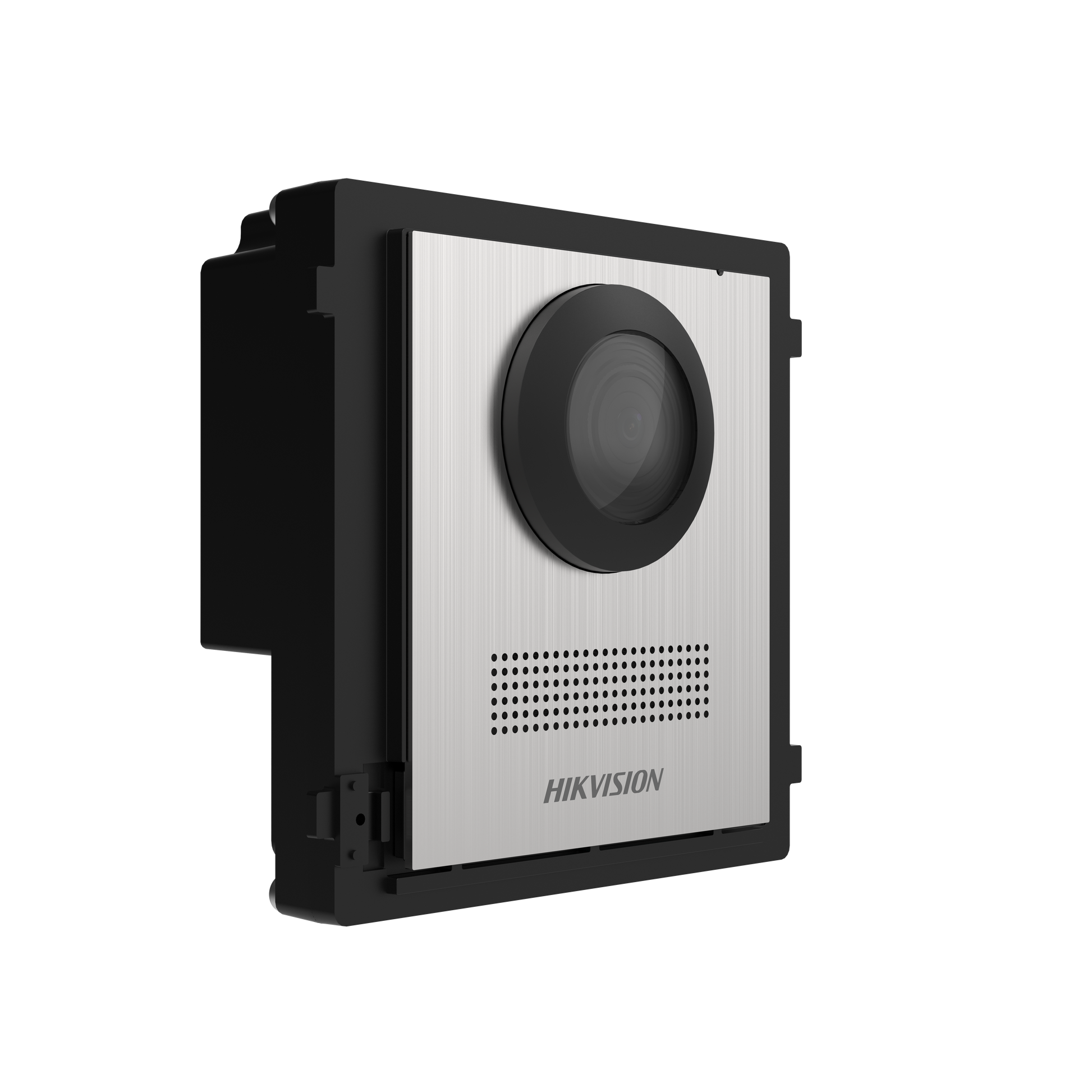

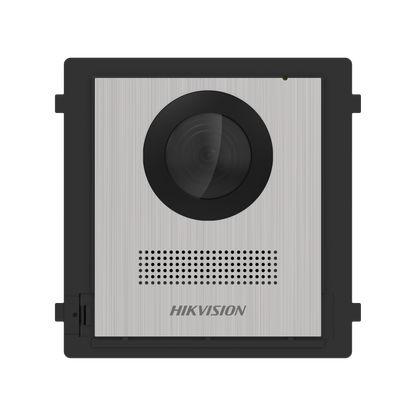

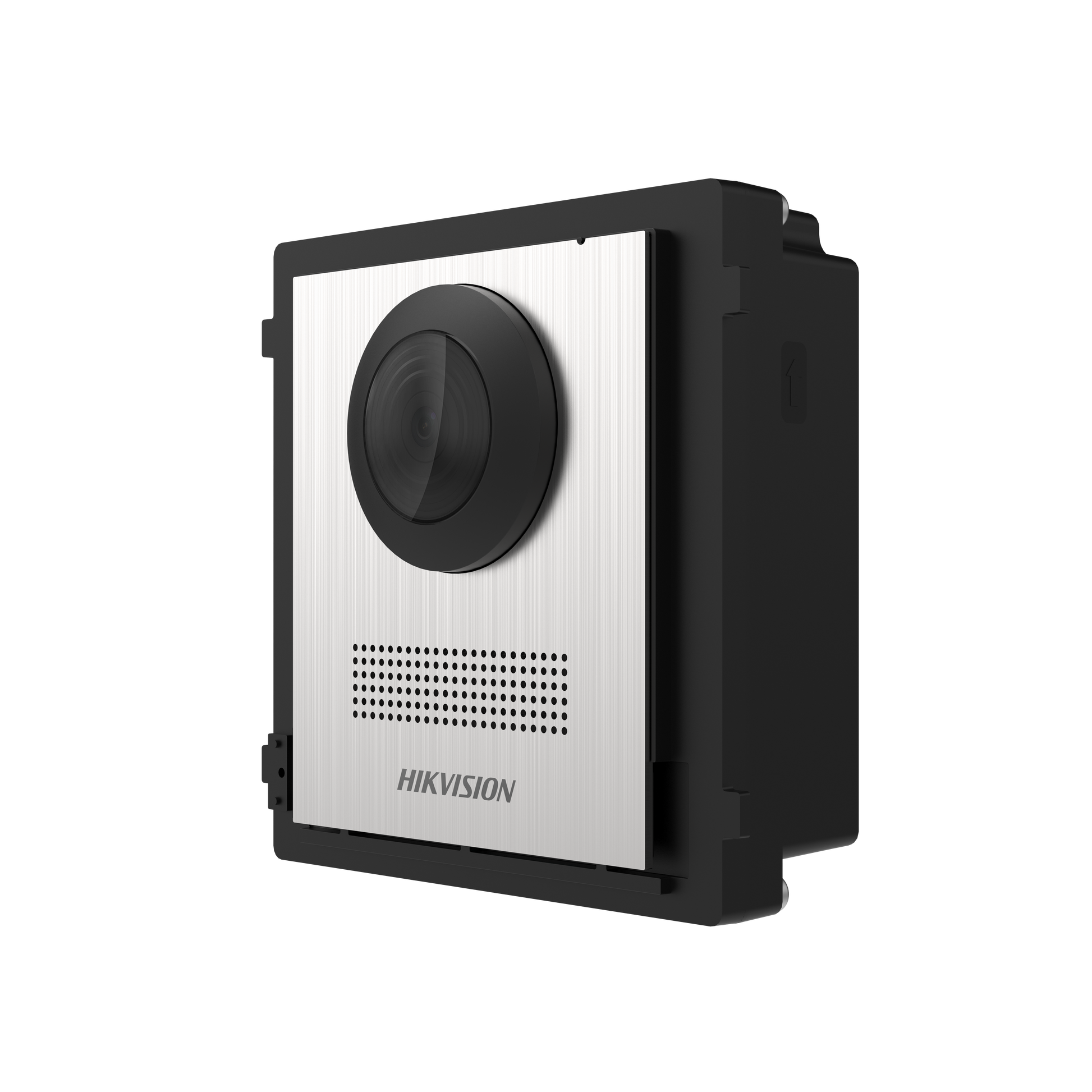

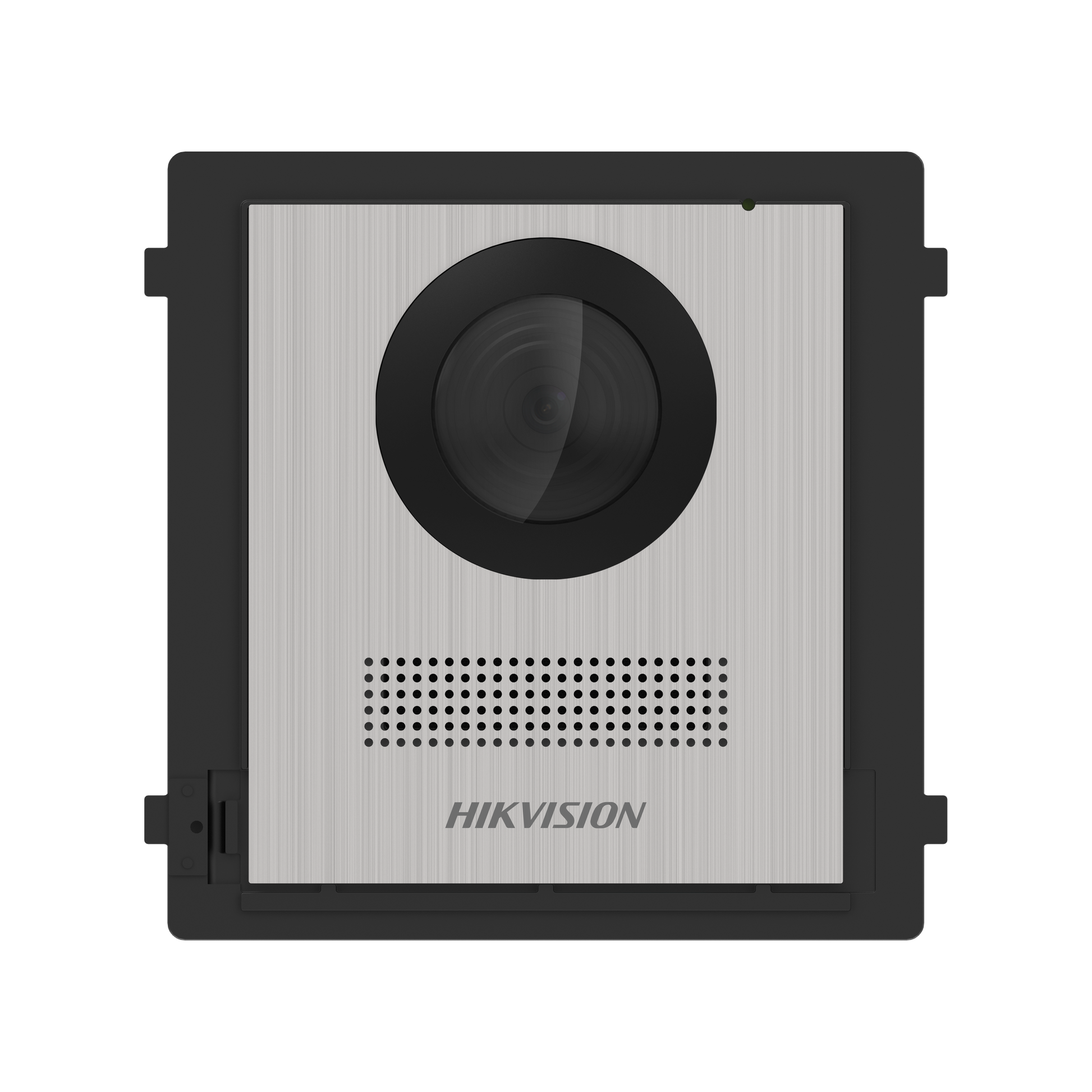

Stainless steel version:Main unit , needs mouting bracket.
CMOS 2MP HD Colorful Camera, Fish eye,2 relays for door lock control
IR Supplement , 10M/100M Self-adaptive Ethernet, module connection with RS-485 , 4-ch alarm input
IP65, 12 VDC or standard POE

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD8003-IME1(B)/NS | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operating system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • CPU: Embedded Processor
  • Screen size: NA
  • Operation method: NA
  • Type: NA
  • Resolution: NA
  • Supplement light: Low illumination, IR supplement lights
  • Video standard: H.264
  • Lens: 1
  • FOV: Horizontal: 146°, Vertical: 82°
  • WDR: Support
  • Resolution: 2 MP
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Fingerprint capacity: /
  • User capacity: 2000
  • Face capacity: NA
  • Card capacity: 6000
  • Linked indoor station capacity: 500
  • Event capacity: /
  • Sub door station capacity: 16
  • Communication protocol: TCP/IP, RTSP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi: NA
  • Bluetooth: NA
  • 3G/4G: NA
  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 1 RJ45
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • Door contact input: 1
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • Lock control: 2 (2 relay)
  • USB: NA
  • Power interface: 12 VDC Power Input (max to 12 V, 500 mA)
  • Two-wire IP interface: NA
  • Power supply: 12 VDC/PoE ( IEEE 802.3af)
  • Working temperature: -40° C to 60° C (-40° F to 140° F)
  • Working humidity: 10% to 95%
  • Button: 0
  • Protective level: IP65
  • Installation: Surface mounting & flush mounting
  • Dimensions(L × W × H): 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
  • Language: English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
  • Indicator: 0
  • Weight: Without package: 0.410 kg With Package: 0.581 kg
  • Battery: /
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W

System parameters
  • Operating system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • CPU: Embedded Processor

Display parameters
  • Screen size: NA
  • Operation method: NA
  • Type: NA
  • Resolution: NA

Video parameters
  • Supplement light: Low illumination, IR supplement lights
  • Video standard: H.264
  • Lens: 1
  • FOV: Horizontal: 146°, Vertical: 82°
  • WDR: Support
  • Resolution: 2 MP

Audio parameters
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Fingerprint capacity: /
  • User capacity: 2000
  • Face capacity: NA
  • Card capacity: 6000
  • Linked indoor station capacity: 500
  • Event capacity: /
  • Sub door station capacity: 16

Network parameters
  • Communication protocol: TCP/IP, RTSP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi: NA
  • Bluetooth: NA
  • 3G/4G: NA

Device interfaces
  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 1 RJ45
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • Door contact input: 1
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • Lock control: 2 (2 relay)
  • USB: NA
  • Power interface: 12 VDC Power Input (max to 12 V, 500 mA)
  • Two-wire IP interface: NA

General
  • Power supply: 12 VDC/PoE ( IEEE 802.3af)
  • Working temperature: -40° C to 60° C (-40° F to 140° F)
  • Working humidity: 10% to 95%
  • Button: 0
  • Protective level: IP65
  • Installation: Surface mounting & flush mounting
  • Dimensions(L × W × H): 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
  • Language: English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
  • Indicator: 0
  • Weight: Without package: 0.410 kg With Package: 0.581 kg
  • Battery: /
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W
