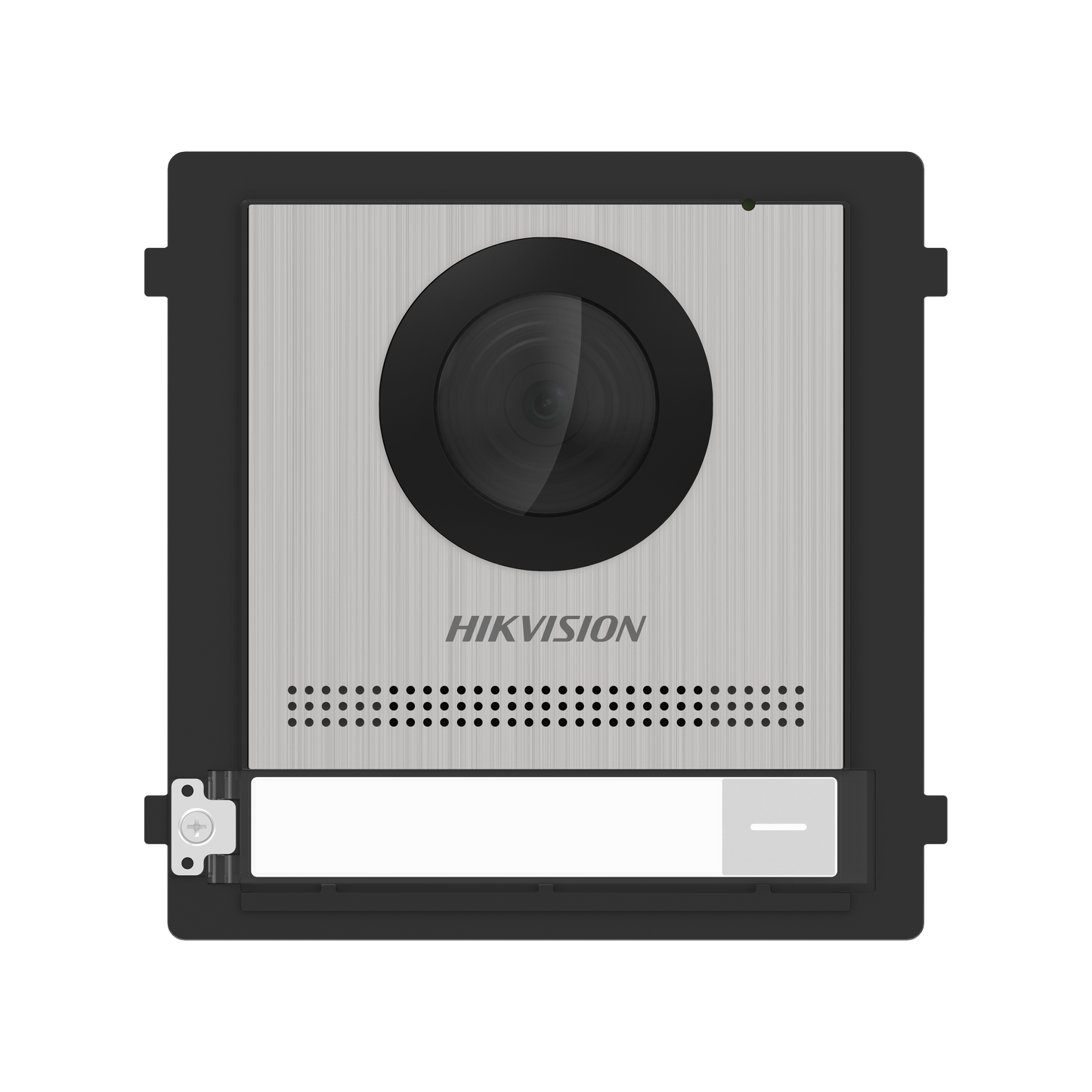

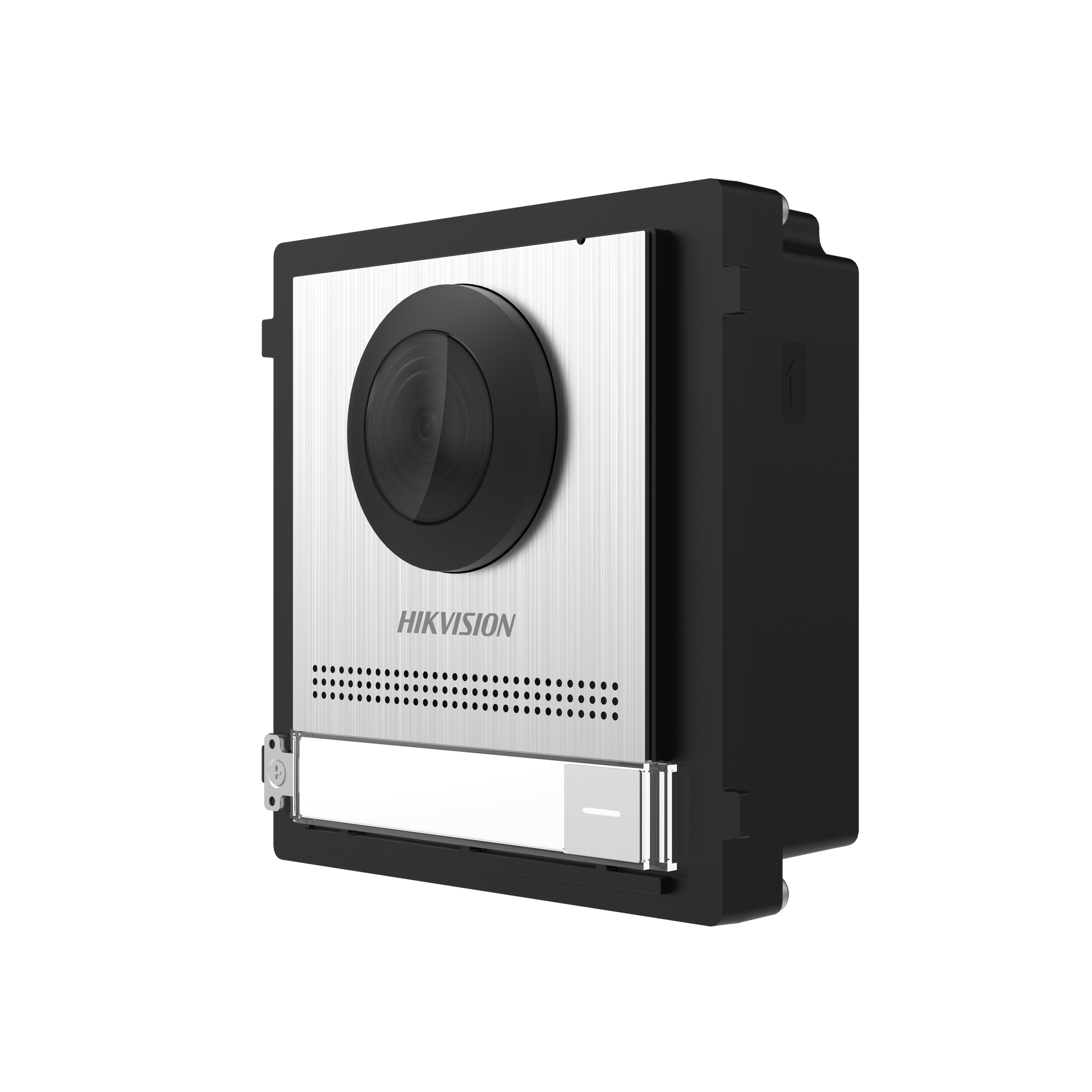

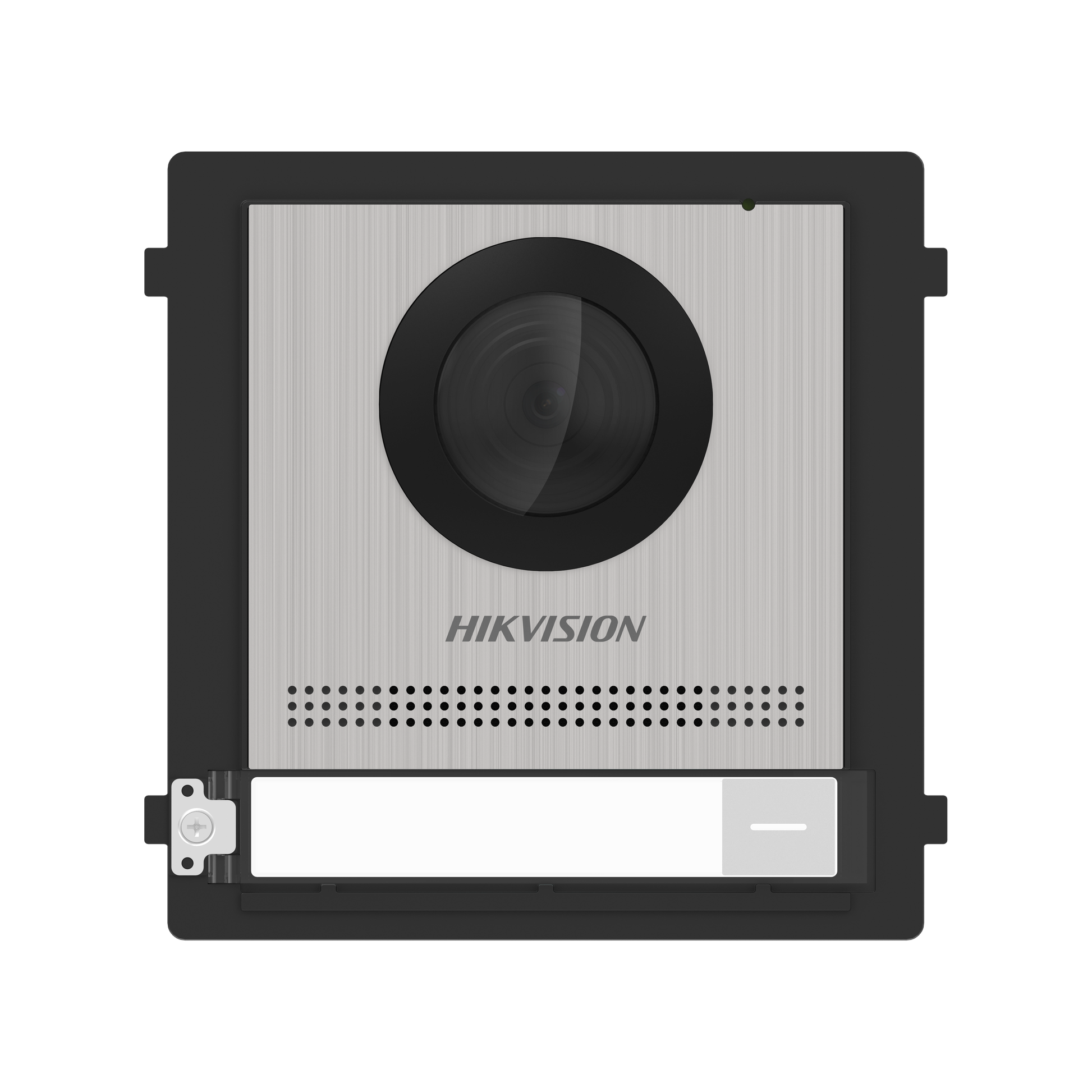

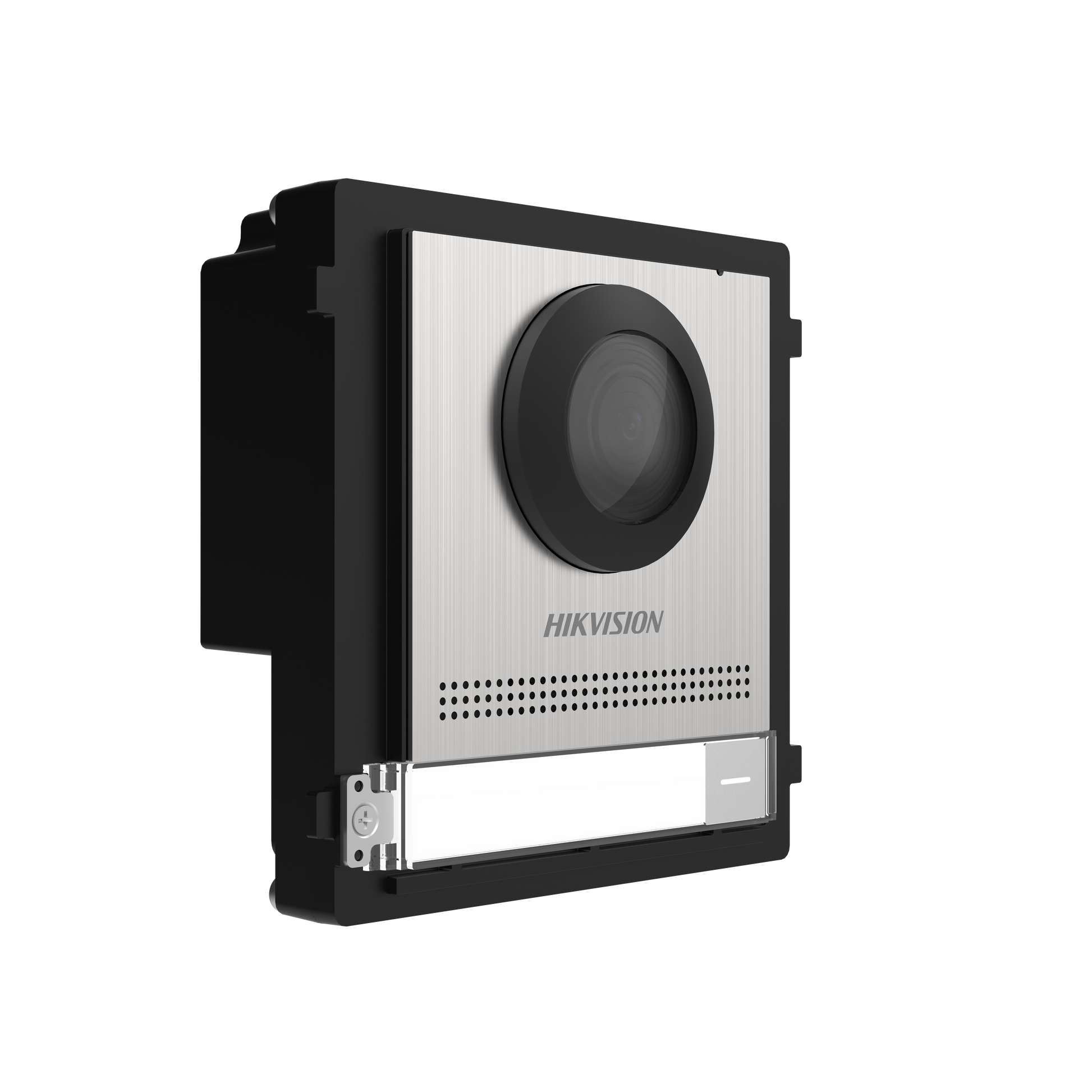

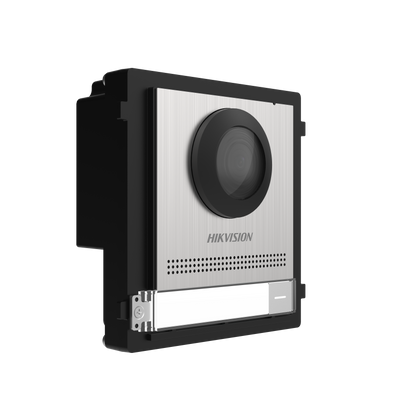

Hikvision DS-KD8003-IME1(B)/S | IP Intercom | Outdoor Bell

Hikvision DS-KD8003-IME1(B)/S | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

Stainless steel version:Main unit , needs mouting bracket.
CMOS 2MP HD Colorful Camera, Fish eye, 1 Call Button, 1-ch Indoor station access, 2 relays for door lock control
IR Supplement , 10M/100M Self-adaptive Ethernet, module connection with RS-485 , 4-ch alarm input
IP65, 12 VDC or standard POE

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD8003-IME1(B)/S | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embeded high performance processor
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /
  • Lens: 2 MP HD camera
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: Low illumination, IR supplement lights
  • Video compression standard: H.264; H.265; MJPEG
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 2000
  • Face capacity: /
  • Fingerprint capacity: /
  • Card capacity: 6000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: NA
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: /
  • Button: 1
  • Installation: Surface mounting, flush mounting
  • Indicator: /
  • Weight: Net weight: 410 g Gross weight: 581 g
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Battery: /
  • Power supply: 12 VDC, 500 mA, IEEE 802.3af, PoE
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

System parameters
  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /

Video parameters
  • Lens: 2 MP HD camera
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: Low illumination, IR supplement lights
  • Video compression standard: H.264; H.265; MJPEG

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 2000
  • Face capacity: /
  • Fingerprint capacity: /
  • Card capacity: 6000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16

Network parameters
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: NA

Device interfaces
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: /

General
  • Button: 1
  • Installation: Surface mounting, flush mounting
  • Indicator: /
  • Weight: Net weight: 410 g Gross weight: 581 g
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Battery: /
  • Power supply: 12 VDC, 500 mA, IEEE 802.3af, PoE
  • Application environment: Outdoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
