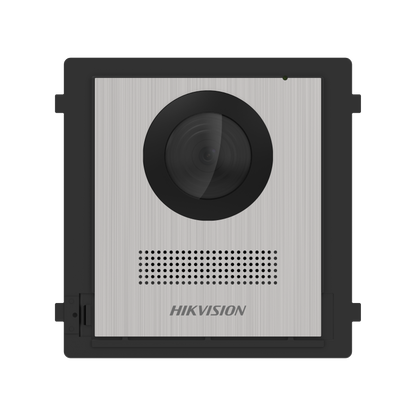

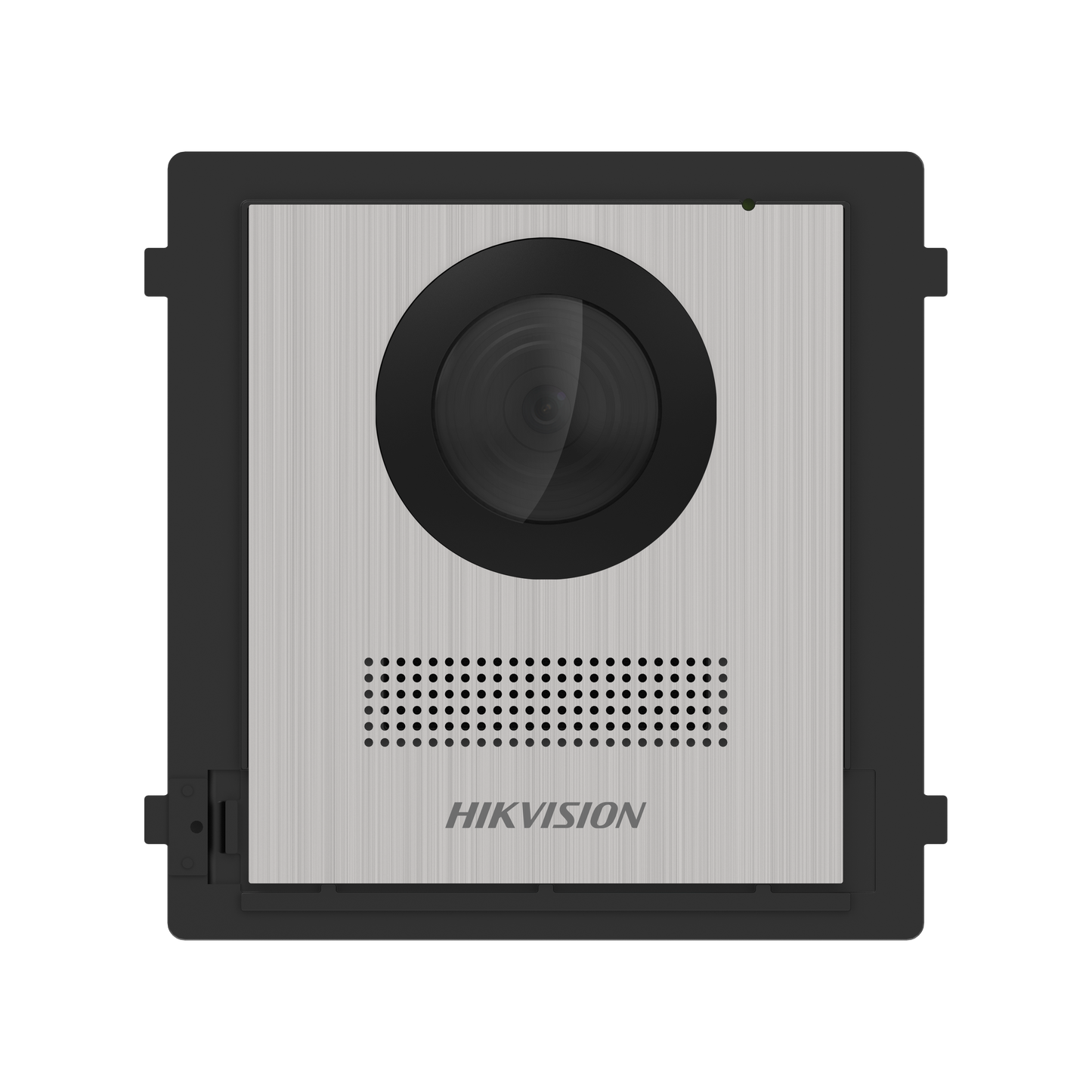

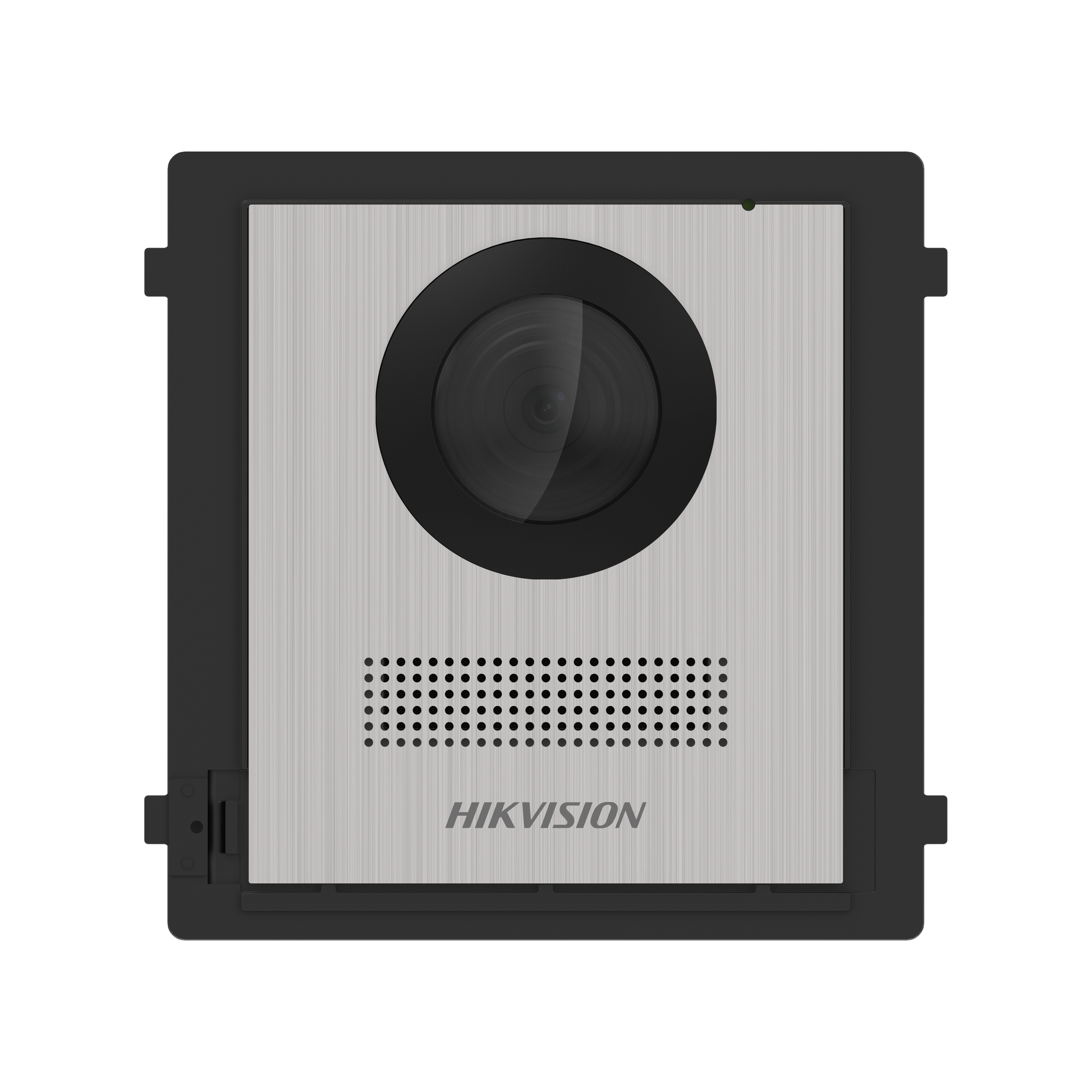

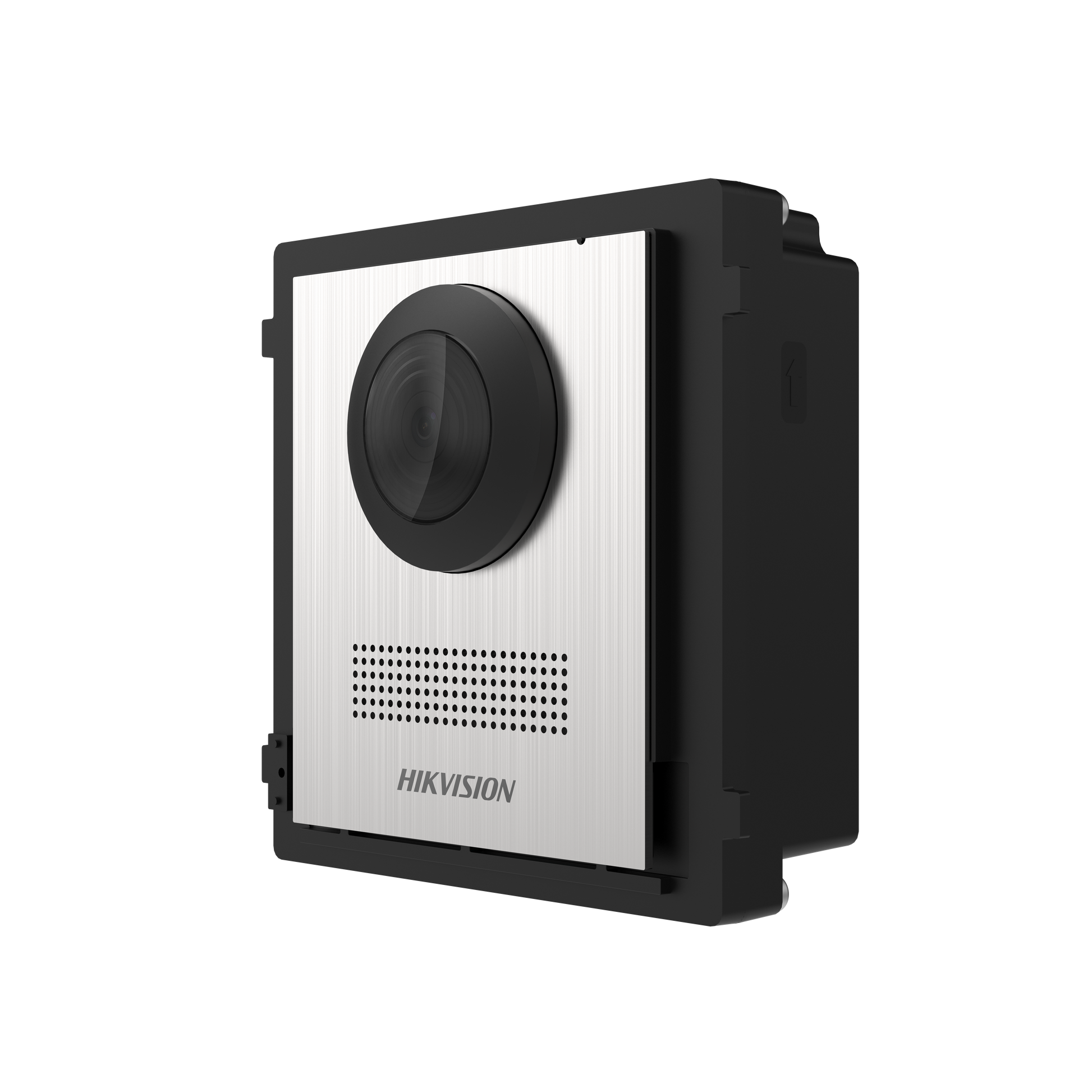

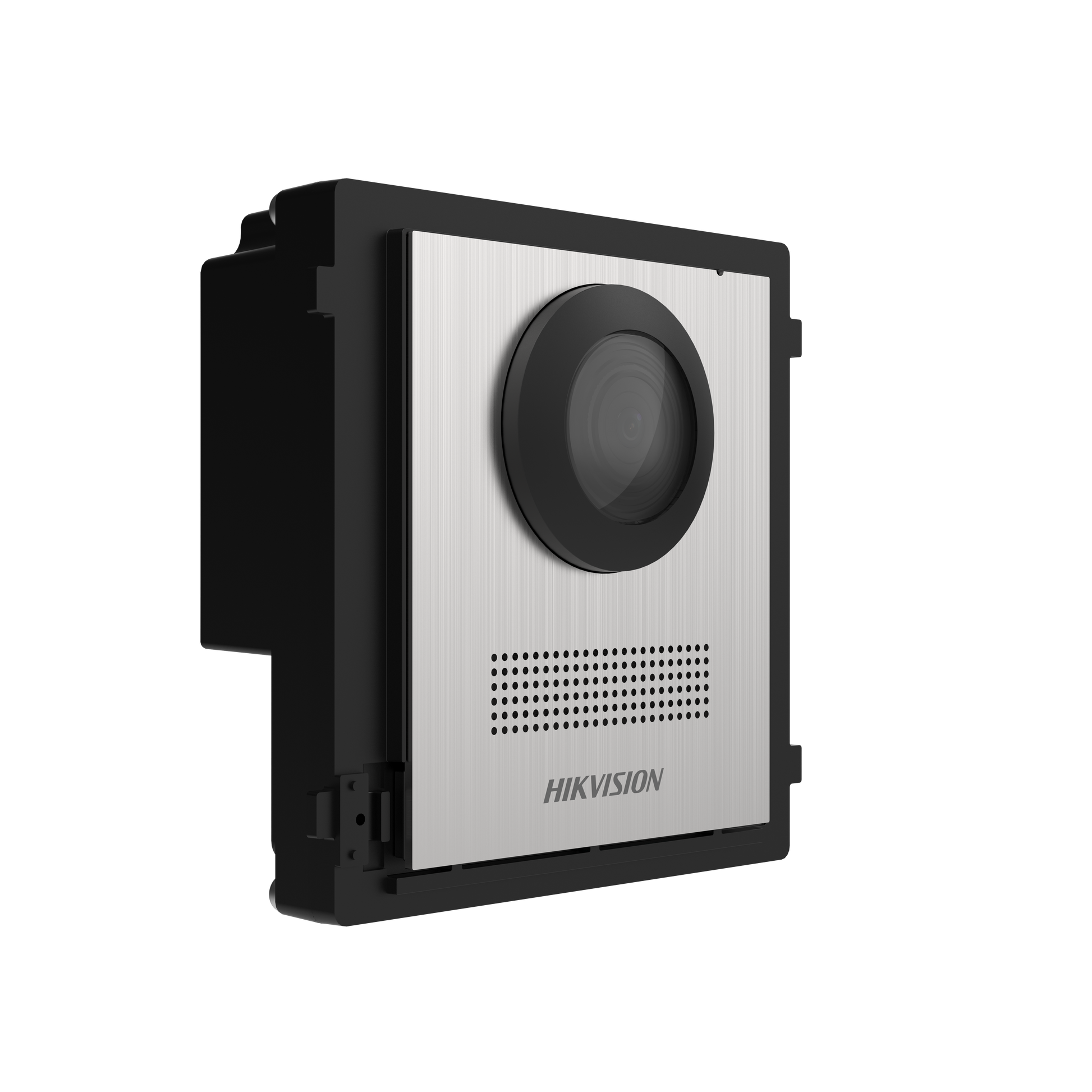

Hikvision DS-KD8003Y-IME2/NS | Two Wire | Outdoor Bell

Hikvision DS-KD8003Y-IME2/NS | Two Wire | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • 2-wire Series
  • 2 Wire IP

Two-wire version:Main unit , stainless steel, needs mouting bracket.
CMOS 2MP HD Colorful Camera, Fish eye, no Call Button, 1-ch Indoor station access, 2 relays for door lock control
IR Supplement , 10M/100M Self-adaptive Ethernet, module connection with RS-485 , 4-ch alarm input
IP65, Two -wire interface,98mmx99.8mmx43.9mm
Mouting accessories and other modules are same as IP version of modular door station.

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD8003Y-IME2/NS | Two Wire | Outdoor Bell
Login to View Price

Specifications

  • Operation system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embedded Processor
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /
  • Lens: 1
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264; H.265; MJPEG
  • Audio input: 1 Built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 2000
  • Face capacity: NA
  • Fingerprint capacity: /
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16
  • Network protocol: IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: NA
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • Lock control: 2 relays, Max. to 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: NA
  • Button: /
  • Installation: Surface mounting, flush mounting
  • Indicator: /
  • Weight: Net weight: 0.425 kg Gross weight: 0.600 kg
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Dimension (W × H × D): 100 mm × 98 mm × 42 mm
  • Battery: /
  • Power supply: Powered by KAD704Y or KAD706Y series distributor
  • Application environment: Outdoor
  • Power consumption: ≤ 4 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

System parameters
  • Operation system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • Processor: Embedded Processor

Display parameters
  • Screen size: /
  • Operation method: /
  • Type: /
  • Resolution: /

Video parameters
  • Lens: 1
  • Resolution: 2 MP
  • FOV: Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR): Support
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264; H.265; MJPEG

Audio parameters
  • Audio input: 1 Built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 2000
  • Face capacity: NA
  • Fingerprint capacity: /
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16

Network parameters
  • Network protocol: IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /

Device interfaces
  • Alarm input: 4 (2 exit buttons and 2 door contacts by default)
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • USB: NA
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • Lock control: 2 relays, Max. to 30 VDC, 2 A
  • Door contact input: 2
  • Two-Wire IP interface: NA

General
  • Button: /
  • Installation: Surface mounting, flush mounting
  • Indicator: /
  • Weight: Net weight: 0.425 kg Gross weight: 0.600 kg
  • Protective level: IP65
  • Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Dimension (W × H × D): 100 mm × 98 mm × 42 mm
  • Battery: /
  • Power supply: Powered by KAD704Y or KAD706Y series distributor
  • Application environment: Outdoor
  • Power consumption: ≤ 4 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
