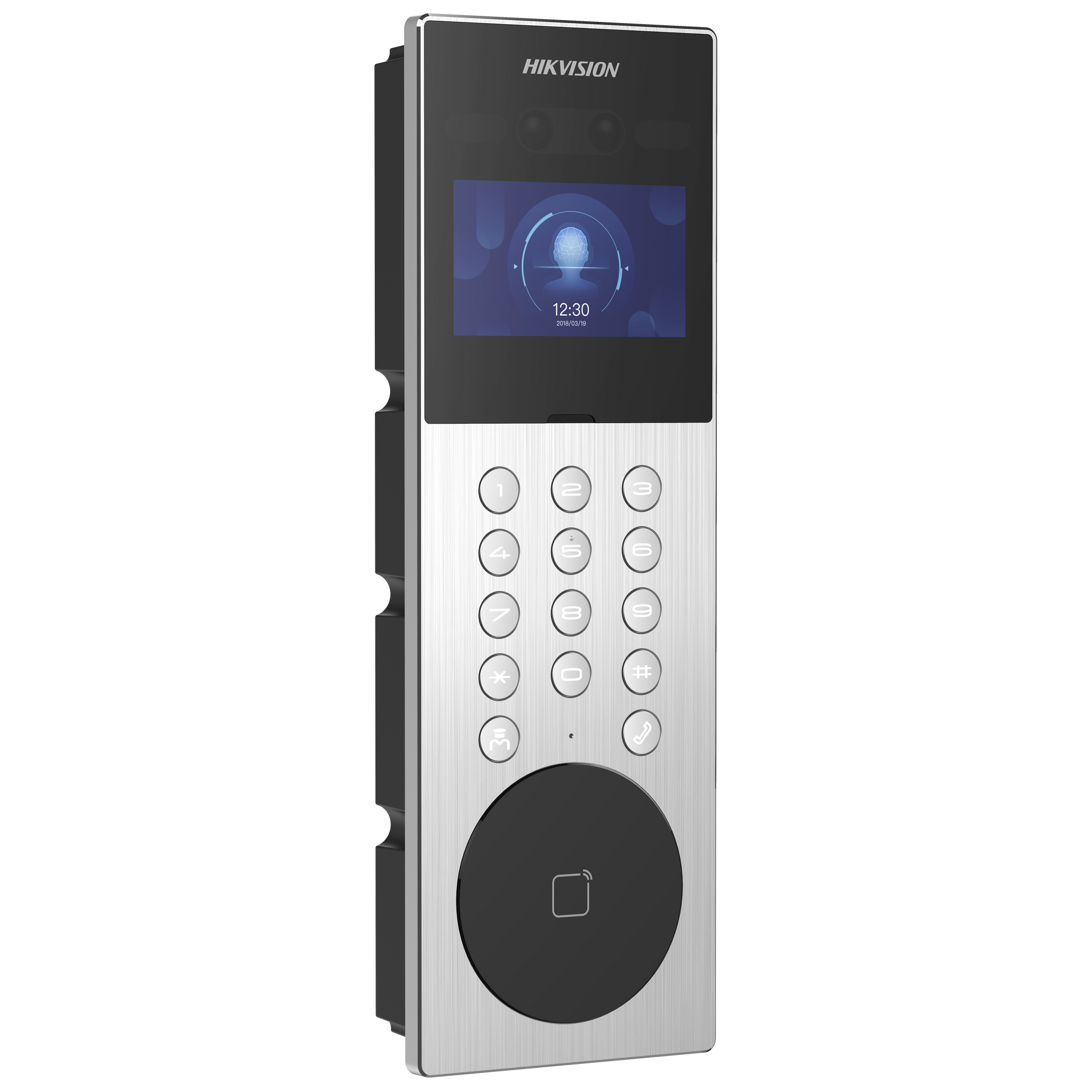

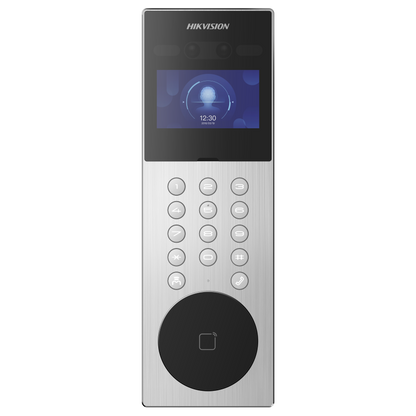

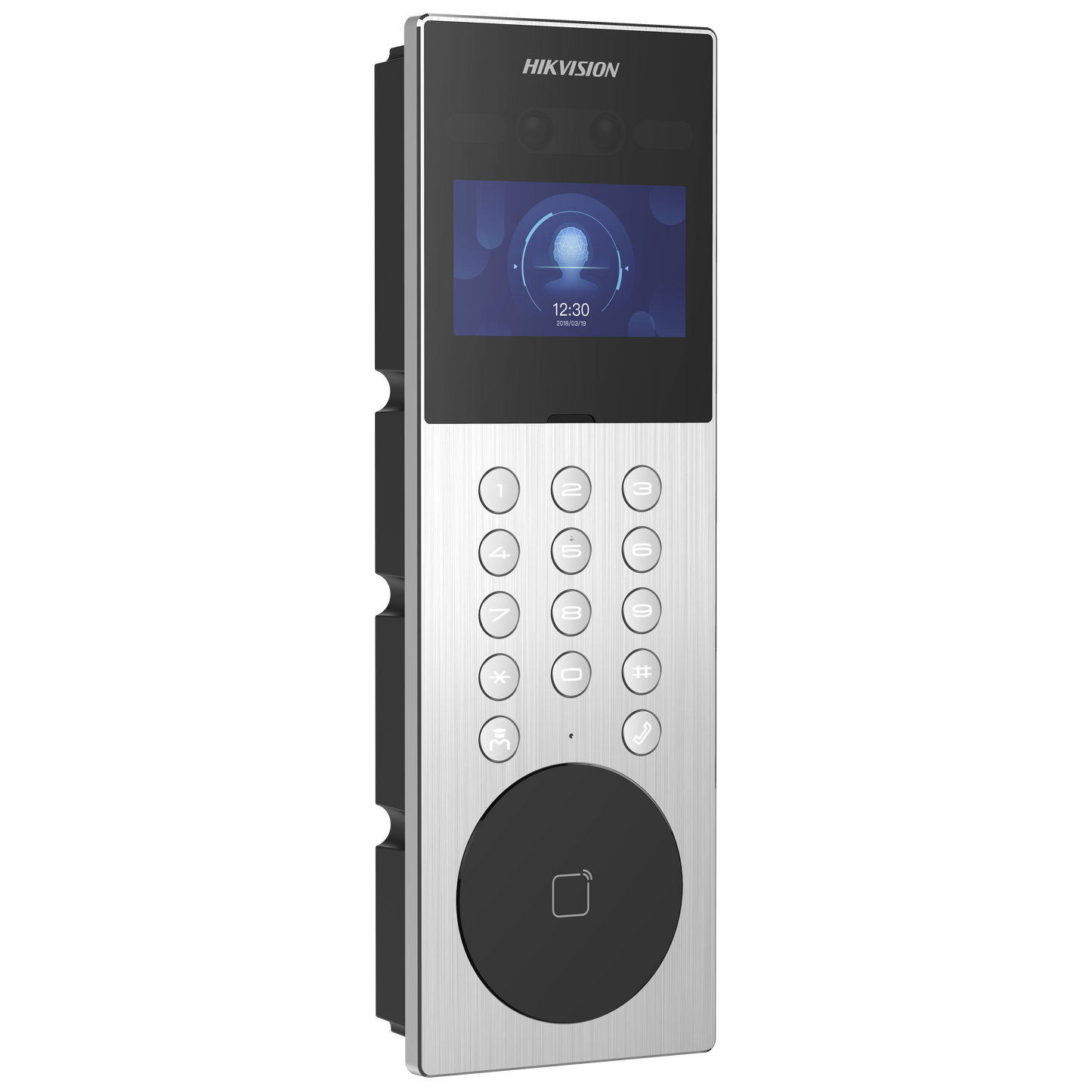

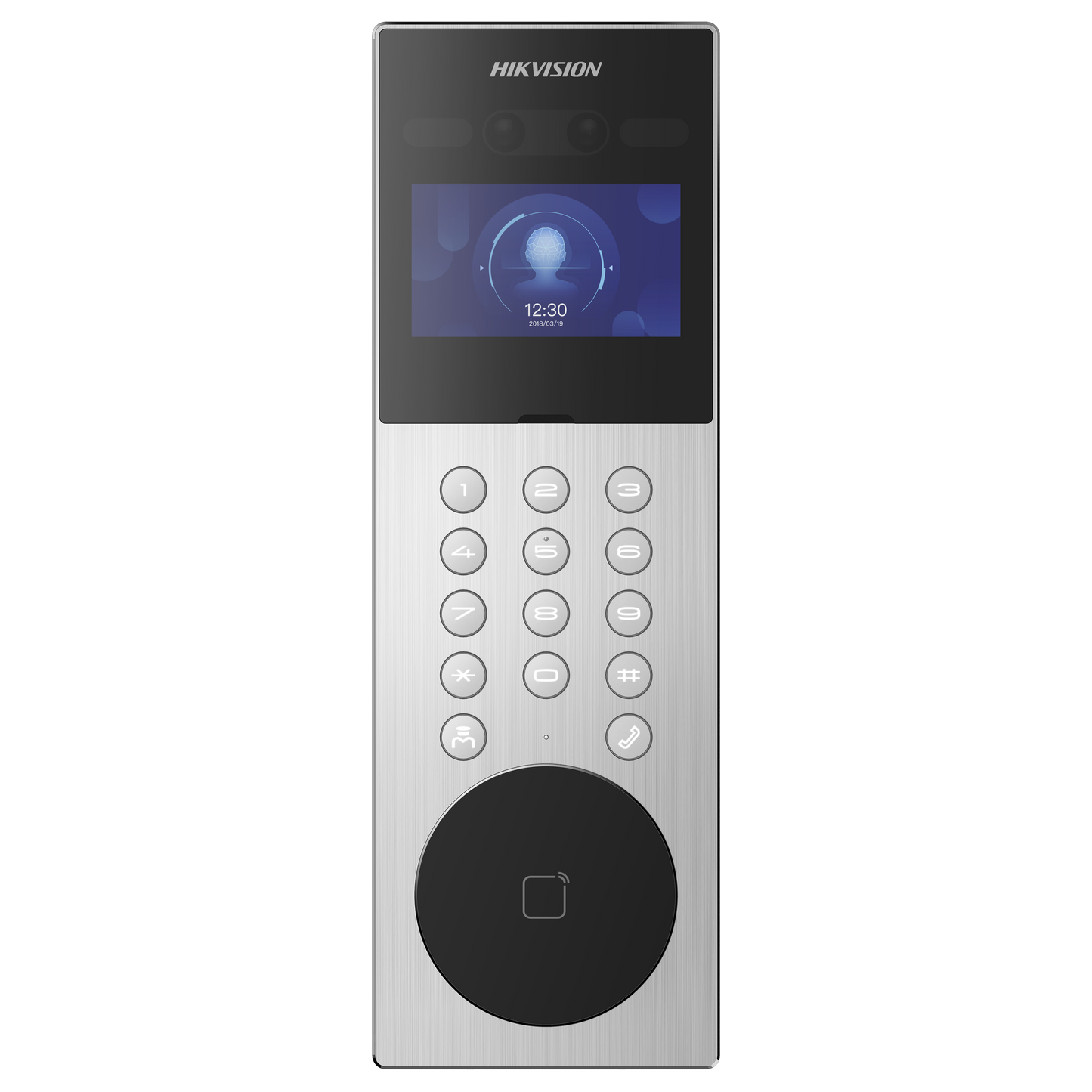

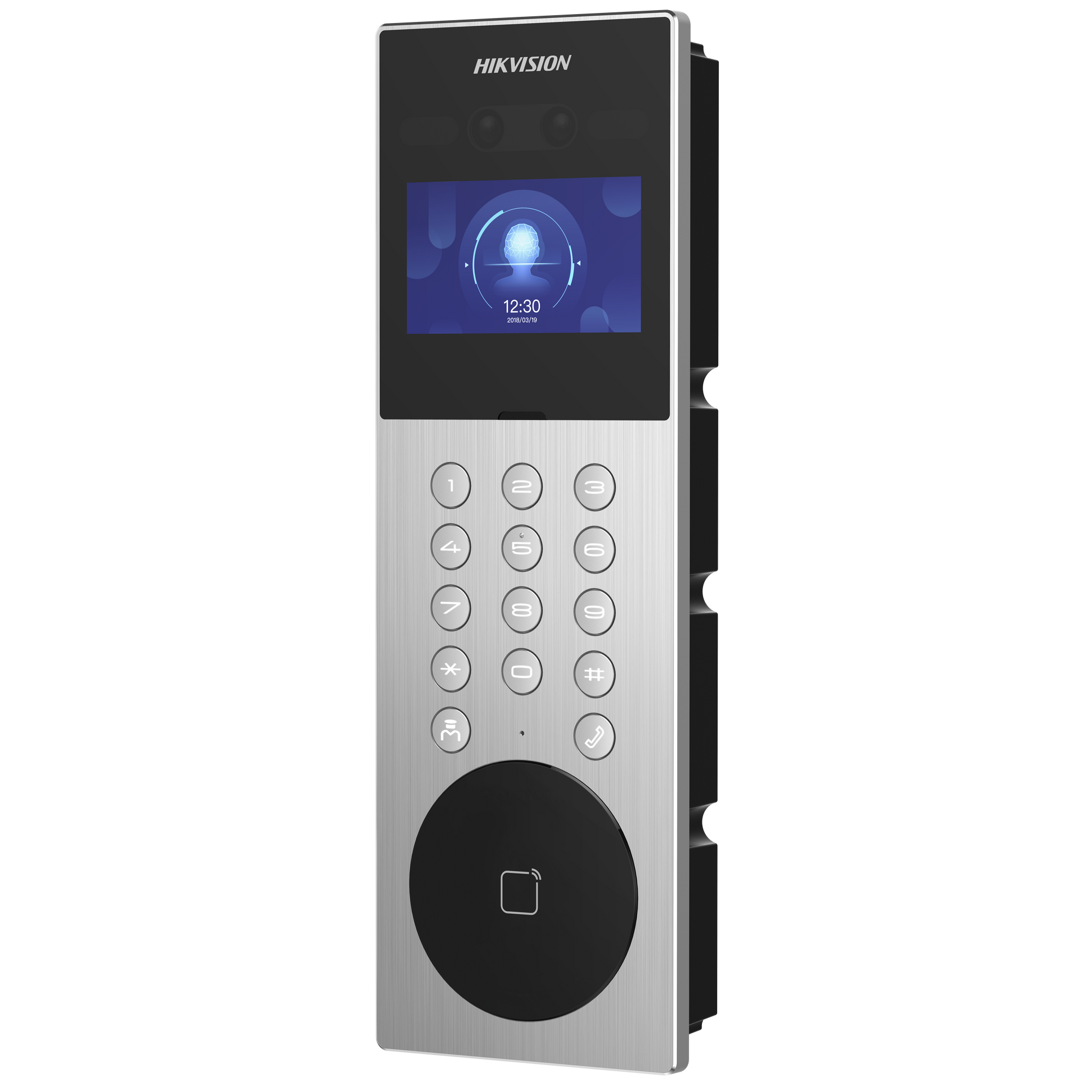

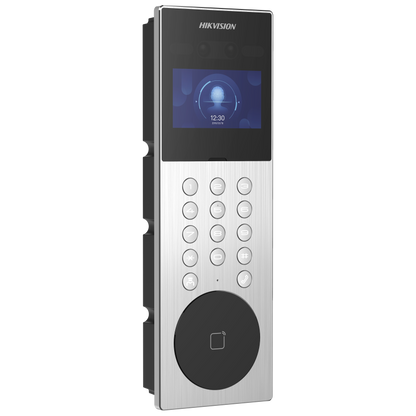

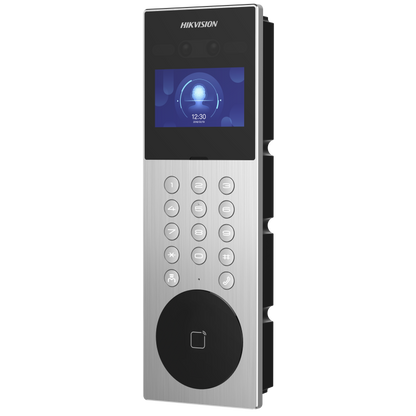

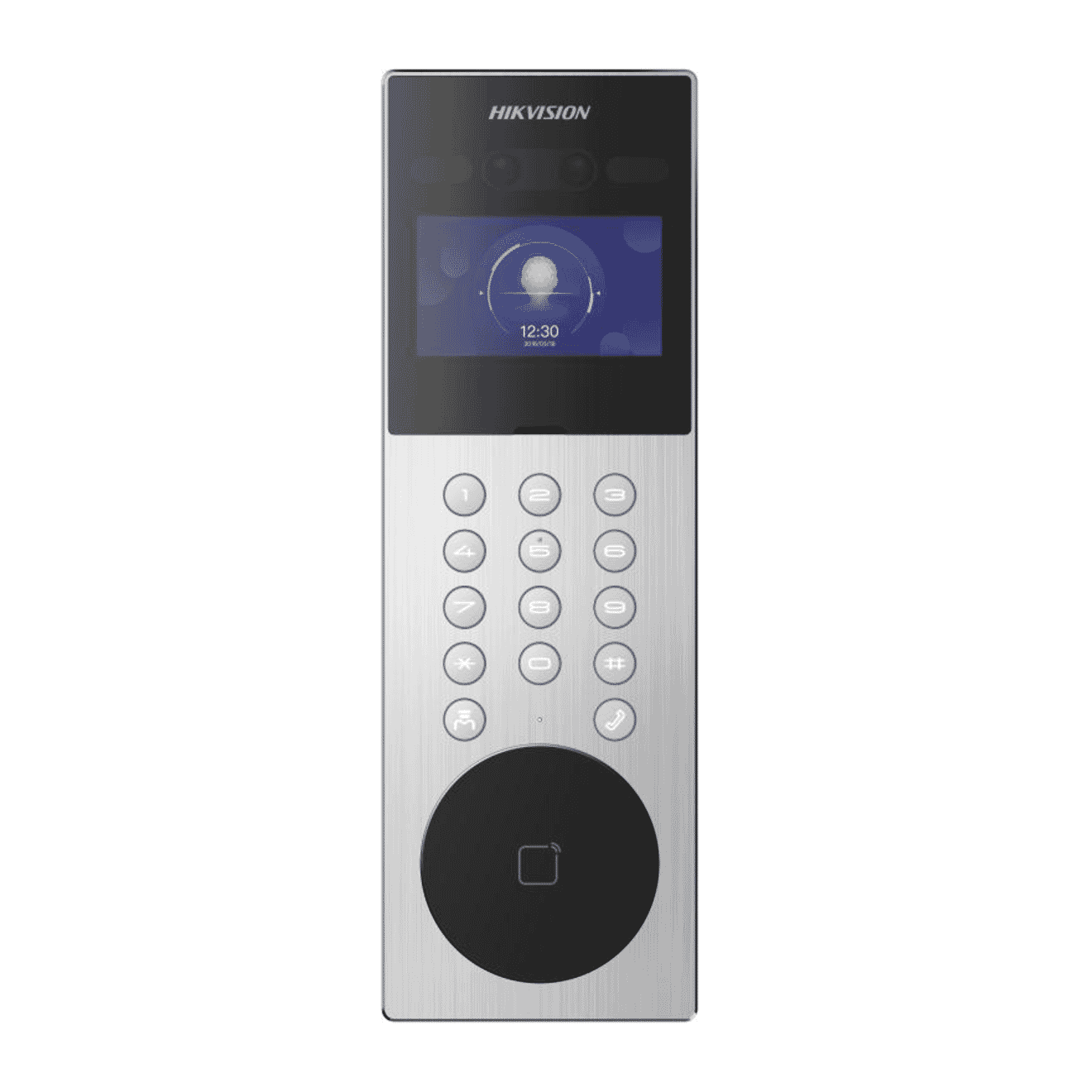

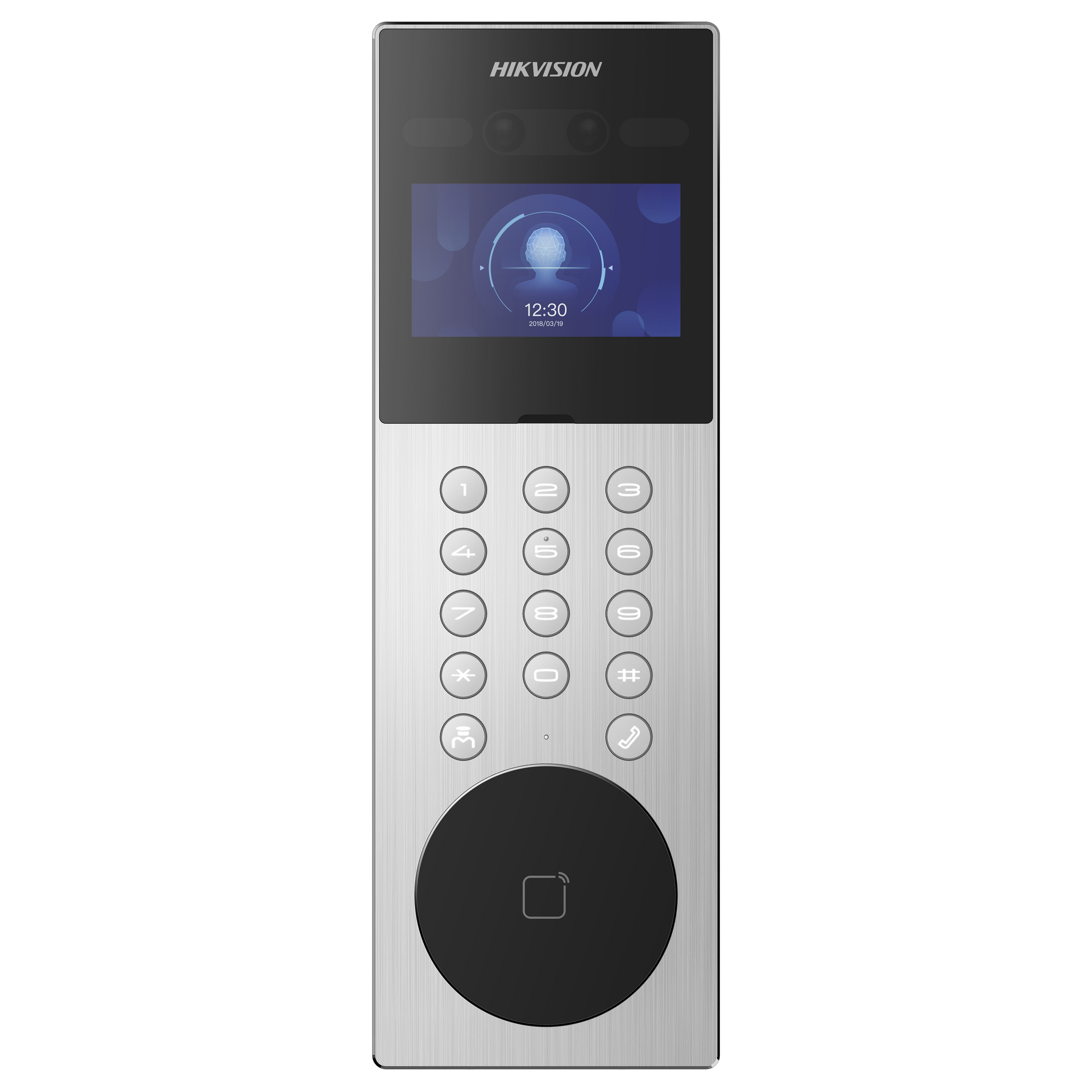

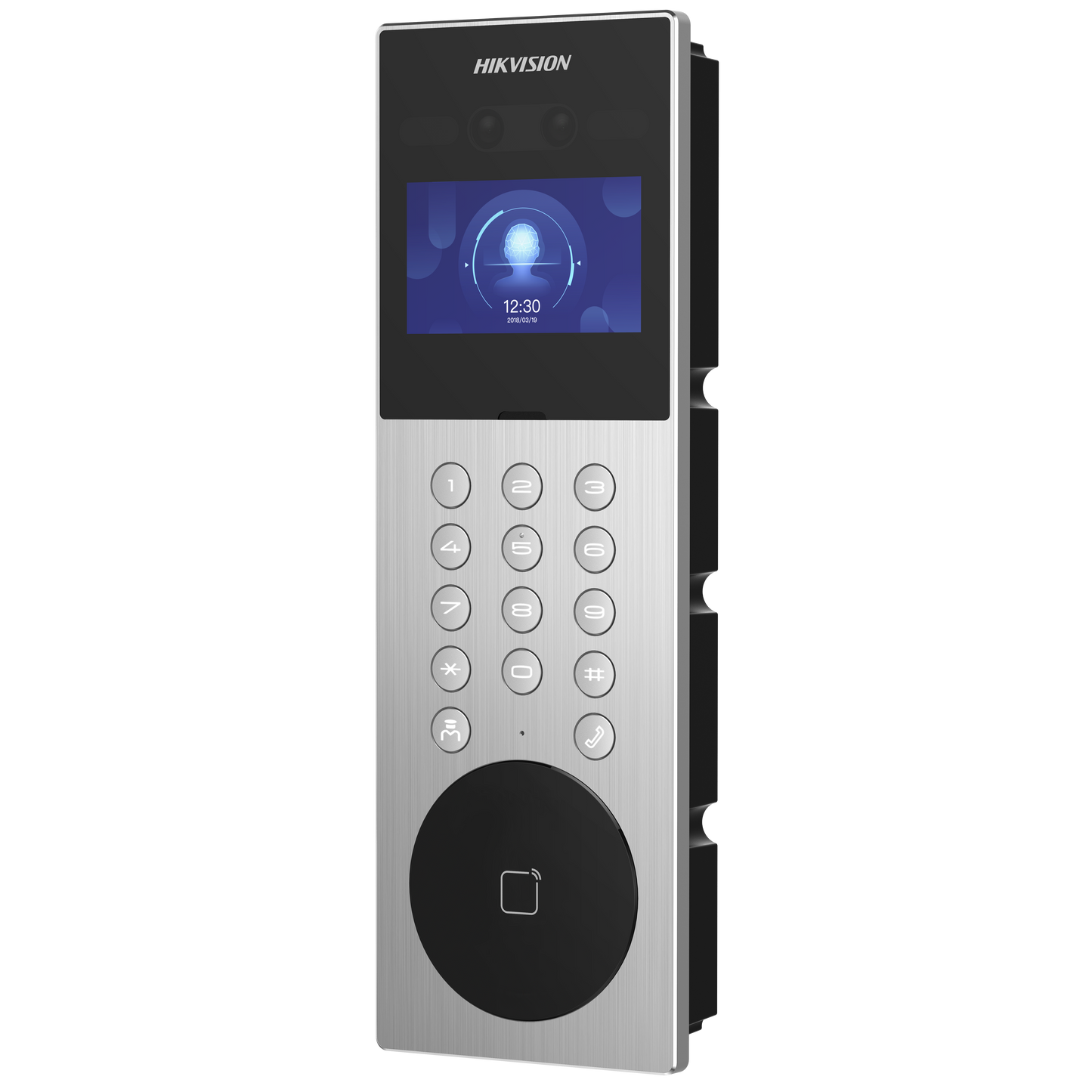

Hikvision DS-KD9203-ME6 Modular Door Station – 2MP Fisheye, 4.3" LCD, Face Recognition

Hikvision DS-KD9203-ME6 Modular Door Station – 2MP Fisheye, 4.3" LCD, Face Recognition

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Ultra Series
  • 4.3-inch colorful LCD screen with 800 × 480 resolution
  • 2 × 2 MP wide-angle HD lens
  • IP65 protection level
  • Built-in M1 card reading module
  • Multiple interfaces: RJ45, RS-485, alarm input, relay
  • Convenient configuration via Web remotely
  • Convenient unlock methods: face, cards, PIN code
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD9203-ME6 Modular Door Station – 2MP Fisheye, 4.3" LCD, Face Recognition
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 4 GB
  • RAM: 1 GB
  • Processor: Embeded high performance processor
  • Screen size: 4.3-inch
  • Operation method: /
  • Type: Colorful LCD
  • Resolution: 800 × 480
  • Lens: 2 MP HD camera
  • Resolution: Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps
  • FOV: Horizontal: 107°, Vertical: 58°, Diagonal: 126°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264; H.265; MJPEG
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 10,000
  • Face capacity: 5,000
  • Card capacity: 50,000
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Alarm input: 4
  • Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 1
  • RS-485: 2 RS-485 (Half duplex, HIKVISION)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 1
  • Button: Physical buttons
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 1.186 kg Gross weight: 1.471 kg
  • Protective level: IP65
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
  • Power supply: 12 VDC, 1.5 A
  • Application environment: Outdoor
  • Power consumption: ≤ 13 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish

System parameters
  • Operation system: Linux
  • ROM: 4 GB
  • RAM: 1 GB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: 4.3-inch
  • Operation method: /
  • Type: Colorful LCD
  • Resolution: 800 × 480

Video parameters
  • Lens: 2 MP HD camera
  • Resolution: Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps
  • FOV: Horizontal: 107°, Vertical: 58°, Diagonal: 126°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264; H.265; MJPEG

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 10,000
  • Face capacity: 5,000
  • Card capacity: 50,000

Network parameters
  • Network protocol: TCP/IP, RTSP, IPV6, ONVIF
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /

Device interfaces
  • Alarm input: 4
  • Network interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
  • TAMPER: 1
  • Exit button: 1
  • RS-485: 2 RS-485 (Half duplex, HIKVISION)
  • USB: /
  • Wiegand: /
  • TF card: /
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC, 2 A
  • Door contact input: 1

General
  • Button: Physical buttons
  • Installation: Flush mounting
  • Indicator: /
  • Weight: Net weight: 1.186 kg Gross weight: 1.471 kg
  • Protective level: IP65
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
  • Power supply: 12 VDC, 1.5 A
  • Application environment: Outdoor
  • Power consumption: ≤ 13 W
  • Language: English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
