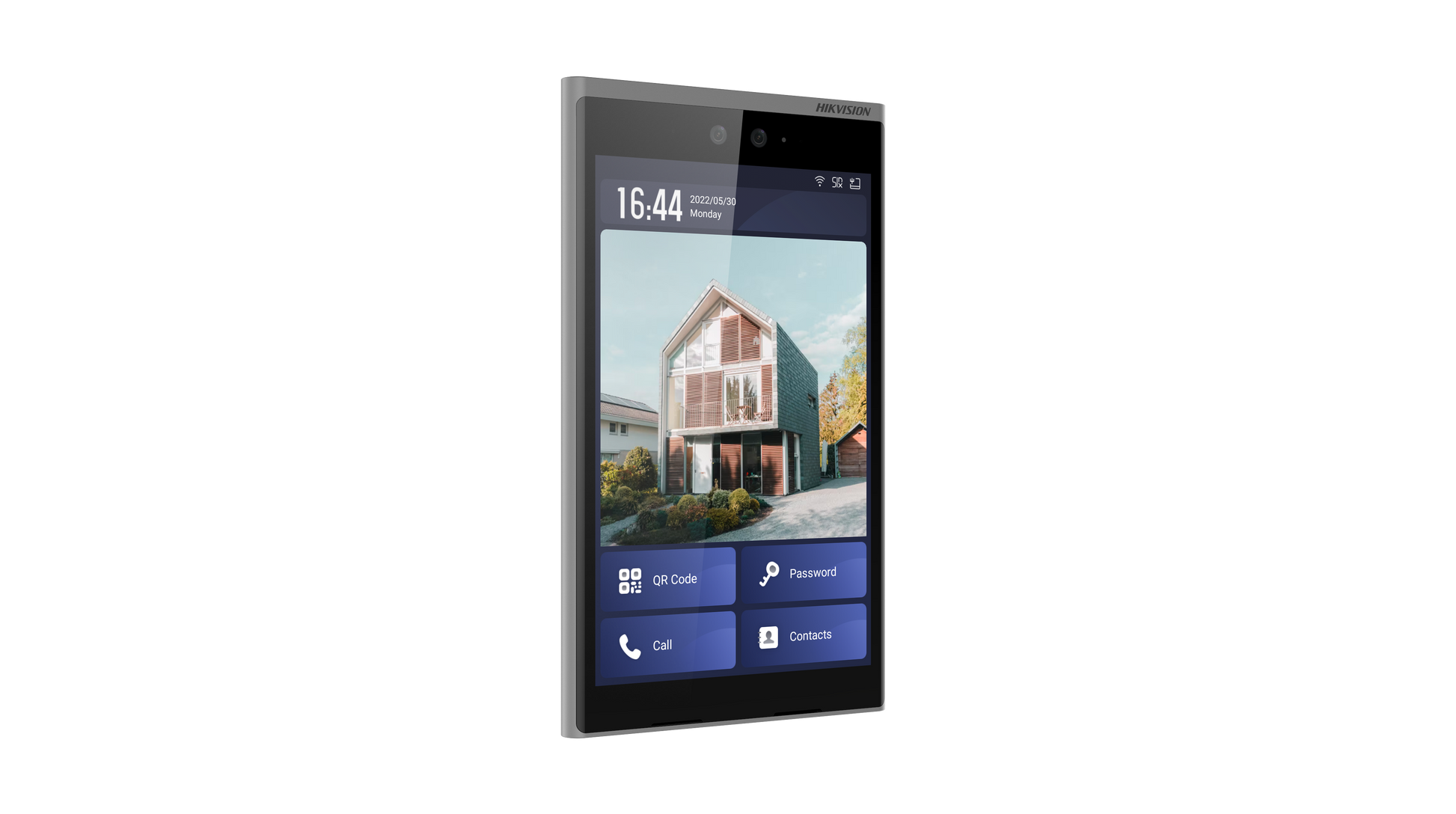

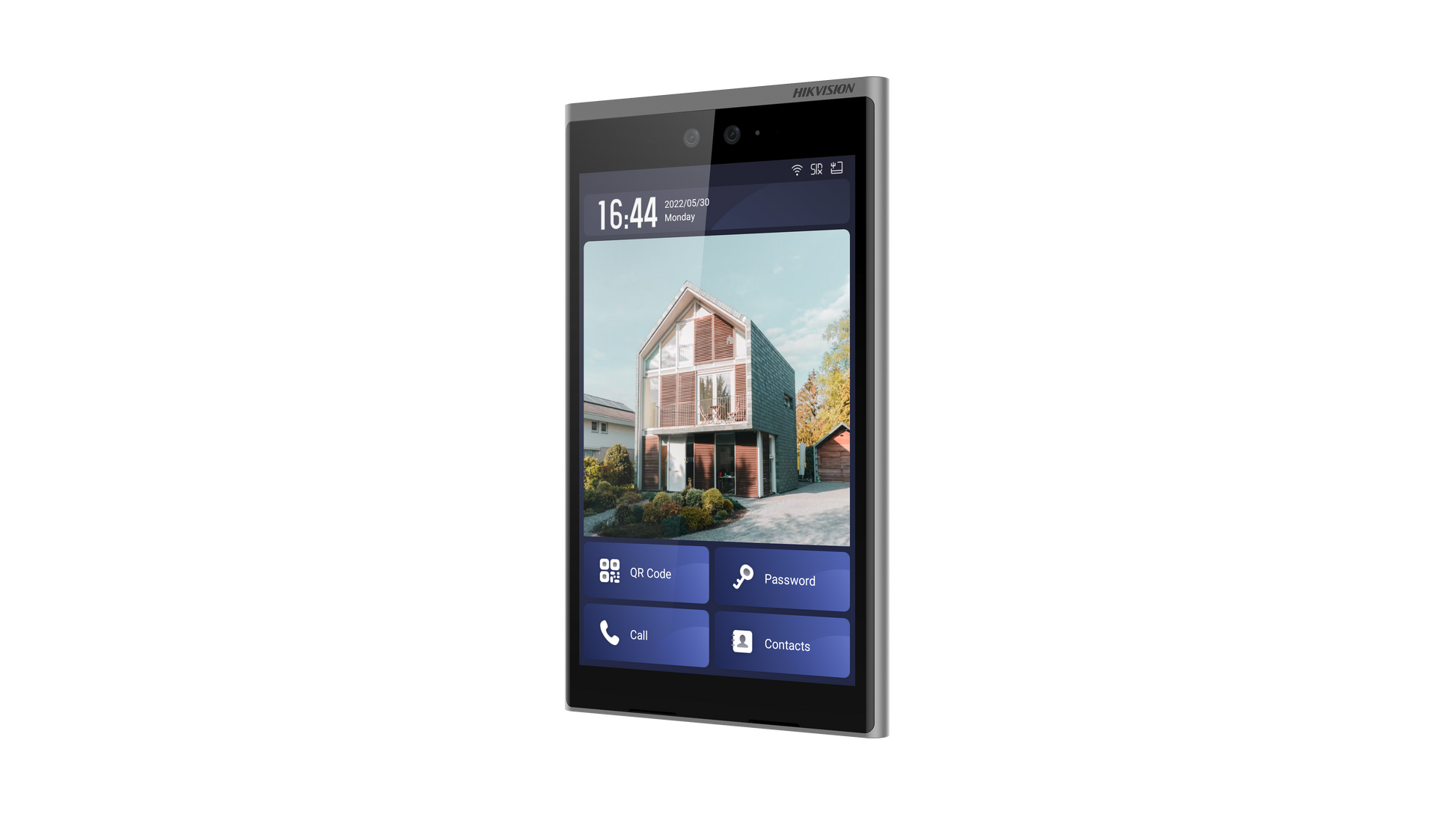

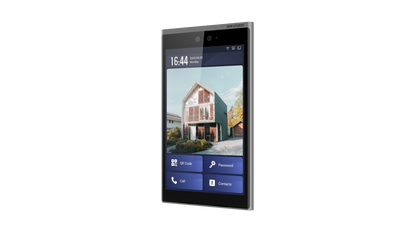

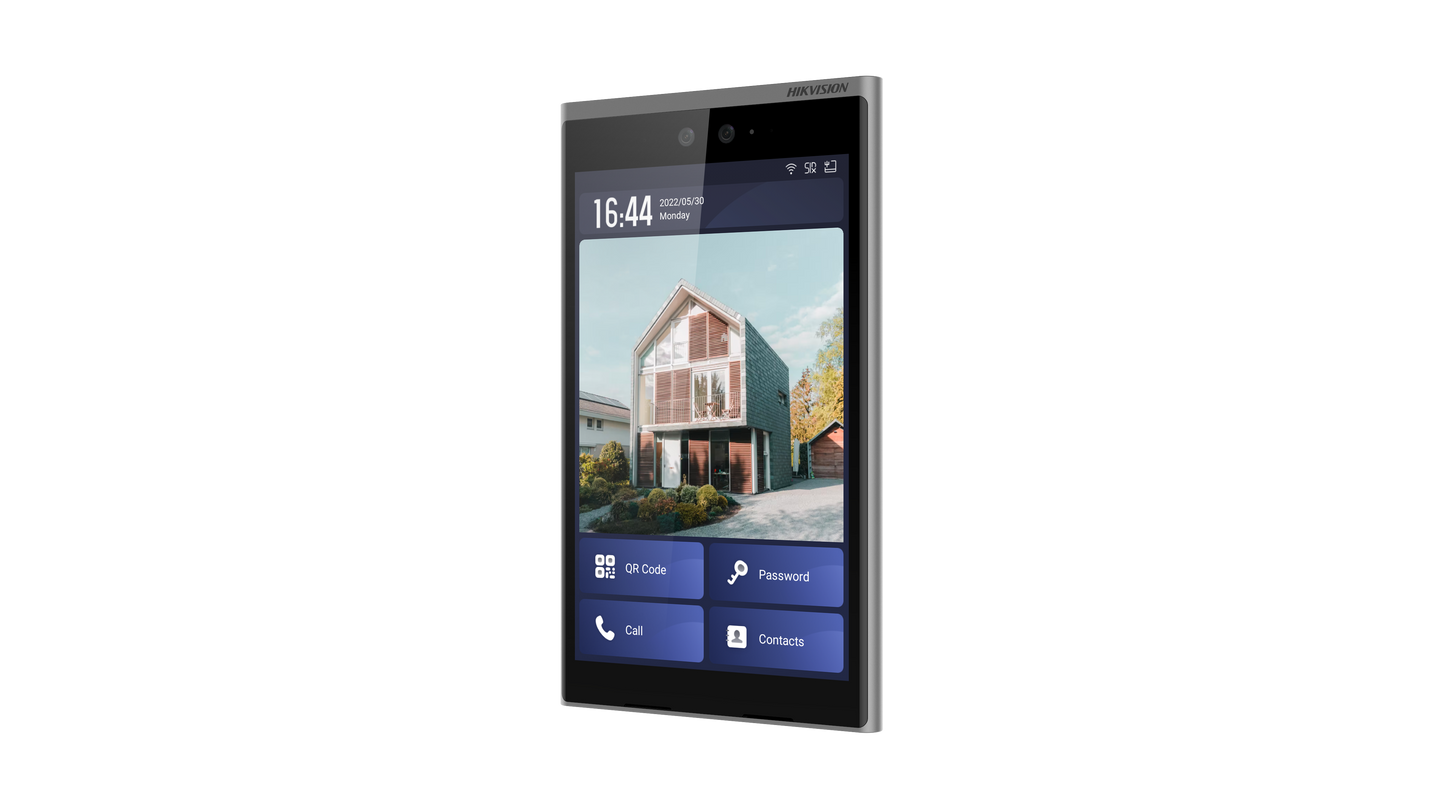

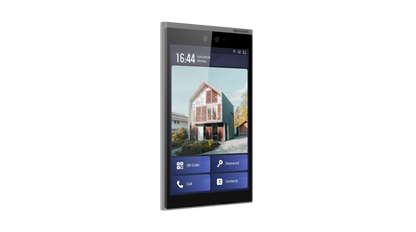

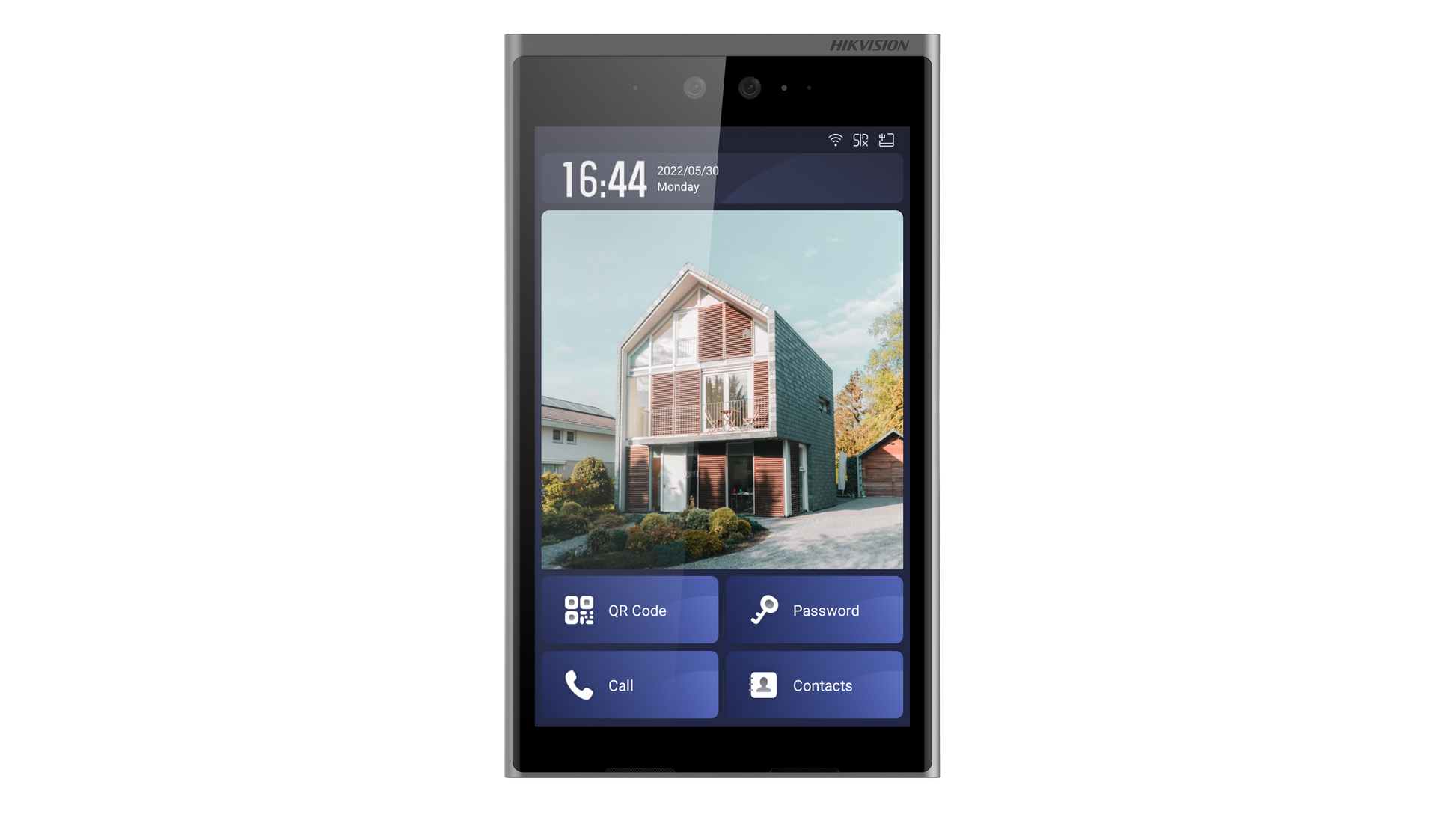

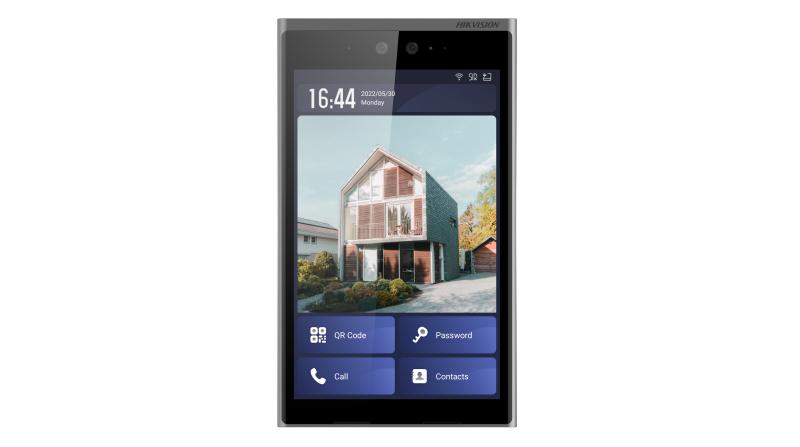

Hikvision DS-KD9633-WBE6 | IP Intercom | Outdoor Bell

Hikvision DS-KD9633-WBE6 | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Ultra Series

Face Recognition Android Door Station, 10.1-inch IPS touch screen, Display resolution: 1280 * 800,
Android 7.1, 2x2 Mega pixel wide-angle lens, Built-in Mifare card reading module, Wifi & Bluetooth reserverd;
Max.10000 faces capacity, Max.20000 users;
Supports TCP/IP,DC 12V, 4-ch alarm input
IP65,IK07, 1 relays for door lock control, 1 RS-485 for DS-K2M060 to control the second door lock.
Gang box without extention module is included!411

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KD9633-WBE6 | IP Intercom | Outdoor Bell
Login to View Price

Specifications

  • Operation system: Android 7.1
  • ROM: 4 GB
  • RAM: 2 GB
  • Processor: Embeded high performance processor
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1280 × 800
  • Brightness: 410 cd/m²
  • Lens: 2 x 2 MP HD camera with low illumination
  • Resolution: Main stream:1920 × 1080p and 1280 × 720p Sub stream: 1280 × 720p and 640 × 480p
  • FOV: Horizontal: 88°, Vertical: 44°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264
  • Audio input: 2 built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • User capacity: 20000
  • Face capacity: 10000
  • Fingerprint capacity: /
  • Card capacity: 100000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: Wi-Fi 802.11 b/g/n
  • Bluetooth: Support
  • 3G/4G: /
  • Card reading frequency: 13.56 MHz
  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
  • TAMPER: 1
  • Exit button: 2 (1 for lock control and 1 for secure door control unit)
  • RS-485: 2 RS-485 (Half duplex, HIKVISION)
  • USB: 2 for internal use only
  • Wiegand: /
  • TF card: 1 (reserved)
  • Alarm output: 2 (reserved)
  • Lock control: 2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
  • Door contact input: 1
  • Installation: Surface mounting and flush mounting
  • Indicator: /
  • Weight: Net weight: 1.225 kg Gross weight: 3.333 kg
  • Protective level: IP65 and IK07
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 271 mm × 159.2 mm × 26.5 mm (10.7" × 6.3" × 1")
  • Battery: /
  • Power supply: 12 VDC, 2 A
  • Application environment: Outdoor
  • Power consumption: ≤ 18 W
  • Language: English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese

System parameters
  • Operation system: Android 7.1
  • ROM: 4 GB
  • RAM: 2 GB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1280 × 800
  • Brightness: 410 cd/m²

Video parameters
  • Lens: 2 x 2 MP HD camera with low illumination
  • Resolution: Main stream:1920 × 1080p and 1280 × 720p Sub stream: 1280 × 720p and 640 × 480p
  • FOV: Horizontal: 88°, Vertical: 44°
  • Wide dynamic range (WDR): Digital WDR/120 dB
  • Supplement light: IR light, up to 3 m
  • Video compression standard: H.264

Audio parameters
  • Audio input: 2 built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • User capacity: 20000
  • Face capacity: 10000
  • Fingerprint capacity: /
  • Card capacity: 100000
  • Message capacity: /
  • Linked indoor station capacity: 500
  • Sub door station capacity: 16

Network parameters
  • Network protocol: TCP/IP, RTSP
  • Wi-Fi: Wi-Fi 802.11 b/g/n
  • Bluetooth: Support
  • 3G/4G: /

Authentication
  • Card reading frequency: 13.56 MHz

Device interfaces
  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
  • TAMPER: 1
  • Exit button: 2 (1 for lock control and 1 for secure door control unit)
  • RS-485: 2 RS-485 (Half duplex, HIKVISION)
  • USB: 2 for internal use only
  • Wiegand: /
  • TF card: 1 (reserved)
  • Alarm output: 2 (reserved)
  • Lock control: 2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
  • Door contact input: 1

General
  • Installation: Surface mounting and flush mounting
  • Indicator: /
  • Weight: Net weight: 1.225 kg Gross weight: 3.333 kg
  • Protective level: IP65 and IK07
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 271 mm × 159.2 mm × 26.5 mm (10.7" × 6.3" × 1")
  • Battery: /
  • Power supply: 12 VDC, 2 A
  • Application environment: Outdoor
  • Power consumption: ≤ 18 W
  • Language: English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese
