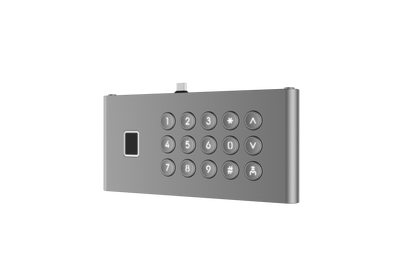

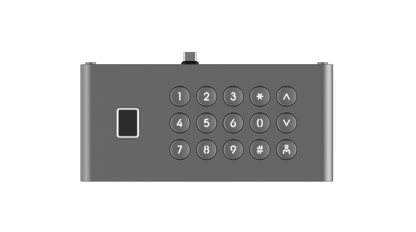

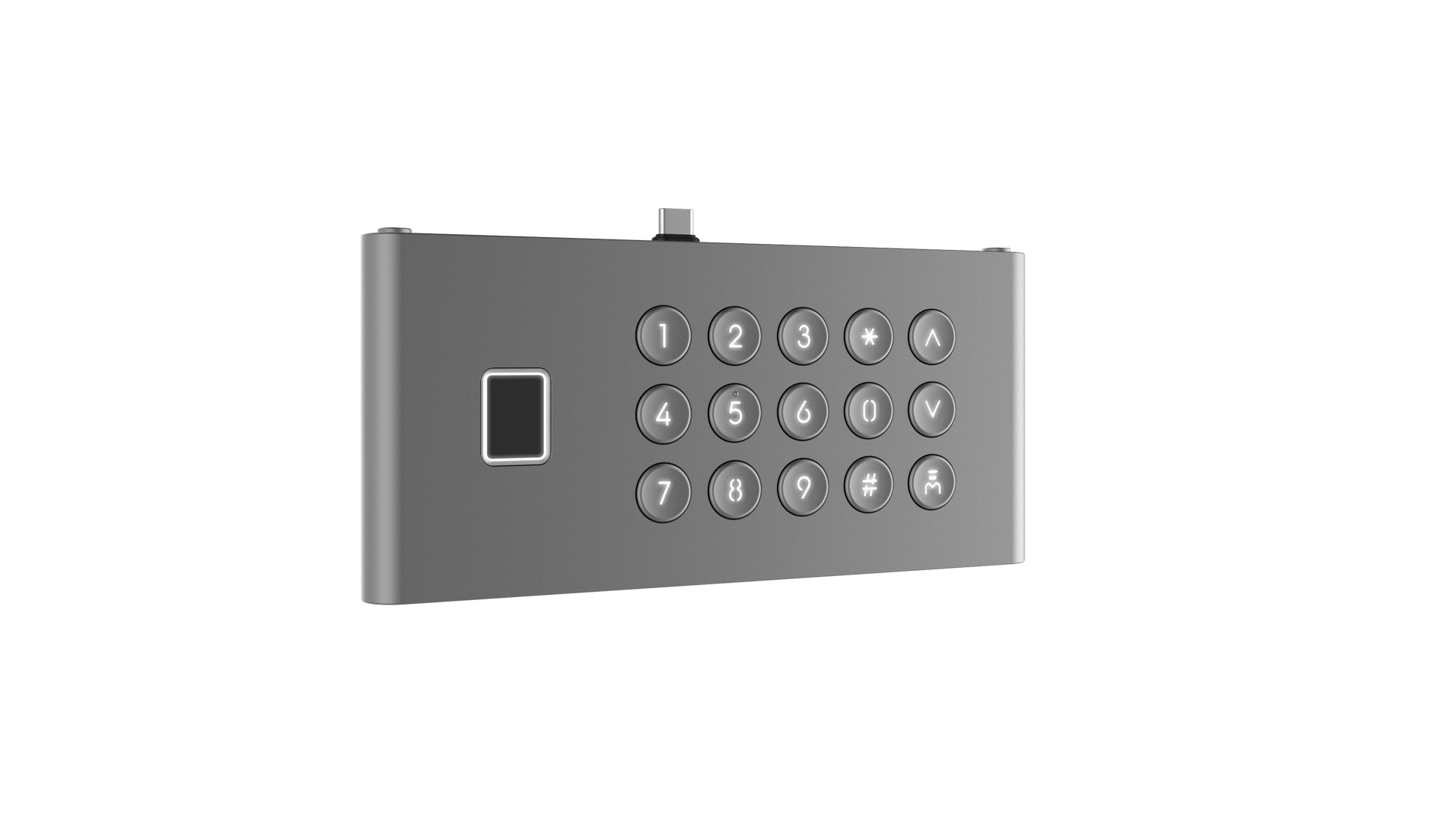

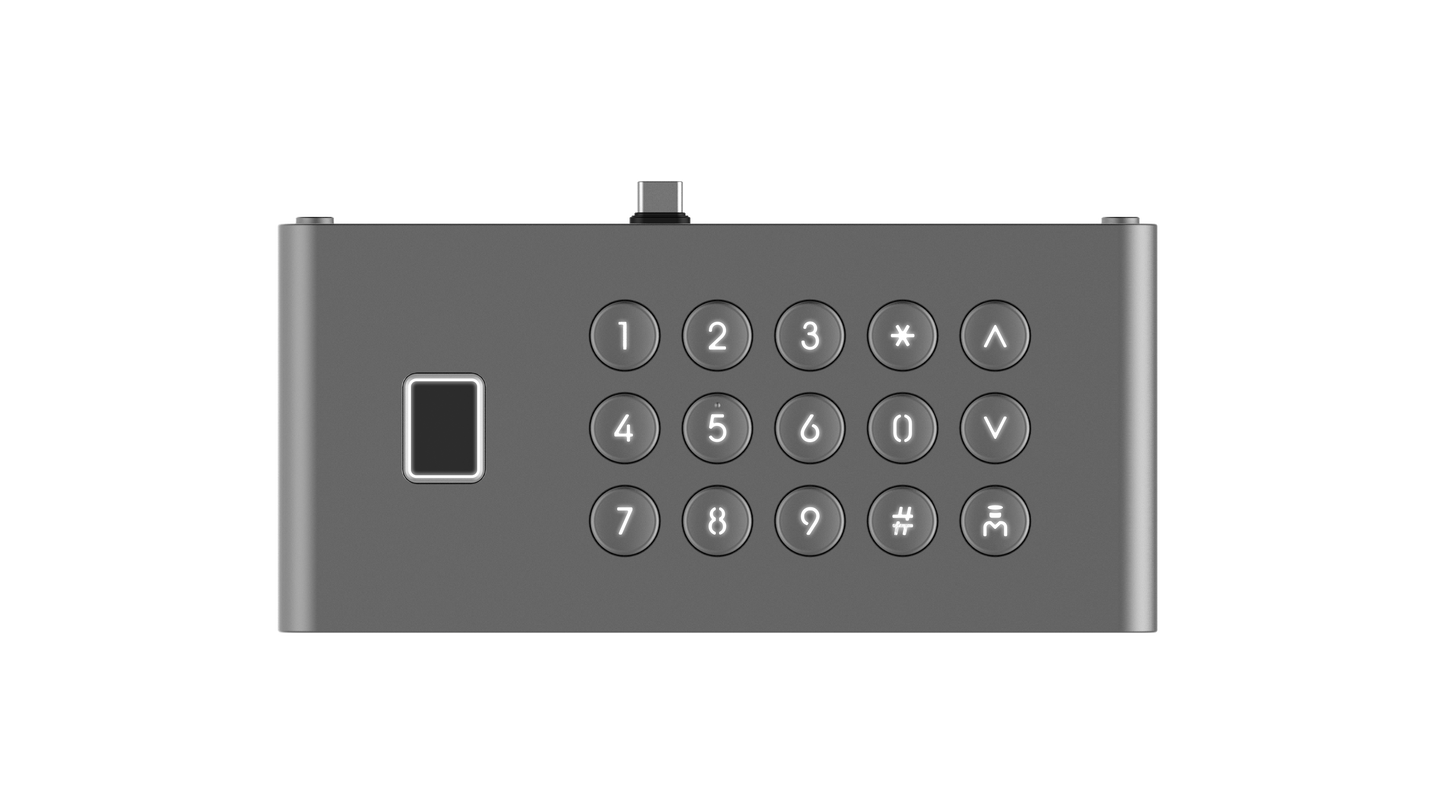

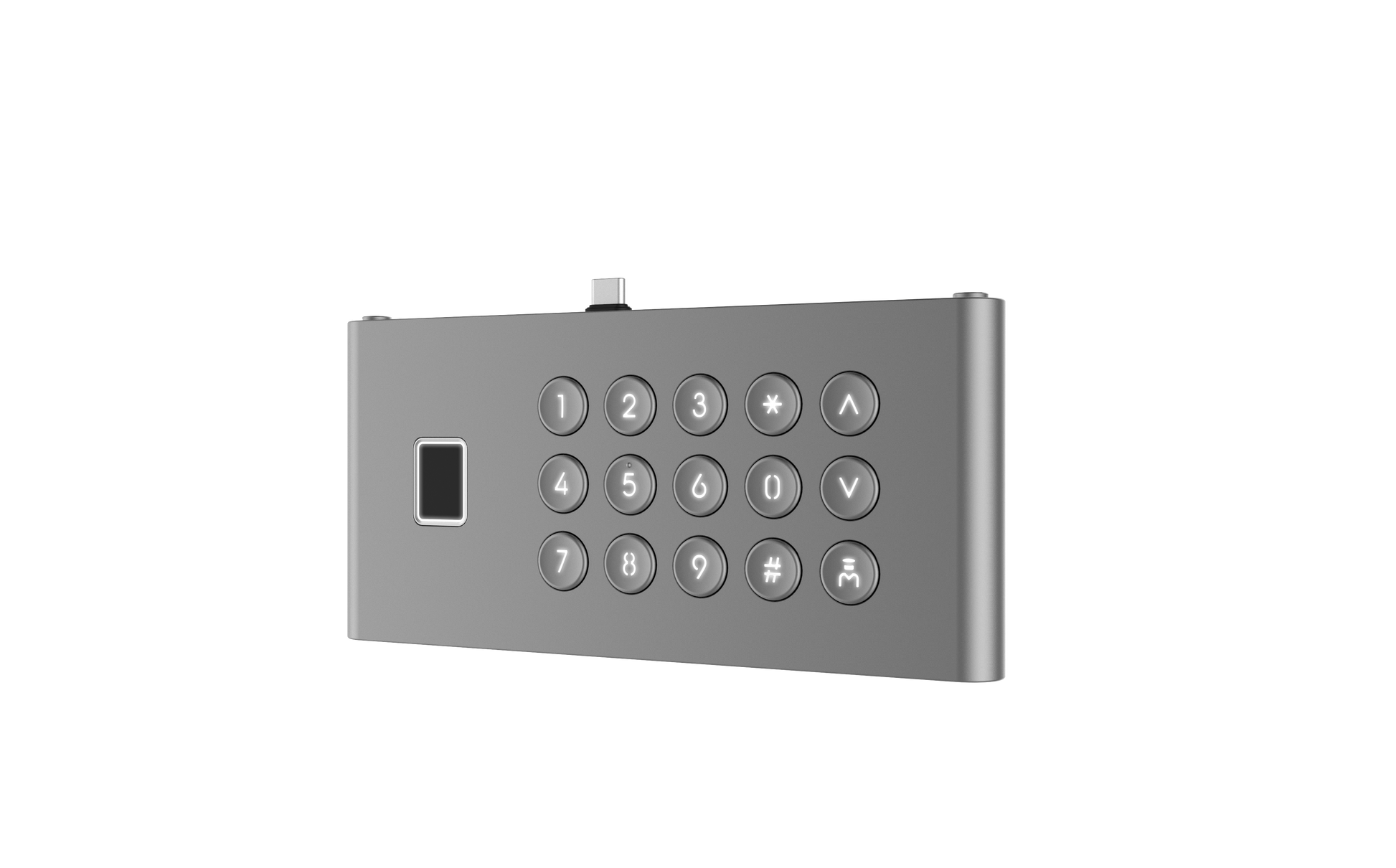

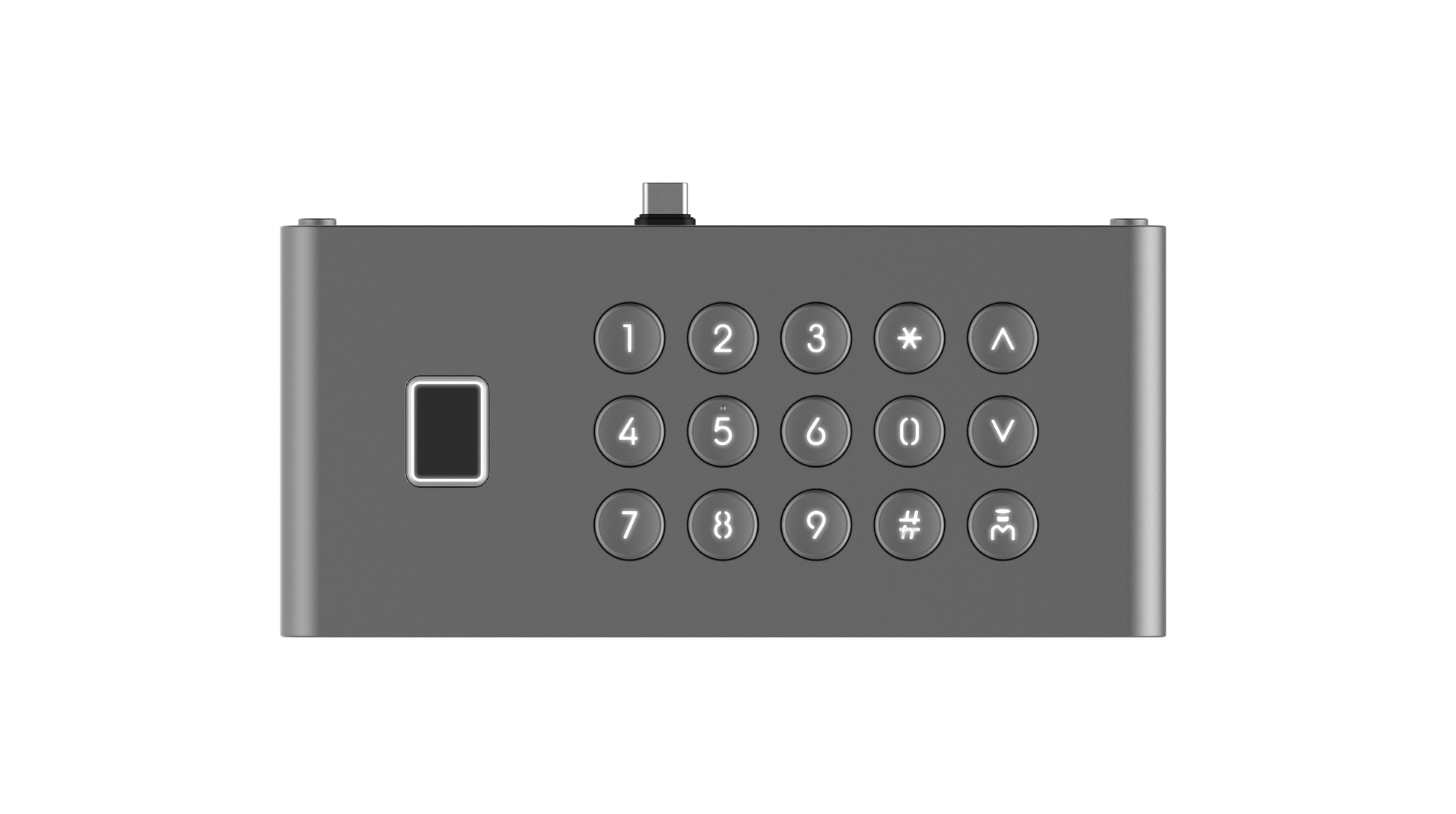

Hikvision DS-KDM9633-FKP | IP Intercom | Outdoor Bell

Hikvision DS-KDM9633-FKP | IP Intercom | Outdoor Bell

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Ultra Series

Keypad & Fingerprint module for KD9633 series door station, 5000 Fingerprints capacity
1 USB type-C, only connect to KD9633
Backlight compensation behind the keypad, IP65 & IK07
Gang box with extention module is included!

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KDM9633-FKP | IP Intercom | Outdoor Bell

Specifications

  • Operation method: /
  • Wide dynamic range (WDR): /
  • Supplement light: /
  • Audio input: /
  • Fingerprint capacity: 5000
  • RS-485: /
  • USB: 1 USB type-C, only connect to KD9633
  • Button: 15 physical buttons
  • Installation: Surface mounting and flush mounting
  • Weight: Net weight: 0.335 kg Gross weight: 1.631 kg
  • Protective level: IP65 and IK07
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")
  • Power supply: 5 VDC, 0.5 A
  • Application environment: Outdoor
  • Material: Aluminum alloy and plastic

Display parameters

  • Operation method: /

Video parameters

  • Wide dynamic range (WDR): /
  • Supplement light: /

Audio parameters

  • Audio input: /

Capacity

  • Fingerprint capacity: 5000

Device interfaces

  • RS-485: /
  • USB: 1 USB type-C, only connect to KD9633

General

  • Button: 15 physical buttons
  • Installation: Surface mounting and flush mounting
  • Weight: Net weight: 0.335 kg Gross weight: 1.631 kg
  • Protective level: IP65 and IK07
  • Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 74 mm × 159.2 mm × 29.2 mm (2.9" × 6.3" × 1.1")
  • Power supply: 5 VDC, 0.5 A
  • Application environment: Outdoor
  • Material: Aluminum alloy and plastic
