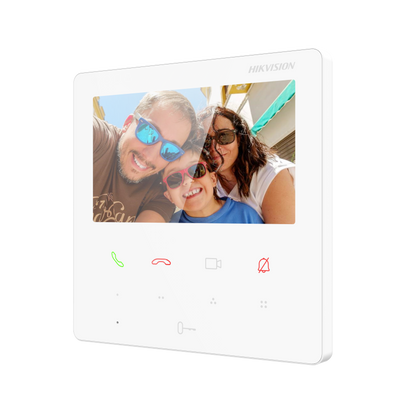

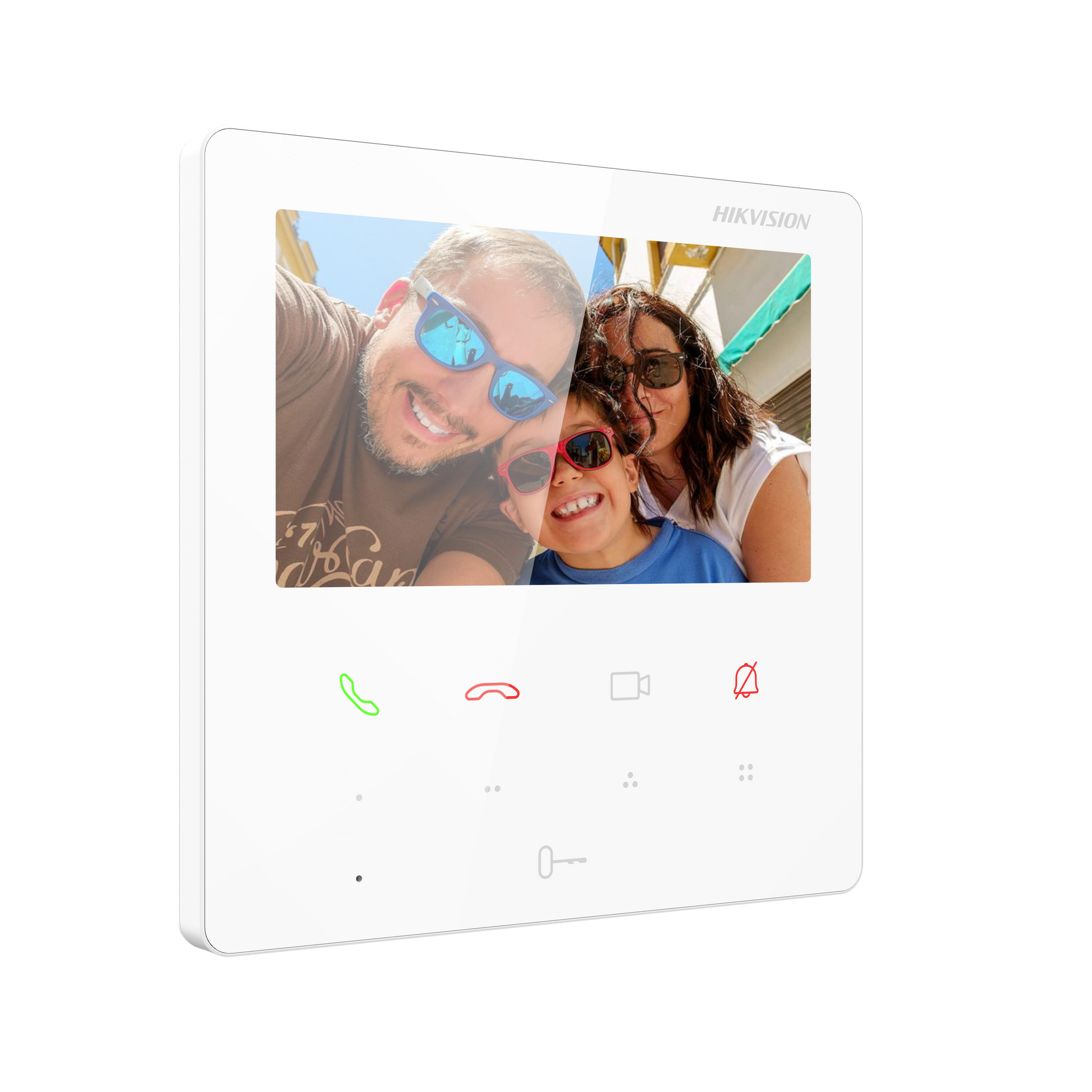

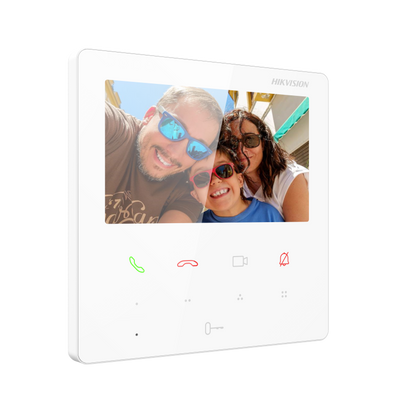

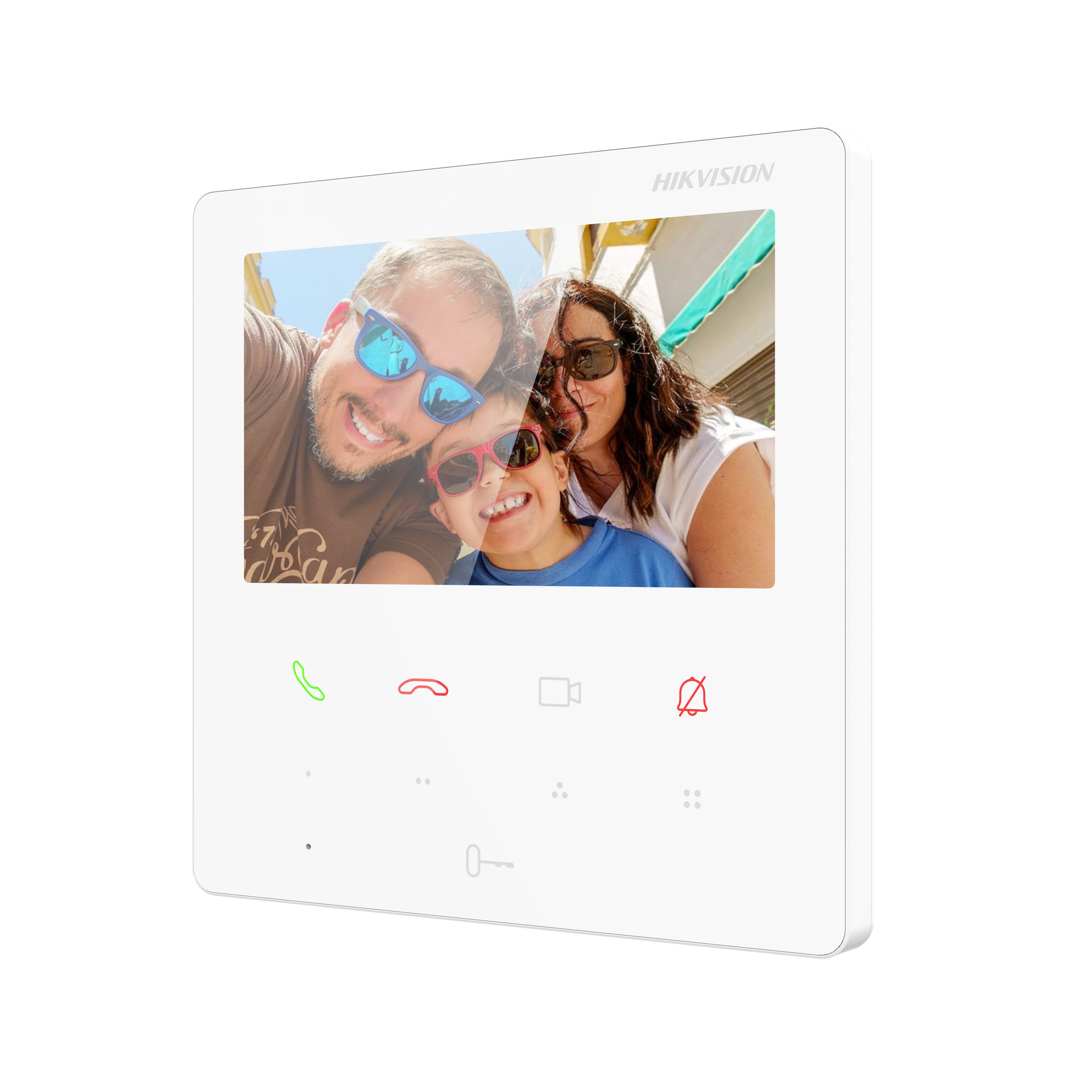

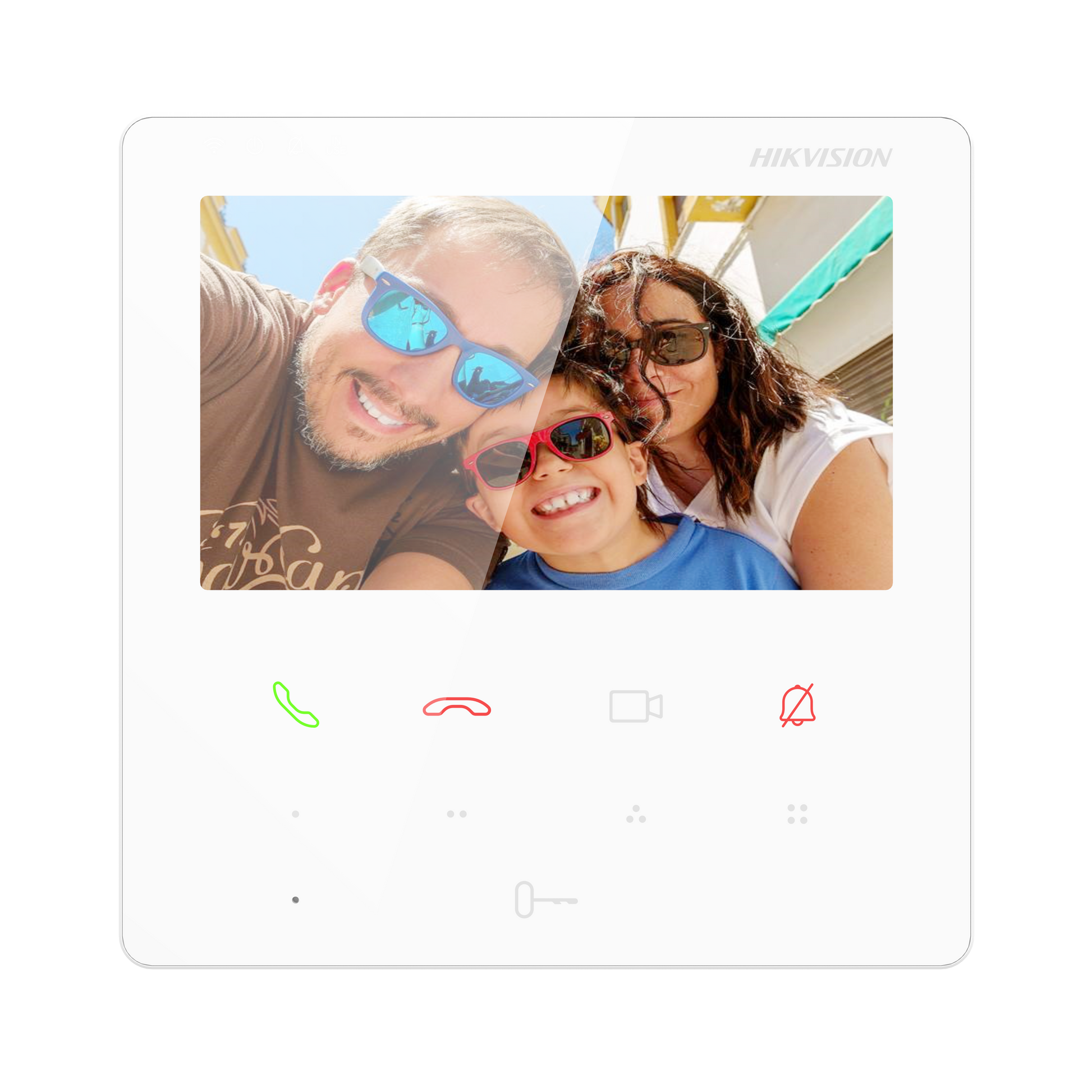

Hikvision DS-KH6110-WE1/White | IP Intercom | Indoor Monitor

Hikvision DS-KH6110-WE1/White | IP Intercom | Indoor Monitor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Value Series

· Easy and quick set-up: user friendly design
· 4.3-inch colorful touch screen with resolution 480 × 272
· Standard PoE power supply without additional power adaptor
· Convenient Hik-Connect APP Mobile Control
· Views live videos of door stations and linked cameras
· Convenient for users to customize functions according to their own usage habits by 4 custom touch button

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KH6110-WE1/White | IP Intercom | Indoor Monitor
Login to View Price

Specifications

  • Operating system: Linux
  • ROM: 16 MB
  • RAM: 128 MB
  • CPU: Embedded processor
  • Screen size: 4.3-inch
  • Operation method: Capacitive touch screen with 9 touch buttons
  • Type: Colorful TFT
  • Resolution: 480 × 272
  • Lens: /
  • Resolution: /
  • FOV: /
  • WDR: /
  • Video compression standard: /
  • Focal length: /
  • Audio compression standard: G.711 U, G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Event capacity: 200
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16
  • Communication protocol: TCP/IP, SIP, RTSP
  • Wi-Fi standard: Wi-Fi 802.11 b/g/n, 2.4 GHz
  • Bluetooth version: /
  • 3G/4G standard: /
  • Zigbee: /
  • Alarm input: 4
  • Network interface: 1 RJ-45 100 Mbps
  • TAMPER: /
  • RS-485: /
  • USB: /
  • TF card: /
  • Alarm output: /
  • Button: 9 touch buttons
  • Installation: Wall mounting, table mounting
  • Indicator: /
  • Weight: With package: 336.6 g (0.7 lbs) Without package: 197.8 g (0.4 lbs)
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90%
  • Dimensions: 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
  • Application environment: Indoor
  • Power consumption: ≤ 4 W
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek

System parameters
  • Operating system: Linux
  • ROM: 16 MB
  • RAM: 128 MB
  • CPU: Embedded processor

Display parameters
  • Screen size: 4.3-inch
  • Operation method: Capacitive touch screen with 9 touch buttons
  • Type: Colorful TFT
  • Resolution: 480 × 272

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: /
  • WDR: /
  • Video compression standard: /
  • Focal length: /

Audio parameters
  • Audio compression standard: G.711 U, G.711 A
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Event capacity: 200
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16

Network parameters
  • Communication protocol: TCP/IP, SIP, RTSP
  • Wi-Fi standard: Wi-Fi 802.11 b/g/n, 2.4 GHz
  • Bluetooth version: /
  • 3G/4G standard: /
  • Zigbee: /

Device interfaces
  • Alarm input: 4
  • Network interface: 1 RJ-45 100 Mbps
  • TAMPER: /
  • RS-485: /
  • USB: /
  • TF card: /
  • Alarm output: /

General
  • Button: 9 touch buttons
  • Installation: Wall mounting, table mounting
  • Indicator: /
  • Weight: With package: 336.6 g (0.7 lbs) Without package: 197.8 g (0.4 lbs)
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90%
  • Dimensions: 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
  • Application environment: Indoor
  • Power consumption: ≤ 4 W
  • Power supply: IEEE802.3af, Standard PoE,12 VDC
  • Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
