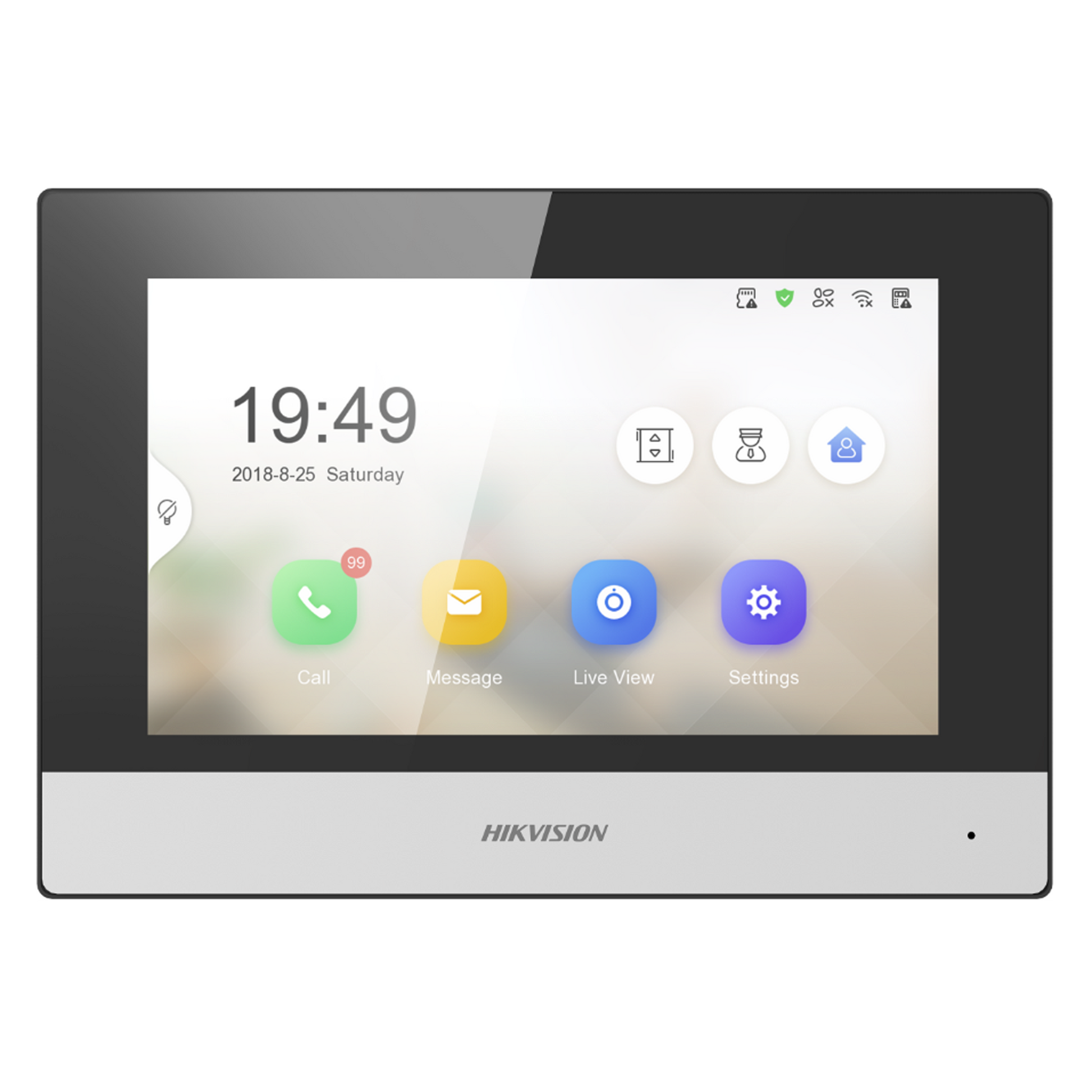

Hikvision DS-KH6320-TE1 | IP Intercom | Indoor Monitor

Hikvision DS-KH6320-TE1 | IP Intercom | Indoor Monitor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

7“ Touch-Screen Indoor Station,
7-inch Colorful TFT LCD, display resolution: 1024 * 600;
10/100Mbps Ethernet;
standard PoE/ 12 VDC.
TF card, max 32G
8-ch alarm input, 1x485

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KH6320-TE1 | IP Intercom | Indoor Monitor
Login to View Price

Specifications

  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 128 MB
  • Processor: Embeded high performance processor
  • Screen size: 7-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful TFT
  • Resolution: 1024 × 600
  • Lens: /
  • Resolution: /
  • FOV: Not supported.
  • Wide dynamic range (WDR): /
  • Video compression standard: /
  • Focal length: /
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Message capacity: TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16
  • Linked doorphone capacity: 17
  • Linked network camera capacity: 16
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: /
  • USB: /
  • TF card: Support TF card, up to 128 G
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC 0.3 A
  • Button: /
  • Installation: Surface mounting
  • Indicator: /
  • Weight: Net weight: 350 g Gross weight: 675 g
  • Protective level: /
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
  • Battery: /
  • Application environment: Indoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

System parameters
  • Operation system: Linux
  • ROM: 32 MB
  • RAM: 128 MB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: 7-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful TFT
  • Resolution: 1024 × 600

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: Not supported.
  • Wide dynamic range (WDR): /
  • Video compression standard: /
  • Focal length: /

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Message capacity: TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16
  • Linked doorphone capacity: 17
  • Linked network camera capacity: 16

Network parameters
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: /
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /

Device interfaces
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: /
  • USB: /
  • TF card: Support TF card, up to 128 G
  • Alarm output: /
  • Lock control: 2 relays, Max. 30 VDC 0.3 A

General
  • Button: /
  • Installation: Surface mounting
  • Indicator: /
  • Weight: Net weight: 350 g Gross weight: 675 g
  • Protective level: /
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
  • Battery: /
  • Application environment: Indoor
  • Power consumption: ≤ 5 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
