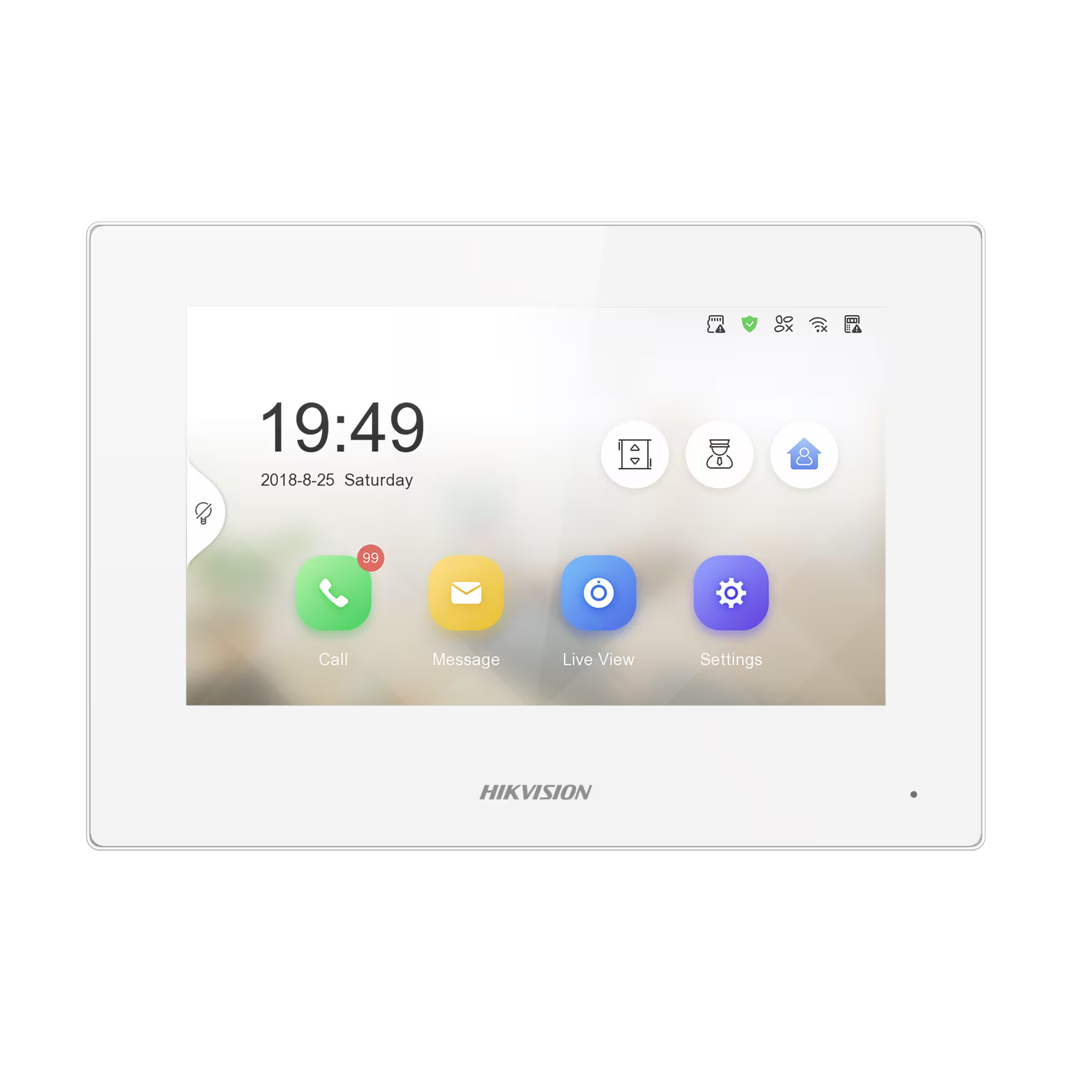

Hikvision DS-KH6320-WTE1-W | IP Intercom | Indoor Monitor
Hikvision DS-KH6320-WTE1-W | IP Intercom | Indoor Monitor
- Intercom
- IP Series
- Pro Series
New UI V2.0: User friendly design
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Stores messages and capture pictures in the TF card
Remote unlocking via the client software or the mobile client
Views live videos of door stations and linked cameras
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KH6320-WTE1-W | IP Intercom | Indoor Monitor
Specifications
- Operation system: Embedded Linux operation system
- Flash: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
- Size: 7-inch colorful TFT screen
- Operation method: Capacitive touch screen
- Type: Colorful TFT screen
- Resolution: 1024 × 600
- Video compression standard: DS-KH6320-WTE1
- Lens: /
- FOV: /
- WDR: /
- Pixel: /
- Focal length: /
- Audio input: Built-in omnidirectional microphone
- Audio compression standard: G.711 U
- Audio output: Built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Linked IPC: 16
- Linked indoor extensions: 5
- Notices: 200
- Linked doorphone: 8
- Communication protocol: TCP/IP, SIP, RTSP
- Wired network: 10/100 Mbps self-adaptive
- Wi-Fi: Wi-Fi 802.11 b/g/n
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
- Alarm input: 8-ch alarm inputs
- TAMPER: /
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: 1
- USB: /
- TF card: Max to 32 G, SD 2.0 or lower version
- Alarm output: 2
- Power interface: 1
- Button: 0
- Installation: Surface mounting
- Indicator: 0
- Weight: With package: 683 g Without package: 355 g
- Protective level: /
- Power supply method: IEEE802.3af, standard PoE 12 VDC/1 A
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Dimensions: 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
- Battery: /
- Application environment: Indoor
- Power consumption: ≤ 6 W
