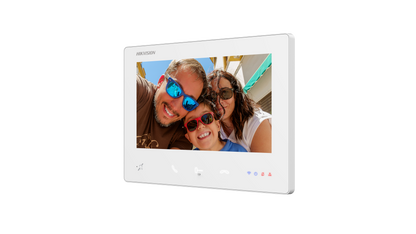

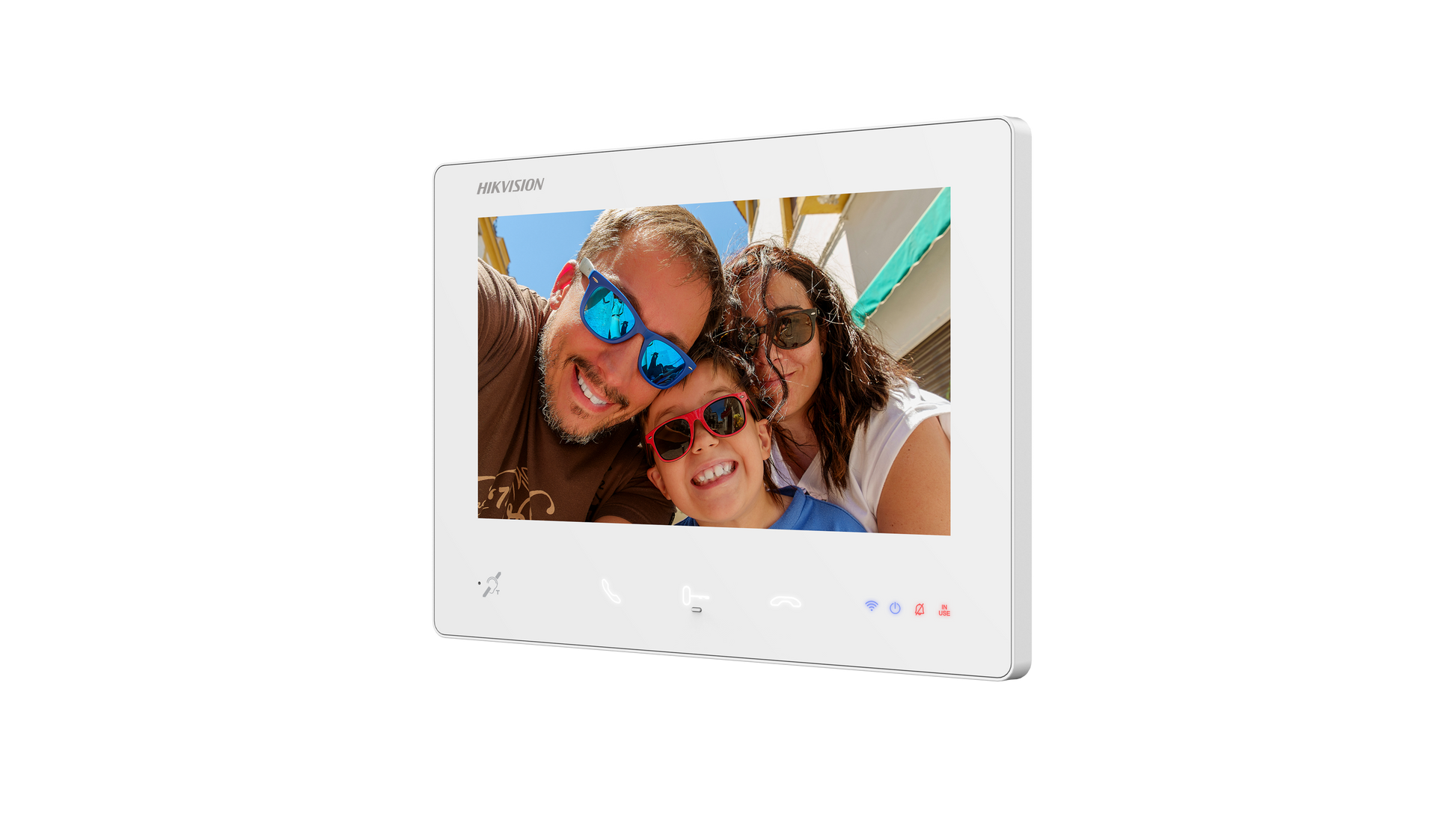

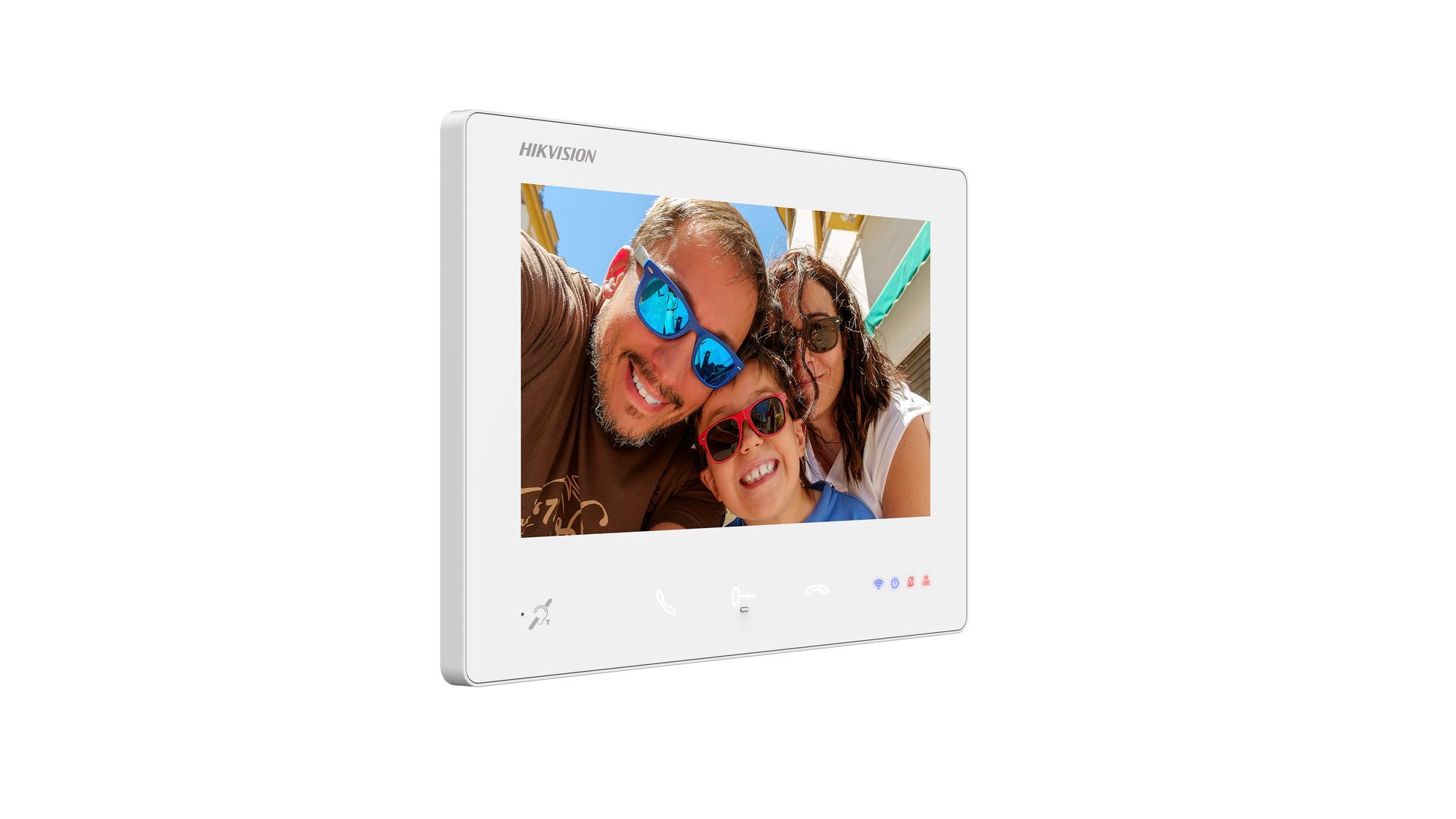

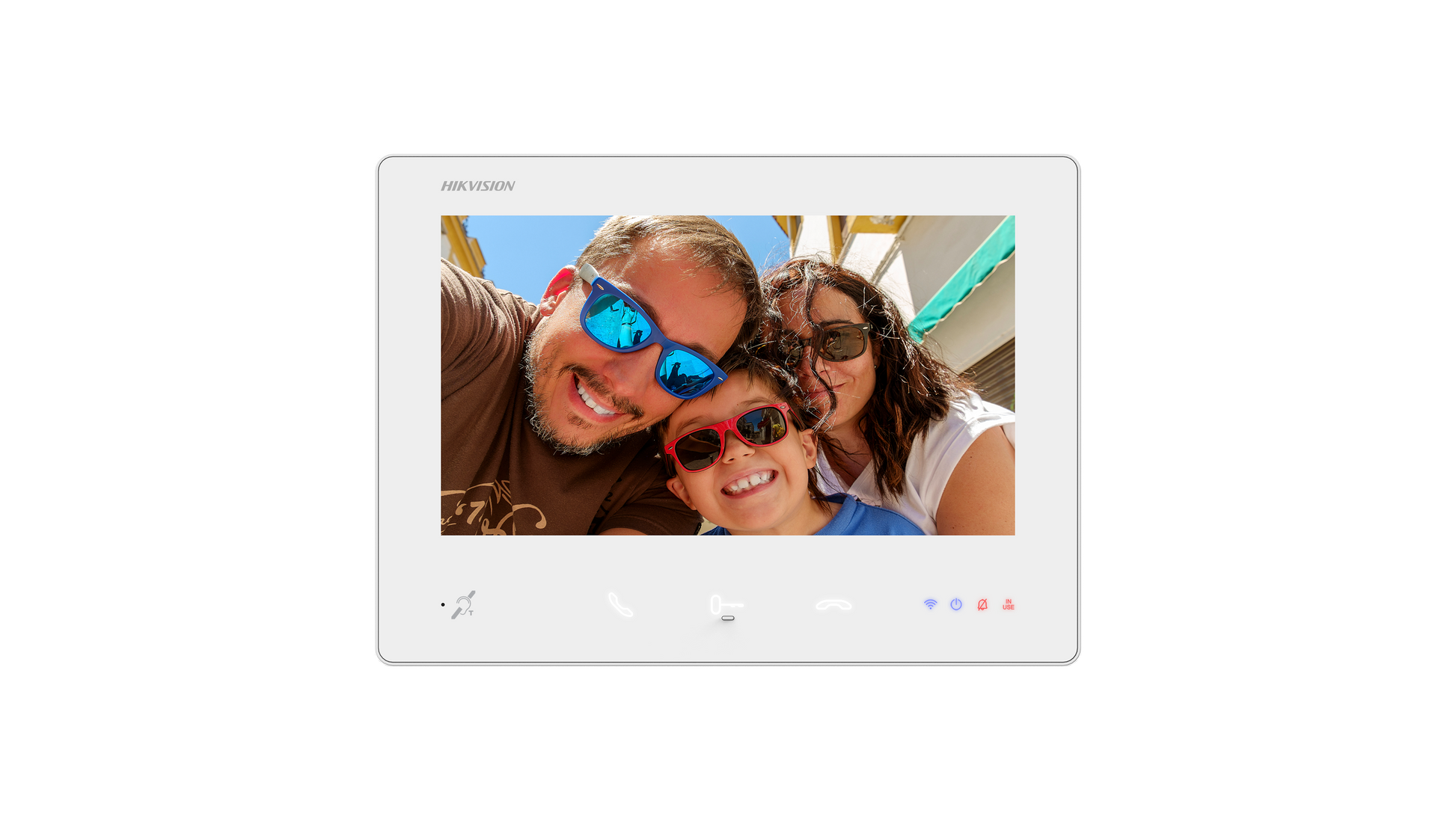

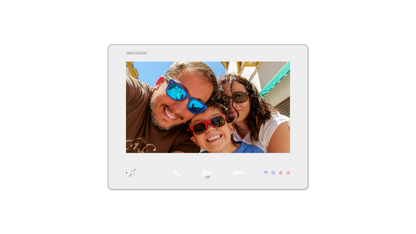

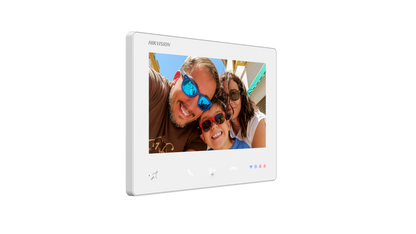

Hikvision DS-KH7300EY-WTIE2/White | Two Wire | Indoor Monitor
Hikvision DS-KH7300EY-WTIE2/White | Two Wire | Indoor Monitor
- Intercom
- 2-wire Series
- 2 Wire HD
1. Excellent Product Design：7-inch touch screen with 1024*600 high resolution
2. Excellent Product Design: 3 touch buttons, physically challenged friendly
3. Easy to Use: DEC knobs configuration;
4. Easy to Use: Plug & play, support different connection topologies
5. Easy to Use: Supports Hik-Connect App model with W
6. Easy to Use: Multiple indicators--Wi-Fi, power, mute, in use
7. Easy to Use: Max. 4 custom virtual buttons
8. View live view of door stations
9. Support Professional Studio / Trade button function Open doors automatically
10. Support Floor Call
11. Built-in induction loop works with hearing aids
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Operating system: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
- Screen size: 7-inch
- Operation method: Capacitive touch screen
- Type: Colorful TFT screen
- Resolution: 1024 × 600
- Video compression standard: /
- Lens: /
- FOV: /
- WDR: /
- Resolution: /
- Focal length: /
- Audio input: 1 Built-in omnidirectional microphone
- Audio compression standard: G.711 U G.711 A
- Audio output: 1 Buit-in loudspeaker
- Audio compression bitrate: 64 Kps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Event capacity: 200 captured pictures (with TF card)
- Linked indoor extensions capacity: 3
- Communication protocol: TCP/IP, RTSP
- Wi-Fi standard: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- 3G/4G standard: /
- Zigbee: /
- Alarm input: 1
- TAMPER: /
- RS-485: /
- USB: /
- TF card: Max to 128 G, SD 2.0 or lower version
- Alarm output: /
- Power supply input: 48V，powered by DS-KAD7060EY or DS-KAD7061EY
- Two-wire IP interface: 2, 1 for input 1 for output
- Button: 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- Installation: Surface mounting
- Indicator: 4（Wifi、Power、Mute、In use）
- Protective level: /
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimensions: 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
- Battery: /
- Power supply: 48V，Powered by DS-KAD7060EY or DS-KAD7061EY
- Application environment: Indoor
- Power consumption: ≤ 5W (stand by ≤ 1.2 W)
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
