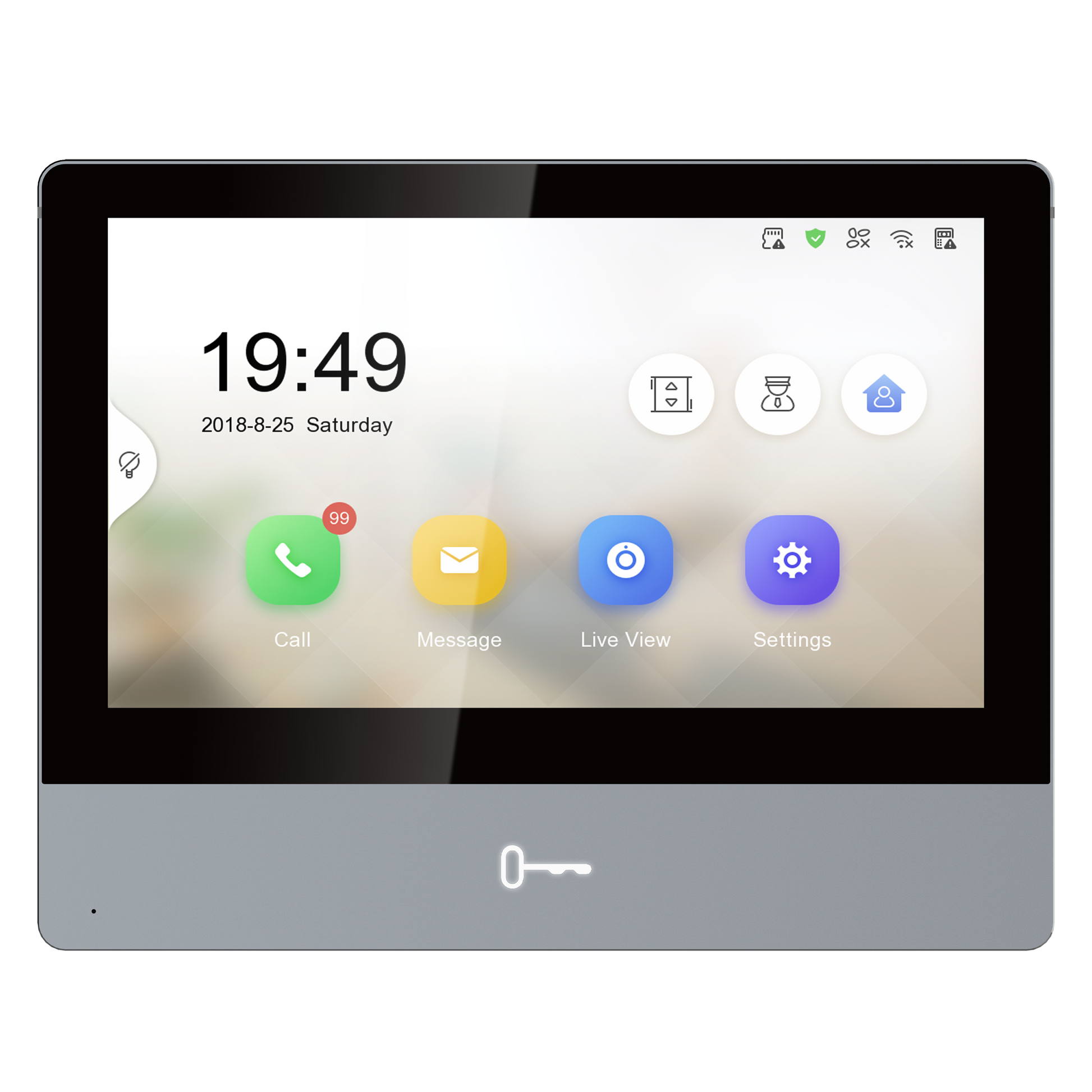

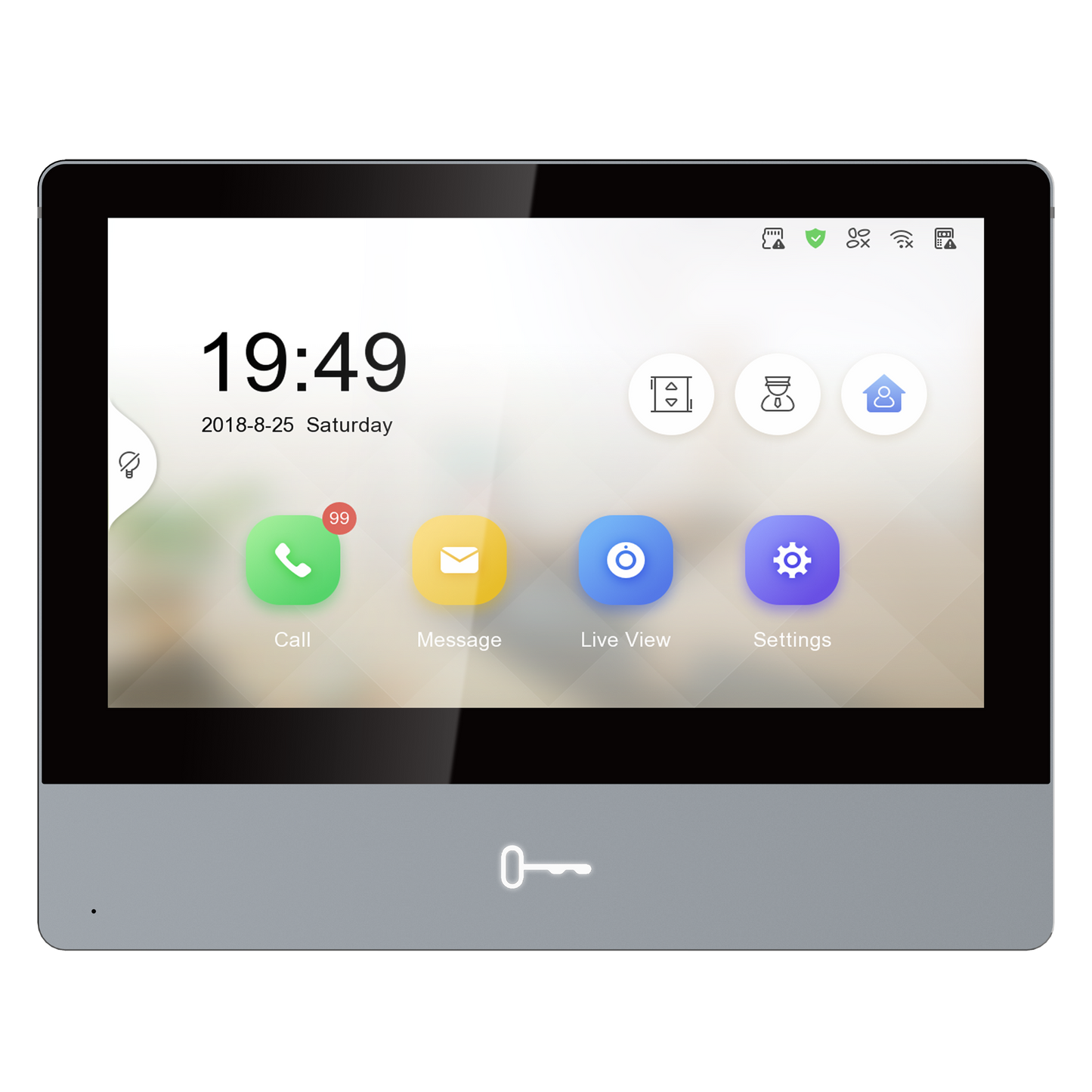

Hikvision DS-KH8350-TE1 | IP Intercom | Indoor Monitor
Hikvision DS-KH8350-TE1 | IP Intercom | Indoor Monitor
- Intercom
- IP Series
- Pro Series
Reddot award 2017 winner
7“ Touch-Screen Indoor Station,
7-inch Colorful IPS LCD, display resolution: 1024 * 600;
10/100Mbps Ethernet;
standard PoE/ 12 VDC.
TF card, max 32G
8-ch alarm input , 2xalarm output, 1x485
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KH8350-TE1 | IP Intercom | Indoor Monitor
Specifications
- Operation system: Linux
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embeded high performance processor
- Screen size: 7-inch
- Operation method: Capacitive touch screen
- Type: Colorful IPS
- Resolution: 1024 × 600
- Lens: /
- Resolution: /
- FOV: /
- Wide dynamic range (WDR): /
- Video compression standard: /
- Focal length: /
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711 U、G.711 A、G.722.1
- Audio output: 1 built-in loudspeaker
- Audio Input: Built-in omnidirectional microphone
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Notice capacity: 200
- Linked indoor extensions capacity: 16
- Linked doorphone capacity: 17
- Linked network camera capacity: 16
- Network protocol: TCP/IP, SIP, RTSP
- Wi-Fi: /
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
- Alarm input: 8
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: /
- RS-485: 1 RS-485 (Half duplex)
- USB: /
- TF card: Support TF card, up to 128 G
- Alarm output: 2
- Lock control: 2 high/low level relays (3.3V/0V)
- Button: 1 physical button
- Installation: Surface mounting
- Indicator: /
- Weight: Net weight: 355 g (0.8 lb) Gross weight: 899 g (2.0 lb)
- Protective level: /
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
- Battery: /
- Power supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
- Application environment: Indoor
- Power consumption: ≤ 8 W
- Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
