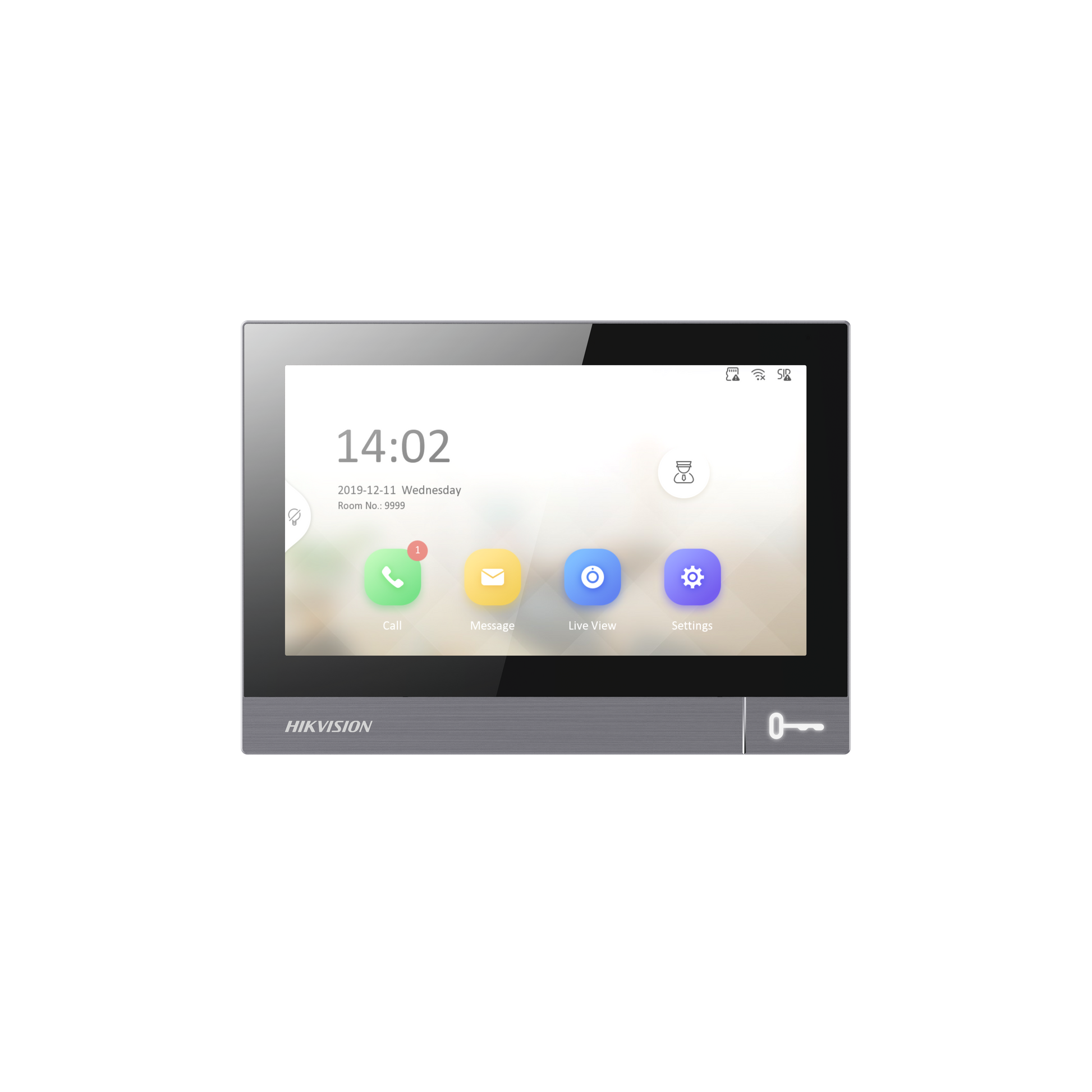

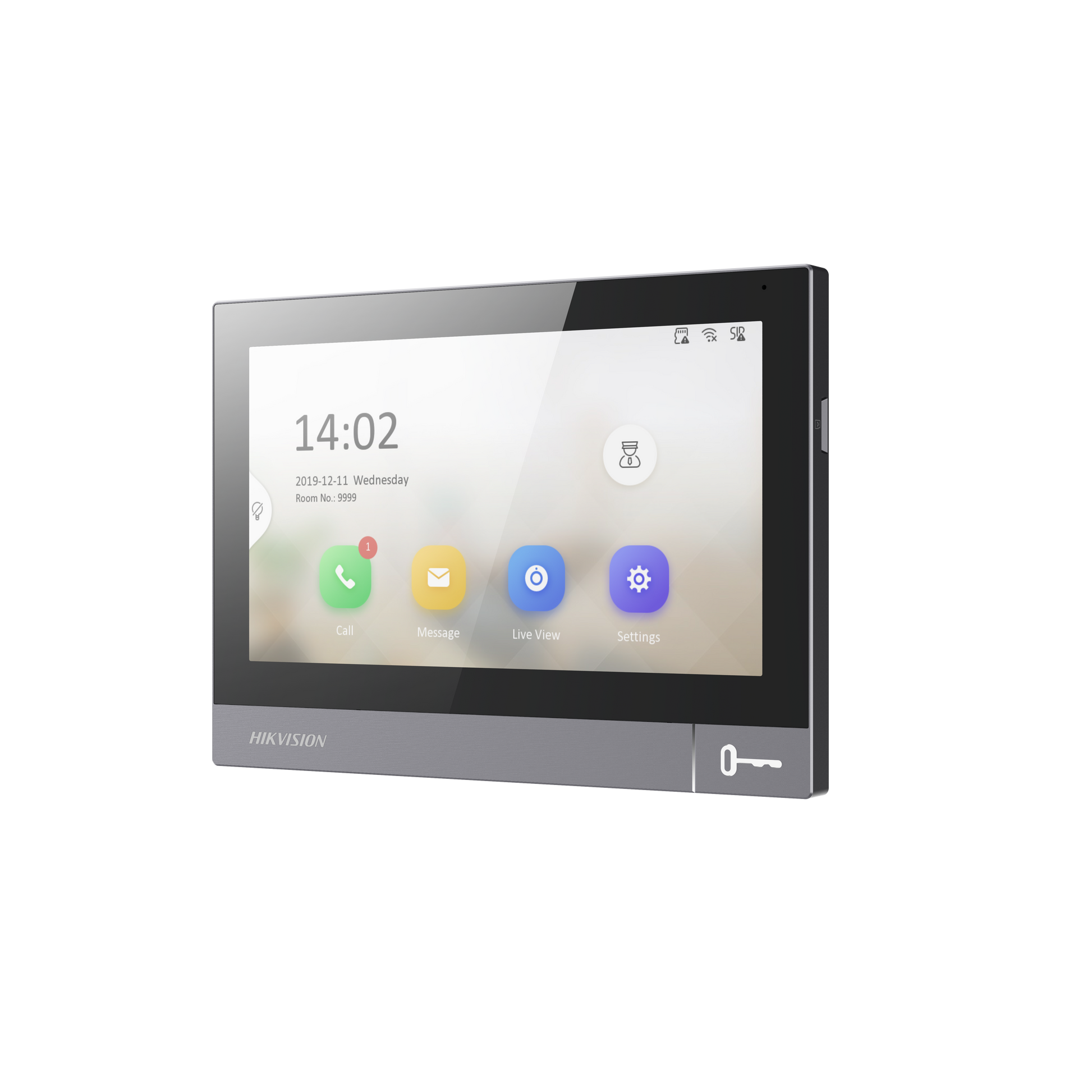

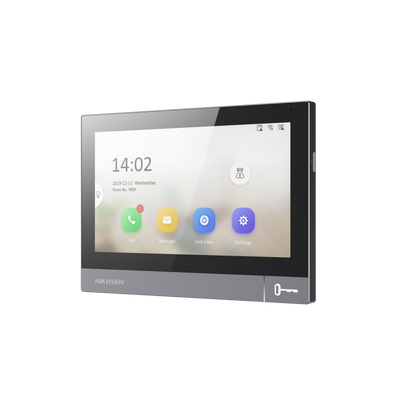

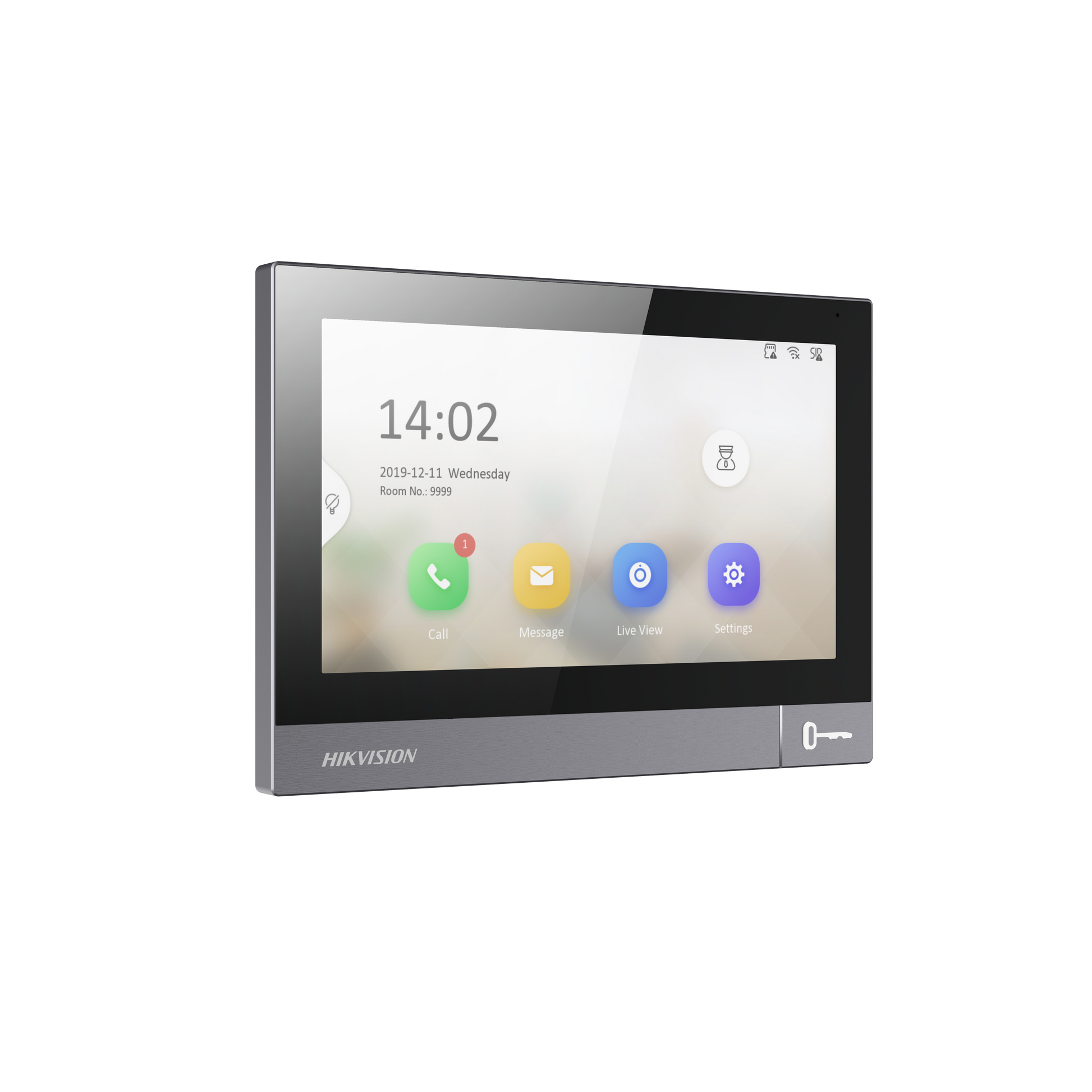

Hikvision DS-KH8381-WTE1 | IP Intercom | Indoor Monitor

Hikvision DS-KH8381-WTE1 | IP Intercom | Indoor Monitor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

7-inch IPS touch screen with 1024 × 600 resolution;
Excellent metal appearance design;
One physical button design for easier open the door;
Convenient Hik-Connect APP Mobile Control;
Receive calls, open the door and live view remotely;
Standard IEEE802.3at PoE power supply and power the lock;
Supports up to 16 indoor extensions linkage;
Elevator access control;
Supports surface and flush mounting;
Rich interfaces: alarm in, RS-485, relays, TF slot

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KH8381-WTE1 | IP Intercom | Indoor Monitor
Login to View Price

Specifications

  • Operation system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 128 MB
  • Processor: Embedded high performance processor
  • Screen size: 7-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1024*600
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Video compression standard: H.265；H.264
  • Focal length: /
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 16、32、64 Kps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Message capacity: TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
  • Notice capacity: 200
  • Linked network camera capacity: 16
  • Linked indoor extensions capacity: 16
  • Linked doorphone capacity: /
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: WiFi 802.11b/g/n
  • Wireless network: 1 RJ-45 10/100Mbps self-adaptive
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: 1
  • USB: /
  • TF card: Support TF card, up to 128 G
  • Alarm output: /
  • Lock control: 4 relays, Max. 30 VDC 1A
  • Power supply output: Max. 12 VDC 0.5 A
  • Debugging port: 1
  • Relay: 4
  • Weight: Without package: 412.2 g (0.909 lb)
  • Button: 1 physical button(s)
  • Installation: Flush mounting, surface mounting, table mounting
  • Indicator: /
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
  • Battery: /
  • Power supply: IEEE802.3at, Standard PoE,12 VDC, 1.5 A
  • Application environment: Indoor
  • Power consumption: ≤ 12 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
  • Material: Die-cast integrated aluminum alloy casing

System parameters
  • Operation system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 128 MB
  • Processor: Embedded high performance processor

Display parameters
  • Screen size: 7-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1024*600

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Video compression standard: H.265；H.264
  • Focal length: /

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 16、32、64 Kps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Message capacity: TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
  • Notice capacity: 200
  • Linked network camera capacity: 16
  • Linked indoor extensions capacity: 16
  • Linked doorphone capacity: /

Network parameters
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: WiFi 802.11b/g/n
  • Wireless network: 1 RJ-45 10/100Mbps self-adaptive
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /

Device interfaces
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: 1
  • USB: /
  • TF card: Support TF card, up to 128 G
  • Alarm output: /
  • Lock control: 4 relays, Max. 30 VDC 1A
  • Power supply output: Max. 12 VDC 0.5 A
  • Debugging port: 1
  • Relay: 4

General
  • Weight: Without package: 412.2 g (0.909 lb)
  • Button: 1 physical button(s)
  • Installation: Flush mounting, surface mounting, table mounting
  • Indicator: /
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
  • Battery: /
  • Power supply: IEEE802.3at, Standard PoE,12 VDC, 1.5 A
  • Application environment: Indoor
  • Power consumption: ≤ 12 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
  • Material: Die-cast integrated aluminum alloy casing
