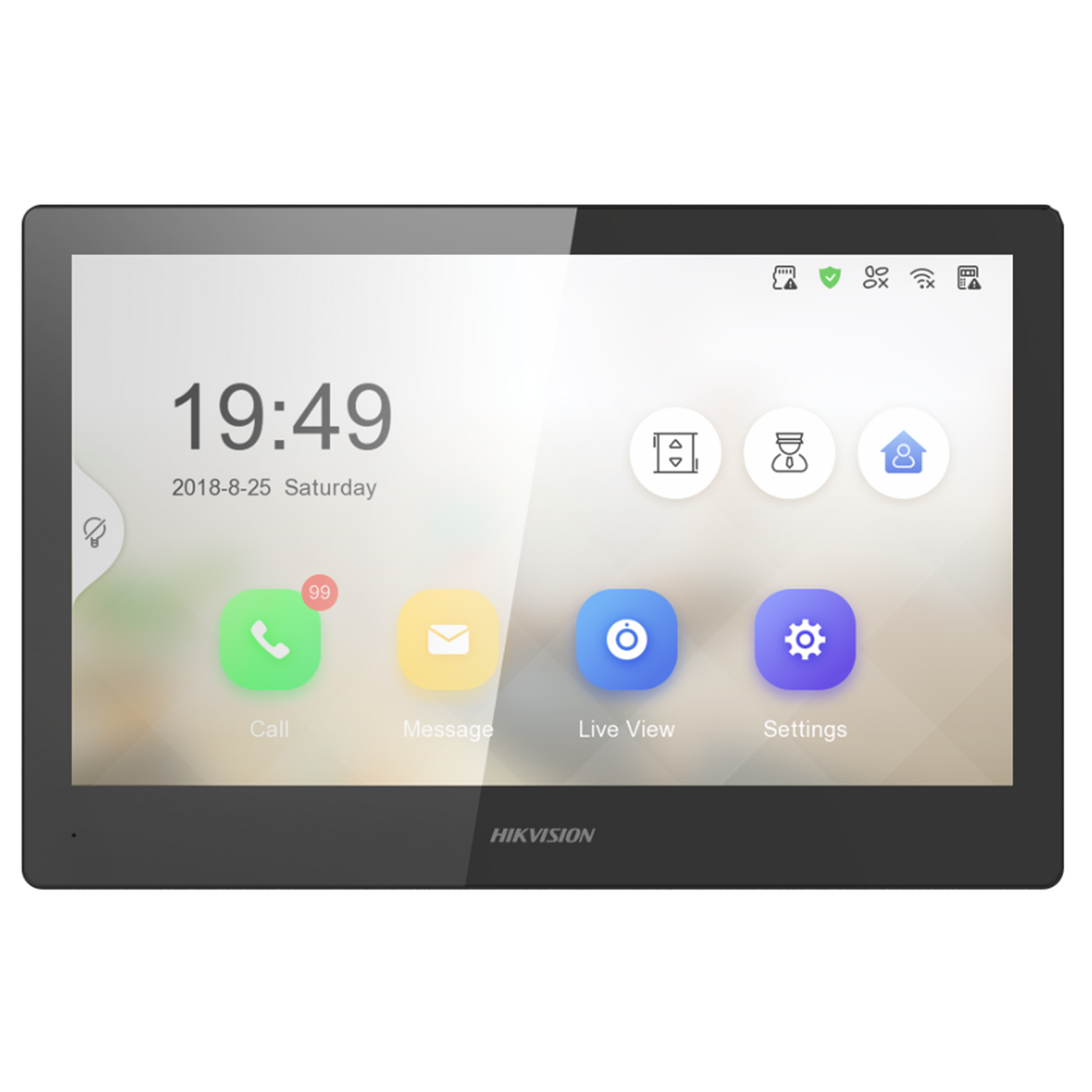

• DS-KH8520-WTE1

Hikvision DS-KH8520-WTE1 | IP Intercom | Indoor Monitor

Hikvision DS-KH8520-WTE1 | IP Intercom | Indoor Monitor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Pro Series

10“ Touch-Screen Indoor Station,
10-inch Colorful TFT LCD, display resolution: 1024 * 600;
10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;
standard PoE/ 12 VDC.
TF card, max 32G
8-ch alarm input,2xalarm output, 1x485

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KH8520-WTE1 | IP Intercom | Indoor Monitor
Login to View Price

Specifications

  • Operation system: Embedded Linux operation system
  • Flash: 32 MB
  • RAM: 128 MB
  • CPU: Embedded processor
  • Size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful TFT screen
  • Resolution: 1024 × 600
  • Video compression standard: /
  • Lens: Not supported.
  • FOV: /
  • WDR: /
  • Pixel: /
  • Focal length: /
  • Audio input: Built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、G.722.1
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Linked IPC: 16
  • Linked indoor extensions: 16
  • Notices: 200
  • Linked doorphone: 17
  • Communication protocol: TCP/IP, SIP, RTSP
  • Wired network: 10/100 Mbps self-adaptive
  • Wi-Fi: Wi-Fi 802.11 b/g/n
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /
  • Alarm input: 8-ch alarm inputs
  • TAMPER: /
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • RS-485: 1
  • USB: 0
  • TF card: Max to 128 G, SD 2.0 or lower version
  • Alarm output: 2
  • Power interface: 1
  • Button: 0
  • Installation: Surface mounting
  • Indicator: 0
  • Weight: 1118 g (with packaging) 660 g (without packaging)
  • Protective level: /
  • Power supply method: IEEE802.3af, standard PoE 12 VDC/1 A
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90%
  • Dimensions: 254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
  • Battery: /
  • Application environment: Indoor
  • Power consumption: ≤ 6 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

System parameters
  • Operation system: Embedded Linux operation system
  • Flash: 32 MB
  • RAM: 128 MB
  • CPU: Embedded processor

Display parameters
  • Size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful TFT screen
  • Resolution: 1024 × 600

Video parameters
  • Video compression standard: /
  • Lens: Not supported.
  • FOV: /
  • WDR: /
  • Pixel: /
  • Focal length: /

Audio parameters
  • Audio input: Built-in omnidirectional microphone
  • Audio compression standard: G.711 U、G.711 A、G.722.1
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Linked IPC: 16
  • Linked indoor extensions: 16
  • Notices: 200
  • Linked doorphone: 17

Network parameters
  • Communication protocol: TCP/IP, SIP, RTSP
  • Wired network: 10/100 Mbps self-adaptive
  • Wi-Fi: Wi-Fi 802.11 b/g/n
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /

Device interfaces
  • Alarm input: 8-ch alarm inputs
  • TAMPER: /
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • RS-485: 1
  • USB: 0
  • TF card: Max to 128 G, SD 2.0 or lower version
  • Alarm output: 2
  • Power interface: 1

General
  • Button: 0
  • Installation: Surface mounting
  • Indicator: 0
  • Weight: 1118 g (with packaging) 660 g (without packaging)
  • Protective level: /
  • Power supply method: IEEE802.3af, standard PoE 12 VDC/1 A
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90%
  • Dimensions: 254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
  • Battery: /
  • Application environment: Indoor
  • Power consumption: ≤ 6 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
