• DS-KH9510-WTE1(B)

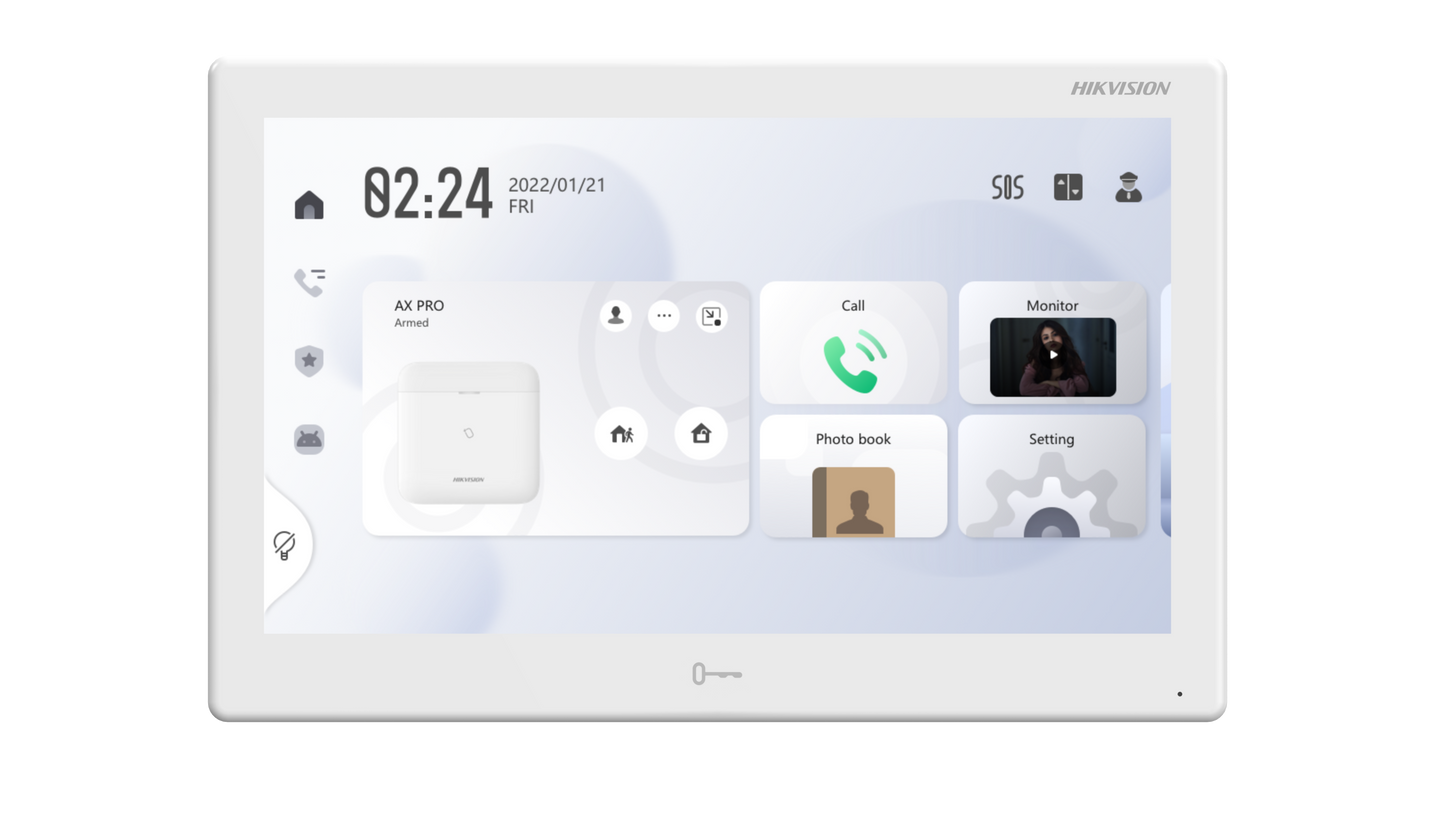

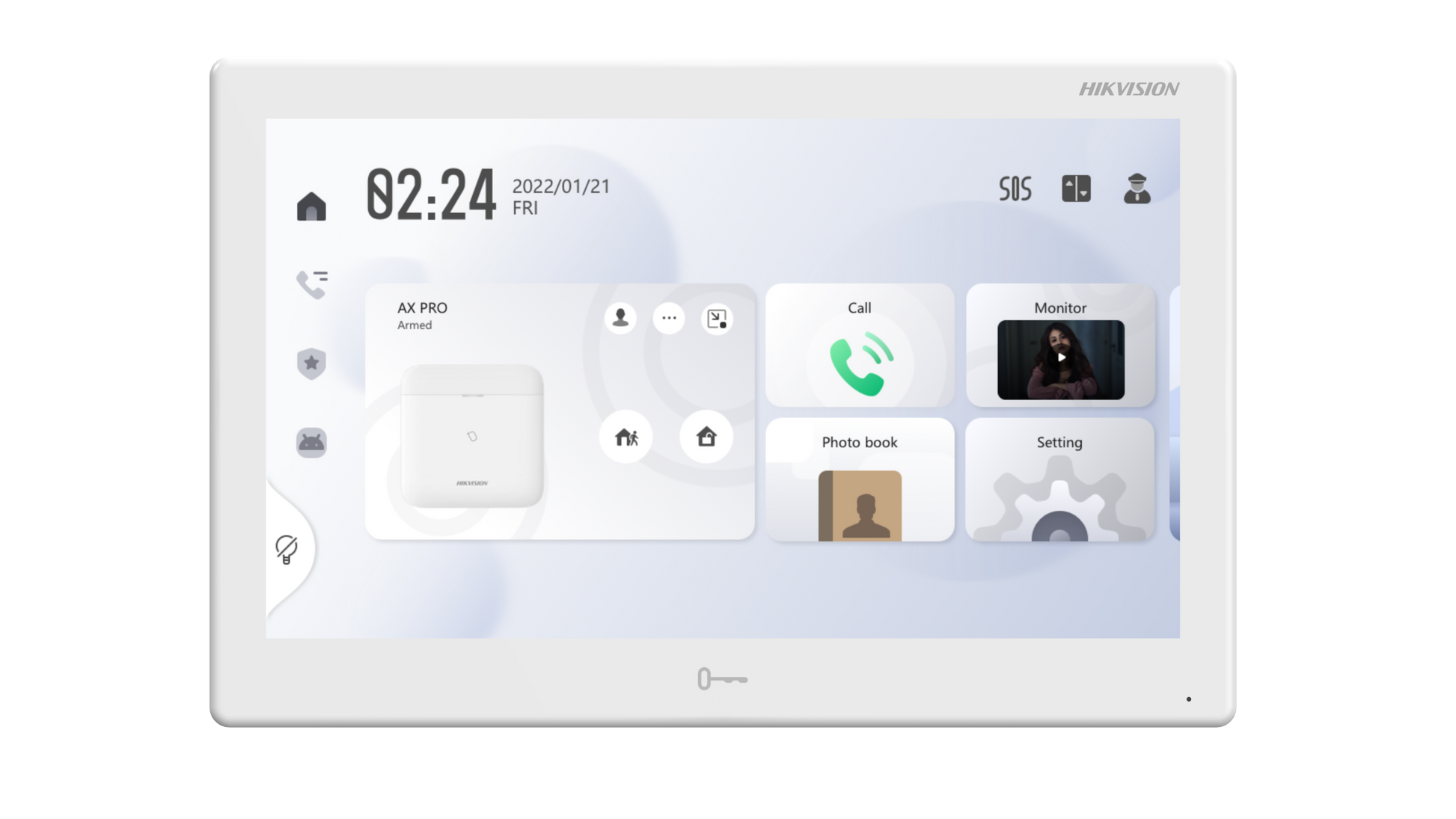

Hikvision DS-KH9510-WTE1(B) | IP Intercom | Indoor Monitor

Hikvision DS-KH9510-WTE1(B) | IP Intercom | Indoor Monitor

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • IP Series
  • Ultra Series

10.1-inch colorful touch screen with resolution 1024 × 600
Supports Android app installation
Open platform for the third-party software integration
Video intercom & live view on mobile phone all-day
Built-in Hik-Connect for all-in-one management
Wireless intrusion panel for on-site management
Receives 7 seconds of video verification from alarm systems

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KH9510-WTE1(B) | IP Intercom | Indoor Monitor
Login to View Price

Specifications

  • Operation system: Android 10.1
  • ROM: 8 GB
  • RAM: 2 GB
  • Processor: Embeded high performance processor
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1024 × 600
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Video compression standard: H.265；H.264
  • Focal length: /
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Message capacity: 200 captured pictures, 200 alarm records
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16
  • Linked network camera capacity: 16
  • Linked doorphone capacity: 17
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: 1 RS-485 (Half duplex)
  • TF card: Support TF card, up to 128 G
  • Alarm output: 1
  • Lock control: 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
  • Button: /
  • Installation: Surface mounting
  • Indicator: /
  • Weight: Net weight: 875 g Gross weight: 1060 g
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
  • Battery: /
  • Power supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
  • Application environment: Indoor
  • Power consumption: ≤ 12 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

System parameters
  • Operation system: Android 10.1
  • ROM: 8 GB
  • RAM: 2 GB
  • Processor: Embeded high performance processor

Display parameters
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1024 × 600

Video parameters
  • Lens: /
  • Resolution: /
  • FOV: /
  • Wide dynamic range (WDR): /
  • Video compression standard: H.265；H.264
  • Focal length: /

Audio parameters
  • Audio input: 1 built-in omnidirectional microphone
  • Audio compression standard: G722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A
  • Audio output: 1 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Message capacity: 200 captured pictures, 200 alarm records
  • Notice capacity: 200
  • Linked indoor extensions capacity: 16
  • Linked network camera capacity: 16
  • Linked doorphone capacity: 17

Network parameters
  • Network protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Bluetooth: /
  • 3G/4G: /
  • Zigbee: /

Device interfaces
  • Alarm input: 8
  • Network interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: 1 RS-485 (Half duplex)
  • TF card: Support TF card, up to 128 G
  • Alarm output: 1
  • Lock control: 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)

General
  • Button: /
  • Installation: Surface mounting
  • Indicator: /
  • Weight: Net weight: 875 g Gross weight: 1060 g
  • Protective level: /
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
  • Battery: /
  • Power supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
  • Application environment: Indoor
  • Power consumption: ≤ 12 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
