Hikvision DS-KIS602(B) | Intercom Kits
Hikvision DS-KIS602(B) | Intercom Kits
- Intercom
- Intercom Kits

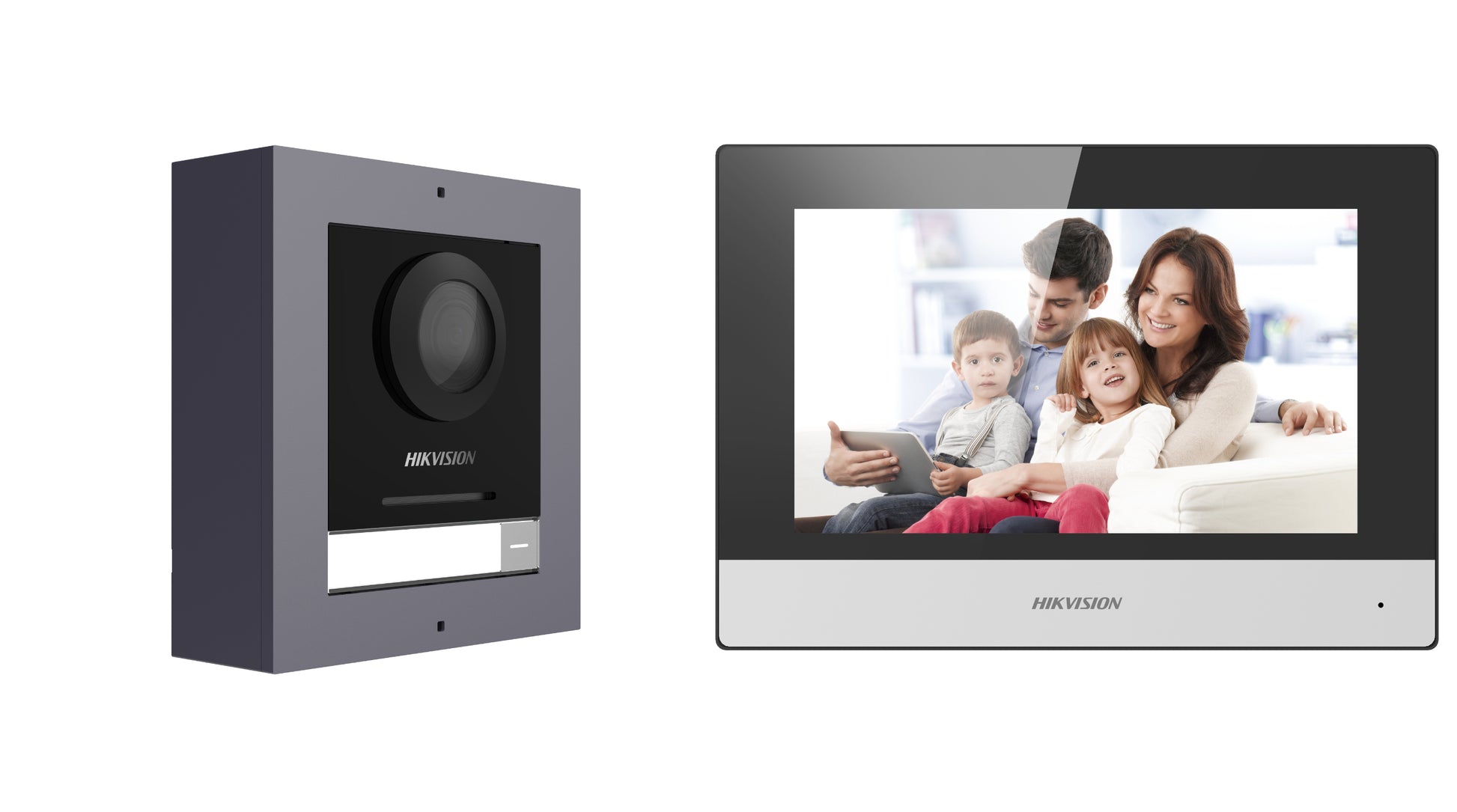

IP video intercom kit for villa or house, only one call button.

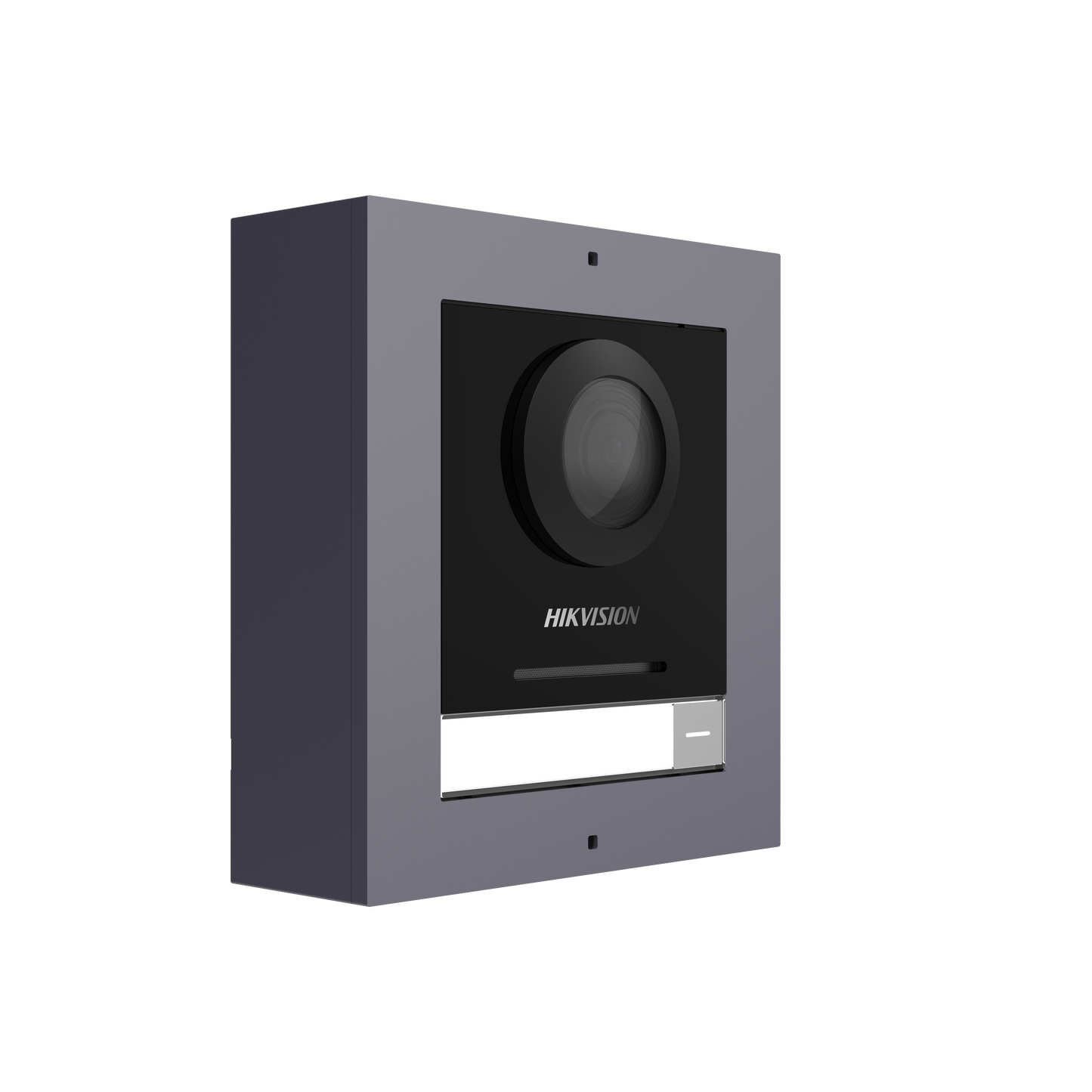

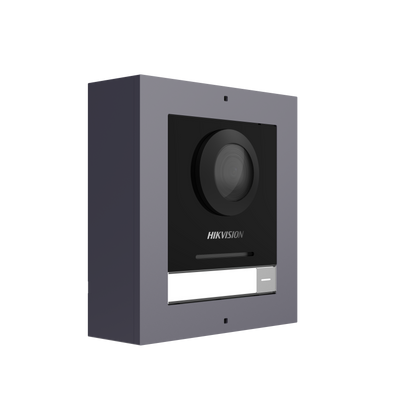

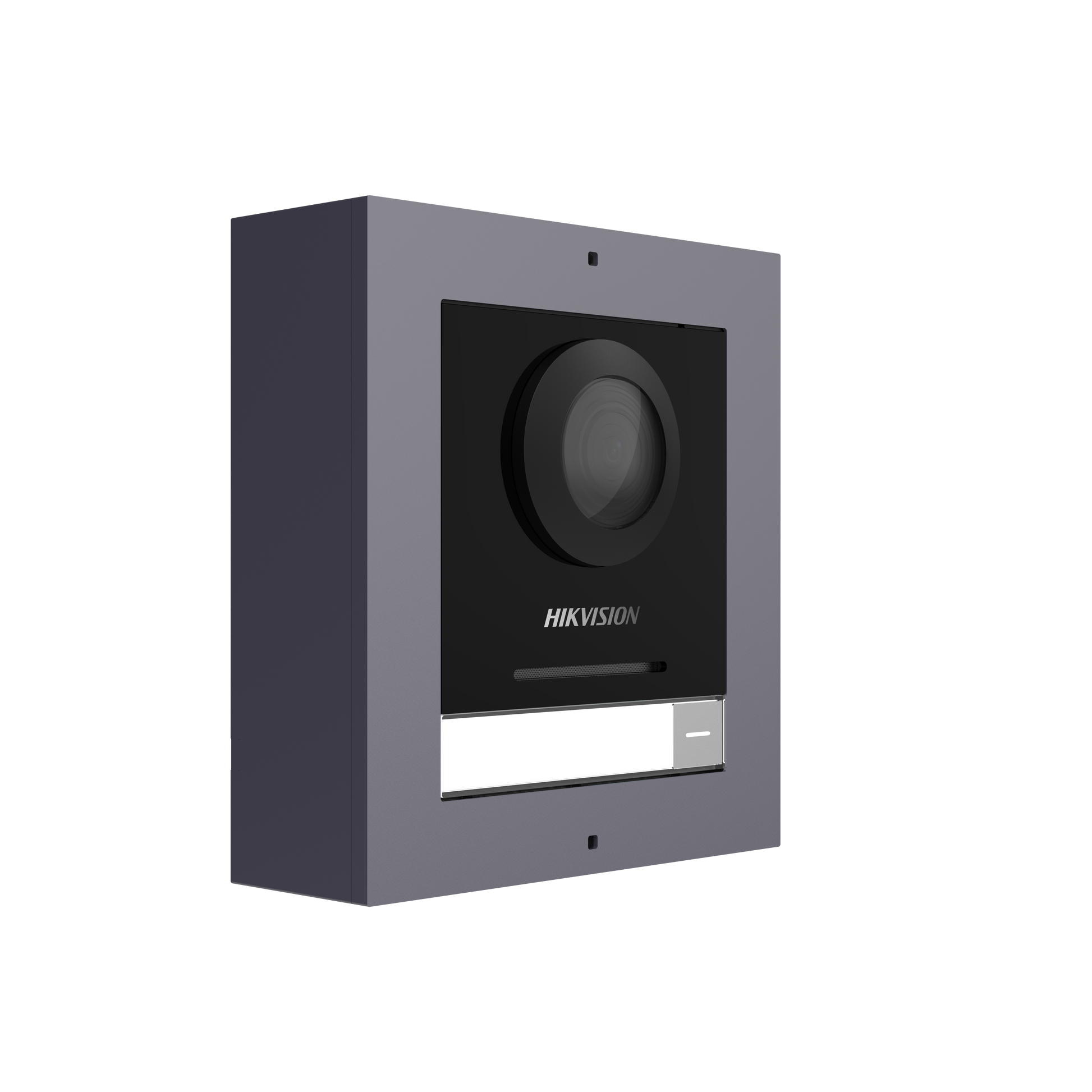

DS-KD8003-IME1 B /Surface x1;

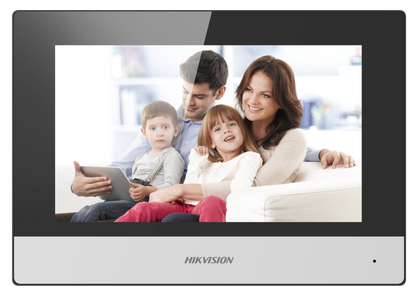

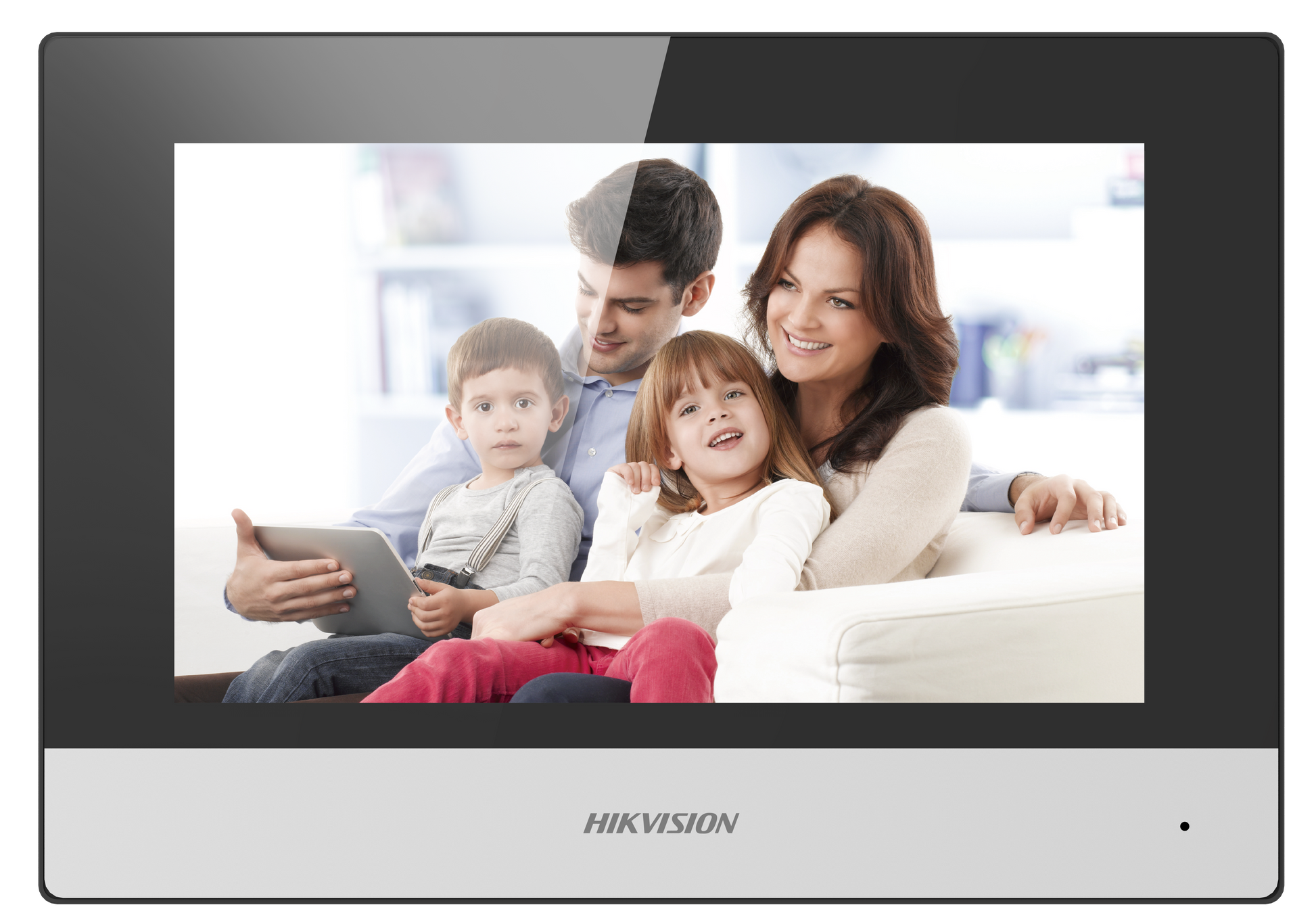

DS-KH6320-WTE1 x1;
4 port standard PoE switch x1;
16GB TF card x1;
Power adapter included in the package European Standard
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KIS602(B) | Intercom Kits
Specifications
- Weight: 683 g (with packaging)355 g (without packaging)
- Processor: Embedded MCU Processor
- Operation system: Embedded Linux Operation System
- Display Resolution: 1024 x 600
- Display Screen: 7-inch colorful TFT screen
- Audio Compression Rate: 64 Kbps
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Ethernet: 10/100 Mbps Self-Adaptive Ethernet
- Network protocol: TCP/IP, RTSP
- I/O input: 4
- I/O output: 2
- Power supply: 12 VDC/PoE (IEEE 802.3af)
- Power consumption: =10 W
- Working temperature: -40° C to +60° C (-40° F to 140° F)
- Working humidity: 10% to 95%
- Dimension (L x W x D): 200 mm x 140 mm x 15.1 mm (7.9" x 5.5" x 0.6")
- IP protection level: IP65
- Memory: 128 MB
- Dimensions (L x W x H): 98 mm x 99.8 mm x 43.9 mm (3.86" x 3.93" x 1.73")
