Hikvision DS-KIS603-P(C) | Intercom Kits
Hikvision DS-KIS603-P(C) | Intercom Kits
- Intercom
- Kits
- IP Kits

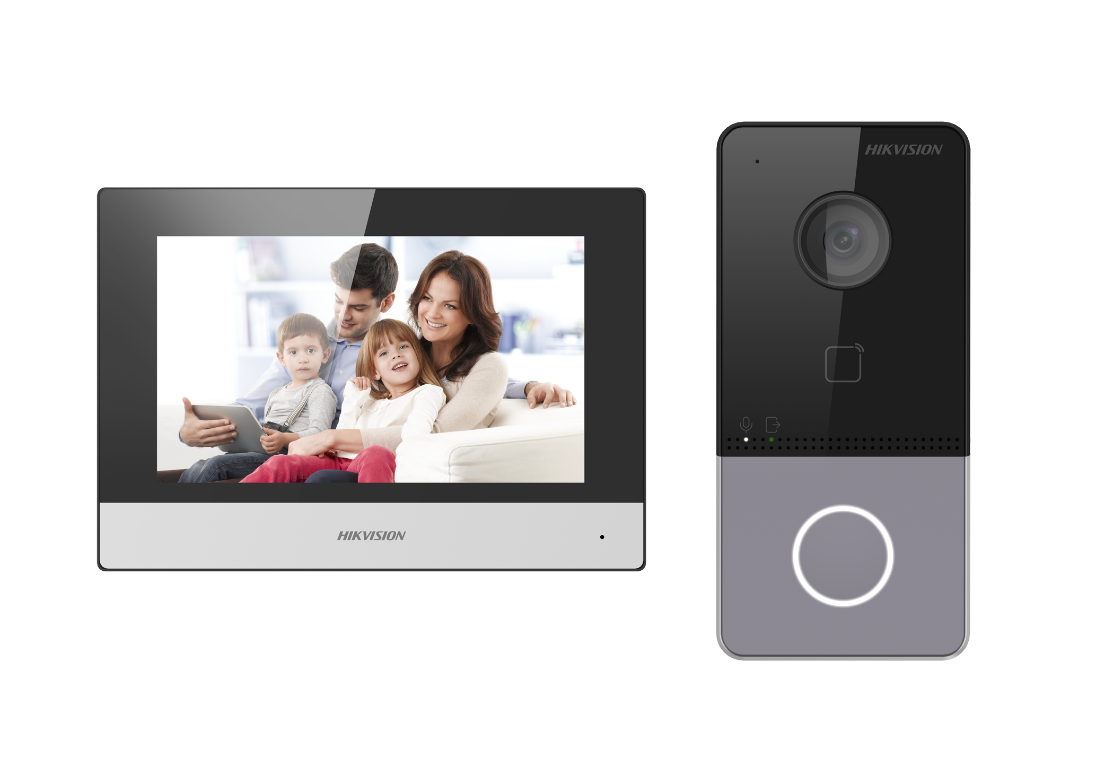

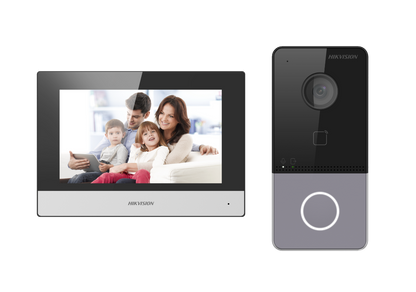

IP video intercom kit for villa or house, only one call button.
DS-KV6113-WPE1 C x1;
DS-KH6320-WTE1 x1;
PSU x2;
Power adapter included in the package European Standard
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KIS603-P(C) | Intercom Kits
Specifications
- Operation system: Embedded Linux operation system
- Flash: 32 MB
- RAM: 256MB
- Camera: 2MP HD camera
- Night vision: Low illumination IR supplement mode:3 m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view: Horizontal: 131° Vertical: 78°
- Video Compression Standard: H.264; H.265; MJPEG
- Stream: Main stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
- Audio compression Rate: 64 Kbps
- Network protocol: TCP/IP, RTSP, IPV6,ONVIF
- Wired network: 10/100 Mbps Ethernet
- RS-485: 1
- Alarm input: 4
- Debugging port: 1
- TAMPER switch: 1
- Power consumption: ＜ 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 138 mm × 65 mm × 27 mm
- Installation: Surface mounting
- Protection level: IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE 12 VDC
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
- Display screen: 7-inch colorful TFT screen
- Display resolution: 1024 × 600
- Operation method: Capacitive touch screen
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Wired network: 10/100 Mbps self-adaptive
- Wireless network: Wi-Fi 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP
- RS-485: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: 1
- Alarm input: 8-ch alarm inputs
- Relay output: 2
- TF card: Max to 32 G, SD 2.0 or lower version
- Power consumption: ≤ 6 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
