Hikvision DS-KIS702Y | Intercom Kits
Hikvision DS-KIS702Y | Intercom Kits
- Intercom
- Intercom Kits

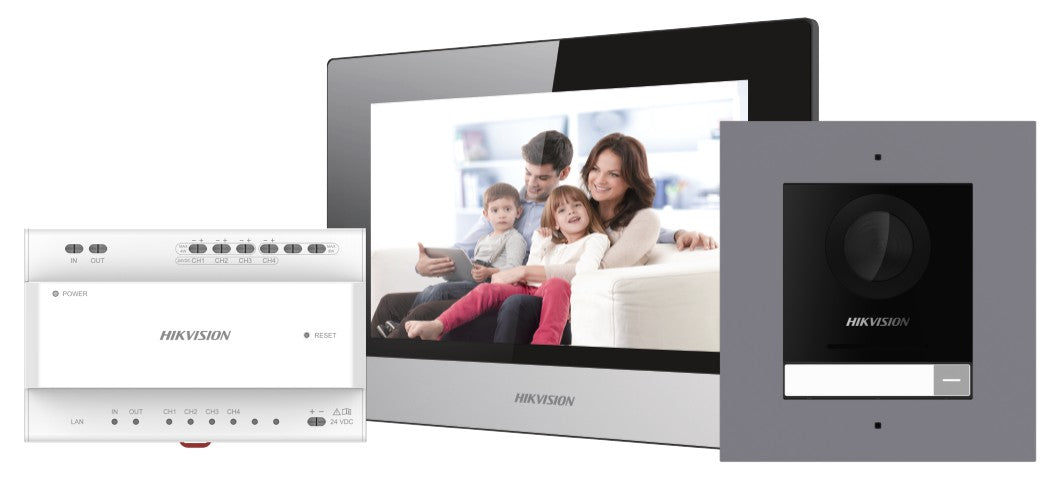

IP video intercom kit for villa or house, only one call button.
DS-KD8003Y-IME2/Surface x 1;
DS-KH6320Y-WTE2 x 1;
DS-KAD704Y x 1;
DS-KAW30-2N x 1;
16GB TF card x1;
Power supply included in the package no Standard, just 2 pin connectors
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KIS702Y | Intercom Kits
Specifications
- Dimension: 100 mm x 98 mm x 42 mm (3.94" x 7.8\" x 1.65")
- Processor: Embedded microcontroller
- Operation system: Embedded Linux operation system
- Operation mode: One touch key
- Resolution: Main stream: 1920 x 1080, (720pconfigurable); sub stream: 720 x 480
- Night vision: Support low light and IR light supplement mode
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view: Horizontal 146°, vertical 82°
- Video Compression Standard: H.264
- Stream: Main stream: 1080p@30fps, 720p@30fps(configurable); sub stream: D1
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U, G.711 A
- Audio compression Rate: 64 Kbps
- Audio intercom: Full-duplex two-way audio intercom
- Debugging port: 1
- RS-485: 1
- Alarm input: 8 zones alarm input
- Lock control: 2 (2 relay, max to 30 VDC, 2 A)
- TAMPER switch: 1
- Power interface: Two-wire
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
- Installation: Wall mounting
- Protection level: IP 65
- Button: 1
- Power input: Powered by KAD704Y or KAD706Y series distributor
- Memory: 128 MB
- Flash: 32 MB
- Display screen: 7-inch TFT LCD
- Display resolution: 1024 x 600
- Operation method: Capacitive touch
- Volume: Local or software control
- Wired network: Two-wire network
- Wireless network: Wi-Fi 802.11b/g/n
- Protocol: TCP/IP, SIP, RTSP
- Network interface: 1 RJ45
- Relay output: 2（30 V Max.）
- TF card: Support, Max. 128 GB
- Power supply: 24 VDC
- Power consumption: CH1 to CH3＜4 W, CH4＜8 W
- Dimensions (W x H x D): 200 mm x 140 mm x 23.6 mm (7.87" x 5.51 x 0.93\")"
- Two-wire interface: 6 (2 for cascading and 4 for devices)
- Signal indicator: 6
- Power indicator: 1
- Reset: 1
