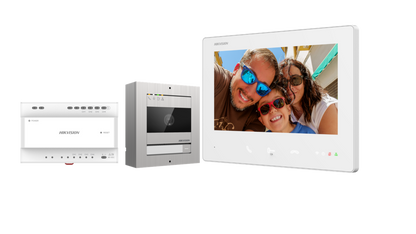

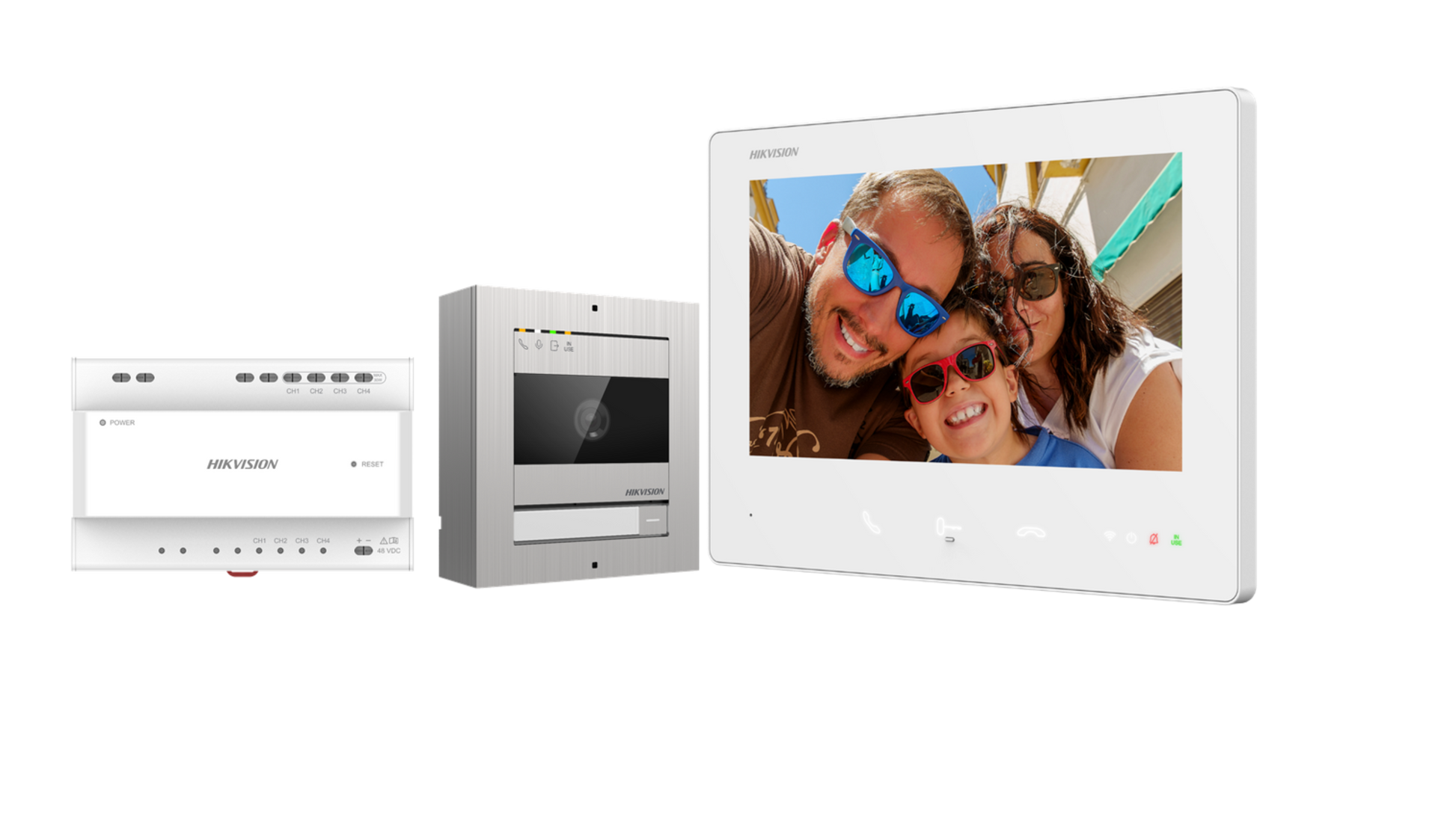

Hikvision DS-KIS704EY | Intercom Kits

Hikvision DS-KIS704EY | Intercom Kits

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • Kits
  • 2-wire Kits

1. Great image quality of 2 MP resolution
2. One-press to call, remote unlocking with App control
3. Real plug&play
4. IP65 water resistant and IK08 vandal resistant entry panel
5. 7-inch touch screen indoor monitor, user friendly interface

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-KIS704EY | Intercom Kits
Login to View Price

Specifications

  • Processor: Embedded Processor
  • ROM: 4 GB
  • RAM: 256 MB
  • Operation system: Embedded Linux operation system
  • Screen size: NA
  • Resolution: NA
  • Type: NA
  • Operation method: NA
  • Supplement light: Supplement light Low illumination, IR supplement lights
  • Resolution: 2MP
  • Lens: 1
  • Wide dynamic range (WDR): Support
  • FOV: Horizontal: 133°, Vertical: 82°
  • Video compression standard: Main stream: H.264 Sub-stream: H.264
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Volume adjustment: Adjustable
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kps
  • Audio quality: Noise suppression and echo cancellation
  • Linked indoor station capacity: Max.99
  • Sub door station capacity: 16
  • Wireless network: 10/100 Mbps self-adaptive through 2-wire interface
  • Wi-Fi: Only AP mode for configuration
  • RS-485: 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Exit button: 1
  • Door contact input: 1
  • Alarm input: 2（supports Exit button or Door contact input）
  • Power supply input: 12VDC input
  • TAMPER: 1
  • Debugging port: 1
  • Two-Wire: 1
  • DIP Switch: 6 decimal DIP switch
  • Button: 0-2（Flexible adjustment）
  • Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
  • Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Power consumption: ≤ 6 W
  • Working temperature: -40° C to 60° C (-22° F to 140° F)
  • Working humidity: 10% to 90%
  • Application environment: Outdoor
  • Dimension (W × H × D): 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Protective level: IP65 IK08
  • Installation: Surface mounting
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
  • Operation system: Embedded Linux operation system
  • RAM: 32 MB
  • ROM: 128 MB
  • Processor: Embedded processor
  • Type: Colorful TFT screen
  • Operatiing method: Capacitive touch screen
  • Screen size: 7-inch
  • Video compression standard: /
  • Resolution: 1024 × 600
  • Lens: /
  • Wide dynamic range (WDR): /
  • FOV: /
  • Audio input: 1 Built-in omnidirectional microphone
  • Audio output: 1 Buit-in loudspeaker
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kbps
  • Notice capacity: 200 captured pictures (with TF card)
  • Linked indoor extensions capacity: 3
  • Wired network: Two-wire network
  • Wireless network: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Network protocol: TCP/IP, SIP, RTSP
  • RS-485: /
  • Alarm output: /
  • Alarm input: 1
  • Power supply input: 48V，powered by DS-KAD7060EY or DS-KAD7061EY
  • TAMPER: /
  • TF card: Max to 128 G, SD 2.0 or lower version
  • USB: /
  • Two-Wire: 2, 1 for input 1 for output
  • DIP switch: 5 decimal DIP switch and 4 binary DIP switch
  • Power supply: 48V，Powered by DS-KAD7060EY or DS-KAD7061EY
  • Button: 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
  • Power consumption: ≤ 5 W
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
  • Installation: Surface mounting
  • Application environment: Indoor
  • Protective level: /
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
  • Power interface: 48VDC
  • Two-wire interface: CH1-CH4 for Door station and Indoor station
  • Power supply: 48VDC
  • Power consumption: CH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
  • Working temperature: -10 °C to 5 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
  • Installation: DIN rail installation
  • Indicators: 4 Signal indicators; 1 Power indicator

Door station/System parameters
  • Processor: Embedded Processor
  • ROM: 4 GB
  • RAM: 256 MB
  • Operation system: Embedded Linux operation system

Door station/Screen parameters
  • Screen size: NA
  • Resolution: NA
  • Type: NA
  • Operation method: NA

Door station/Video parameters
  • Supplement light: Supplement light Low illumination, IR supplement lights
  • Resolution: 2MP
  • Lens: 1
  • Wide dynamic range (WDR): Support
  • FOV: Horizontal: 133°, Vertical: 82°
  • Video compression standard: Main stream: H.264 Sub-stream: H.264

Door station/Audio parameters
  • Audio input: Built-in omnidirectional microphone
  • Audio output: Built-in loudspeaker
  • Volume adjustment: Adjustable
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kps
  • Audio quality: Noise suppression and echo cancellation

Door station/Capacity parameters
  • Linked indoor station capacity: Max.99
  • Sub door station capacity: 16

Door station/Network parameters
  • Wireless network: 10/100 Mbps self-adaptive through 2-wire interface
  • Wi-Fi: Only AP mode for configuration

Door station/Device interfaces
  • RS-485: 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
  • Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Exit button: 1
  • Door contact input: 1
  • Alarm input: 2（supports Exit button or Door contact input）
  • Power supply input: 12VDC input
  • TAMPER: 1
  • Debugging port: 1
  • Two-Wire: 1
  • DIP Switch: 6 decimal DIP switch

Door station/General
  • Button: 0-2（Flexible adjustment）
  • Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
  • Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • Power consumption: ≤ 6 W
  • Working temperature: -40° C to 60° C (-22° F to 140° F)
  • Working humidity: 10% to 90%
  • Application environment: Outdoor
  • Dimension (W × H × D): 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
  • Protective level: IP65 IK08
  • Installation: Surface mounting
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Indoor station/System parameters
  • Operation system: Embedded Linux operation system
  • RAM: 32 MB
  • ROM: 128 MB
  • Processor: Embedded processor

Indoor station/Display parameters
  • Type: Colorful TFT screen
  • Operatiing method: Capacitive touch screen
  • Screen size: 7-inch

Indoor station/Video parameter
  • Video compression standard: /
  • Resolution: 1024 × 600
  • Lens: /
  • Wide dynamic range (WDR): /
  • FOV: /

Indoor station/Audio parameters
  • Audio input: 1 Built-in omnidirectional microphone
  • Audio output: 1 Buit-in loudspeaker
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Audio compression standard: G.711 U, G.711 A
  • Audio compression bitrate: 64 Kbps

Indoor station/Capacity parameters
  • Notice capacity: 200 captured pictures (with TF card)
  • Linked indoor extensions capacity: 3

Indoor station/Network parameters
  • Wired network: Two-wire network
  • Wireless network: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • Network protocol: TCP/IP, SIP, RTSP

Indoor station/Device interfaces
  • RS-485: /
  • Alarm output: /
  • Alarm input: 1
  • Power supply input: 48V，powered by DS-KAD7060EY or DS-KAD7061EY
  • TAMPER: /
  • TF card: Max to 128 G, SD 2.0 or lower version
  • USB: /
  • Two-Wire: 2, 1 for input 1 for output
  • DIP switch: 5 decimal DIP switch and 4 binary DIP switch

Indoor station/General
  • Power supply: 48V，Powered by DS-KAD7060EY or DS-KAD7061EY
  • Button: 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
  • Power consumption: ≤ 5 W
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
  • Installation: Surface mounting
  • Application environment: Indoor
  • Protective level: /
  • Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese

Video Audio Distributor/Interfaces
  • Power interface: 48VDC
  • Two-wire interface: CH1-CH4 for Door station and Indoor station

Video Audio Distributor/General
  • Power supply: 48VDC
  • Power consumption: CH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
  • Working temperature: -10 °C to 5 °C (14 °F to 131 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
  • Installation: DIN rail installation
  • Indicators: 4 Signal indicators; 1 Power indicator
