Hikvision DS-KIS705EY/2Monitors | Intercom Kits
Hikvision DS-KIS705EY/2Monitors | Intercom Kits
- Intercom
- Kits
- 2-wire Kits

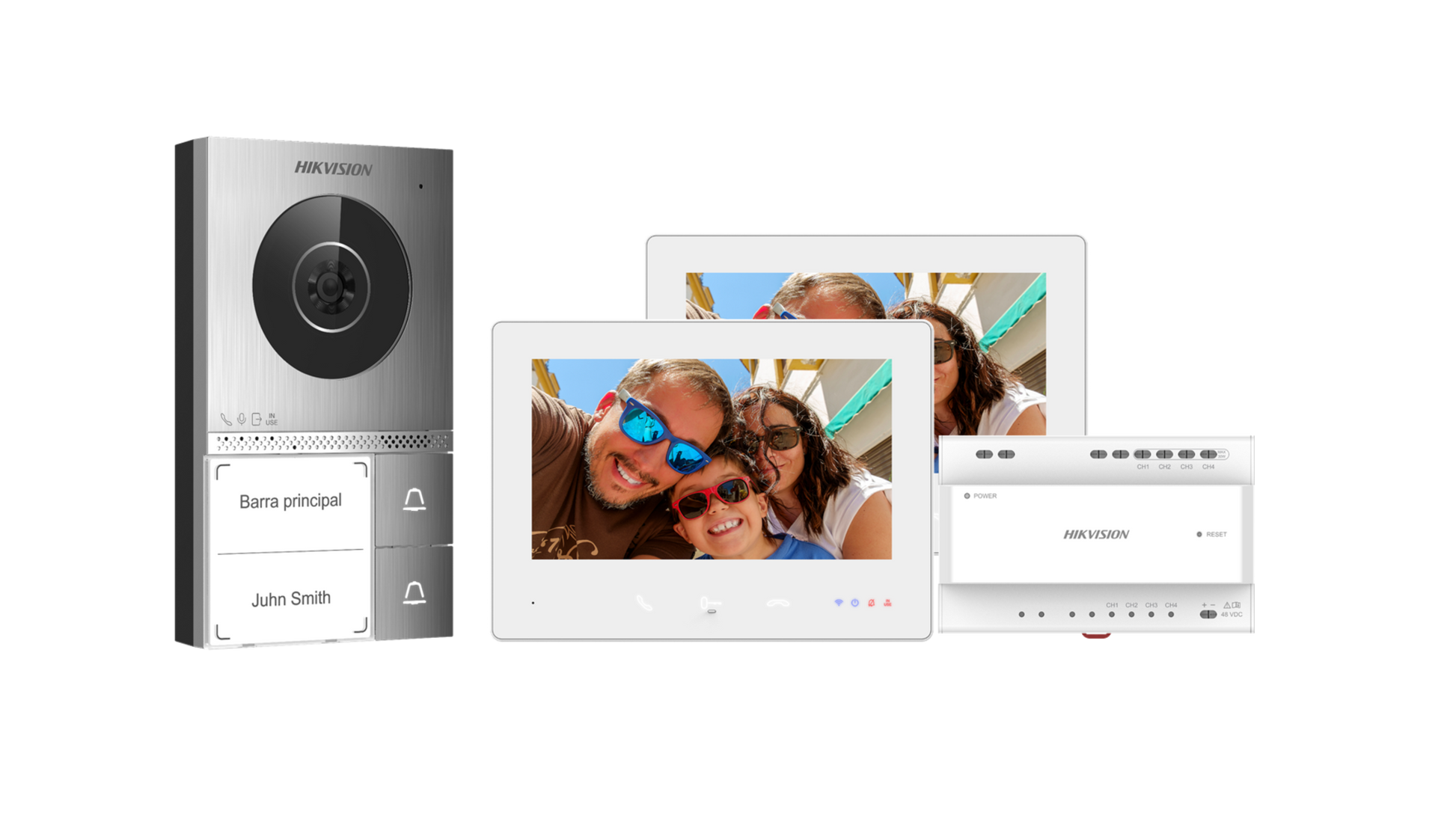

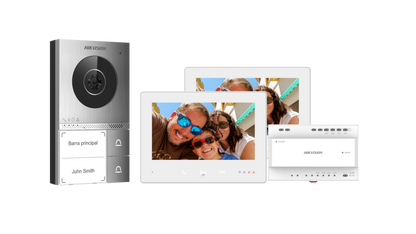

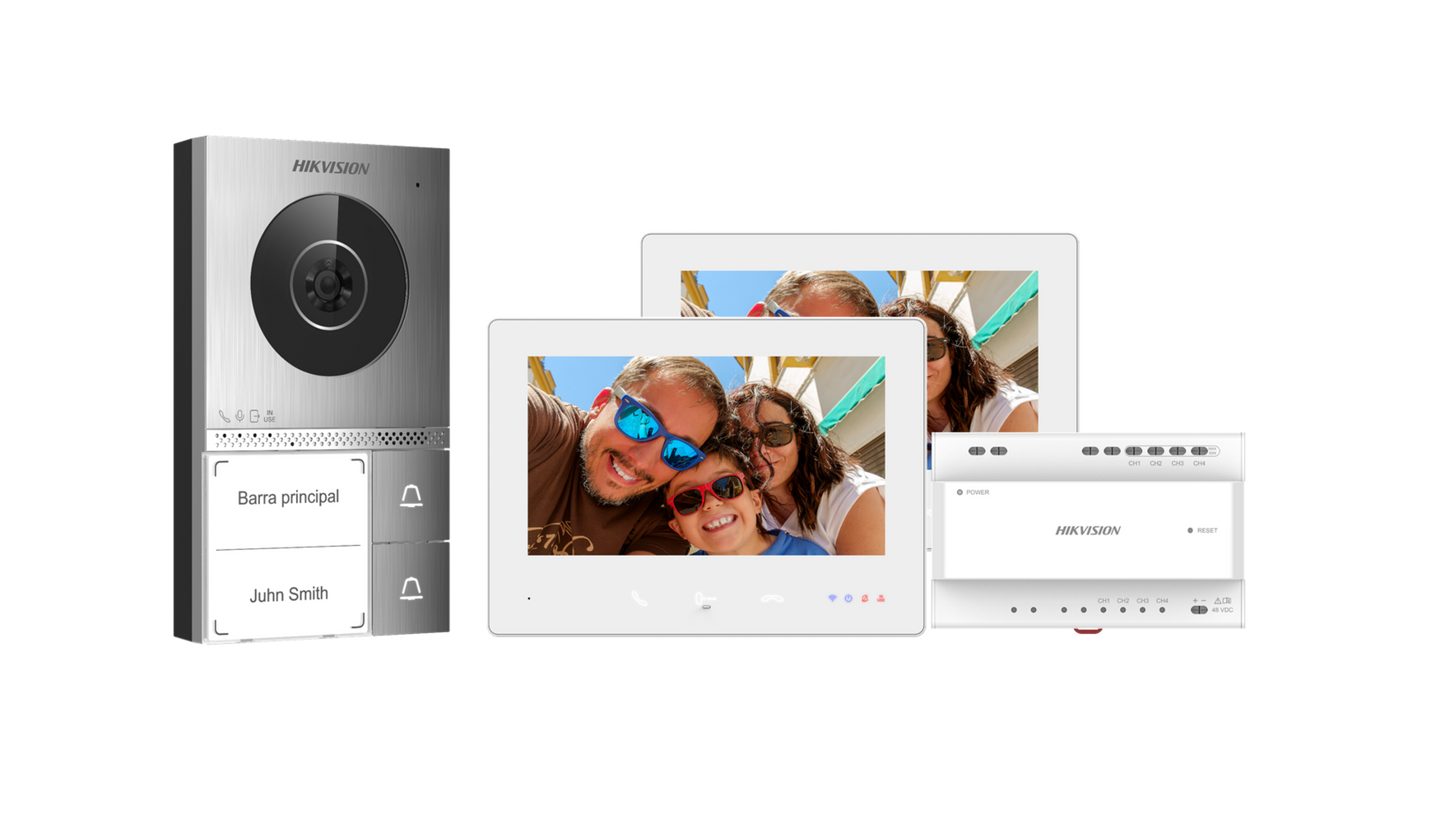

2 wire HD villa kit, real plug & play kit
DS-KV7413EY-IME2 with 2 call buttons x 1;
DS-KH7300EY-WTE2/White x 2;
DS-KAD7040EY x 1;
32GB TF card x2;
36W DIN RAIL PSU x1;
Power supply included in the package no Standard, just 2 pin connectors
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-KIS705EY/2Monitors | Intercom Kits
Specifications
- Processor: Embedded Processor
- ROM: 4 GB
- RAM: 256 MB
- Operation system: Embedded Linux operation system
- Screen size: NA
- Resolution: NA
- Type: NA
- Operation method: NA
- Supplement light: Supplement light Low illumination, IR supplement lights
- Resolution: 2MP
- Lens: 1
- Wide dynamic range (WDR): Support
- FOV: Horizontal: 135°, Vertical: 85°
- Video compression standard: H.264
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Volume adjustment: Adjustable
- Audio compression standard: G.711 U, G.726
- Audio compression bitrate: 64 Kps
- Audio quality: Noise suppression and echo cancellation
- Linked indoor station capacity: Max.400
- Sub door station capacity: 16
- Wireless network: 10/100 Mbps self-adaptive through 2-wire interface
- Wi-Fi: Only AP mode for configuration
- RS-485: 1
- Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Exit button: 1
- Door contact input: 1
- Alarm input: 2（supports Exit button or Door contact input）
- Power supply input: 12VDC input
- TAMPER: 1
- Debugging port: 1
- Two-Wire: 1
- DIP Switch: 6 decimal DIP switch
- Button: 1-4（Call button）
- Indicator: 4 LED lights(Opening door、Calling、Intercom、In use）
- Power supply: 48V，Powered by distributor DS-KAD7060EY or 12VDC
- Power consumption: ≤ 6 W
- Working temperature: -40° C to 60° C (-22° F to 140° F)
- Working humidity: 10% to 90%
- Application environment: Outdoor
- Dimension (W × H × D): 165mm × 95 mm × 25 mm(6.5" × 3.7" × 0.98")
- Installation: Surface mounting
- Protective level: IP65 IK08
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Operation system: Embedded Linux operation system
- RAM: 32 MB
- ROM: 128 MB
- Processor: Embedded processor
- Type: Colorful TFT screen
- Operatiing method: Capacitive touch screen
- Screen size: 7-inch
- Video compression standard: /
- Resolution: 1024 × 600
- Lens: /
- Wide dynamic range (WDR): /
- FOV: /
- Audio input: 1 Built-in omnidirectional microphone
- Audio output: 1 Buit-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
- Audio compression standard: G.711 U, G.711 A
- Audio compression bitrate: 64 Kbps
- Notice capacity: 200 captured pictures (with TF card)
- Linked indoor extensions capacity: 3
- Wired network: Two-wire network
- Wireless network: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network protocol: TCP/IP, SIP, RTSP
- RS-485: /
- Alarm output: /
- Alarm input: 1
- Power supply input: 48V，powered by DS-KAD7060EY or DS-KAD7061EY
- TAMPER: /
- TF card: Max to 128 G, SD 2.0 or lower version
- USB: /
- Two-Wire: 2, 1 for input 1 for output
- DIP switch: 5 decimal DIP switch and 4 binary DIP switch
- Button: 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- Power supply: 48V，Powered by DS-KAD7060EY or DS-KAD7061EY
- Power consumption: ≤ 5 W
- Working humidity: 10% to 90% (no-condensing)
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Dimension (W × H × D): 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
- Installation: Surface mounting
- Application environment: Indoor
- Protective level: /
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Power interface: 48VDC
- Two-wire interface: CH1-CH4 for Door station and Indoor station
- Power supply: 48VDC
- Power consumption: CH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
- Working temperature: -10 °C to 5 °C (14 °F to 131 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
- Installation: DIN rail installation
- Indicators: 4 Signal indicators; 1 Power indicator
